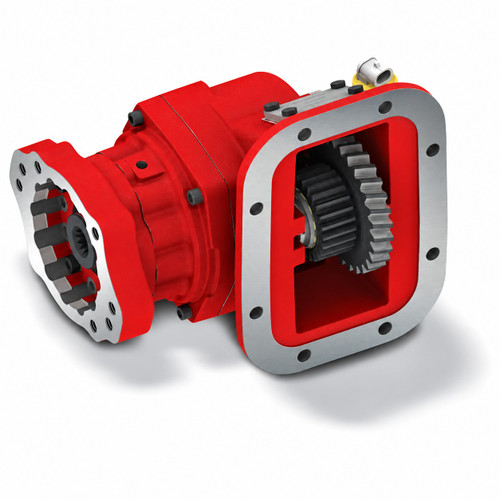

The Chelsea 282XSDAX-V5RF is a medium-duty hot shift Power Take-Off from the Chelsea 282 Series. The 282 Series supports intermittent torque ratings from 201 to 300 lb-ft (401-500 Nm) and mounts via an 8-bolt pattern. Shift options include pneumatic and PowerShift (pneumatic/hydraulic), with output shaft configurations covering 1-1/4" round shaft with 5/16" key and 1" round shaft with 1/4" key. The series delivers up to 57 HP at 1,000 RPM and is applied across aerial, construction, towing and recovery, water truck, and fuel oil delivery markets. Nine speed ratios and 18 shift options are available across the 282 family.
Features
8-bolt mounting pattern
Pneumatic and PowerShift (pneumatic/hydraulic) shift options
Intermittent torque: 201-300 lb-ft (401-500 Nm)
Output shaft: 1-1/4" round with 5/16" key or 1" round with 1/4" key
Integral air valve with rotatable flanges
Wet-Spline option for extended PTO and pump shaft service life
Tech Specs
- Mounting Type: 8-Bolt
- Shift Type: Pneumatic, PowerShift (Pneumatic/Hydraulic)
- Intermittent Torque: 201-300 lb-ft (401-500 Nm)
- Output Shaft: 1-1/4" Round, 5/16" Key; or 1" Round, 1/4" Key
- Shaft Power: 29 HP (500 RPM), 57 HP (1,000 RPM) / 21 kW (500 RPM), 43 kW (1,000 RPM)
- Output Power: 41-50 kW / 56+ HP
- Lubricant Options: Standard Lube, Pressure Lube, Wet Spline
Additional Information
The Chelsea 282 Series consolidates features of the 238 Series with upgrades throughout the drivetrain. All moving parts are rated to handle up to 300 lb-ft continuously. The series offers nine speed ratios and 18 shift configurations, making it adaptable across a wide range of medium-duty truck applications including aerial platforms, construction equipment, towing and recovery, water trucks, and home fuel oil delivery. A Smart Start option is available for high-torque start-up demands. Direct-mount outputs support the optional Wet-Spline configuration; driveshaft outputs include a positive stop to prevent seal damage from driveshaft yokes. Part number 282XSDAX-V5RF is also referenced as SP282XSDAX-V5RF.Parts Manual: Chelsea 282 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
