Chelsea PTO 236 Series Parts Manual

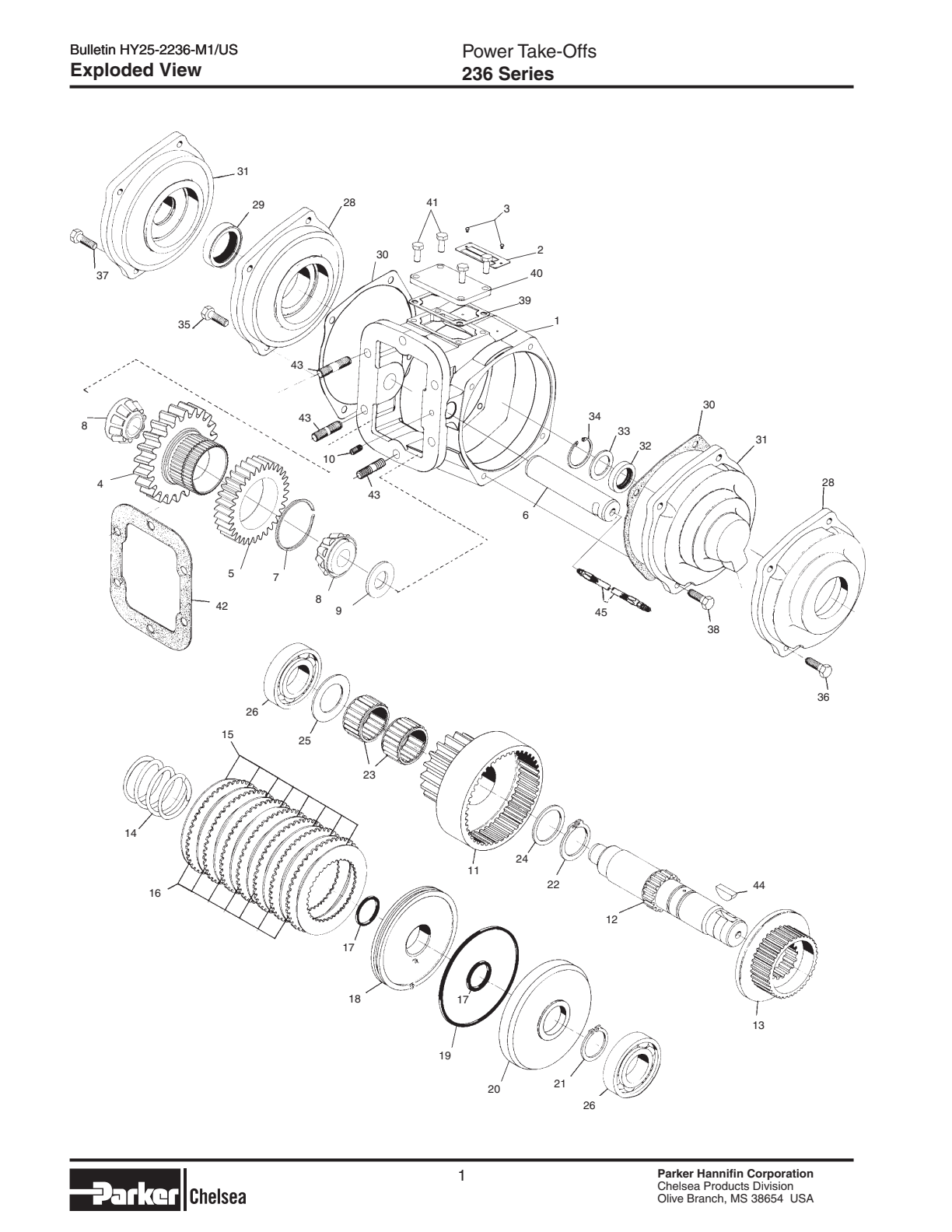

Parts List 236 Series Bill of Materials
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 1P588 | Housing Standard Mount (“x” & “g”) , | .1 or | $616.59 | Add to Cart | |
| 1P593 | Housing Deep Mount (“z”) , | .1 or | $678.36 | Add to Cart | ||
| 1P594X | Housing Dowel Pin Mount (“d”) , | 1 | — | Call for availability | ||
| 2 | 68P2 | Name Plate | 1 | $2.65 | Add to Cart | |
| 3 | 378422 | Drive Screw | 2 | $11.52 | Add to Cart | |
| 4 | SEECHARTPG5 | Gear Input | 1 | — | Call for availability | |
| 5 | SEECHARTPG5 | Gear Input Ratio | 1 | — | Call for availability | |
| 6 | 9P60 | Idler Shaft (standard No Pressure Lube) | .1 or | $61.76 | Add to Cart | |
| 9P71 | Idler Shaft (pressure Lube) | 1 | $262.89 | Add to Cart | ||
| 7 | 379522 | Lock Ring | 1 | $5.76 | Add to Cart | |
| 8 | 550439 | Bearing Cone | 2 | $51.63 | Add to Cart | |
| 9 | 14P742 | Input Gear Spacer (.1 15 .1 17) | .A.R. | $38.26 | Add to Cart | |
| 14P743 | Input Gear Spacer (.1 18 .120) | .A.R. | $50.79 | Add to Cart | ||
| 14P744 | Input Gear Spacer (.121 .123) | .A.R. | $54.63 | Add to Cart | ||
| 14P745 | Input Gear Spacer (.124 .126) | .A.R. | $16.83 | Add to Cart | ||
| 10 | 3784527 | Set Screw (.250"-20 X .500") “x”, “g” & “d” Mounting | .1 or | $4.37 | Add to Cart | |
| 3784524 | Set Screw (.250"-20 X .312") “z” Mounting | 1 | $3.26 | Add to Cart | ||
| SEECHARTPG5 | Gear Output. | 1 | — | Call for availability | ||
| SEECHARTPG8 | Driveshaft And Clutch Assembly (includes Items 12 Thru 21) | 1 | — | Call for availability | ||
| 3289261X | “xd” Output/ass’y 4 & 6 | $1,640.35 | Add to Cart | |||
| 3289262X | “xd” Output/ass’y 3 & 5 | $1,167.87 | Add to Cart | |||
| 3289263X | “xk”, “xp” Output/ass’y 4 & 6 | $1,331.76 | Add to Cart | |||
| 3289264X | “xk”, “xp” Output/ass’y 3 & 5 | $1,319.67 | Add to Cart | |||
| 3289265X | “xr”, “ra”, “rb” Output/ass’y 3 & 5 | $1,603.67 | Add to Cart | |||
| 3289266X | “xx” Output/ass’y 3 & 5 | $1,008.66 | Add to Cart | |||
| 3289267X | “xx” Output/ass’y 4 & 6 | $922.91 | Add to Cart | |||
| 3289268X | “xy” Output/ass’y 3 & 5 | — | Call for availability | |||
| 3289269X | “af” Output/ass’y 3 & 5 | $796.79 | Add to Cart | |||
| 32892610X | “af” Output/ass’y 4 & 6 | $1,173.84 | Add to Cart | |||
| 32892611X | “rf” Output/ass’y 3 & 5 | $833.73 | Add to Cart | |||
| 32892612X | “xe” Output/ass’y 3 & 5 | — | No longer available — call for replacement | |||
| 32892613X | “bd” Output/ass’y 3 & 5 | $680.44 | Add to Cart | |||
| 12 | 3P677 | Output Shaft (“xd” Ass’y 4 & 6) | .1 or | $689.19 | Add to Cart | |
| 3P679 | Output Shaft (“xd” Ass’y 3 & 5) | .1 or | $902.75 | Add to Cart | ||
| 3P678 | Output Shaft (“xk”, “xp” Ass’y 4 & 6) | .1 or | $807.56 | Add to Cart | ||
| 3P686 | Output Shaft (“xk”, “xp” Ass’y 3 & 5) | .1 or | $677.03 | Add to Cart | ||
| 3P703 | Output Shaft (“xr”, “ra”, “rb” Ass’y 3 & 5) | .1 or | $728.19 | Add to Cart | ||
| 3P787 | Output Shaft (“xx” Ass’y 3 & 5) | .1 or | $447.07 | Add to Cart | ||
| 3P788 | Output Shaft (“xx” Ass’y 4 & 6) | .1 or | — | Call for availability | ||
| 3P825 | Output Shaft (“xy” Ass’y 3 & 5) | .1 or | $720.70 | Add to Cart | ||
| 3P896 | Output Shaft (“af” Ass’y 3 & 5) | .1 or | $597.50 | Add to Cart | ||
| 3P895 | Output Shaft (“xd” Ass’y 4 & 6) | .1 or | — | No longer available — call for replacement | ||
| 3P957 | Output Shaft (“rf” Ass’y 3 & 5) | .1 or | $412.90 | Add to Cart | ||
| 3P964 | Output Shaft (“xe” Ass’y 3 & 5) | .1 or | $1,162.51 | Add to Cart | ||
| 3P970 | Output Shaft (“bd” Ass’y 3 & 5) | 1 | $399.48 | Add to Cart | ||
| 13 | 2P458 | Inner Clutch Gear | 1 | $186.14 | Add to Cart | |
| 14 | 37P39 | Clutch Spring | 1 | $6.55 | Add to Cart | |
| 15 | 379485 | Friction Disc | 8 | $14.45 | Add to Cart | |
| 16 | 379595 | Clutch Plate | 7 | $14.47 | Add to Cart | |
| 17 | 28P244 | O-ring | 2 | $5.03 | Add to Cart | |
| 329179X | Piston Assembly | 1 | $732.68 | Add to Cart | ||
| 18 | 380057 | Piston | 1 | $88.16 | Add to Cart | |
| 19 | 28P178 | O-ring | 1 | $41.94 | Add to Cart | |
| 20 | 379323 | Clutch Back-up Cylinder | 1 | $239.23 | Add to Cart | |
| 21 | 378576 | Snap Ring | 1 | $3.16 | Add to Cart | |
| 22 | 379746 | Lock Ring External | 1 | $5.06 | Add to Cart | |
| 23 | 560918 | Roller Bearing | 2 | $58.36 | Add to Cart | |
| 24 | 14P49 | Spacer | 1 | $12.74 | Add to Cart | |
| 25 | 31P57 | Thrust Washer (output Shaft) All Except “bd” , | .1 or | $6.12 | Add to Cart | |
| 31P113 | Thrust Washer (“bd” Output Shaft) | 1 | $44.53 | Add to Cart | ||
| 26 | 550010 | Ball Bearing A.r. — | 2 | $47.93 | Add to Cart | |
| 21P451 | For 3 & 5 Assembly (“xx”, “xd” & “bd” Outputs) | $178.05 | Add to Cart | |||
| 21P297 | For 4 & 6 Assembly (“xx” & “xd” Outputs) | $494.27 | Add to Cart | |||
| 29 | 28P225 | Oil Seal Output (“xd” & “bd” Output Only) , | .1 or | $19.01 | Add to Cart | |
| 30 | 22P53 | Gasket Bearing Cover Bearing Cover Assembly Closed End | 2 | $6.85 | Add to Cart | |
| 3288061X | For 3 & 5 Assembly (includes Items 31 Thru 34) | $374.70 | Add to Cart | |||
| 3288071X | For 4 & 6 Assembly (includes Items 31 Thru 34) | $356.99 | Add to Cart | |||
| 3288073X | For 3 & 5 Assembly “bd” (includes Items 31 Thru 34) Bearing Cover Closed End | 1 | $262.73 | Add to Cart | ||
| 21P295 | For 3 & 5 Assembly | $206.63 | Add to Cart | |||
| 21P449 | For 4 & 6 Assembly | $266.41 | Add to Cart | |||
| 32 | 28P179 | Oil Seal | 1 | $88.26 | Add to Cart | |
| 33 | 378811 | Back-up Plate | 1 | $5.21 | Add to Cart | |
| 34 | 378849 | Snap Ring | 1 | $2.12 | Add to Cart | |
| 35 | 37843010 | Capscrew Hex Head .3125" 18 X 1 .000" (ass’y 4 & 6, Standard Shaft) | .4 or | $1.76 | Add to Cart | |
| 36 | 37843012 | Capscrew Hex Head .3125" 18 X 1 .250" (ass’y 3 & 5, Standard Shaft) | .4 or | $1.83 | Add to Cart | |
| 37 | 37843010 | Capscrew Hex Head .312" 18 X 1 .000" (closed Ass’y 3 & 5) Except “bd” - - , | .4 or | $1.76 | Add to Cart | |
| 38 | 37843012 | Capscrew Hex Head .312" 18 X 1 .250" (closed Ass’y 4 & 6, “bd” 3 & 5) - - , | 4 | $1.83 | Add to Cart | |
| 39 | 35P93 | Gasket, Cover Plate (no E .o.c.) | 1 | $11.55 | Add to Cart | |
| 40 | 34P133 | Cover Plate (no E .o.c.) | 1 | $35.11 | Add to Cart | |
| 41 | 3784296 | Hex Capscrew .250"-20 X .625" | 4 | $3.62 | Add to Cart | |
| 42 | 3289506X | Mounting Gasket And Installation Instructions | $29.21 | Add to Cart | ||
| 35P91 | Mounting Gasket (.010") | 2 | $4.09 | Add to Cart | ||
| 35P92 | Mounting Gasket (.020") | 2 | $4.35 | Add to Cart | ||
| 328946X | Caution Label Kit | 1 | — | No longer available — call for replacement | ||
| 71701X | Mounting Parts Kit (standard) | .1 or | $21.76 | Add to Cart | ||
| 43 | 37942314 | Stud .375"-16 & .375-24 X 1 .750" , | 6 | — | Call for availability | |
| 379744 | Flange Nut, .375"-24" | 6 | $1.63 | Add to Cart | ||
| 717072X | Mounting Parts Kit (metric) | .1 or | $53.10 | Add to Cart | ||
| 32817095X | Mounting Parts Kit (deep Mount) | 1 | $32.18 | Add to Cart | ||
| 44 | 50000729 | Woodruff Key (“xd” & “bd” Outputs Only) | 1 | $3.11 | Add to Cart | |
| 45 | 328075X | Pressure Lube Hose | 1 | $150.56 | Add to Cart | |
| 328748X | Pump Mounting Kit (“xr” Output Only) | 1 | $65.88 | Add to Cart | ||
| 32894824X | Sealant And Installation Instructions (“d” Mount Only) Service Kits | 1 | — | Call for availability | ||
| 3290437X | Bearing Seal Gasket & Clutch Pack Replacement Kit , , | 1 | $501.12 | Add to Cart | ||
| 3290438X | Bearing Seal Gasket, Piston And Clutch Pack Kit , , | 1 | $1,106.13 | Add to Cart | ||
| 3290433X | Clutch Repair Kit. | 1 | $734.18 | Add to Cart | ||
| 32859417X | Bearing And Spacer Kit, “x” Lube (“x”, “d”, “g” & “k” Housing) | 1 | $196.94 | Add to Cart | ||
| 32859418X | Bearing And Spacer Kit, “p” Lube (“x”, “d”, “g” & “k” Housing) | 1 | $243.52 | Add to Cart | ||
| 32859419X | Bearing And Spacer Kit, “x” Lube (“z”, “l” Housings) | 1 | — | No longer available — call for replacement | ||
| 32859420X | Bearing And Spacer Kit, “p” Lube (“z”, “l” Housings) | 1 | — | No longer available — call for replacement | ||
| 3290439X | Retrofit Kit, “xd” To “bd” 3 & 5 Ass’y | 1 | $1,154.59 | Add to Cart | ||
| 32904311X | Overhaul Kit, “bd” 3 & 5 Ass’y (brake Section Only) | 1 | $978.00 | Add to Cart | ||
| 32904313X | Gasket & Seal Kit, “bd” Option | 1 | $137.02 | Add to Cart |
236 Series Model Number Designation and Assembly Arrangements
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 602015291 | 4.420" [1 12.27] 4.420" 4 5 Of Shaft “bd” Output Option Is 6.020" For All Arrangements. | [1 12.27] | — | Call for availability | ||
| D2847 | Q 38/37 Rb = Rotatable Sae = | “B” 4 Bolt* | — | Call for availability | ||
| K3242 | U 40/34 Rf = Rotatable Sae = | “B” 2 Bolt | — | Call for availability |
236 Series Gear Charts
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 5P1001 | Spur 19 236**HD 5-P-1 189 Right Hand | 25 | $1,260.77 | Add to Cart | ||
| 5P1004 | Spur 22 236**HF 5-P-1 191 Right Hand | 17 | $244.88 | Add to Cart | ||
| 5P1006 | Left Hand 21 236**HG 5-P-1 192 Right Hand | 19 | $368.61 | Add to Cart | ||
| 5P1008 | Left Hand 21 236**HH 5-P-1 193 Right Hand | 28 | $535.77 | Add to Cart | ||
| 5P1010 | Left Hand 22 236**HL 5-P-1 196 Right Hand | 22 | $606.90 | Add to Cart | ||
| 5P1015 | Left Hand 23 236**HM 5-P-1 197 Right Hand | 20 | $321.54 | Add to Cart | ||
| 5P1020 | Left Hand 22 236**HR 5-P-1201 Right Hand | 26 | $520.00 | Add to Cart | ||
| 5P1022 | Right Hand 26 236**HS 5-P-1202 Right Hand | 26 | $539.57 | Add to Cart | ||
| 5P1023 | Left Hand 25 236**HY 5-P-1237 Left Hand | 26 | $566.00 | Add to Cart | ||
| 5P1024 | Right Hand 26 236**JA 5-P-1243 Left Hand | 27 | — | No longer available — call for replacement | ||
| 5P1025 | Left Hand 26 236**JC 5-P-1247 Right Hand | 27 | $474.18 | Add to Cart | ||
| 5P1029 | Left Hand 25 236**JG 5-P-1256 Left Hand | 28 | — | No longer available — call for replacement | ||
| 5P1037 | Spur 23 236**JH 5-P-1257 Left Hand | 29 | $419.96 | Add to Cart | ||
| 5P1038 | Spur 39 236**JK 5-P-1261 Left Hand | 24 | — | Call for availability | ||
| 5P1045 | Left Hand 17 236**JL 5-P-1262 Right Hand | 24 | — | No longer available — call for replacement | ||
| 5P1046 | Left Hand 19 236**JM 5-P-1263 Left Hand | 22 | $342.28 | Add to Cart | ||
| 5P1050 | Left Hand 28 236**JN 5-P-1264 Right Hand | 22 | $480.56 | Add to Cart | ||
| 5P1059 | Left Hand 22 236**JP 5-P-1268 Right Hand | 33 | $271.87 | Add to Cart | ||
| 5P1060 | Spur 40 236**JS 5-P-1310 Left Hand | 20 | $473.37 | Add to Cart | ||
| 5P1061 | Left Hand 20 236**JU 5-P-1316 Left Hand | 25 | $384.70 | Add to Cart | ||
| 5P1070 | Left Hand 26 236**JW 5-P-1319 Left Hand | 23 | $430.19 | Add to Cart | ||
| 5P1150 | Left Hand 26 236**JY 5-P-1312 Right Hand | 20 | $356.85 | Add to Cart | ||
| 5P1184 | Right Hand 21 236**KA 5-P-1318 Right Hand | 25 | $798.34 | Add to Cart | ||
| 5P1186 | Right Hand 22 236**KB 5-P-1321 Right Hand | 23 | $311.75 | Add to Cart | ||
| 5P1187 | Right Hand 23 236**KX 5-P-141 1 Left Hand | 26 | $355.29 | Add to Cart | ||
| 5P1378 | 28 236*D 2-P-606 | 47 | — | Call for availability | ||
| 5P1379 | 32 236*K 2-P-638 | 42 | $199.90 | Add to Cart | ||
| 5P1380 | 38 236*Q 2-P-639 | 37 | — | Call for availability | ||
| 5P1381 | 40 236*U 2-P-810 | 34 | — | Call for availability |
P .T.O ./Combo Valve Installation Sketch, 236 Series (SK-429 Rev A)
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 6LTA | R ” T O R | e m | — | Call for availability | ||
| 9DEID | T C P P O | p e | — | Call for availability | ||
| 37RN | E M N E N U S 2 O P I A 4 C P R 0 9 L E M “ R R O 7 A U E T 3 M D F T 2 C To I H 4 E S 0 N N 9 7 O 3 C | d t s | — | Call for availability | ||
| 2240E | 4 - L Y | t D s | — | Call for availability | ||
| 119LA | 4 0 N R O 0 9 " 4 R O 2 T C 7 7 / 2 T C 4 E 2 3 1 4 E 0 N . 0 N 9 N O 9 N O 3 7 C 3 7 C | l e d | — | Call for availability | ||
| 225S | S W O R A R F O | y | — | Call for availability | ||
| IKOR0 | N O I T C | n | — | Call for availability | ||
| O4RUS | E | n t s | — | Call for availability | ||
| IT14SSN | I D R | n n | — | Call for availability | ||
| LL37PRO | E : T O N I . . Y S L P P. | C n | — | Call for availability | ||
| T6IP | P 0 | r a n : | — | Call for availability | ||
| FI1N | U 4 S 1 | W o | — | Call for availability | ||
| S87E | R 0 - I A 7 | i t | — | Call for availability |
Air Shift Installation Without E .O .C (SK-226)
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 32838850X | 12 Volt Air Shift Installation Kit Without E.o.c. (includes Items 48 Thru 69) | 1 | $765.12 | Add to Cart | ||
| 46 | 3793031 | Solenoid Valve (12 Volt) | 1 | $334.31 | Add to Cart | |
| 47 | 378978 | Indicator Light (12 Volt) | 1 | $25.82 | Add to Cart | |
| 32838851X | 24 Volt Air Shift Installation Kit Without E .o.c. (includes Items 48 Thru 69) | 1 | $757.14 | Add to Cart | ||
| 46 | 3793032 | Solenoid Valve (24 Volt) | 1 | $538.99 | Add to Cart | |
| 47 | 379005 | Indicator Light (24 Volt) | 1 | — | No longer available — call for replacement | |
| 48 | 378414 | Pressure Protection Valve | 1 | $66.97 | Add to Cart | |
| 49 | 379305 | Pressure Switch | 1 | $206.60 | Add to Cart | |
| 50 | 379306 | Fork Connector | 4 | $2.50 | Add to Cart | |
| 51 | 378881 | Rocker Switch | 1 | $111.97 | Add to Cart | |
| 52 | 379336 | Bracket | 1 | $10.11 | Add to Cart | |
| 53 | 379900 | Fuse Holder (10 Amp.) | 1 | $5.99 | Add to Cart | |
| 54 | 3790447 | Nylon Tubing (35 Ft.) | 1 | $41.17 | Superseded by 3790446Add to Cart | |
| 55 | 379253 | Ring Connector. | 1 | $3.11 | Add to Cart | |
| 56 | 37925413 | #14 Gauge Blue Wire W/ Ring Connector. | 1 | $11.68 | Add to Cart | |
| 57 | 37925415 | #14 Gauge Blue Wire W/ Ring And Butt Connector | 1 | — | No longer available — call for replacement | |
| 58 | 3792548 | #14 Gauge Green Wire W/ Fork Connector | 1 | — | No longer available — call for replacement | |
| 32838849X | Air Shift Installation Kit (includes Items 60 Thru 70) | 1 | $151.97 | Add to Cart | ||
| 59 | 378416 | Hex Nipple | 1 | $4.80 | Add to Cart | |
| 60 | 378966 | Street Tee | 2 | $30.15 | Add to Cart | |
| 61 | 379042 | Male Connector | 2 | $5.66 | Add to Cart | |
| 62 | 379043 | Male Elbow | 2 | $7.39 | Add to Cart | |
| 63 | 379106 | Breather Atmospheric 1/8" 27 NPT | 1 | $5.65 | Add to Cart | |
| 64 | 379253 | Ring Connector. | 1 | $3.11 | Add to Cart | |
| 65 | 379257 | Splice Connector | 1 | $2.91 | Add to Cart | |
| 66 | 379258 | Mounting Bracket, Solenoid | 1 | $5.11 | Add to Cart | |
| 67 | 379547 | Pressure Switch | 1 | — | No longer available — call for replacement | |
| 68 | 5003577 | Lockwasher | 2 | $1.07 | Add to Cart | |
| 69 | 5004576 | Mounting Screw | 2 | $1.12 | Add to Cart |
Air Shift Installation with Pilot Valve (SK-246)
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 32838857X | Air Shift Installation Kit (with Pilot Valve) | 1 | — | Call for availability | ||
| 70 | 328863X | Air Valve 2 Position 2 Way | 1 | $167.28 | Superseded by 329648XAdd to Cart | |
| 328931X | Parts Bag Mounting , | 1 | $3.54 | Add to Cart | ||
| 71 | 5003577 | Lockwasher | 4 | $1.07 | Add to Cart | |
| 72 | 5003766 | Hex Nut. | 4 | — | No longer available — call for replacement | |
| 73 | 5004489 | Slotted Screw | 4 | $1.05 | Add to Cart | |
| 74 | 378414 | Pressure Protection Valve | 1 | $66.97 | Add to Cart | |
| 75 | 378416 | Hex Nipple | 1 | $4.80 | Add to Cart | |
| 76 | 379900 | Fuse Holder (10 Amp.) | 1 | $5.99 | Add to Cart | |
| 77 | 378978 | Indicator Light | 1 | $25.82 | Add to Cart | |
| 78 | 379042 | Male Connector | 8 | $5.66 | Add to Cart | |
| 79 | 3790447 | Nylon Tubing (35 Ft.) | 1 | $41.17 | Superseded by 3790446Add to Cart | |
| 80 | 379130 | Support Bracket | 2 | $3.48 | Add to Cart | |
| 81 | 379253 | Ring Connector. | 1 | $3.11 | Add to Cart | |
| 82 | 37925415 | Ring Wire & Butt Connector | 2 | — | No longer available — call for replacement | |
| 83 | 379257 | Splice Connector | 1 | $2.91 | Add to Cart | |
| 84 | 379497 | Pilot Valve | 1 | $434.66 | Add to Cart | |
| 85 | 379547 | Pressure Switch | 1 | — | No longer available — call for replacement | |
| 379640 | Connector | 1 | $18.40 | Add to Cart | ||
| 86 | 68P27 | Name Plate | 1 | $17.36 | Add to Cart | |
| 87 | 5007501 | Street Tee | 2 | $4.86 | Add to Cart | |
| 88 | 3791311 | Reducer | 3 | $3.19 | Add to Cart |
236 Series Pump Shafts and Flanges
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 132131 | 133 134 | — | Call for availability | |||
| ITEM131 | Cap Gasket Item 132 Item 133 Assembly Output Shaft Spacer Head Number * Item 134 Item | Screw | — | Call for availability | ||
| 521P451 | 22-P-53 (2) 28-P-225 550010 328926-13X 3-P-970 378430-12 | — | Call for availability | |||
| 521P568 | 22-P-53 (2) 28-P-225 550010 328926-12X 3-P-964 4-P-183 378447-7 | — | Call for availability | |||
| 521P445 | 22-P-53 (2) 28-P-225 550010 328926-4X 3-P-686 378447-7 | — | Call for availability | |||
| 621P303 | 22-P-53 (2) 28-P-225 550010 328926-3X 3-P-678 378447-6 | — | Call for availability | |||
| 521P443 | 22-P-53 (2) 28-P-225 550010 328926-4X 3-P-686 378447-7 | — | Call for availability | |||
| 621P301 | 22-P-53 (2) 28-P-225 550010 328926-3X 3-P-678 378447-6 | — | Call for availability | |||
| 3 | 5ONLY21P447 | 22-P-53 (2) 28-P-225 550010 328926-5X 3-P-703 378447-6 | — | Call for availability | ||
| 521P297 | 22-P-53 (2) 28-P-225 550010 328926-6X 3-P-787 378430-12 | — | Call for availability | |||
| 621P297 | 22-P-53 (2) 28-P-225 550010 328926-7X 3-P-788 378430-10 | — | Call for availability | |||
| 521P468 | 22-P-53 (2) 28-P-230 550010 328926-8X 3-P-825 378447-7 | — | Call for availability | |||
| 521P570 | 22-P-53 (2) 28-P-225 550010 328926-5X 3-P-703 378447-6 | — | Call for availability | |||
| 521P572 | 22-P-53 (2) 28-P-225 550010 328926-5X 3-P-703 378447-6 | — | Call for availability | |||
| 521P628 | 22-P-53 (2) 28-P-225 550010 328926-11X 3-P-957 378447-7 | — | Call for availability | |||
| ATTACHTOTHE21P447 | Flange Must Be Used With “r” Suffix | — | Call for availability | |||
| 37843011HEXHEADCAPSCREWS | (.3125" 18 X 1 .125") - | — | Call for availability | |||
| 45P11BUSHINGGUIDE | Plus Items 13 Thru 22 On Page 2 | — | Call for availability |
Shaft Brake (“BD”) Bill of Material 236 Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 329410X | Brake Assembly (“bd” Output) | 1 | $387.98 | Add to Cart | ||
| 46 | 28P252 | O-ring | 1 | $14.67 | Add to Cart | |
| 47 | 66P49 | Piston | 1 | $85.11 | Add to Cart | |
| 48 | 379976 | Brake Disk | 1 | $413.84 | Add to Cart | |
| 49 | 379977 | Pin (.187" X .625") | 1 | $3.85 | Add to Cart | |
| 50 | 37P24 | Spring Manual Transmissions , | 1 | $12.29 | Add to Cart | |
| 51 | 378576 | Retaining Ring | 1 | $3.16 | Add to Cart | |
| 52 | 28P244 | O-ring | 2 | $5.03 | Add to Cart | |
| 53 | 31P113 | Thrust Washer (“bd” Output Shaft) | 1 | $44.53 | Add to Cart | |
| 54 | 550010 | Ball Bearing | 1 | $47.93 | Add to Cart | |
| 3288073X | Bearing Cap Sub Assembly (closed End 3 & 5, “bd”) | $262.73 | Add to Cart | |||
| 55 | 21P670 | Bearing Cap | 1 | $224.83 | Add to Cart | |
| 56 | 28P179 | Oil Seal | 1 | $88.26 | Add to Cart | |
| 57 | 378811 | Back-up Plate | 1 | $5.21 | Add to Cart | |
| 58 | 378849 | Retainer Ring | 1 | $2.12 | Add to Cart | |
| 59 | 50000729 | Woodruff Key (“xd” & “bd” Outputs Only) | 1 | $3.11 | Add to Cart |
Pump Flange Conv. Kits Bills of Materials 236 Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| TOBD35 | Shaft Brake 1 .25" Round W/key | — | Call for availability | |||
| TOXK35 | S.a.e “b” 2 Or 4 Bolt Flange S.a.e “b” .875" 13 . . | Tooth | — | Call for availability | ||
| TOXP35 | S.a.e “a” 2 Bolt (4.188 Bc) W/ S.a.e “b” 4 Bolt (5.0" Bc) S.a.e “b” .875" 13 | Tooth | — | Call for availability | ||
| TOXR35 | For Parker P16 “s” Flange Pumps S.a.e “b” .875" 13 . | Tooth | — | Call for availability | ||
| TOXY35 | Din 5462 Din 5462 | — | Call for availability | |||
| TOXK46 | S.a.e “b” 2 Or 4 Bolt Flange S.a.e “b” .875" 13 . . | Tooth | — | Call for availability | ||
| TOXP46 | S.a.e “a” 2 Bolt (4.188 Bc) W/ S.a.e “b” 4 Bolt (5.0" Bc) S.a.e “b” .875" 13 | Tooth | — | Call for availability | ||
| TORA35 | S.a.e “b” 2 Bolt Rotatable Flange S.a.e “b” .875" 13 . . | Tooth | — | Call for availability | ||
| TORB35 | S.a.e “b” 4 Bolt Rotatable Flange S.a.e “b” .875" 13 . . | Tooth | — | Call for availability | ||
| TORF35 | S.a.e “b” 2 Bolt Rotatable Flange S.a.e “bb” 1 .0" 15 . . | Tooth | — | Call for availability | ||
| TOAF35 | S.a.e “b” 2 Or 4 Bolt Flange S.a.e “bb” 1 .0" 15 . . | Tooth | — | Call for availability | ||
| TOAF46 | S.a.e “b” 2 Or 4 Bolt Flange S.a.e “bb” 1 .0" 15 . . | Tooth | — | Call for availability | ||
| TOXE35 | S.a.e “a” Pilot 2 Bolt S.a.e .625" 9 Tooth | — | Call for availability | |||
| 3290439X | Conversion Kit (xd To Bd) | $1,154.59 | Add to Cart | |||
| 378576 | Snap Ring | 2 | $3.16 | Add to Cart | ||
| 379977 | Pin | 1 | $3.85 | Add to Cart | ||
| 550010 | Bearing Roller. , | 1 | $47.93 | Add to Cart | ||
| 22P53 | Bearing Cap Gasket | 2 | $6.85 | Add to Cart | ||
| 28P225 | Oil Seal | 1 | $19.01 | Add to Cart | ||
| 28P244 | O-ring | 4 | $5.03 | Add to Cart | ||
| 31P113 | Washer, Spacer | 1 | $44.53 | Add to Cart | ||
| 3288073X | Bearing Cap Assembly | 1 | $262.73 | Add to Cart | ||
| 329410X | Brake Assembly | 1 | $387.98 | Add to Cart | ||
| 37P24 | Spring | 1 | $12.29 | Add to Cart | ||
| 3P970 | Pump Shaft | 1 | $399.48 | Add to Cart | ||
| 50000729 | Woodruff Key | 1 | $3.11 | Add to Cart | ||
| 379746 | Snap Ring | 1 | $5.06 | Add to Cart | ||
| 35P91 | Gasket | 2 | $4.09 | Add to Cart | ||
| 35P92 | Gasket | 2 | $4.35 | Add to Cart | ||
| 32816011X | Conversion Kit (xd To Xk) | — | Call for availability | |||
| 378849 | Retainer Ring | 1 | $2.12 | Add to Cart | ||
| 379688 | Grease Packet | 1 | $8.98 | Add to Cart | ||
| 21P445 | Bearing Cap | 1 | $469.76 | Add to Cart | ||
| 28P178 | O-ring | 1 | $41.94 | Add to Cart | ||
| 28P179 | Oil Seal | 1 | $88.26 | Add to Cart | ||
| 3784477 | Socket Head Capscrew (.312" 18 X 1 .250") | 4 | $5.55 | Add to Cart | ||
| 3P686 | Pump Shaft | 1 | $677.03 | Add to Cart | ||
| 32816012X | Conversion Kit (xd To Xp) | — | Call for availability | |||
| 21P443 | Bearing Cap | 1 | $381.30 | Add to Cart | ||
| 32816013X | Conversion Kit (xd To Xr) | — | Call for availability | |||
| 21P447 | Bearing Cap | 1 | $306.72 | Add to Cart | ||
| 3P703 | Pump Shaft | 1 | $728.19 | Add to Cart | ||
| 32816014X | Conversion Kit (xd To Xy) | — | Call for availability | |||
| 378898 | Flat Head Socket Capscrew (.438" 14 X 1 .00") | 1 | $18.69 | Add to Cart | ||
| 379335 | Coupling Splined , | 1 | $329.49 | Add to Cart | ||
| 21P468 | Bearing Cap | 1 | $330.03 | Add to Cart | ||
| 28P230 | Oil Seal | 1 | — | Call for availability | ||
| 3P825 | Pump Shaft | 1 | $720.70 | Add to Cart | ||
| 32816015X | Conversion Kit (xd To Xk) | — | Call for availability | |||
| 21P303 | Bearing Cap | 1 | $571.77 | Add to Cart | ||
| 3784476 | Socket Head Capscrew (.312" 18 X 1 .00") | 4 | $4.33 | Add to Cart | ||
| 3P678 | Pump Shaft | 1 | $807.56 | Add to Cart | ||
| 32816016X | Conversion Kit (xd To Xp) | — | Call for availability | |||
| 21P301 | Bearing Cap | 1 | — | No longer available — call for replacement | ||
| 32816033X | Conversion Kit (xd To Ra) | — | Call for availability | |||
| 21P628 | Pump Flange | 1 | $100.24 | Add to Cart | ||
| 32816034X | Conversion Kit (xd To Rb) | — | Call for availability | |||
| 21P572 | Pump Flange | 1 | $114.69 | Add to Cart | ||
| 32816035X | Conversion Kit (xr To Ra) | — | Call for availability | |||
| 32816036X | Conversion Kit (xr To Rb) | — | Call for availability | |||
| 32816043X | Conversion Kit (xd To Xx) | — | Call for availability | |||
| 379111 | Square Key | 1 | $23.18 | Add to Cart | ||
| 501181 | Hex Nut. | 1 | — | No longer available — call for replacement | ||
| 37843010 | Hex Capscrew (.312" 18 X 1 .00") | 4 | $1.76 | Add to Cart | ||
| 37843012 | Hex Capscrew (.312" 18 X 1 .25") | 4 | $1.83 | Add to Cart | ||
| 3P787 | Pump Shaft | 1 | $447.07 | Add to Cart | ||
| 31604 | Companion Flange (sold Separately) | 1 | — | Call for availability | ||
| 32916046X | Conversion Kit (xd To Rf) | $1,290.30 | Add to Cart | |||
| 3P957 | Pump Shaft | 1 | $412.90 | Add to Cart | ||
| 32916050X | Conversion Kit (xd To Af) | — | No longer available — call for replacement | |||
| 3P896 | Pump Shaft | 1 | $597.50 | Add to Cart | ||
| 32916051X | Conversion Kit (xd To Af) | $777.96 | Add to Cart | |||
| 28P224 | Oil Seal | 2 | $21.91 | Add to Cart | ||
| 3P895 | Pump Shaft | 1 | — | No longer available — call for replacement | ||
| 32916055X | Conversion Kit (xd To Xe) | $735.11 | Add to Cart | |||
| 21P568 | Bearing Cap | 1 | — | No longer available — call for replacement | ||
| 3P964 | Pump Shaft | 1 | $1,162.51 | Add to Cart | ||
| 4P183 | Spacer | 1 | — | No longer available — call for replacement |
Additional Parts Listed in This Manual
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 5-P-1189 | Right Hand | 25 | $350.72 | Add to Cart | ||
| 5-P-1191 | Right Hand | 17 | $350.72 | Add to Cart | ||
| 5-P-1192 | Right Hand | 19 | $867.29 | Add to Cart | ||
| 5-P-1193 | Right Hand | 28 | $323.27 | Add to Cart | ||
| 5-P-1196 | Right Hand | 22 | $397.02 | Add to Cart | ||
| 5-P-1197 | Right Hand | 20 | $327.95 | Add to Cart | ||
| 5-P-1201 | Right Hand | 26 | — | No longer available — call for replacement | ||
| 5-P-1202 | Right Hand | 26 | — | Call for availability | ||
| 5-P-1237 | Left Hand | 26 | $350.67 | Add to Cart | ||
| 5-P-1243 | Left Hand | 27 | $810.05 | Add to Cart | ||
| 5-P-1247 | Right Hand | 27 | $237.91 | Add to Cart | ||
| 5-P-1256 | Left Hand | 28 | $546.46 | Add to Cart | ||
| 5-P-1257 | Left Hand | 29 | $636.08 | Add to Cart | ||
| 5-P-1261 | Left Hand | 24 | $423.27 | Add to Cart | ||
| 5-P-1262 | Right Hand | 24 | $452.27 | Add to Cart | ||
| 5-P-1263 | Left Hand | 22 | $292.22 | Add to Cart | ||
| 5-P-1264 | Right Hand | 22 | — | Call for availability | ||
| 5-P-1268 | Right Hand | 33 | $296.52 | Add to Cart | ||
| 5-P-1310 | Left Hand | 20 | — | No longer available — call for replacement | ||
| 5-P-1316 | Left Hand | 25 | $451.82 | Add to Cart | ||
| 5-P-1319 | Left Hand | 23 | $350.66 | Add to Cart | ||
| 5-P-1312 | Right Hand | 20 | — | Call for availability | ||
| 5-P-1318 | Right Hand | 25 | $464.31 | Add to Cart | ||
| 5-P-1321 | Right Hand | 23 | $364.77 | Add to Cart | ||
| 5-P-1411 | Left Hand | 26 | $331.47 | Add to Cart | ||
| 329160-11X | Xd To Xk 3 & 5 S.a.e. "b" 2 Or 4 Bolt Flange S.a.e. "b" .875" 13 Tooth | $1,584.86 | Add to Cart | |||
| 329160-12X | Xd To Xp 3 & 5 S.a.e. "a" 2 Bolt (4.188 Bc) W/ S.a.e. "b" 4 Bolt (5.0" Bc) S.a.e. "b" .875" 13 Tooth | $758.46 | Add to Cart | |||
| 329160-13X | Xd To Xr 3 & 5 For Parker P16 "s" Flange Pumps S.a.e. "b" .875" 13 Tooth | — | No longer available — call for replacement | |||
| 329160-14X | Xd To Xy 3 & 5 Din 5462 Din 5462 | $815.41 | Add to Cart | |||
| 329160-15X | Xd To Xk 4 & 6 S.a.e. "b" 2 Or 4 Bolt Flange S.a.e. "b" .875" 13 Tooth | $731.16 | Add to Cart | |||
| 329160-16X | Xd To Xp 4 & 6 S.a.e. "a" 2 Bolt (4.188 Bc) W/ S.a.e. "b" 4 Bolt (5.0" Bc) S.a.e. "b" .875" 13 Tooth | — | No longer available — call for replacement | |||
| 329160-33X | Xd To Ra 3 & 5 S.a.e. "b" 2 Bolt Rotatable Flange S.a.e. "b" .875" 13 Tooth | $973.45 | Add to Cart | |||
| 329160-34X | Xd To Rb 3 & 5 S.a.e. "b" 4 Bolt Rotatable Flange S.a.e. "b" .875" 13 Tooth | $973.45 | Add to Cart | |||
| 329160-35X | Xr To Ra 3 & 5 S.a.e. "b" 2 Bolt Rotatable Flange S.a.e. "b" .875" 13 Tooth | — | No longer available — call for replacement | |||
| 329160-36X | Xr To Rb 3 & 5 S.a.e. "b" 4 Bolt Rotatable Flange S.a.e. "b" .875" 13 Tooth | $126.60 | Add to Cart | |||
| 329160-43X | Xd To Xx All Din 100 Round Tapered W/ Key | — | Call for availability |
No parts match that search — try the part number with no dashes.
This is the complete factory parts breakdown for the Chelsea PTO 236 — every part in the manual, matched to our live inventory. We stock 240 of the 354 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
