Chelsea PTO 245 Series Parts Manual

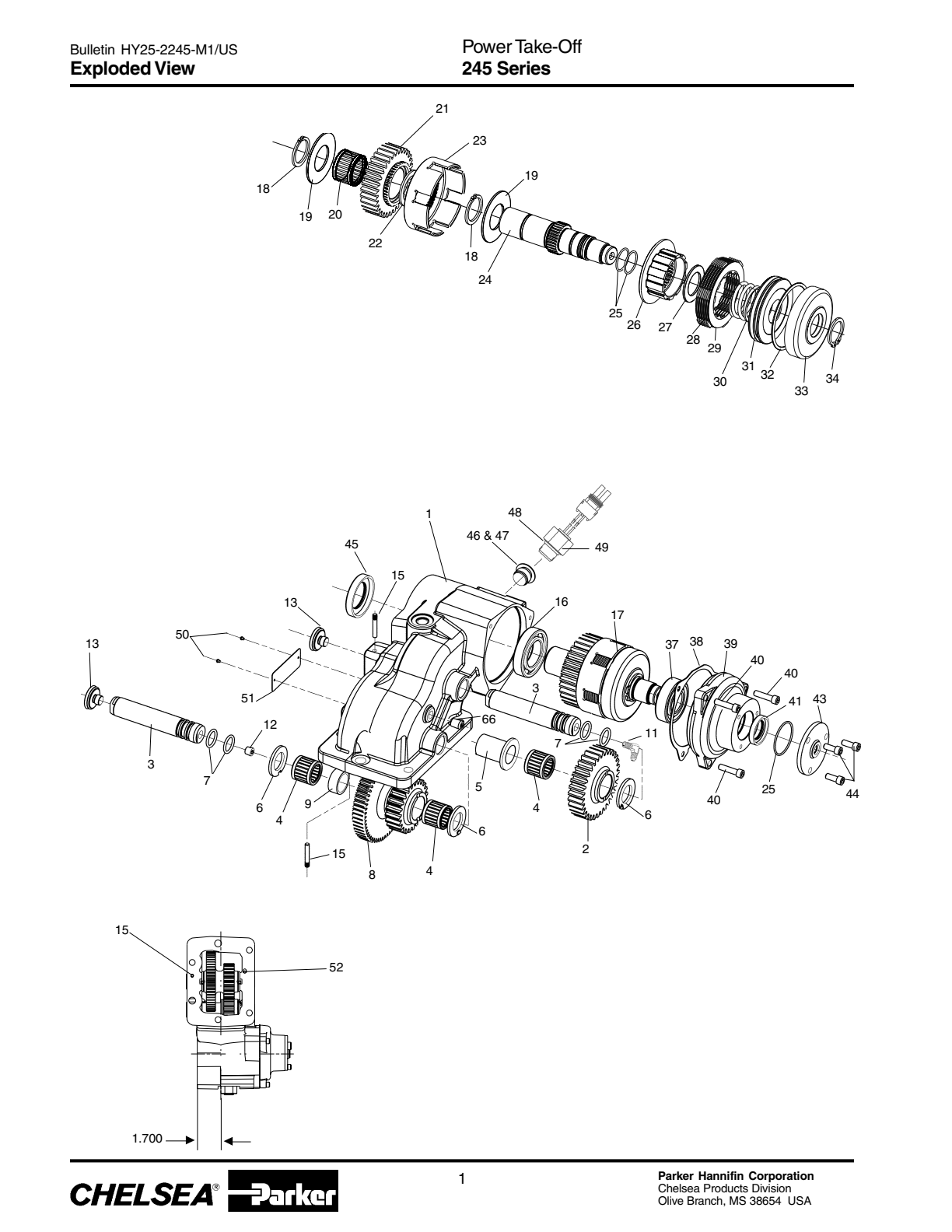

Power Take-Off Bill of Materials 245 Series
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 1P596X | P.t.o. Housing (includes Items 15 & 52) | 1 | $708.79 | Add to Cart | |
| 2 | 33P75 | Idler Gear | 1 | $403.14 | Add to Cart | |
| 3 | 9P97 | Idler Shaft | 2 | $68.49 | Add to Cart | |
| 4 | 561014 | Needle Bearing Input/idler Gear , | 3 | $55.69 | Add to Cart | |
| 5 | 4P179 | Spacer, Idler Shaft | 1 | $118.93 | Add to Cart | |
| 6 | 31P109 | Thrust Washer, Tabbed | 3 | — | Call for availability | |
| 7 | 28P71 | O-ring (-1 15) | 4 | $4.88 | Add to Cart | |
| 8 | 5P1387 | Input Gear | 1 | $466.17 | Add to Cart | |
| 9 | 14P78 | Spacer, Input Shaft | 1 | $4.75 | Add to Cart | |
| 11 | 379922 | 90o Elbow | 1 | — | Call for availability | |
| 12 | 379231 | Pipe Plug | 1 | $1.50 | Add to Cart | |
| 13 | 379719 | Nwd Plug | 2 | $42.60 | Add to Cart | |
| 15 | 379696 | Seal Lok Pin | 2 | $2.66 | Add to Cart | |
| 16 | 561015 | Ball Bearing | 1 | $102.32 | Add to Cart | |
| 17 | 3293641X | Driveshaft & Clutch Ass'y, (1 -1/4" Keyed Xd) , | 1 | $963.70 | Add to Cart | |
| 3293642X | Driveshaft & Clutch Ass'y, (7/8"-13, Xp) | 1 | $1,089.50 | Add to Cart | ||
| 3293643X | Driveshaft & Clutch Ass'y, (3/4"-1 1 Ad) , | 1 | $937.63 | Add to Cart | ||
| 18 | 378890 | Retaining Ring | 2 | $5.27 | Add to Cart | |
| 19 | 31P110 | Thrust Washer | 1 | $41.00 | Add to Cart | |
| 20 | 561013 | Needle Bearing Output Gear , | 1 | $39.39 | Add to Cart | |
| 2P820 | Output Gear | 1 | $542.03 | Add to Cart | ||
| 22 | 31P111 | Thrust Washer | 1 | $55.13 | Add to Cart | |
| 379914 | Output Gear Bell | 1 | $70.21 | Add to Cart | ||
| 24 | 3P952 | Output Shaft (xd) (1 -1/4" Round) , | 1 or | $434.13 | Add to Cart | |
| 3P953 | Output Shaft (xp) (7/8"-13 Tooth Spline) , | 1 or | $654.60 | Add to Cart | ||
| 3P954 | Output Shaft (ad) (3/4"-11 Tooth Spline) , | 1 | $818.43 | Add to Cart | ||
| 25 | 28P266 | O-ring (-022) | 2 | $5.74 | Add to Cart | |
| 26 | 2P819 | Clutch Gear | 1 | $59.57 | Add to Cart | |
| 27 | 31P108 | Thrust Washer | 2 | $13.07 | Add to Cart | |
| 28 | 379691 | Friction Disk | 6 | $25.49 | Add to Cart | |
| 29 | 379692 | Seperator Plate | 5 | $13.91 | Add to Cart | |
| 30 | 37P56 | Clutch Spring | 1 | $9.77 | Add to Cart | |
| 31 | 379913 | Clutch Piston | 1 | $122.20 | Add to Cart | |
| 32 | 28P265 | Lip Seal Clutch , | 1 | $7.39 | Add to Cart | |
| 33 | 379705 | Clutch Cylinder | 1 | $117.22 | Add to Cart | |
| 34 | 379694 | Retaining Ring | 1 | $3.19 | Add to Cart | |
| 37 | 561005 | Ball Bearing | 1 | $41.37 | Add to Cart | |
| 38 | 22P103 | Gasket Bearing Cap | 1 | $5.35 | Add to Cart | |
| 39 | 21P656 | Bearing Cap | 1 | — | Call for availability | |
| 40 | 3794316 | Soc. Hd Capscrew (.250"-20 X 1 .00") | 3 | $4.02 | Add to Cart | |
| 41 | 28P119 | Oil Seal High Pressure , | 1 | $26.61 | Add to Cart | |
| 42 | 28P263 | O-ring (-029) | 1 | $7.21 | Add to Cart | |
| 43 | 34P126 | End Cap | 1 | $31.73 | Add to Cart | |
| 44 | 3794313 | Soc. Hd Capscrew (.250"-20 X .625") | 3 | $3.39 | Add to Cart | |
| 45 | 28P216 | Oil Seal (output Side) | 1 | $21.40 | Add to Cart | |
| 46 | 379231 | Pipe Plug (.125"-27 Nptf) (without E .o.c. Only) | 1 | $1.50 | Add to Cart | |
| 47 | 379242 | O-ring Boss Plug (without E .o.c. Only) | 1 | $22.23 | Add to Cart | |
| 48 | 28P171 | O-ring (-908) (with E .o.c. Only) | 1 | $4.88 | Add to Cart | |
| 49 | 379243 | Speed Sensor (with E .o.c. Only) | 1 | $229.65 | Add to Cart | |
| 50 | 378422 | Drive Screw | 2 | $11.52 | Add to Cart | |
| 51 | 68P2 | Name Plate | 1 | $2.65 | Add to Cart | |
| 52 | 378108 | Ball | 1 | $2.40 | Add to Cart | |
| 66 | 379755 | Shipping Plug | 2 | $10.77 | Add to Cart | |
| 50000729 | Woodruff Key (xd Output Only) | 1 | $3.11 | Add to Cart | ||
| 3292294X | Pump Mounting Kit | 1 | $14.62 | Add to Cart | ||
| 800016X | Mounting Kit | 1 | $21.68 | Add to Cart | ||
| 28P200 | O-ring | 1 | $3.59 | Add to Cart | ||
| 37892452 | Hex Capscrew, (M10-1 .5" X 140mm) | 1 | — | Call for availability | ||
| 379697 | Dowel Split Hollow , | 2 | $5.26 | Add to Cart | ||
| 379706 | Hex Capscrew, (M10-1 .5" X 1 .18") | 5 | $4.78 | Add to Cart | ||
| 3292995X | Installation Kit | 1 | — | Call for availability | ||
| 3293691X | Wire Harness, Pressure Switch & Hose Fittings Kit | 1 | — | Call for availability | ||
| 3293205X | Hose & Manifold Ass’y Kit | 1 | — | No longer available — call for replacement | ||
| 32925512X | Electrical Overspeed Control Kit | 1 | — | Call for availability | ||
| 3293721X | Electrical Overspeed Control Installation Kit | 1 | — | Call for availability | ||
| 3293764X | Complete Rebuild Kit (includes 329376-1X, 329376-2X & 329376-3X) | 1 | $546.00 | Add to Cart | ||
| 3293761X | Gasket & Seal Kit | 1 | $107.83 | Add to Cart | ||
| 3293762X | Bearing Kit | 1 | $310.10 | Add to Cart | ||
| 3293763X | Clutch Repair Kit | 1 | $184.17 | Add to Cart | ||
| 3293765X | PGP511 Service Kit (4x4 Applications) | $152.54 | Add to Cart | |||
| 8611023QN1 | PGP511 Service Kit (4x2 Applications) | — | Call for availability | |||
| 329375X | Pump Mounting Kit, Convert PGP511 To 4x4 Applications | 1 | — | Call for availability | ||
| 22P104 | P.t.o. Mounting Gasket (supplied With Transmission) | 1 | $59.24 | Add to Cart |
Shift Installation Kit with Electronic Overspeed Control
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 32925512X | Electrical Overspeed Control Kit | 1 | — | Call for availability | ||
| 32892310X | Speed Sensor Extension Cable 10 Ft. (supplied W/e.o.c.) | 1 | — | No longer available — call for replacement | ||
| 328931X | Mounting Parts | $3.54 | Add to Cart | |||
| 5003577 | Lock Washer | 4 | $1.07 | Add to Cart | ||
| 5003576 | Hex Nut | 4 | — | Call for availability | ||
| 5004489 | Machine Screw | 4 | $1.05 | Add to Cart | ||
| 379244 | Mounting Bracket | 1 | — | Call for availability | ||
| 379260 | Caution Tag | 1 | — | Call for availability | ||
| 379318 | E .o.c. Screw Driver | 1 | — | Call for availability | ||
| 68P331 | Name Plate Spanish | 1 | — | No longer available — call for replacement | ||
| 68P332 | Name Plate French | 1 | — | No longer available — call for replacement | ||
| 379243 | Speed Sensor | 1 | $229.65 | Add to Cart | ||
| 28P171 | O-ring | 1 | $4.88 | Add to Cart | ||
| 379252 | Butt Connector | 3 | $2.30 | Add to Cart | ||
| 3293205X | Hose & Manifold Assembly Kit | 1 | — | No longer available — call for replacement | ||
| 3293071X | Manifold Block Assembly | 1 | $596.44 | Add to Cart | ||
| 3292322X | Hose Assembly (12 .25"-12 .75") Trans. Main Pressure To Manifold "in " | 1 | $76.92 | Add to Cart | ||
| 3291309X | Hose Assembly (10.5"-11 .0") Manifold "lube" To P.t.o. Pressure Lube | 1 | $60.19 | Add to Cart | ||
| 329130X | Hose Assembly (12 .0"-12 .5") Manifold "out" To Clutch Pack | 1 | $60.19 | Add to Cart | ||
| 3290575X | Hose Assembly (12 .75"-13.25") Valve Dump Back | 1 | — | Call for availability | ||
| 3293721X | Electrical Overspeed Control Installation Kit | 1 | — | Call for availability | ||
| 379812 | Straight Jic | 1 | $16.73 | Add to Cart | ||
| 379625 | 90o Elbow Jic | 1 | $17.80 | Add to Cart | ||
| 379833 | Seal Nut | 1 | $12.56 | Add to Cart | ||
| 379832 | 90o Elbow Jic | 1 | $7.59 | Add to Cart | ||
| 379698 | Male Elbow | 1 | $13.51 | Add to Cart | ||
| 379486 | Straight Thread O-ring 90o Elbow Jic , | 3 | $28.97 | Add to Cart | ||
| 379736 | Wire & Connector Assembly | 1 | $29.91 | Add to Cart | ||
| 329374X | Pressure Switch Assembly & Manifold Mounting Parts | 1 | $165.74 | Add to Cart | ||
| 378462 | Washer, Spring Retainer (.937" Od X .390" Id X .1 19") | 1 | $1.61 | Add to Cart | ||
| 379744 | Flange Nut (.375"-24) | 1 | $1.63 | Add to Cart | ||
| 378916 | Cap Screw, Hex Head (.375"-24 X 1 .375") | 1 | $6.67 | Add to Cart | ||
| 379502 | Pressure Switch | 1 | $93.06 | Add to Cart | ||
| 379253 | Ring Connector | 2 | $3.11 | Add to Cart | ||
| 3289235X | Speed Sensor Extension Cable 5 Ft. (optional) | 1 | — | No longer available — call for replacement |

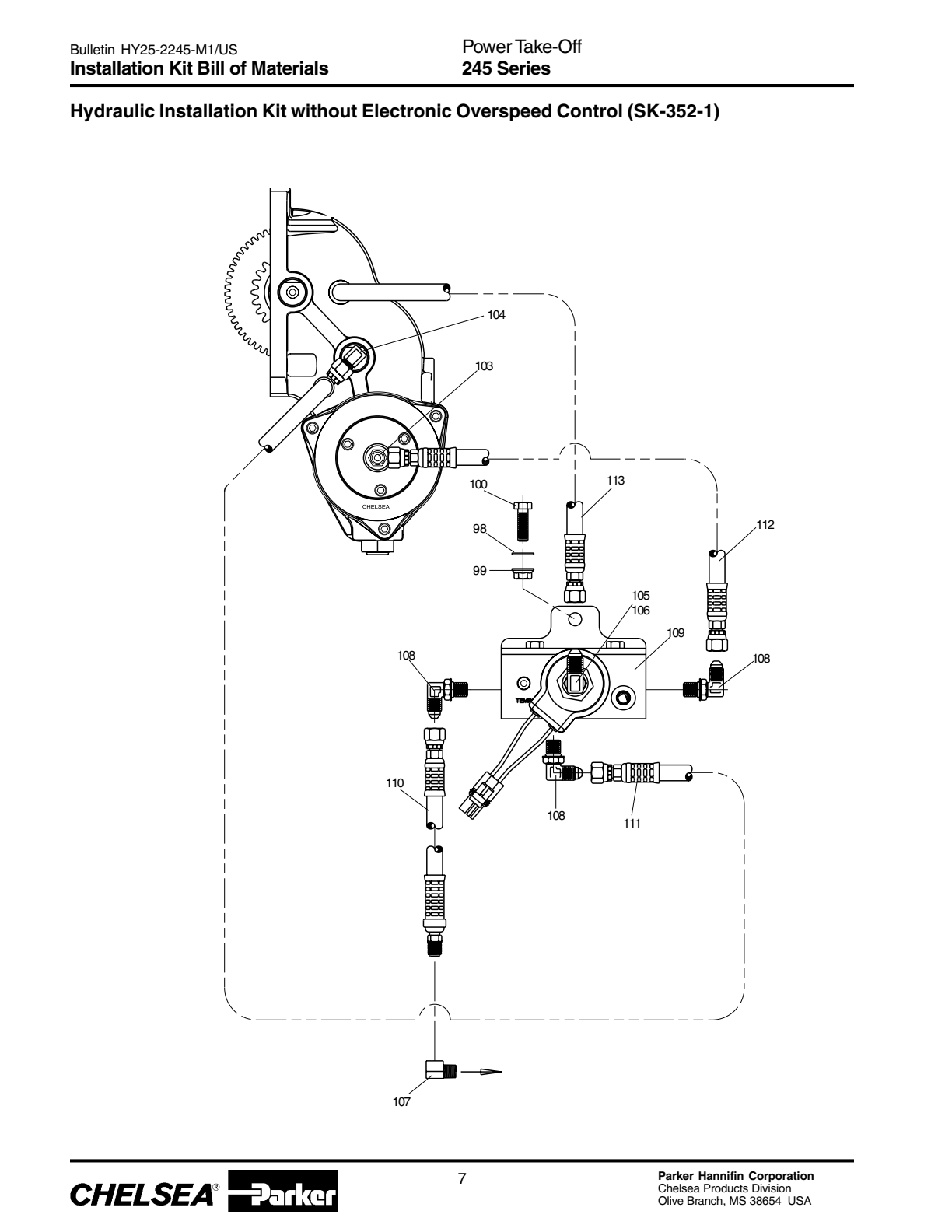

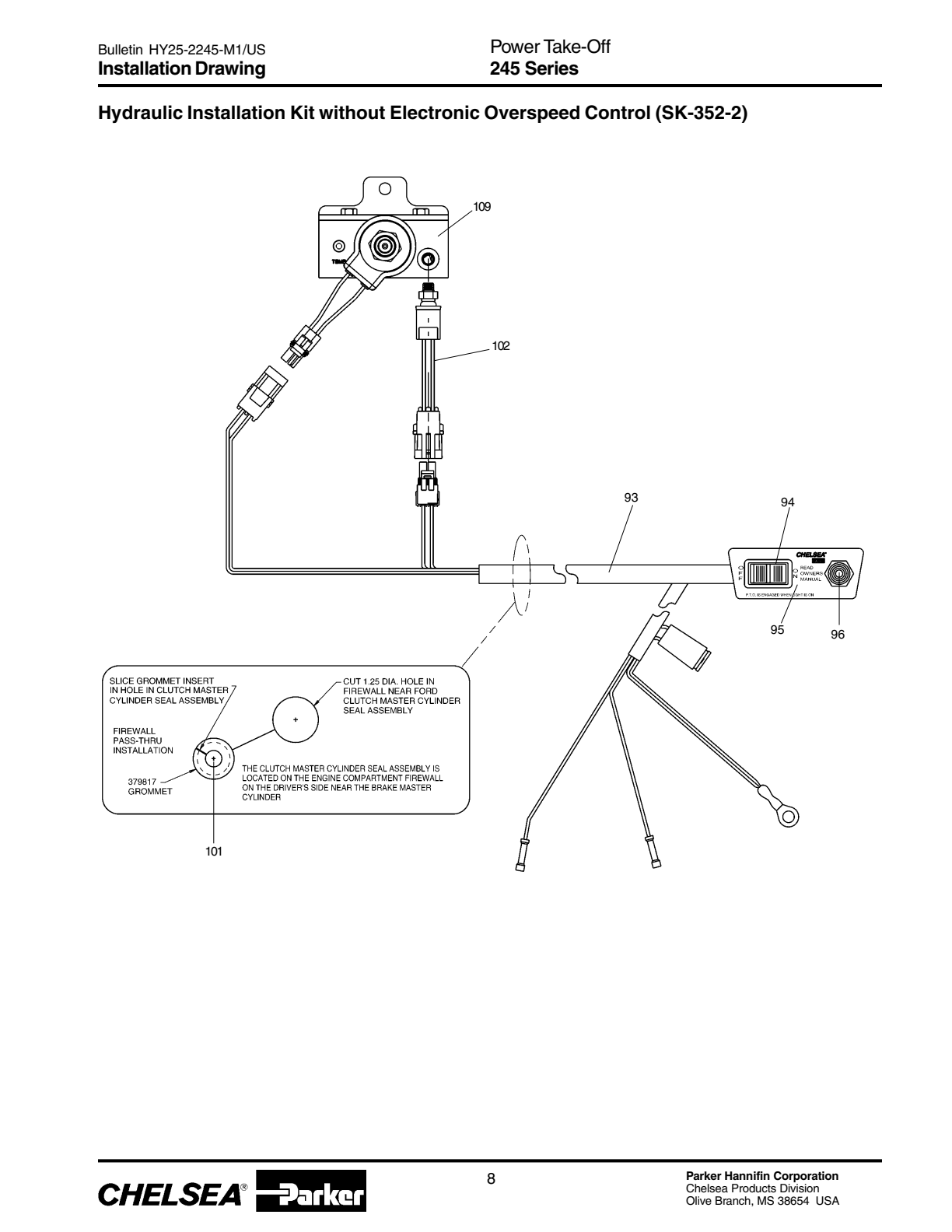

Hydraulic Installation Kit Without Electronic Overspeed Control
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 3293691X | Wire Harness, Pressure Switch & Hose Fittings Kit | 1 | — | Call for availability | ||
| 93 | 3293701X | Wiring Harness Assembly | 1 | — | Call for availability | |
| 94 | 378881 | Rocker Switch | 1 | $111.97 | Add to Cart | |
| 95 | 379336 | Switch-bracket | 1 | $10.11 | Add to Cart | |
| 96 | 378978 | Indicator Light, 12V | 1 | $25.82 | Add to Cart | |
| 329374X | Pressure Switch Assembly & Manifold Mounting Parts | 1 | $165.74 | Add to Cart | ||
| 98 | 378462 | Washer, Spring Retainer (.937"ODX .390" Id X. 119") | 1 | $1.61 | Add to Cart | |
| 99 | 379744 | Flange Nut (.375"-24 X 1 .375") | 1 | $1.63 | Add to Cart | |
| 100 | 378916 | Cap Screw, Hex Head (.375"-24X 1 .375") | 1 | $6.67 | Add to Cart | |
| 101 | 379817 | Grommet | 1 | $6.42 | Add to Cart | |
| 102 | 379502 | Pressure Switch | 1 | $93.06 | Add to Cart | |
| 329371X | Hose Fittings Kit | 1 | — | Call for availability | ||
| 103 | 379812 | Male Connector Straight Die Fitting | $16.73 | Add to Cart | ||
| 104 | 379625 | 90o Elbow Jic | 1 | $17.80 | Add to Cart | |
| 105 | 379832 | Seal Nut | 1 | $7.59 | Add to Cart | |
| 106 | 379832 | 90o Elbow Jic | 1 | $7.59 | Add to Cart | |
| 107 | 379698 | Male Elbow | 1 | $13.51 | Add to Cart | |
| 108 | 379486 | Straight Thread O-ring 90o Elbow Jic , | 3 | $28.97 | Add to Cart | |
| 109 | 3293071X | Manifold Block Assembly | 1 | $596.44 | Add to Cart | |
| 110 | 3292322X | Hose Assembly (12 .25"-12 .75") Trans. Main Pressure To Manifold "in " | 1 | $76.92 | Add to Cart | |
| 111 | 3291309X | Hose Assembly (10.5"-11 .0") Manifold "lube" To P.t.o. Pressure Lube | 1 | $60.19 | Add to Cart | |
| 112 | 329130X | Hose Assembly (12 .0"-12 .5") Manifold "out" To Clutch Pack | 1 | $60.19 | Add to Cart | |
| 113 | 3290575X | Hose Assembly (12 .75"-13.25") Valve Dump Back | 1 | — | Call for availability |
PGP511 Pump Conversion Kit Bill of Materials 245 Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 329375X | Pump Field Conversion Kit For 4X4 Applications (includes Items 1 -7) | 1 | — | Call for availability | ||
| 1 | 26P60 | Plate Adapter | 1 | — | Call for availability | |
| 2 | 28P276 | O-ring | 1 | $8.68 | Add to Cart | |
| 3 | 28P277 | Oil Seal | 1 | — | No longer available — call for replacement | |
| 4 | 378916 | Seal Plate | 1 | $6.67 | Add to Cart | |
| 5 | 3794336 | Cap Screw, Socket Head (.375"-16 X 1 .00") | 1 | $3.34 | Add to Cart | |
| 6 | 37928614 | Cap Screw, Hex Head (.375"-16 X 1 .50") | 1 | — | Call for availability | |
| 7 | 379921 | Dowel Pin (10 Mm) | 2 | — | Call for availability | |
| 8 | PGP511 | Hyd. Pump | 1 | — | Call for availability |

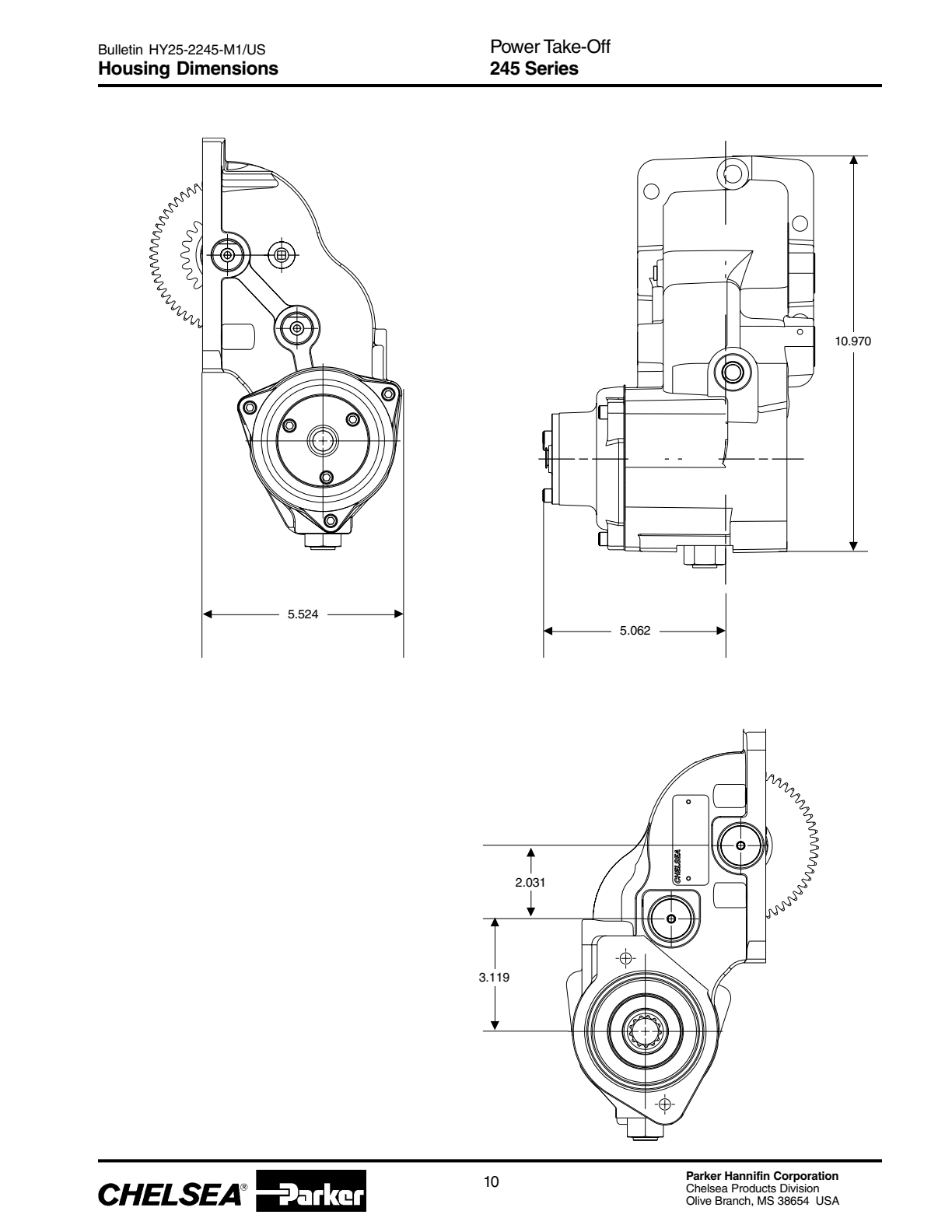

245 Series Output Flanges (XD, XP and AD)
| Item | Part No. | Description | Qty | Notes | Price |
|---|
245 Series Model Number Designation and Gear Pumps
| Item | Part No. | Description | Qty | Notes | Price |
|---|
No parts match that search — try the part number with no dashes.
This is the complete factory parts breakdown for the Chelsea PTO 245 — every part in the manual, matched to our live inventory. We stock 107 of the 140 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
