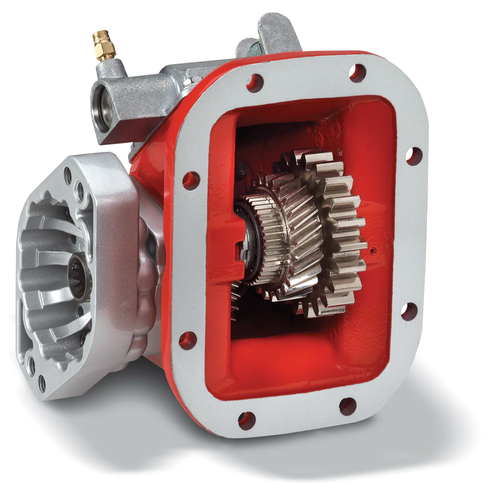

The Chelsea 442XSJWX-S3XK or 442XSJWXS3XK is a 442 Series Power Take-Off designed for 6-bolt transmission applications. The series features a cast iron housing with tapered cone bearings on the output shaft, giving this family of PTOs its class-recognized torque capacity and service life. Shift is wire/cable or mechanical. The output shaft is a round shaft with a 1-1/4" key. The 442 Series covers a wide range of vocational applications, including tow trucks, service trucks, dump trucks, and aerial trucks. Call us to confirm proper fitment for your specific transmission and application before ordering.
Features
Chelsea 442 Series Power Take-Off, part number 442XSJWX-S3XK
6-bolt transmission mounting
Cast iron housing with tapered cone bearings on the output shaft
Round output shaft with 1-1/4" key
Wire/cable or mechanical shift type
Suited for tow trucks, service trucks, dump trucks, and aerial truck applications
Tech Specs
- Mounting Type: 6-Bolt
- Shift Type: Wire/Cable or Mechanical
- Output Shaft Type: Round Shaft with 1-1/4" Key
- Housing Material: Cast Iron
- Output Bearing: Tapered Cone Bearings
- Product Series: 442
Additional Information
Parts Manual: Chelsea 442 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
