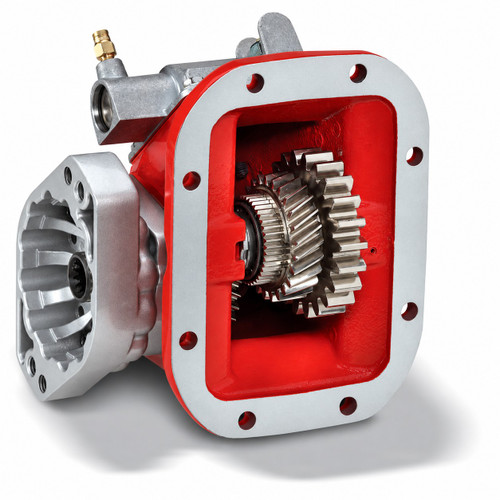

The Chelsea 489XLAHX-H3AZ or 489XLAHXH3AZ is a 489 Series Power Take-Off designed for 8-bolt manual transmission openings. The one-piece cast iron housing bolts directly to the transmission, eliminating the need for an adapter plate and reducing potential leak paths. The 489 Series delivers intermittent torque in the 201-300 lb-ft range and shaft power of 24 HP at 500 RPM and 48 HP at 1,000 RPM. No shift assembly (ordered without a shifter). Tapered bearings replace needle bearings for greater load-bearing capability. The series is compatible with Eaton Fuller, Eaton Endurant, Mack, and Tremec manual transmissions. Call us to confirm proper fit for your specific transmission and application.
Features
8-bolt one-piece cast iron housing mounts directly to transmission opening, no adapter plate required
No shift assembly (ordered without a shifter)
Intermittent torque rating: 201-300 lb-ft (301-400 Nm)
Shaft power: 24 HP at 500 RPM, 48 HP at 1,000 RPM
Tapered bearings for greater load capacity over needle bearing designs
Compatible with Eaton Fuller, Eaton Endurant, Mack, and Tremec manual transmissions
Tech Specs
- Mounting Type: 8-Bolt
- Mounting Option: Standard Mount (X)
- Gear Ratio Code: L (25/34)
- Input Gear Designator: AH
- Lube Option: No Pressure Lube (X)
- Shift Option: No Shift Assembly (H)
- Assembly Arrangement: 3
- Output Option: SAE B 4-Bolt Flange, SAE C Shaft (1-1/4" 14T) (AZ)
- Intermittent Torque: 201-300 lb-ft (301-400 Nm)
- Shaft Power: 24 HP (500 RPM), 48 HP (1,000 RPM), 18 kW (500 RPM), 36 kW (1,000 RPM)
- Output Power: 46-55 HP (31-40 kW)
- Transmission Compatibility: Eaton Fuller, Eaton Endurant, Mack, Tremec (8-bolt opening)
- Product Series: 489
Additional Information
Parts manual and diagrams: Chelsea 489 Series PTO parts list with prices
