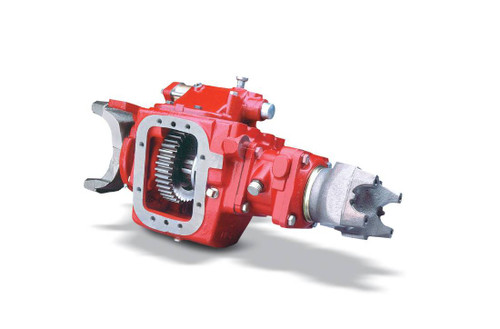

The Chelsea 912AHAE-AXXHA or 912AHAEAXXHA is a 912 Series split shaft power take-off designed for Class 7 and Class 8 trucks equipped with automatic transmissions. It mounts in the driveline between the transmission and rear axle, making it the right solution when the transmission has only one or no PTO openings. Three 8-bolt openings accept a wide range of Chelsea PTOs, so it can drive multiple pieces of auxiliary equipment simultaneously. The output shaft is a 2-3/4 inch 10-tooth spline, and input/output connections include SPL-170, SPL-250, 1610, 1710, and 1810 series flange options or a no-flange configuration. Shift is air-actuated. Applications include pumper/cleaner trucks, fire and rescue vehicles, tire service trucks, and oil and gas mobile equipment. A genuine Chelsea part, available through Pro Gear and Transmission. Call us to confirm proper fit for your specific vehicle and transmission combination.
Features
912 Series split shaft PTO mounts between transmission and rear axle in the driveline
Three 8-bolt openings allow simultaneous operation of multiple auxiliary equipment
Air shift actuation
2-3/4 inch 10-tooth spline output shaft
Compatible with SPL-170, SPL-250, 1610, 1710, and 1810 series flange options, plus no-flange configuration
Suited for Class 7 and Class 8 trucks with automatic transmissions and limited or no transmission PTO openings
Tech Specs
- Output Shaft: 2-3/4 in. 10-Tooth Spline
- Shift Type: Air Shift
- Mounting Type: Split Shaft, Driveline-Mounted (between transmission and rear axle)
- Openings: Three 8-Bolt PTO openings
- Flange Options: SPL-170, SPL-250, 1610, 1710, 1810 Series, or No Flange
- Series Intermittent Torque Rating: 501+ lb-ft (series-level rating)
- Series Output Power: 51+ kW / 56+ HP (series-level rating)
- Compatible Truck Classes: Class 7, Class 8
- Transmission Type Required: Automatic
Additional Information
The 912 Series can also be mounted in reverse, allowing the vehicle to creep-drive back through the split shaft unit. Parker Chelsea publishes a 912 Series Owner's Manual, Parts List (HY25-2912-M1_US), and installation tech bulletins including PTO-TEC-106 covering oil level procedures for the 912/885 Series. Contact Pro Gear and Transmission for help sourcing documentation or confirming the correct configuration for your application.Parts Manual: Chelsea 912 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
