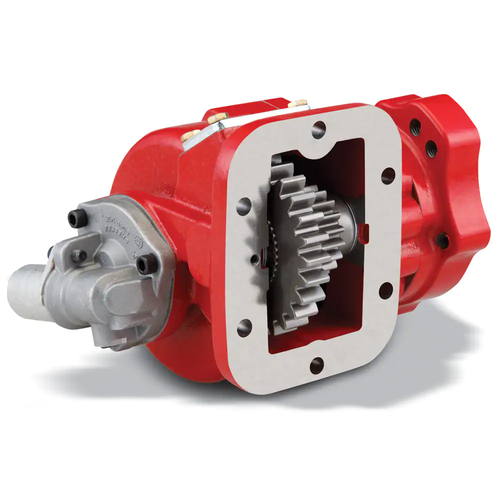

The Chelsea 272FPLLP-B8RF is a 272 Series 6-bolt hot shift power take-off assembly, part of Parker Chelsea's medium-duty PTO platform. The 272 Series consolidates multiple earlier PTO lines into one versatile design rated for up to 300 lb-ft intermittent torque and 56+ HP output. This series supports pneumatic or hydraulic shift and includes an integral air control valve. The part number suffix indicates pressure lube configuration. Rotatable flanges allow flexible mounting to suit a range of transmission and vehicle installations. Common applications include aerial, construction, towing and recovery, and water truck equipment. Call us to confirm proper fit for your application.
Features
Chelsea 272 Series 6-bolt hot shift PTO assembly
Pressure lube configuration ("P" designator in part number)
Up to 300 lb-ft intermittent torque rating for the 272 Series
56+ HP output power capability
Integral air control valve included
Rotatable flanges for flexible installation
Tech Specs
- Mounting Type: 6-Bolt
- Shift Type: Pneumatic or Hydraulic
- Intermittent Torque (Series): 201-300 lb-ft (401-500 Nm)
- Output Power (Series): 56+ HP (41-50 kW)
- Lubricant Configuration: Pressure Lube
- Output Shaft Type: Round Shaft (1" - 1/4" Key) or Round Shaft (1-1/4" - 5/16" Key)
Additional Information
Parts Manual: Chelsea 272 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
