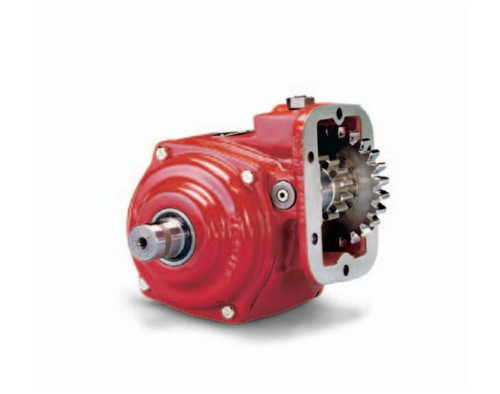

The Chelsea 272GAHVP-K5RB is a 272 Series hot shift power take-off assembly built on a 6-bolt mounting pattern. Part of Chelsea's medium-duty 272 Series, this PTO supports up to 300 lb-ft of intermittent torque and is available with pneumatic or hydraulic shift. The 272 Series consolidates the earlier 230, 231, 236, 238, 270, and 271 series into a single, more versatile platform with nine speed ratios and eighteen shift options. Applications include aerial, construction equipment, towing and recovery, and water trucks. Also referenced as 272GAHVPK5RB. Call us to confirm proper fit for your application.
Features
Chelsea 272 Series 6-bolt hot shift PTO assembly
Supports up to 300 lb-ft intermittent torque (201-300 lb-ft range)
Pneumatic or hydraulic shift options available
Integral air control valve included
Nine speed ratios and eighteen shift configurations in the 272 Series
Suited for aerial, construction, towing and recovery, and water truck applications
Tech Specs
- Mounting Type: 6-Bolt
- Shift Type: Pneumatic or Hydraulic
- Intermittent Torque (Series): 201 to 300 lb-ft (401 to 500 Nm)
- Output Power (Series): 56+ HP (41 to 50 kW)
- Output Shaft Type (Series): Round Shaft with 1 in. - 1/4 in. Key, or Round Shaft with 1-1/4 in. - 5/16 in. Key
- Speed Ratios Available (Series): 9
- Shift Configurations Available (Series): 18
Additional Information
Parts Manual: Chelsea 272 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
