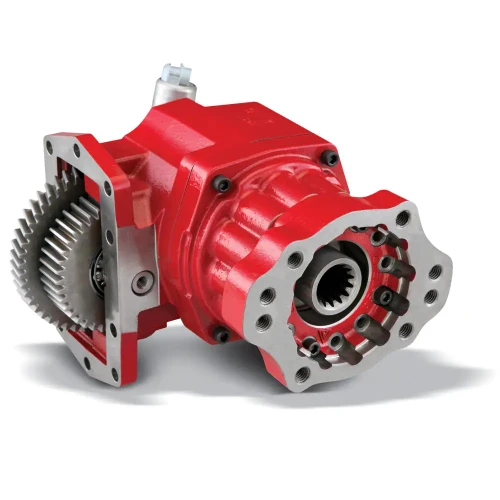

The Chelsea 281GDFJP-H8XV or 281GDFJPH8XV is a Power Take-Off assembly built around a ductile iron bearing cap rated 117% stronger than gray iron. Nine speed ratios cover both low and high speed applications, and a single continuous-duty torque rating simplifies spec selection. The O-ring sealing configuration reduces the effect of vibration and improves clamp load compared to older seal designs. Rotatable cast-iron flanges reduce interference clearance issues, and the driveline output uses a positive-stop design to eliminate oil seal damage from coupling contact. The Wet Spline Lubrication option extends shaft service life by 7 to 10 times. SmartStart reduces shock load at start-up, and the Electronic Overspeed Control (EOC) protects driven equipment. A hose is included with the assembly. Call us to confirm proper fit for your application.
Features
Ductile iron bearing cap - 117% stronger than gray iron
Nine speed ratios including both low and high speed ranges
O-ring sealing configuration reduces vibrational effects and improves clamp load
Rotatable cast-iron flanges reduce interference clearance issues
Positive-stop driveline output prevents oil seal damage from coupling
Electronic Overspeed Control (EOC) and SmartStart shock-load reduction included
Additional Information
Parts Manual: Chelsea 281 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
