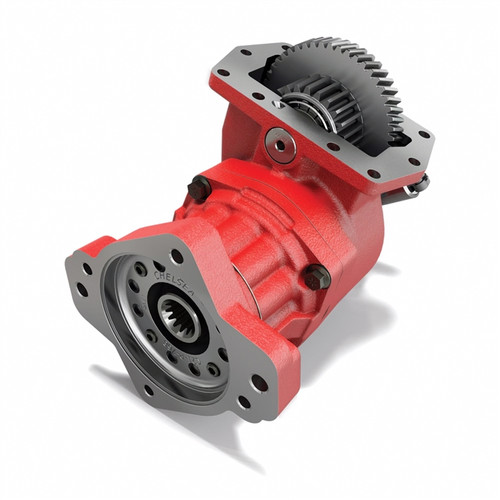

Chelsea part number 281GGKVP-G3RS or 281GGKVPG3RS is a 281 Series Power Take-Off assembly, hydraulically shifted (PowerShift) and designed for continuous-duty operation on automatic transmissions with a 10-bolt aperture, including Allison and Caterpillar units. The 281 Series is an evolution of the 280 Series platform. Upgrades include a ductile iron bearing cap rated 117% stronger than gray iron, an O-ring sealing configuration between the housing and bearing cap for improved clamp load, and an 80% increase in clutch pack disc thickness to resist premature tooth wear. Nine speed ratios cover both low and high ranges. Rotatable cast-iron flanges reduce pump interference, and the Wet Spline Lubrication option extends shaft life by 7 to 10 times. Call us to confirm proper fit for your application.
Features
Ductile iron bearing cap, 117% stronger than gray iron predecessor
O-ring sealing configuration between housing and bearing cap improves clamp load and reduces vibrational effects
Enhanced clutch pack with 80% thicker steel discs to resist premature tooth wear
Nine speed ratios including low and high speeds
Positive Stop for driveline outputs eliminates oil seal damage from coupling
Electronic Overspeed Control (EOC) protects driven equipment; SmartStart reduces shock load at start-up
Tech Specs
- Shift Type: Hydraulic (PowerShift) Hot Shift
- Mounting: 10-Bolt aperture
- Compatible Transmissions: Allison and Caterpillar automatic transmissions
- Continuous Torque Rating: 390 lb-ft (529 Nm)
- Speed Ratios: Nine ratios, including low and high speeds
- Lubrication: Pressure Lube or Wet Spline option (Wet Spline provides 7-10x greater shaft life)
- Continuous Operation: Yes
- Series: Chelsea 281 Series (evolution of 280 Series)
Additional Information
Parts Manual: Chelsea 281 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
