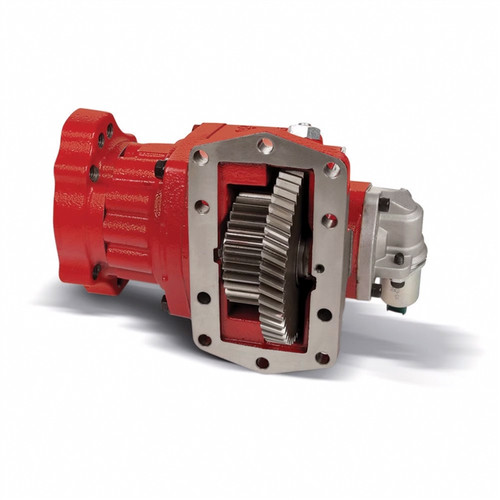

The Chelsea 281GMFJP-B5XD Power Take-Off assembly, also listed as 281GMFJPB5XD, is a 281 Series PTO built for continuous-duty operation. It offers nine speed ratios spanning low and high ranges, so you can match output to your driven equipment. The ductile iron bearing cap is 117 percent stronger than gray iron, and an O-ring sealing configuration cuts vibration effects while improving clamp load. Rotatable cast-iron flanges reduce interference and clearance issues, and the driveline outputs use positive stops to prevent oil seal damage from the coupling. The connecting hose is included. Cross references include 280GMFJP-B5XD and 5P1491, 5P1482. Call us to confirm proper fit for your application.
Features
Nine speed ratios including low and high speeds
Ductile iron bearing cap, 117 percent stronger than gray iron
O-ring seal configuration reduces vibration effects and improves clamp load
Rotatable cast-iron flanges reduce interference and clearance issues
Positive-stop driveline outputs prevent oil seal damage from the coupling
Connecting hose included; optional Wet Spline Lubrication and Electronic Overspeed Control (EOC) for added protection
Additional Information
Parts Manual: Chelsea 281 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
