Chelsea PTO Assembly P/N: 281GSFJP-B3SD or 281GSFJPB3SD

281GSFJP-B3SD Chelsea PTO Assembly

Chelsea

Listing Price: $6,999.15
Sale Price: $3,849.53

This item qualifies for FREE shipping on orders over $295 and under 70 lbs

(No reviews yet) Write a Review
Product Code:
CHL281GSFJPB3SD
Condition:
New
Availability:
Usually Ships in 3 to 5 Business Days
Adding to cart… The item has been added

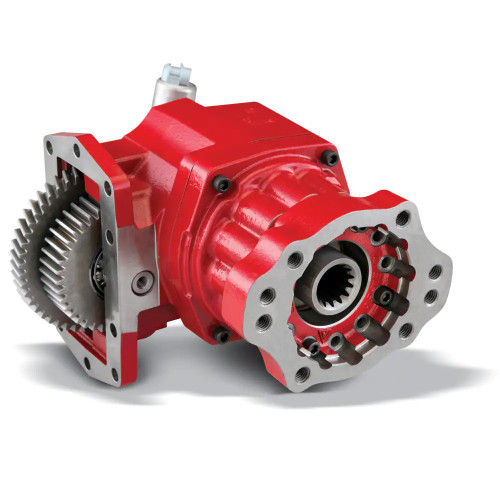

The Chelsea 281 Series Power Take-Off, part number 281GSFJP-B3SD or 281GSFJPB3SD, is a hydraulically shifted hot-shift PTO built for automatic transmissions with a 10-bolt aperture, including Allison transmissions. It mounts directly to the transmission and supports continuous-duty operation across nine speed ratios covering both low and high ranges. The ductile iron bearing cap is 117% stronger than gray iron, and an o-ring sealing configuration between the housing and bearing cap improves clamp load and resists vibration from modern engine designs. The enhanced clutch pack uses steel discs 80% thicker than the previous 280 Series design. Electronic Overspeed Control (EOC) protects downstream driven equipment, while the optional wet spline lubrication delivers 7 to 10 times greater shaft life. Call us to confirm proper fit for your application.

Features

Ductile iron bearing cap - 117% stronger than gray iron versus the predecessor 280 Series
O-ring sealing configuration between housing and bearing cap improves clamp load and resists vibration
Enhanced clutch pack with steel discs 80% thicker than the previous design to resist premature tooth wear
Nine speed ratios including low and high speeds for flexible application matching
Electronic Overspeed Control (EOC) protects driven equipment from overspeed damage
Wet spline lubrication option provides 7 to 10 times greater output shaft life
Rotatable cast-iron flanges reduce interference and improve pump clearance
SmartStart reduces shock load at engagement for compatible applications
Hose included - no need to order separately

Tech Specs

  • Mounting Type: 10-Bolt
  • Shift Type: PowerShift (Hydraulic)
  • Transmission Compatibility: Allison automatic transmissions (10-bolt aperture)
  • Continuous Torque Rating (series): 390 lb-ft / 529 Nm
  • Speed Ratios: Nine, including low and high
  • Continuous Operation: Yes
  • Lubrication: Pressure lube or wet spline option
  • Positive Stop for driveline outputs: Yes
  • SmartStart: Available for compatible applications
  • Electronic Overspeed Control (EOC): Included

Additional Information

Chelsea PTO 281 Series model break down

Parts Manual: Chelsea 281 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.

!
