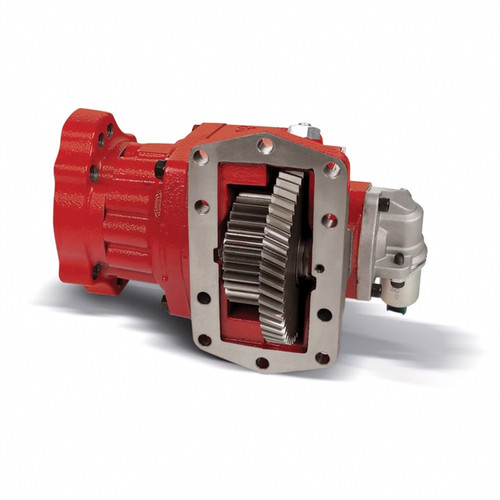

The Chelsea 281 Series Power Take-Off, part number 281GSFJP-B3XD or 281GSFJPB3XD, is a hydraulically shifted hot-shift PTO built for automatic transmissions with a 10-bolt aperture, including Allison and Caterpillar applications. It is an evolution of the 280 Series, carrying a series continuous torque rating of 390 lb-ft (529 Nm). The 281 Series adds a ductile iron bearing cap rated 117% stronger than gray iron, an o-ring sealing configuration between housing and bearing cap for improved clamp load, and an 80% increase in clutch pack steel disc thickness to resist premature wear. Rotatable cast-iron flanges reduce interference clearance issues, and the Wet Spline Lubrication option extends shaft life by 7 to 10 times. Electronic Overspeed Control (EOC) and the SmartStart feature are also included for select configurations. Call us to confirm proper fit for your application.
The Chelsea 281 Series is suited for demanding markets including Fire and Rescue, Truck Cranes, Pumper Cleaner, and Refuse applications. Relevant Parker Chelsea documentation includes the 281/288 Series Parts List (HY25-2281-M1/US) and the 267/281/288/871/878 Series Owner's Manual. The Positive Stop feature for driveline outputs eliminates oil seal damage from coupling contact. For applications requiring SmartStart, the round output shaft is offered in a 1-1/4 inch, 5/16 inch key configuration. Chelsea stud kits and pump support brackets are available separately.
Features
Hydraulic hot-shift (PowerShift) design for automatic transmissions with 10-bolt aperture, including Allison and Caterpillar
Ductile iron bearing cap, 117% stronger than gray iron predecessor
O-ring sealing configuration between housing and bearing cap improves clamp load and reduces vibration effects
Enhanced clutch pack with 80% thicker steel discs to resist premature tooth wear
Nine speed ratios available, covering both low and high speed ranges
Electronic Overspeed Control (EOC) protects driven equipment; SmartStart reduces shock load at start-up
Tech Specs
- Mounting Type: 10-Bolt
- Shift Type: Hydraulic (PowerShift / Hot Shift)
- Compatible Transmissions: Allison and Caterpillar automatic transmissions
- Series Continuous Torque Rating: 390 lb-ft (529 Nm)
- Output Power: 56+ HP (51+ kW)
- Shaft Power: 37 HP at 500 RPM, 74 HP at 1000 RPM
- Speed Ratios: Nine (including low and high)
- Continuous Operation: Yes
- Lubrication: Wet Spline option available (7-10x greater shaft life)
- Output Types Available in Series: SAE B Pump Flange, SAE C Pump Flange, ISO 7652 Pump Flange, Driveline
- Part Number: 281GSFJP-B3XD or 281GSFJPB3XD
Additional Information
The Chelsea 281 Series is suited for demanding markets including Fire and Rescue, Truck Cranes, Pumper Cleaner, and Refuse applications. Relevant Parker Chelsea documentation includes the 281/288 Series Parts List (HY25-2281-M1/US) and the 267/281/288/871/878 Series Owner's Manual. The Positive Stop feature for driveline outputs eliminates oil seal damage from coupling contact. For applications requiring SmartStart, the round output shaft is offered in a 1-1/4 inch, 5/16 inch key configuration. Chelsea stud kits and pump support brackets are available separately.
Parts Manual: Chelsea 281 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
