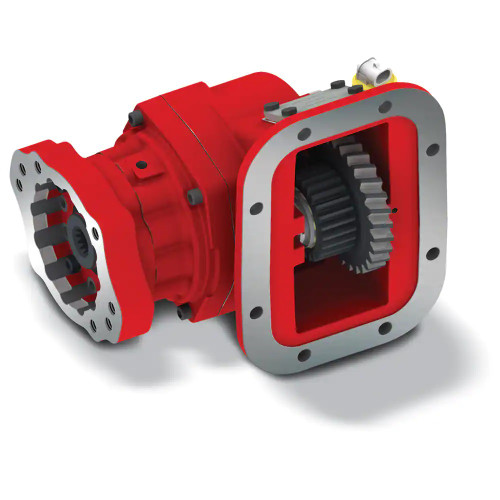

The Chelsea 282XDAJX-P3BD or 282XDAJXP3BD is a Power Take-Off assembly from the Chelsea 282 Series, a medium-duty hot shift PTO line designed for demanding vocational applications. The 282 Series supports both pneumatic and hydraulic (PowerShift) shift options and uses an 8-bolt mounting configuration. The series carries an intermittent torque rating of 201-300 lb-ft (401-500 Nm), with continuous-duty capability subject to a 30% de-rate per application requirements. Output shaft options within the series include a 1-1/4 in. round shaft with 5/16 in. key and a 1 in. round shaft with 1/4 in. key. Typical applications include aerial equipment, towing and recovery, water trucks, construction equipment, and fuel oil delivery trucks. Call us to confirm proper fit for your application.
Features
Chelsea 282 Series medium-duty hot shift Power Take-Off
8-bolt mounting configuration
Pneumatic or hydraulic (PowerShift) shift options with integral air valve
Intermittent torque rating: 201-300 lb-ft (401-500 Nm)
Output shaft options: 1-1/4 in. round with 5/16 in. key, or 1 in. round with 1/4 in. key
Suited for aerial, towing and recovery, water truck, construction, and fuel oil delivery applications
Additional Information
Parts manual and diagrams: Chelsea 282 Series PTO parts list with prices
Equivalent PTOs:
Matched by full model number. Check the mounting, input gear and output against the unit you are replacing before you order. Look up any Chelsea, Muncie or Bezares number on our Muncie to Chelsea PTO cross reference.
