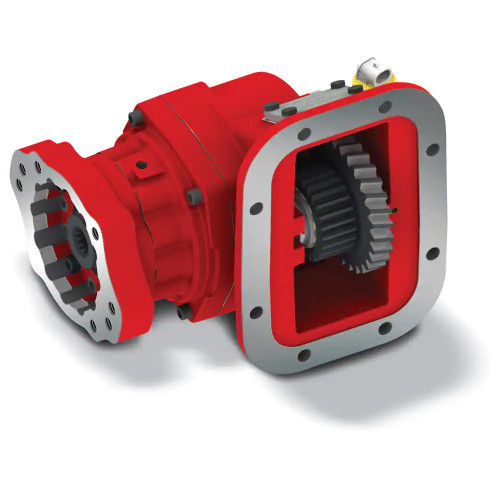

The Chelsea 282XKAJX-V3RB or 282XKAJXV3RB is a medium-duty hot shift Power Take-Off assembly from Parker Chelsea's 282 Series. The 282 Series supports both pneumatic and hydraulic (PowerShift) shift options and mounts via an 8-bolt pattern. Intermittent torque capability for the series reaches 201-300 lb-ft (401-500 Nm), with output shaft configurations including a 1-1/4" round shaft with 5/16" key or a 1" round shaft with 1/4" key. The series offers nine speed ratios and eighteen shift options, making it adaptable across aerial, towing and recovery, construction, water truck, and fuel oil delivery applications. Call us to confirm proper fit for your specific transmission and application.
Features
8-bolt mounting pattern
Pneumatic or hydraulic (PowerShift) shift options
Intermittent torque: 201-300 lb-ft (401-500 Nm) at the series level
Output shaft options: 1-1/4" round with 5/16" key, or 1" round with 1/4" key
Nine speed ratios and eighteen shift configurations available within the 282 Series
Suited for aerial, towing and recovery, construction, water truck, and fuel oil delivery applications
Tech Specs
- Mounting Type: 8-Bolt
- Shift Type: Pneumatic or Hydraulic (PowerShift)
- Intermittent Torque (Series): 201-300 lb-ft / 401-500 Nm
- Output Shaft: 1-1/4" round with 5/16" key; or 1" round with 1/4" key
- Speed Ratios (Series): 9 available
- Shift Options (Series): 18 available
Additional Information
Parts Manual: Chelsea 282 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
