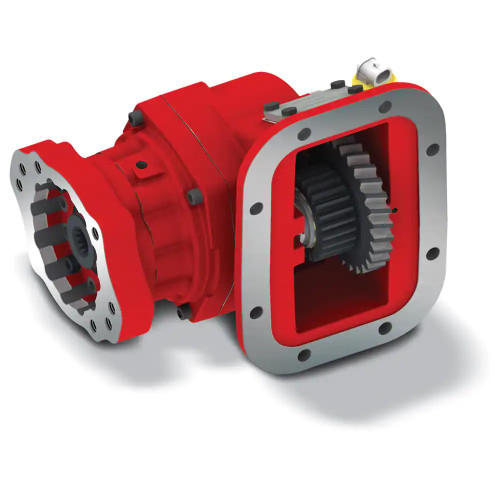

The Chelsea 282XMDAX-15XV or 282XMDAX15XV is an 8-bolt, medium-duty hot shift power take-off from the 282 Series. It accepts pneumatic or PowerShift (pneumatic/hydraulic) actuation and delivers up to 300 lb-ft of continuous torque or 201-300 lb-ft intermittent, with shaft power rated at 29 HP at 500 RPM and 57 HP at 1,000 RPM. The output shaft is a 1-1/4" round with a 5/16" key. Compatible transmissions include Allison, Volvo/Mack, Eaton/Fuller, and other manufacturers. The 282 Series carries an integral air valve, rotatable flanges, an optional wet-spline configuration for extended pump shaft life, and a Smart Start option for high-torque engagement. Typical applications include aerial equipment, construction, water trucks, towing and recovery, and fuel oil delivery trucks. A genuine Chelsea part, available from Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
8-bolt mounting for compatibility with Allison, Volvo/Mack, Eaton/Fuller, and other transmission manufacturers
Pneumatic or PowerShift (pneumatic/hydraulic) shift operation with integral air valve
1-1/4" round output shaft with 5/16" key
Continuous-duty torque rating up to 300 lb-ft (407 Nm); intermittent range 201-300 lb-ft (401-500 Nm)
Shaft power: 29 HP (21 kW) at 500 RPM, 57 HP (43 kW) at 1,000 RPM
Rotatable flanges, wet-spline option, and Smart Start option for high-torque start-up
Tech Specs
- Intermittent Torque: 201-300 lb-ft (401-500 Nm)
- Continuous Torque: 300 lb-ft (407 Nm) - Check Application Pages for Actual Torque Ratings
- Output Shaft Type: 1-1/4" Round with 5/16" Key
- Mounting Type: 8-Bolt
- Shift Type: Pneumatic or PowerShift (Pneumatic/Hydraulic)
- Output Power: 41-50 kW, 56+ HP
- Shaft Power: 29 HP (21 kW) at 500 RPM; 57 HP (43 kW) at 1,000 RPM
- Compatible Transmissions: Allison, Volvo/Mack, Eaton/Fuller, Other
Additional Information
Parts Manual: Chelsea 282 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
