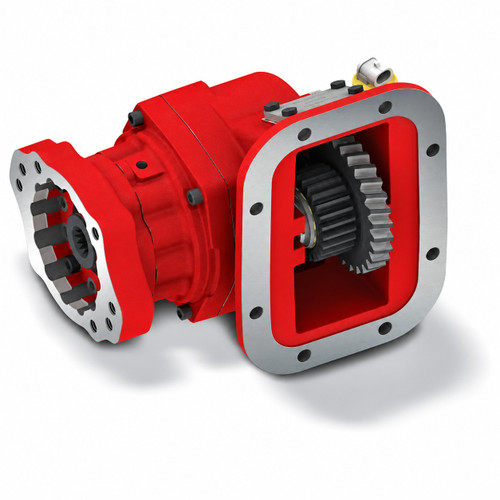

The Chelsea 282 Series Power Take-Off, part number 282XTAJX-A3XV or 282XTAJXA3XV, is a medium-duty hot-shift PTO featuring an 8-bolt mounting configuration and support for both pneumatic and PowerShift (pneumatic/hydraulic) operation. The 282 Series carries an intermittent torque rating of 201-300 lb-ft (401-500 Nm) and delivers shaft power ranging from 29 HP at 500 RPM to 57 HP at 1,000 RPM. Output options in this series include a 1-1/4" round shaft with 5/16" key and a 1" round shaft with 1/4" key. Rotatable flanges and an integral air valve simplify installation. Common applications include aerial, construction equipment, water trucks, towing and recovery, and fuel oil delivery. Call us to confirm proper fit for your application.
Features
Chelsea 282 Series medium-duty hot-shift PTO, part number 282XTAJX-A3XV or 282XTAJXA3XV
8-bolt mounting configuration
Pneumatic or PowerShift (pneumatic/hydraulic) shift operation
Intermittent torque rating: 201-300 lb-ft (401-500 Nm)
Shaft power: 29 HP at 500 RPM, 57 HP at 1,000 RPM
Rotatable flanges and integral air valve for flexible installation
Wet-spline output option for extended PTO and pump shaft service life
Additional Information
Parts Manual: Chelsea 282 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
