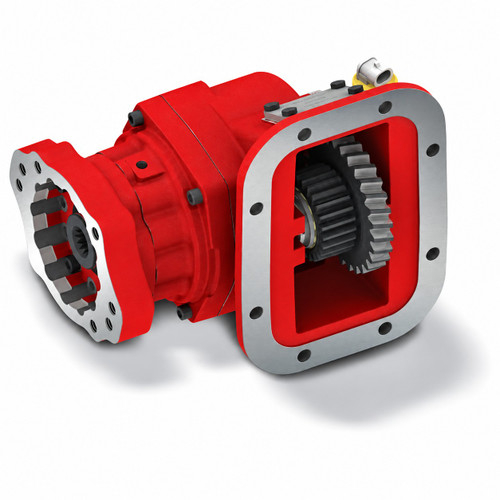

The Chelsea 282 Series PTO Assembly, part number 282XTAJX-V3XD or 282XTAJXV3XD, is a medium-duty hot-shift power take-off designed for demanding continuous-duty applications. It mounts via an 8-bolt pattern and is compatible with Allison, Eaton/Fuller, Volvo/Mack, and other transmission manufacturers. Shift options include pneumatic or PowerShift (pneumatic/hydraulic). The 1-1/4" round output shaft accepts a 5/16" key. Shaft power output is rated at 29 HP at 500 RPM and 57 HP at 1,000 RPM. Continuous torque capability reaches 300 lb-ft, making it suited for aerial, construction, water truck, towing and recovery, and fuel oil delivery applications. Pro Gear and Transmission sells this genuine Chelsea part. Call us to confirm proper fit for your application.
Features
8-bolt mounting pattern compatible with Allison, Eaton/Fuller, Volvo/Mack, and other transmissions
Air or hydraulic shift (pneumatic or PowerShift pneumatic/hydraulic)
1-1/4" round output shaft with 5/16" key
Continuous torque rating up to 300 lb-ft (407 Nm); intermittent torque 201-300 lb-ft (401-500 Nm)
Shaft power: 29 HP (21 kW) at 500 RPM, 57 HP (43 kW) at 1,000 RPM
Integral air valve, rotatable flanges, optional wet-spline lubrication, and Smart Start option for high-torque start-up
Tech Specs
- Intermittent Torque: 201-300 lb-ft (401-500 Nm)
- Continuous Torque: 300 lb-ft (407 Nm) - Check Application Pages for Actual Torque Ratings
- Output Shaft Type: 1-1/4" Round with 5/16" Key
- Mounting Type: 8-Bolt
- Shift Type: Pneumatic or PowerShift (Pneumatic/Hydraulic)
- Output Power: 56+ HP (41-50 kW)
- Shaft Power: 29 HP (21 kW) at 500 RPM; 57 HP (43 kW) at 1,000 RPM
- Transmission Compatibility: Allison, Eaton/Fuller, Volvo/Mack, and Other
- Lubricant Options: Standard Lube, Pressure Lube, or Wet Spline
