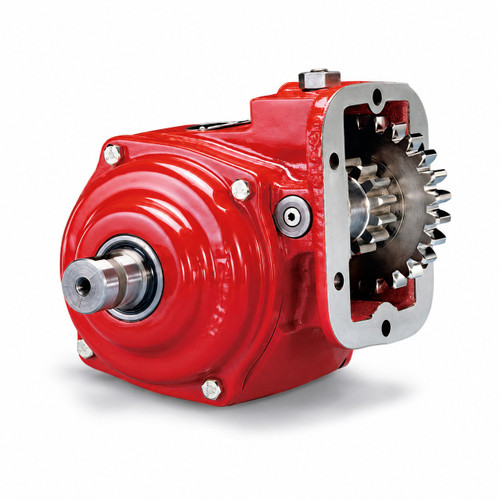

The Chelsea 442 Series Power Take-Off, part number 442KLJKX-P5XK or 442KLJKXP5XK, is a 6-bolt mount PTO assembly built for light-to-medium duty vocational applications including dump trucks, service trucks, and tow and recovery trucks. This unit runs a 0.391:1 gear ratio with air shift actuation and a 1-1/4" round standard output shaft. Mounting uses the standard configuration with metric studs. No pressure lube is required. The cast iron housing and tapered cone bearings on the output shaft are characteristic of the 442 Series, which offers eleven internal speed ratios and thirty-six output options across the product line. Call us to confirm proper fit for your application.
Features
Chelsea 442 Series, 6-bolt transmission mount with metric studs
Air shift actuation for remote engagement
0.391:1 gear ratio
1-1/4" round standard output shaft
Cast iron housing with tapered cone bearings on the output shaft
Greaseable output shafts; rotatable output flange for clearance flexibility
Tech Specs
- Product Series: 442
- Gear Ratio: 0.391:1
- Shift Type: Air Shift
- Mounting Option: Standard Mount with Metric Studs (6-Bolt)
- Output Option: 1-1/4" Round Standard Shaft
- Lubricant: No Pressure Lube
- Input Gear Designator: AH
- Assembly: 3
Additional Information
Parts Manual: Chelsea 442 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
