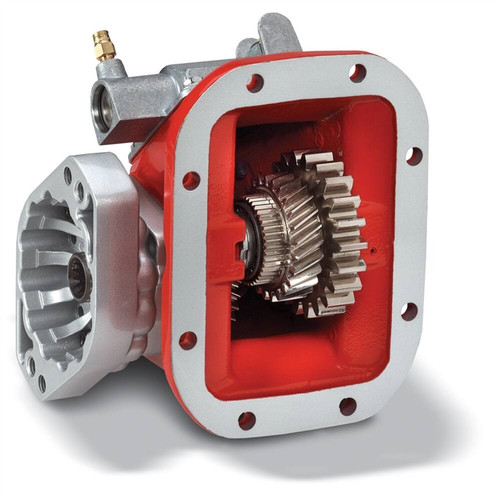

The Chelsea 442 Series Power Take-Off Assembly, part number 442KRJKX-A5GK or 442KRJKXA5GK, is a 6-bolt mount PTO built for light-to-medium duty vocational applications. This unit runs an air shift actuation system, with a greaseable SAE B 2 or 4-bolt flange and a 7/8" 13-tooth SAE B shaft. Mounting uses the standard configuration. The housing is cast iron, and the output shaft is greaseable for extended service life. Tapered cone bearings on the output shaft contribute to the 442 Series' torque capacity. No pressure lubrication is required. Typical applications in the 442 Series include dump trucks, tow trucks, service trucks, and aerial equipment. Call us to confirm proper fit for your transmission.
Features
Air shift actuation system
Greaseable SAE B 2 or 4-bolt flange with a 7/8" 13-tooth SAE B shaft
Standard 6-bolt mount
Cast iron housing with tapered cone bearings on output shaft
Greaseable output shaft; no pressure lubrication required
Tech Specs
- Product Series: 442
- Mounting Option: Standard Mount without Stud Kit (K)
- Gear Ratio Code: R (22/24)
- Input Gear Designator: JK
- Lube Option: No Pressure Lube (X)
- Shift Option: Air Shift (A)
- Assembly Arrangement: 5
- Output Option: Greaseable SAE B 2 or 4-Bolt Flange, SAE B Shaft (7/8" 13T) (GK)
