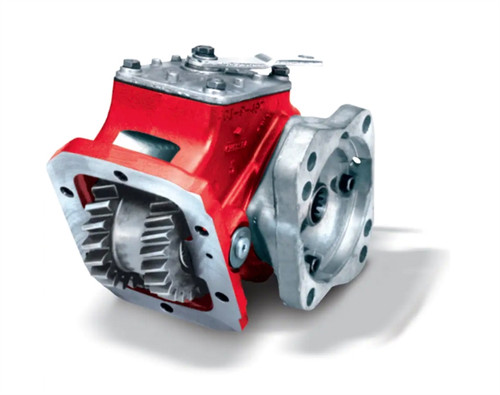

The Chelsea 447 Series Power Take-Off Assembly, part number 447XSESX-A3XD or 447XSESXA3XD, is a 6-bolt mount PTO with air shift and a 1-1/4" round output shaft with key. Output shaft power reaches 21 HP at 500 RPM and 43 HP at 1000 RPM, with an intermittent torque rating of 201-300 lb-ft (check application pages for actual torque ratings). The 447 Series uses a one-piece input gear with a gap between its two gear-tooth sets, specifically engineered to clear interference problems inside the PTO aperture on transmissions where adjacent gears would otherwise conflict. Compatible with Eaton/Fuller, ZF, and other transmission manufacturers. Call us to confirm proper fit for your application.
Features
6-bolt mounting, no adapter plate required for most applications
Air shift
1-1/4" round output shaft with key
Intermittent torque rating: 201-300 lb-ft (check application pages for actual ratings)
Shaft power: 21 HP at 500 RPM, 43 HP at 1000 RPM
One-piece input gear design eliminates interference problems inside the transmission/PTO opening
Tech Specs
- Intermittent Torque: 201-300 lb-ft / 301-400 Nm (check application pages for actual torque ratings)
- Mounting Option: Standard Mount (X)
- Gear Ratio Code: S
- Input Gear Designator: ES
- Lube Option: No Pressure Lube (X)
- Shift Option: Air Shift (A)
- Assembly Arrangement: 3
- Output Option: 1-1/4" Round Standard Shaft with 5/16" Key (XD)
- Output Power: 36-45 HP / 31-40 kW
- Shaft Power: 21 HP at 500 RPM, 43 HP at 1000 RPM (16 kW at 500 RPM, 32 kW at 1000 RPM)
- Mounting Type: 6-Bolt
- Compatible Transmissions: Eaton/Fuller, ZF, and other manufacturers
Equivalent PTOs:
Matched by full model number. Check the mounting, input gear and output against the unit you are replacing before you order. Look up any Chelsea, Muncie or Bezares number on our Muncie to Chelsea PTO cross reference.
