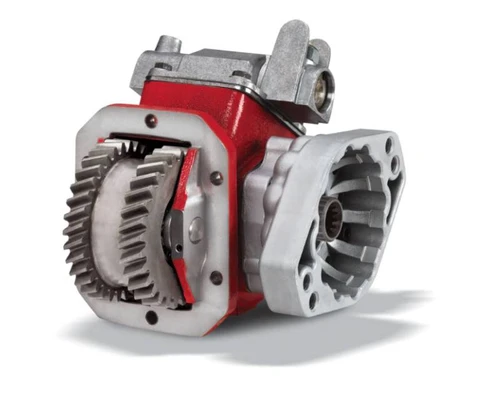

Stock photo not actual item

489GLAHX-V5RB Chelsea PTO Assembly

Chelsea

Listing Price: $2,908.20
Sale Price: $1,599.51

This item qualifies for FREE shipping on orders over $295 and under 70 lbs

(No reviews yet) Write a Review
Product Code:
CHL489GLAHXV5RB
Condition:
New
Availability:
Usually Ships in 3 to 5 Business Days
Adding to cart… The item has been added
The Chelsea 489 Series Power Take-Off Assembly, part number 489GLAHX-V5RB or 489GLAHXV5RB, mounts directly to an 8-bolt transmission opening without an adapter plate, which removes a common leak path and reduces installation time. The one-piece cast iron housing delivers up to 250 lb-ft intermittent torque, matching the capacity of the Chelsea 442 Series. Shift type is air shift, and the output is a rotatable SAE B 4-bolt flange with a 7/8" 13-tooth SAE B shaft. Output shaft power reaches 24 HP at 500 RPM and 48 HP at 1,000 RPM. Compatible transmissions include Eaton Fuller, Mack, Tremec, and other manual transmissions with an 8-bolt PTO aperture. Call us to confirm proper fit for your specific transmission and application.

Features

8-bolt one-piece cast iron housing mounts directly to transmission opening, no adapter plate required
Air shift
250 lb-ft intermittent torque capacity, matching the Chelsea 442 Series rating
Rotatable SAE B 4-bolt flange with a 7/8" 13-tooth SAE B shaft
Shaft power: 24 HP at 500 RPM, 48 HP at 1,000 RPM
Kit-style design with internal parts common to the 442 Series simplifies service and parts sourcing

Tech Specs

  • Product Series: 489
  • Mounting Type: 8-Bolt
  • Mounting Option: Standard Mount with Metric Studs (G)
  • Gear Ratio Code: L (25/34)
  • Input Gear Designator: AH
  • Lube Option: No Pressure Lube (X)
  • Shift Option: Air Shift without Installation Kit (V)
  • Assembly Arrangement: 5
  • Output Option: Rotatable SAE B 4-Bolt Flange, SAE B Shaft (7/8" 13T) (RB)
  • Intermittent Torque: 250 lb-ft (339 Nm) - check application pages for actual torque ratings
  • Continuous Torque: De-rate intermittent rating by 30% - check application pages for actual torque ratings
  • Output Power: 46-55 HP (31-40 kW)
  • Shaft Power: 24 HP (18 kW) at 500 RPM; 48 HP (36 kW) at 1,000 RPM
  • Transmission Compatibility: Eaton/Fuller, Volvo/Mack, and other manual transmissions with 8-bolt PTO aperture
  • Dimensions (H x W x L): 8.38" x 10.38" x 14.25"

Additional Information

Chelsea PTO 489 Series Model Break Down
Equivalent PTOs:

Matched by full model number. Check the mounting, input gear and output against the unit you are replacing before you order. Look up any Chelsea, Muncie or Bezares number on our Muncie to Chelsea PTO cross reference.
