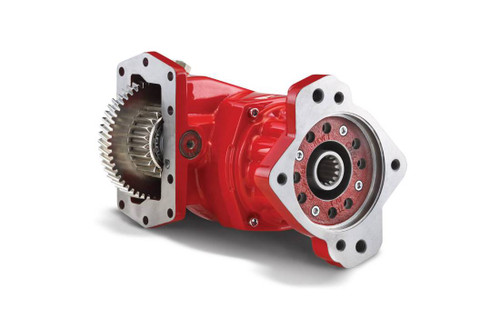

The Chelsea 871 Series Power Take-Off Assembly, part number 871XAFJP-B3RZ or 871XAFJPB3RZ, is a 10-bolt PowerShift (hydraulic) PTO designed for Allison transmissions. The 871 Series carries a continuous torque rating of up to 670 lb-ft (908 N-m) with no derating required for continuous duty applications. Nine speed ratios and thirteen output options give this unit broad application flexibility across fire and rescue, refuse, pumper/cleaner, and truck crane installations. A ductile iron bearing cap rated 117% stronger than gray iron, combined with an O-ring sealing configuration between the housing and bearing cap, reduces vibrational stress from modern engine designs. The compact housing profile keeps clearance conflicts to a minimum. Optional Wet Spline, SmartStart, and Quiet Gear configurations are available. Chelsea's 871 Series is sold by Pro Gear and Transmission. Call us to confirm the right configuration for your specific installation.
Features
10-bolt PowerShift (hydraulic) mounting for Allison transmissions
Continuous torque rating up to 670 lb-ft (908 N-m) with no continuous-duty derating required
Ductile iron bearing cap, 117% stronger than gray iron
O-ring sealing between housing and bearing cap reduces vibrational effects and improves clamp load
Nine speed ratios and thirteen output options
Optional Wet Spline, SmartStart, and Quiet Gear configurations available
Tech Specs
- Mounting Type: 10-Bolt
- Shift Type: PowerShift (Hydraulic)
- Transmission Manufacturer: Allison
- Continuous Torque: 670 lb-ft (908 N-m) - check application pages for actual ratings
- Speed Ratios: Nine
- Output Options: Thirteen
- Continuous Operation: Yes
- Shaft Power: 64 HP at 500 RPM / 128 HP at 1,000 RPM
- Lubricant: Pressure Lube (P) / Wet Spline (W)
- Bearing Cap Material: Ductile Iron
- Optional Features: Wet Spline, SmartStart, Quiet Gear, Electronic Overspeed Control (EOC)
Additional Information
Parts Manual: Chelsea 871 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
