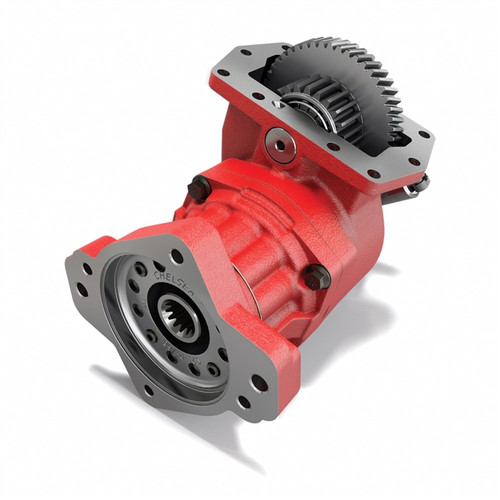

The Chelsea 871 Series Power Take-Off, part number 871XDFJP-B3RZ or 871XDFJPB3RZ, is a 10-bolt PowerShift (hydraulic) PTO designed for Allison transmission applications. The 871 Series carries continuous torque ratings up to 670 lb-ft (908 N-m) with no derating required for continuous-duty operation. Nine speed ratios and thirteen output options cover a wide range of installation requirements, while the compact housing minimizes clearance conflicts. A ductile iron bearing cap, 117% stronger than gray iron, pairs with an O-ring sealing configuration between the housing and bearing cap to resist the vibrational stress of modern engine designs. Optional Wet Spline pump flange, SmartStart, and Quiet Gear configurations are available within the series. Call us to confirm proper fit and configuration for your application.
Features
10-bolt PowerShift (hydraulic) mounting for Allison transmissions
Ductile iron bearing cap rated 117% stronger than gray iron
O-ring sealing configuration between housing and bearing cap reduces vibration-related clamp-load loss
Continuous torque capacity up to 670 lb-ft (908 N-m) - no continuous-duty derating required
Nine speed ratios and thirteen output options within the 871 Series
Electronic Overspeed Control (EOC), SmartStart, Quiet Gear, and Wet Spline pump flange options available
Tech Specs
- Mounting Type: 10-Bolt
- Shift Type: PowerShift (Hydraulic)
- Transmission Manufacturer: Allison
- Continuous Torque Capacity: 670 lb-ft (908 N-m)
- Speed Ratios: Nine
- Output Options: Thirteen
- Continuous Operation: Yes
- Output Shaft Types Available: SAE B (7/8 in. - 13T) Pump Spline, SAE BB (1 in. - 15T) Pump Spline, SAE C (1-1/4 in. - 14T) Pump Spline, DIN 5462 Pump Spline, 1410 Series Companion Flange, DIN 120 Flange, DIN 100 Flange
- Output Power: 64 HP (500 RPM), 128 HP (1000 RPM)
- Lubricant System: Pressure Lube / Wet Spline
Additional Information
Parts Manual: Chelsea 871 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
