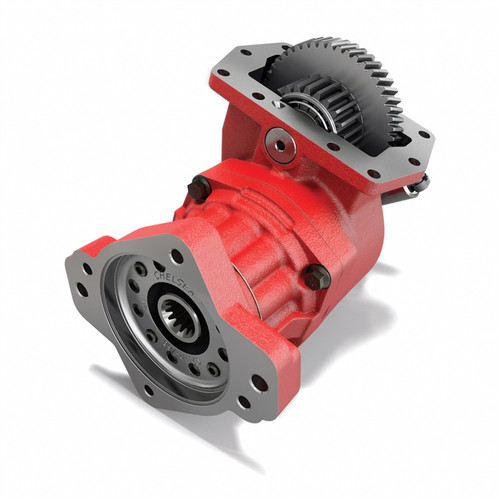

The Chelsea 871 Series Power Take-Off, part number 871XGFJP-D5SV or 871XGFJPD5SV, is a 10-bolt hydraulic PowerShift PTO designed for Allison transmissions. The 871 Series succeeds the 870 Series with a ductile iron bearing cap rated 117% stronger than gray iron and an o-ring sealing configuration between the housing and bearing cap to reduce vibrational effects and improve clamp load. Continuous torque capacity reaches 670 lb-ft (908 N-m) with no derating required for continuous duty. Nine speed ratios and thirteen output options cover a wide range of applications including fire and rescue, refuse, pumper cleaner, and truck crane work. The 871 Series is the only Chelsea PTO to offer all three of Chelsea's premium options: Wet Spline, SmartStart, and Quiet Gear. Call us to confirm proper fit for your application.
Features
10-bolt hydraulic PowerShift mounting for Allison transmissions
Ductile iron bearing cap, 117% stronger than gray iron
O-ring sealing between housing and bearing cap reduces vibrational effects and improves clamp load
Continuous torque capacity up to 670 lb-ft (908 N-m), no derating required for continuous duty
Nine speed ratios and thirteen output options
Wet Spline pump flange, SmartStart, and Quiet Gear options available on a single platform
Electronic Overspeed Control (EOC) protects driven equipment
Tech Specs
- Mounting Type: 10-Bolt
- Shift Type: PowerShift (Hydraulic)
- Transmission Manufacturer: Allison
- Continuous Torque: 670 lb-ft (908 N-m)
- Speed Ratios: Nine
- Output Options: Thirteen
- Continuous Operation: Yes
- Lubricant: Pressure Lube (P) or Wet Spline (W)
- Output Shaft Types: SAE B 7/8"-13T Pump Spline, SAE BB 1"-15T Pump Spline, SAE C 1-1/4"-14T Pump Spline, DIN 5462 Pump Spline, 1410 Series Companion Flange, DIN 120 Flange, DIN 100 Flange
- Output Flange Types: SAE B Pump Flange, SAE C Pump Flange
- Shaft Power: 64 HP at 500 RPM, 128 HP at 1000 RPM
Additional Information
Parts Manual: Chelsea 871 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
