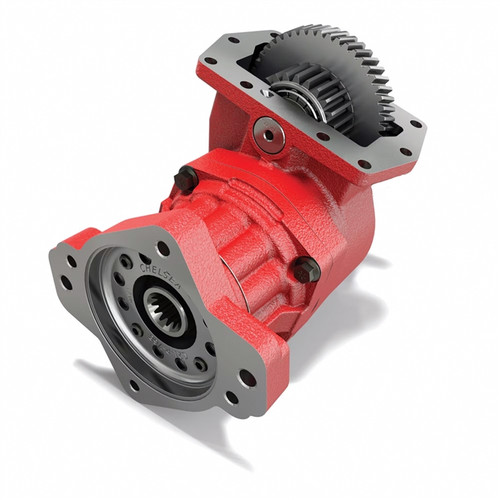

The Chelsea 878LEFJW-M5TS or 878LEFJWM5TS is a constant mesh Power Take-Off assembly from the Chelsea 878 Series, engineered to mount on Allison 10-bolt transmissions. The ductile iron bearing cap is 117% stronger than gray iron, and an O-ring sealing configuration between the housing and bearing cap improves clamp load while reducing the damaging vibrational effects of modern engine designs. Rotatable, cast-iron flanges reduce interference clearance issues, and the positive-stop driveline output eliminates oil seal damage from coupling contact. The wet spline lubrication option extends shaft life by 7 to 10 times compared to dry-spline configurations. A hydraulic hose is included -- no need to order separately. Call us to confirm proper fit for your specific application.
Features
Constant mesh design fits Allison 10-bolt transmissions
Ductile iron bearing cap -- 117% stronger than gray iron
O-ring sealing configuration improves clamp load and resists vibration
Rotatable cast-iron flanges reduce interference and clearance issues
Positive-stop driveline output eliminates oil seal damage from coupling
Wet spline lubrication option delivers 7 to 10 times greater shaft life
Hydraulic hose included -- no separate order required
Tech Specs
- Shift Type: Constant Mesh
- Transmission Mounting: Allison 10-Bolt
- Bearing Cap Material: Ductile Iron (117% stronger than gray iron)
- Sealing: O-ring configuration between housing and bearing cap
- Lubrication Options: Pressure Lube (P) or Wet Spline (W)
- Continuous Operation: Yes
- Hose: Included
