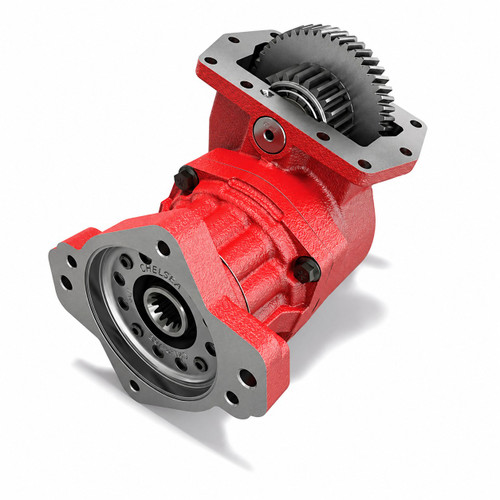

The Chelsea 878XAFJW-M3RS or 878XAFJWM3RS is a constant mesh Power Take-Off Assembly built for Allison and CAT 10-bolt transmissions. Part of Chelsea's 878 Series, this PTO delivers up to 670 lb-ft of continuous torque, the highest torque capability in its class for this mounting footprint. The cast iron housing and ductile iron bearing cap (117% stronger than gray iron) are designed to handle the vibrational stress of modern engine designs. An O-ring sealing configuration between the housing and bearing cap improves clamp load and sealing integrity. Nine speed ratios cover both low and high speed applications, and a wet spline lubrication option extends shaft life by 7 to 10 times. Rotatable cast iron flanges reduce clearance and interference issues, while driveline outputs incorporate a positive stop to prevent oil seal damage. The hose is included. Call us to confirm proper fit for your application.
Features
Ductile iron bearing cap rated 117% stronger than gray iron for improved durability under vibrational loads
O-ring sealing configuration between housing and bearing cap to improve clamp load and reduce vibrational effects
Up to 670 lb-ft continuous torque rating in the 878 Series, highest torque for this package size
Nine speed ratios available including both low and high speed selections
Wet spline lubrication option provides 7 to 10 times greater shaft life
Rotatable cast iron flanges reduce interference clearance issues; driveline outputs include positive stop to prevent oil seal damage
Tech Specs
- Series: Chelsea 878 Series
- Shift Type: Constant Mesh
- Mounting: 10-Bolt (Allison and CAT transmissions)
- Continuous Torque Rating: Up to 670 lb-ft (908 Nm) - check application pages for actual torque ratings
- Output Options (series): SAE B (7/8 in. - 13T) Pump Spline, SAE BB (1 in. - 15T) Pump Spline, SAE C (1-1/4 in. - 14T) Pump Spline
- Output Flange Options (series): SAE B Pump Flange, SAE C Pump Flange, DIN 120 Flange, DIN 100 Flange, 1410 Series Companion Flange
- Speed Ratios: Nine (including low and high speeds)
- Lubrication: Pressure Lube and Wet Spline options available
- Continuous Operation: Yes
- Housing Material: Cast iron
- Bearing Cap Material: Ductile iron
Additional Information
Parts Manual: Chelsea 878 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
