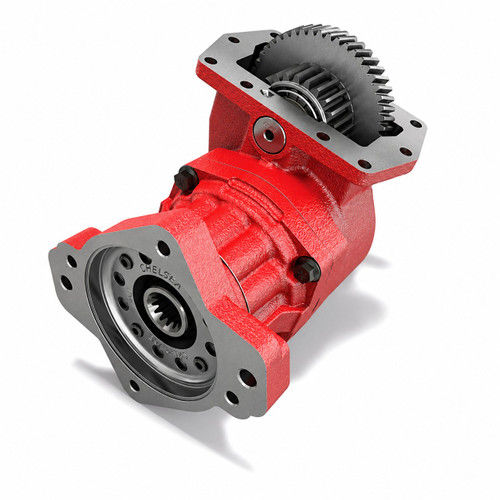

The Chelsea 878 Series Power Take-Off Assembly, part number 878XBKVW-M3RS or 878XBKVWM3RS, is a constant mesh PTO engineered to fit Allison and CAT 10-bolt transmissions. The 878 Series builds on the proven 877 Series platform with a ductile iron bearing cap rated 117% stronger than gray iron, an O-ring sealing configuration between the housing and bearing cap for improved clamp load, and rotatable cast-iron flanges to reduce interference issues. A single continuous duty torque rating simplifies application sizing. Nine speed ratios cover both low and high speed requirements. The Wet Spline Lubrication option extends shaft life by 7 to 10 times compared to standard configurations. A hydraulic hose is included. Call us to confirm proper fit for your specific transmission and application.
Features
Constant mesh design with cast iron housing fits Allison and CAT 10-bolt transmissions
Ductile iron bearing cap is 117% stronger than gray iron for increased durability
O-ring sealing configuration between housing and bearing cap reduces vibrational effects and improves clamp load
Rotatable cast-iron flanges reduce interference and clearance issues
Nine speed ratios including low and high speed options
Wet Spline Lubrication option provides 7 to 10 times greater shaft life; hydraulic hose included
Tech Specs
- Shift Type: Constant Mesh
- Mounting Type: 10-Bolt
- Transmission Manufacturer: Allison and CAT
- Continuous Torque: 670 lb-ft (908 Nm) - check application pages for actual torque ratings
- Output Power: 56+ HP (51+ kW)
- Shaft Power: 64 HP at 500 RPM, 128 HP at 1000 RPM
- Output Shaft Types: SAE B (7/8 in. - 13T) Pump Spline, SAE BB (1 in. - 15T) Pump Spline, SAE C (1-1/4 in. - 14T) Pump Spline, DIN 5462 Pump Spline, 1410 Series Companion Flange, DIN 120 Flange, DIN 100 Flange
- Output Flange Types: SAE B Pump Flange, SAE C Pump Flange
- Lubrication Options: Pressure Lube, Wet Spline
- Speed Ratios: Nine (including low and high speeds)
- Continuous Operation: Yes
Additional Information
Parts Manual: Chelsea 878 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
