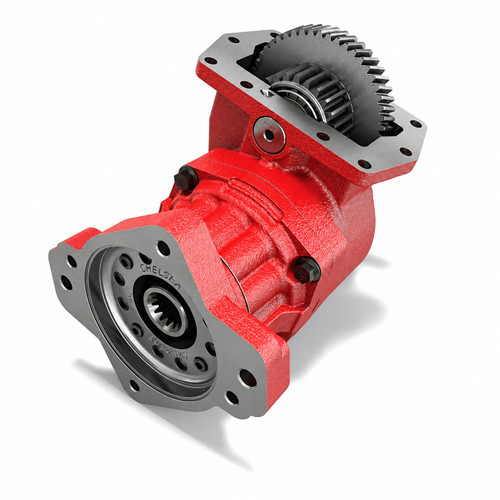

The Chelsea 878 Series Power Take-Off Assembly, part number 878XBFJP-M3RS or 878XBFJPM3RS, is a constant mesh PTO engineered for Allison and CAT 10-bolt transmissions. Built around a cast iron housing, it carries a single continuous duty torque rating and supports nine speed ratios spanning both low and high ranges. The ductile iron bearing cap is 117% stronger than gray iron, and an O-ring sealing configuration between the housing and bearing cap improves clamp load while reducing the vibrational effects of modern engine designs. Rotatable cast iron flanges minimize interference clearance issues, and a positive stop on driveline outputs protects oil seals from coupling damage. A hose is included with the assembly. Call us to confirm proper fit for your application.
Features
Fits Allison and CAT 10-bolt transmissions with constant mesh engagement
Ductile iron bearing cap is 117% stronger than gray iron
O-ring seal between housing and bearing cap reduces vibrational effects and improves clamp load
Nine speed ratios available, including low and high speed ranges
Wet Spline Lubrication option extends shaft life 7 to 10 times compared to standard lubrication
Hose included, no separate order required
Tech Specs
- Shift Type: Constant Mesh
- Transmission Fit: Allison and CAT 10-Bolt
- Continuous Torque: 670 lb-ft (908 Nm) - series rating; check application pages for this unit
- Output Shaft Options: SAE B (7/8 in. - 13T) Pump Spline, SAE BB (1 in. - 15T) Pump Spline, SAE C (1-1/4 in. - 14T) Pump Spline
- Output Flange Options: SAE B Pump Flange, SAE C Pump Flange, 1410 Series Companion Flange
- Speed Ratios: Nine, including low and high
- Lubrication: Pressure Lube or Wet Spline option
- Housing Material: Cast Iron
- Bearing Cap Material: Ductile Iron
- Continuous Operation: Yes
Additional Information
Parts Manual: Chelsea 878 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
