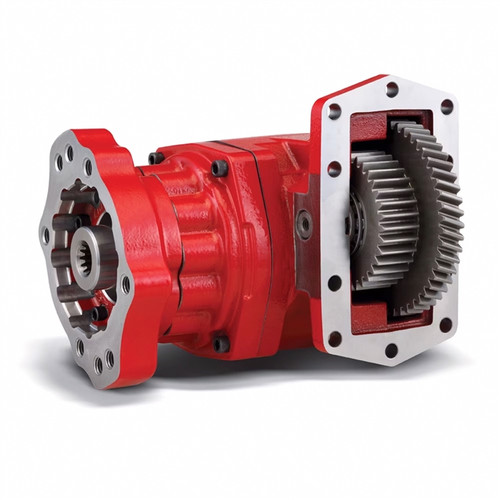

The Chelsea 288GCFJW-M3RS or 288GCFJWM3RS is a 10-bolt, constant mesh Power Take-Off from Chelsea's heavy-duty 288 Series. Built on the 281 Series platform, the 288 Series delivers a single, continuous duty torque rating of up to 390 lb-ft through wider gears and larger-capacity bearings. The cast iron housing is designed for demanding applications including refuse, aerial, vacuum, and snow and ice equipment. Ductile iron bearing caps are 117% stronger than gray iron, and an O-ring sealing configuration between the housing and bearing cap reduces vibration-related clamp load loss. The standard output shaft is a round shaft with a 1-1/4" key and includes a positive stop feature to protect the oil seal from driveline coupling damage. Nine speed ratios cover both low and high speed needs. A hose is included. Call us to confirm proper fit for your application.
The Chelsea 288 Series replaces the earlier 287 Series PTO. Rotatable cast iron flanges reduce clearance and interference issues during installation. Wet Spline technology circulates a continuous flow of oil through the PTO and pump shaft to prevent premature spline fretting. The 288 Series is suited for snow and ice control, vacuum, aerial, and refuse truck applications. Also referenced as part number SP288GCFJW-M3RS in some catalog systems.
Features
10-Bolt constant mesh mounting on a cast iron housing
Ductile iron bearing caps rated 117% stronger than gray iron
O-ring sealing between housing and bearing cap improves clamp load and resists vibration
Round output shaft (1-1/4" key) with positive stop to prevent oil seal damage
Nine speed ratios including low and high speeds
Wet Spline Lubrication option extends pump shaft life 7 to 10 times compared to standard
Hose included - no separate order required
Tech Specs
- Mounting Type: 10-Bolt
- Shift Type: Constant Mesh
- Output Shaft Type: Round Shaft, 1-1/4" Key
- Continuous Duty Torque: Up to 390 lb-ft (series rating; confirm application-specific rating)
- Speed Ratios: Nine ratios including low and high
- Lubricant Options: Pressure Lube (P) or Wet Spline (W)
- Housing Material: Cast Iron
- Bearing Caps: Ductile Iron
- Series: Chelsea 288 (replaces Chelsea 287 Series)
- NMFC Code: 125820 - Hydraulic PTOs, Pumps, Motors, etc.
Additional Information
The Chelsea 288 Series replaces the earlier 287 Series PTO. Rotatable cast iron flanges reduce clearance and interference issues during installation. Wet Spline technology circulates a continuous flow of oil through the PTO and pump shaft to prevent premature spline fretting. The 288 Series is suited for snow and ice control, vacuum, aerial, and refuse truck applications. Also referenced as part number SP288GCFJW-M3RS in some catalog systems.
Parts Manual: Chelsea 288 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
