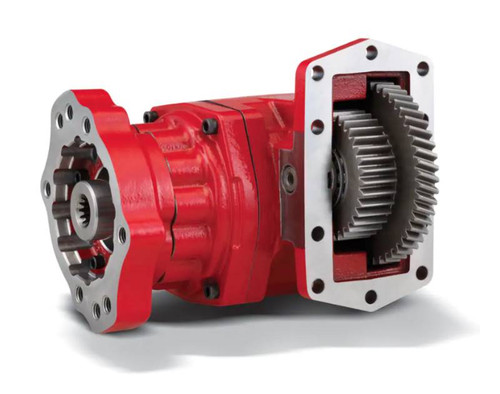

The Chelsea 878XCFJP-M5RY or 878XCFJPM5RY is a constant mesh Power Take-Off assembly from the Chelsea 878 Series, engineered to fit Allison and CAT 10-bolt transmissions. The 878 Series delivers up to 670 lb-ft of continuous duty torque in the smallest package in its class. Key structural improvements over the previous 877 Series include a ductile iron bearing cap rated 117% stronger than gray iron, an O-ring sealing configuration between the housing and bearing cap for improved clamp load, and rotatable cast-iron flanges that reduce interference clearance issues. A Wet Spline Lubrication option extends shaft life by 7 to 10 times. Nine speed ratios covering both low and high speeds are available within this series. The hydraulic hose is included. Call us to confirm proper fit for your specific transmission and application.
Features
Ductile iron bearing cap, 117% stronger than gray iron, for improved durability over the predecessor 877 Series
O-ring sealing configuration between housing and bearing cap reduces vibrational effects and improves clamp load
Single continuous duty torque rating up to 670 lb-ft, eliminating separate intermittent and continuous ratings
Rotatable cast-iron flanges reduce interference and clearance issues at the output
Positive stop on driveline outputs eliminates oil seal damage from coupling contact
Wet Spline Lubrication option provides 7 to 10 times greater output shaft life; hydraulic hose included
Tech Specs
- Transmission Compatibility: Allison and CAT 10-Bolt
- Shift Type: Constant Mesh
- Continuous Torque Rating: Up to 670 lb-ft (908 Nm) - check application pages for actual torque rating
- Speed Ratios: Nine, including low and high speeds
- Output Shaft Options (series): SAE B 7/8 in. 13-tooth pump spline, SAE BB 1 in. 15-tooth pump spline, SAE C 1-1/4 in. 14-tooth pump spline
- Output Flange Options (series): SAE B pump flange, SAE C pump flange, 1410 series companion flange
- Lubrication: Pressure lube standard; Wet Spline option available
- Housing: Cast iron
- Bearing Cap: Ductile iron
- Hose: Included
- Part Number: 878XCFJP-M5RY or 878XCFJPM5RY
Additional Information
Parts Manual: Chelsea 878 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
