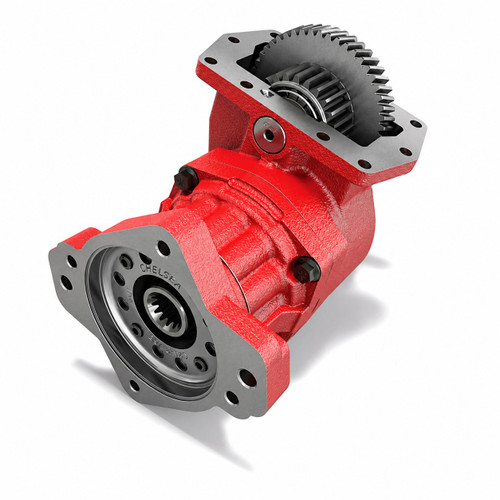

The Chelsea 878 Series Power Take-Off Assembly, part number 878XFQTP-M3AB or 878XFQTPM3AB, is a constant mesh PTO engineered to fit Allison and CAT 10-bolt transmissions. The 878 Series improves on the proven 877 Series design with a ductile iron bearing cap rated 117% stronger than gray iron, an O-ring sealing configuration between housing and bearing cap to reduce vibrational effects and improve clamp load, and rotatable cast-iron flanges to address clearance interference at installation. Nine speed ratios cover low and high speed demands. The Wet Spline Lubrication option extends shaft life by 7 to 10 times compared to standard lubrication. A driveline positive stop eliminates oil seal damage from coupling, and the hose ships included. This is a genuine Chelsea part sold by Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
Constant mesh design with cast iron housing fits Allison and CAT 10-bolt transmissions
Ductile iron bearing cap is 117% stronger than gray iron for increased durability
O-ring sealing configuration between housing and bearing cap reduces vibrational effects and improves clamp load
Nine speed ratios including low and high speeds
Rotatable cast-iron flanges reduce clearance interference during installation
Wet Spline Lubrication option provides 7 to 10 times greater shaft life; hose included
Tech Specs
- Shift Type: Constant Mesh
- Mounting Type: 10-Bolt
- Transmission Manufacturer: Allison, CAT
- Continuous Torque: 670 lb-ft (908 Nm) - check application pages for actual torque rating
- Output Shaft Options: SAE B (7/8 in. - 13T) Pump Spline, SAE BB (1 in. - 15T) Pump Spline, SAE C (1-1/4 in. - 14T) Pump Spline, DIN 5462 Pump Spline, 1410 Series Companion Flange, DIN 120 Flange, DIN 100 Flange
- Output Flange Options: SAE B Pump Flange, SAE C Pump Flange
- Speed Ratios: Nine ratios including low and high speeds
- Continuous Operation: Yes
- Lubrication: Pressure Lube or Wet Spline options
- Wet Spline Benefit: 7 to 10 times greater shaft life
- Markets: Snow and Ice, Vacuum, Aerial, Refuse
Additional Information
Parts Manual: Chelsea 878 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
