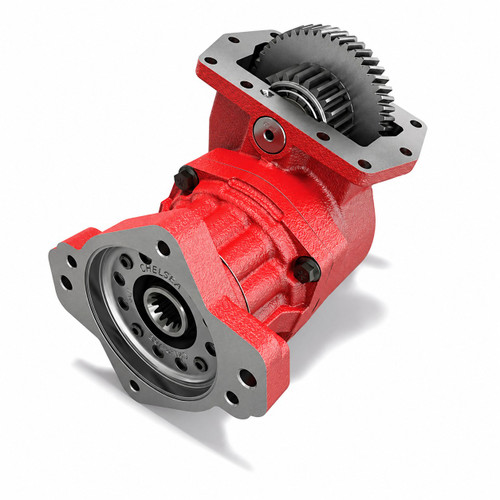

The Chelsea 878 Series Power Take-Off Assembly, part number 878XFFJP-M3AB or 878XFFJPM3AB, is a constant mesh PTO engineered for Allison and CAT 10-bolt transmission mounting. The 878 Series builds on the proven 877 Series design with a ductile iron bearing cap rated 117% stronger than gray iron, an o-ring sealing configuration between the housing and bearing cap for improved clamp load, and steel clutch disc thickness increased by 80%. The series delivers up to 670 lb-ft continuous torque and nine speed ratios covering both low and high ranges. Rotatable cast-iron flanges reduce interference clearance issues, and driveline outputs include a positive stop to prevent oil seal damage. A wet spline lubrication option is available, extending shaft service life 7 to 10 times over standard configurations. Call us to confirm proper fit for your application.
Features
Ductile iron bearing cap - 117% stronger than gray iron for reduced vibration-related damage
O-ring sealing configuration between housing and bearing cap improves clamp load
Nine speed ratios available, including low and high speeds
Up to 670 lb-ft continuous torque rating (single continuous duty rating - no separate intermittent derating)
Rotatable cast-iron flanges reduce clearance and interference issues
Wet spline lubrication option extends output shaft life 7 to 10 times
Hose included - no separate order required
Tech Specs
- Transmission Mounting: Allison and CAT 10-Bolt
- Shift Type: Constant Mesh
- Continuous Torque: up to 670 lb-ft (908 Nm) - check application pages for actual torque ratings
- Speed Ratios: Nine, including low and high speeds
- Output Shaft Options: SAE B (7/8 in. - 13T) Pump Spline, SAE BB (1 in. - 15T) Pump Spline, SAE C (1-1/4 in. - 14T) Pump Spline, DIN 5462 Pump Spline, 1410 Series Companion Flange, DIN 120 Flange, DIN 100 Flange
- Output Flange Options: SAE B Pump Flange, SAE C Pump Flange
- Lubrication: Pressure Lube or Wet Spline
- Continuous Operation: Yes
- NMFC Code: 125820 (Hydraulic PTOs, Pumps, Motors, etc.)
Additional Information
Parts Manual: Chelsea 878 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
