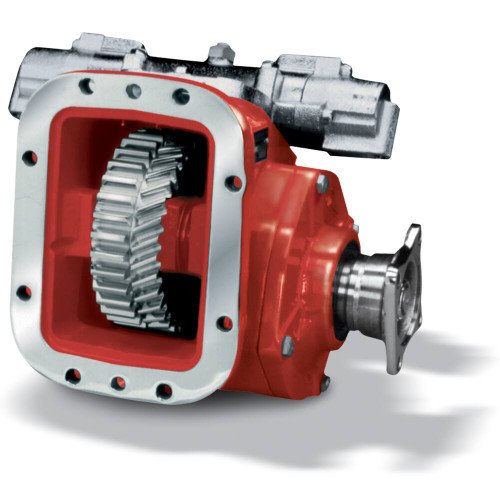

The Chelsea 880QMMEX-V4XS or 880QMMEXV4XS is an 880 Series Power Take-Off Assembly built for heavy-duty commercial truck applications. It mounts via an 8-bolt pattern and uses a lever mechanical shift. The output shaft is a 1-1/2"-10T spline fitted with a 1410 companion flange, making it ready for common driveline connections. Intermittent torque rating reaches 500 lb-ft (678 Nm), with shaft power of 48 HP at 500 RPM and 95 HP at 1,000 RPM. Compatible transmission manufacturers include Volvo, Mack, Allison, Eaton, Fuller, and others. The dual-pump output design allows a hydraulic pump to be mounted on each end of the PTO. Call us to confirm proper fit for your specific transmission and chassis.
Features
8-bolt mounting pattern for broad transmission compatibility
Lever mechanical shift operation
1-1/2"-10T spline output shaft with 1410 companion flange
Intermittent torque rating up to 500 lb-ft (678 Nm)
Shaft power: 48 HP at 500 RPM, 95 HP at 1,000 RPM
Dual-pump output allows a hydraulic pump on each end of the PTO
Tech Specs
- Intermittent Torque: 500 lb-ft (678 Nm) - Check application pages for actual torque ratings
- Transmission Compatibility: Volvo/Mack, Allison, Eaton/Fuller, and Other
- Shift Type: Lever Mechanical
- Output Power: 56+ HP (51+ kW)
- Output Shaft Type: 1-1/2" - 10T Spline with 1410 Companion Flange
- Mounting Type: 8-Bolt
- Shaft Power: 48 HP (36 kW) at 500 RPM; 95 HP (71 kW) at 1,000 RPM
Additional Information
Parts manual and diagrams: Chelsea 880 Series PTO parts list with prices
Equivalent PTOs:
- Muncie828F-E7012-T2EXNot listed online. Call 877-776-4600 or request a quote.
Matched by full model number. Check the mounting, input gear and output against the unit you are replacing before you order. Look up any Chelsea, Muncie or Bezares number on our Muncie to Chelsea PTO cross reference.
