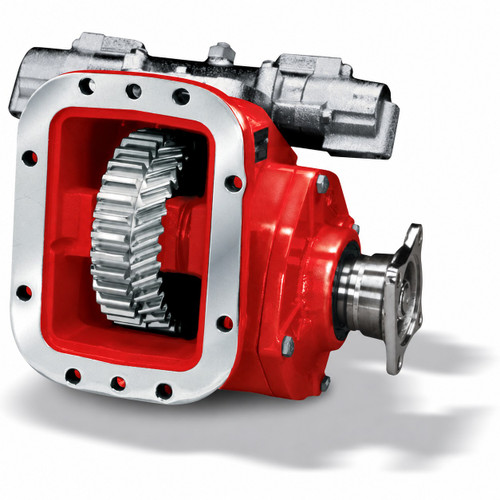

The Chelsea 880 Series Power Take-Off Assembly, part number 880XJITX-V5XK or 880XJITXV5XK, is an 8-bolt, lever mechanical shift PTO built for high-torque, heavy-duty service. It delivers up to 500 lb-ft intermittent torque and 48 HP at 500 RPM, climbing to 95 HP at 1,000 RPM. The output shaft is a 1-1/2"-10T spline with a 1410 companion flange, suited for bulk haulers, fire trucks, oil field equipment, aerial units, and large recovery trucks. Compatible with Volvo/Mack, Allison, and Eaton/Fuller transmissions, among others. The removable shift cover simplifies backlash adjustment during installation. A genuine Chelsea part from Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
8-Bolt mounting, compatible with Volvo/Mack, Allison, and Eaton/Fuller transmissions
Lever mechanical shift with removable shift cover for straightforward backlash adjustment
1-1/2"-10T spline output shaft with 1410 companion flange
Intermittent torque rating: up to 500 lb-ft (678 Nm); check application pages for actual ratings
Shaft power output: 48 HP at 500 RPM, 95 HP at 1,000 RPM
Dual-pump output allows mounting a hydraulic pump on each end of the PTO
Cast iron housing designed for oil field, fire truck, bulk hauler, and recovery truck applications
Tech Specs
- Intermittent Torque: Up to 500 lb-ft (678 Nm) - check application pages for actual torque ratings
- Shift Type: Lever Mechanical
- Mounting Type: 8-Bolt
- Output Shaft Type: 1-1/2" - 10T Spline with 1410 Companion Flange
- Output Power: 56+ HP (51+ kW)
- Shaft Power: 48 HP (36 kW) at 500 RPM; 95 HP (71 kW) at 1,000 RPM
- Transmission Compatibility: Volvo/Mack, Allison, Eaton/Fuller, Other
Additional Information
Parts Manual: Chelsea 880 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
