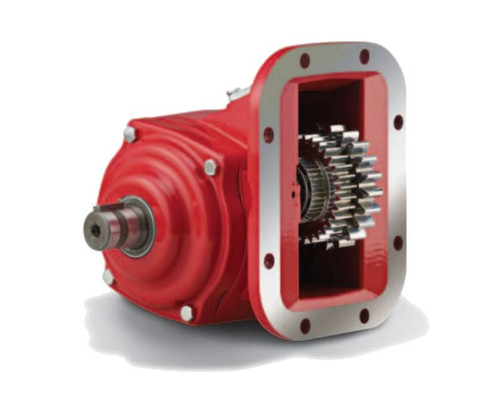

The Chelsea 880 Series Power Take-Off, part number 880XMAHX-P3XY or 880XMAHXP3XY, is a heavy-duty 8-bolt PTO built for high-torque, high-demand applications. It uses a lever mechanical shift and delivers a 1-1/2"-10T spline output shaft with a 1410 companion flange. The 880 Series is rated for intermittent torque up to 500 lb-ft (678 Nm), with shaft power of 48 HP at 500 RPM and 95 HP at 1,000 RPM. Output power exceeds 56 HP (51+ kW). Constant mesh input gears and tapered cone bearings handle sustained loads. The removable shift cover simplifies backlash adjustment. A genuine Chelsea part sold by Pro Gear and Transmission. Call us to confirm proper fit for your transmission and application.
The Chelsea 880 Series PTO is suited for bulk haulers, fire trucks, oil field equipment, winch applications, aerial equipment, and large truck recovery. Compatible with a wide range of manual transmission brands, including Eaton Endurant. The 880 Series supports SAE B, SAE C, and ISO 7652 pump flange output options across the series lineup; confirm the specific output configuration for part number 880XMAHX-P3XY with your application requirements. Not sure this is your part? Give us a call.
Features
8-bolt mounting for compatibility with most manual transmissions including Volvo/Mack, Allison, and Eaton/Fuller
Lever mechanical shift with constant mesh input gears
1-1/2"-10T spline output shaft with 1410 companion flange
Intermittent torque rating up to 500 lb-ft (678 Nm); check application pages for actual torque ratings
Shaft power: 48 HP at 500 RPM, 95 HP at 1,000 RPM
Rugged cast iron housing with removable shift cover for easier backlash adjustment; dual-pump output allows a pump on each end
Tech Specs
- Intermittent Torque: 401-500 lb-ft (501+ Nm); up to 500 lb-ft / 678 Nm - check application pages for actual torque ratings
- Shift Type: Lever Mechanical
- Mounting Type: 8-Bolt
- Output Shaft Type: 1-1/2" - 10T Spline with 1410 Companion Flange
- Output Power: 56+ HP (51+ kW)
- Shaft Power: 48 HP at 500 RPM / 95 HP at 1,000 RPM (36 kW at 500 RPM / 71 kW at 1,000 RPM)
- Transmission Compatibility: Volvo/Mack, Allison, Eaton/Fuller, and Other
- Continuous Operation: Yes, with 30% de-rating
Additional Information
The Chelsea 880 Series PTO is suited for bulk haulers, fire trucks, oil field equipment, winch applications, aerial equipment, and large truck recovery. Compatible with a wide range of manual transmission brands, including Eaton Endurant. The 880 Series supports SAE B, SAE C, and ISO 7652 pump flange output options across the series lineup; confirm the specific output configuration for part number 880XMAHX-P3XY with your application requirements. Not sure this is your part? Give us a call.
Parts Manual: Chelsea 880 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
