Chelsea PTO 489 Series Parts List & Diagrams with Prices

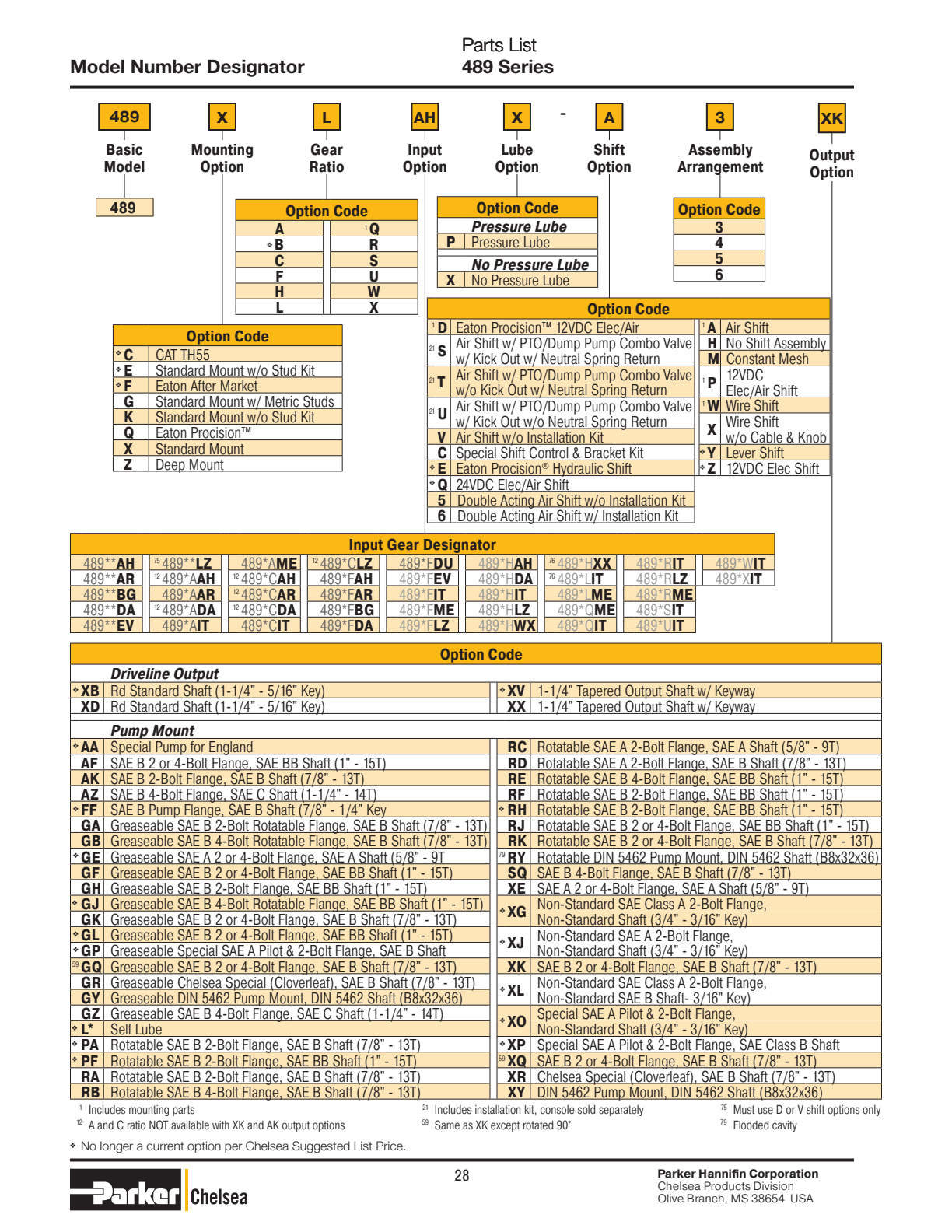

Model Number Designation
| Item | Part No. | Description | Qty | Notes | Price |
|---|
Bill of Materials 442, 447 & 489 Series

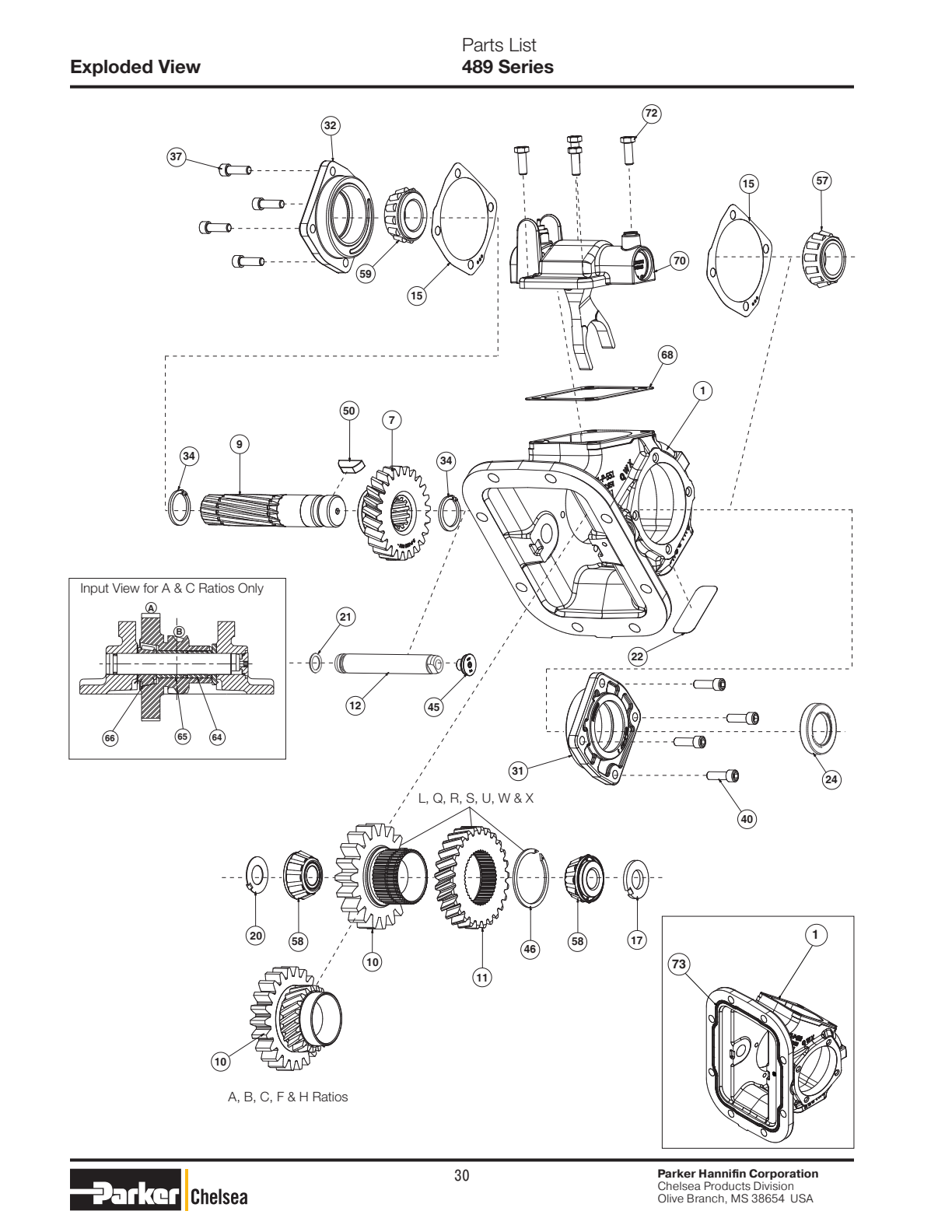

Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 1P557X | Housing Standard Mount (“x”, ”g” & “k” ) (includes Item 23) 1 | 1 | $257.42 | Add to Cart | |
| 1P558X | Housing Deep Mount (“z” & “l”) (includes Item 23) 1 | 1 | $253.28 | Add to Cart | ||
| 1P552X | Housing Standard Mount (includes Item 23) | 1 | $359.70 | Add to Cart | ||
| 1P562X | Housing Deep Mount (includes Item 23) | 1 | $359.70 | Add to Cart | ||
| 4 | 3P202 | Shaft, Output (“xd”) Standard 1 .250" Rd .313" Kw 1 | 1 1 | $95.42 | Add to Cart | |
| 3P978 | Shaft, Output (“xd” For “b” Ratio Only) Standard 1 .250" Rd .313" Kw 1 . | $227.78 | Add to Cart | |||
| 5 | 378391 | Lockring (all Other Shifter Types Except “m”) 2 | 2 2 | $2.47 | Add to Cart | |
| 6 | 550397 | Bearing Cone 1 | 1 1 | $36.75 | Add to Cart | |
| 7 | 550532 | Bearing Cone 1 | 1 1 | $36.75 | Add to Cart | |
| 8 | 22P241 | Gasket, Bearing Cap (.010") A.r. | A.R. A.R. | $2.30 | Add to Cart | |
| 22P242 | Gasket, Bearing Cap (.020") A.r. | A.R. A.R. | $10.49 | Add to Cart | ||
| 22P243 | Gasket, Bearing Cap (.015") A.r. | A.R. A.R. | $10.49 | Add to Cart | ||
| 9 | 328274X | Bearing Cap Assembly, Close End 1 | 1 1 | $64.09 | Add to Cart | |
| 550221 | Bearing Race 1 | 1 1 | $14.19 | Add to Cart | ||
| 10 | 328273X | Bearing Cap Assembly, Open End (“xd” Output) 1 | 1 1 | $64.09 | Add to Cart | |
| 3784476 | Capscrew, Hex Head (.312" 18 X 1 .00") (closed Cap Side) 4 | 4 4 | $4.33 | Add to Cart | ||
| 3784478 | Capscrew, Hex Head (.312" 18 X 1 .00") (“xd” Output)) 4 | 4 4 | $2.32 | Add to Cart | ||
| 12 | 28P216 | Oil Seal “xd” Output 1 | 1 1 | $21.40 | Add to Cart | |
| 13 | 50000729 | Key, Woodruff (“xd” Output) 1 | 1 1 | $3.11 | Add to Cart | |
| 16 | 379522 | Lock Ring 1 | 1 1 | $5.76 | Add to Cart | |
| 17 | 550439 | Bearing Cone 2 | 2 2 | $51.63 | Add to Cart | |
| 17A | 561006 | Bearing Cone, Tapered (“a”, “b” & “c” Only) 1 | 1 | $28.12 | Add to Cart | |
| 18A | 14P75 | Spacer, Input Bearing (“a”, “b” & “c” Only) 1 | 1 | $29.12 | Add to Cart | |
| 19A | 550890 | Bearing Needle Roller (“a”, “b” & “c” Only) 1 | 1 | $39.93 | Add to Cart | |
| 18 | 14P731 | Spacer, Idler Gear (.149" .151 ") A.r. | A.R. A.R. | $10.38 | Add to Cart | |
| 14P732 | Spacer, Idler Gear (.152" .154") A.r. | A.R. A.R. | $11.01 | Add to Cart | ||
| 14P733 | Spacer, Idler Gear (.155" .157") A.r. | A.R. A.R. | $10.38 | Add to Cart | ||
| 19 | 31P102 | Thrust Washer, Bearing 1 | 1 1 | $3.72 | Add to Cart | |
| 20 | 9P88 | Shaft, Idler Standard 1 | 1 1 | $79.32 | Add to Cart | |
| 9P89 | Shaft, Idler Pressure Lube (“p”) 1 | 1 1 | $207.54 | Add to Cart | ||
| 21 | 28P191 | O-ring 1 | 1 1 | $3.59 | Add to Cart | |
| 22 | 379672 | Plug O-ring W/socket Face (nwd Plug) 1 | 1 1 | $12.09 | Add to Cart | |
| 23 | 50059714 | Roll Pin Deep Mount (1 " Long) 1 | 1 1 | $3.24 | Add to Cart | |
| 50059716 | Roll Pin Standard Mount (1 .125" Long) 1 , Cable Control Cover Assemblies Ratios “q”, “w” & “x” | 1 1 | $1.18 | Add to Cart | ||
| 3291191X | Shifter Cover Ass’y, Wire Control (ass’y 3 & 6) 1 | 1 | $176.78 | Add to Cart | ||
| 3291192X | Shifter Cover Ass’y, Wire Control (ass’y 4 & 5) 1 Ratios “f”, “h”, “l”, “r”, “s” & “u” | 1 | $176.78 | Add to Cart | ||
| 3291211X | Shifter Cover Ass’y, Wire Control (ass’y 3 & 6) 1 | 1 | $176.78 | Add to Cart | ||
| 3291212X | Shifter Cover Ass’y, Wire Control (ass’y 4 & 5) 1 Ratios “a”, “b” & “c” | 1 | $176.78 | Add to Cart | ||
| 3292711X | Shifter Cover Assembly, Wire Control (ass’y 3 & 6) 1 | 1 | $228.77 | Add to Cart | ||
| 3292712X | Shifter Cover Assembly, Wire Control (ass’y 4 & 5) 1 Required Continued | 1 | $262.00 | Add to Cart | ||
| 3291511X | Shifter Cover Assembly, Wire Control (ass’y 3 & 6) | 1 | $188.84 | Add to Cart | ||
| 3291512X | Shifter Cover Assembly, Wire Control (ass’y 4 & 5) Ratios “r”, “s” & “u” | 1 | $188.84 | Add to Cart | ||
| 3291521X | Shifter Cover Assembly, Wire Control (ass’y 3 & 6) | 1 | $192.95 | Add to Cart | ||
| 3291522X | Shifter Cover Assembly, Wire Control (ass’y 4 & 5) All The Above Shift Cover Assemblies Include Items 24 Thru 35 | 1 | $192.23 | Add to Cart | ||
| 24 | 34P39 | Cover Plate, Shifter Constant Mesh 1 | 1 1 | $54.10 | Add to Cart | |
| 34P74 | Cover Plate, Shifter 1 | 1 | $44.57 | Add to Cart | ||
| 25 | 37P19 | Spring 1 | 1 1 | $2.04 | Add to Cart | |
| 26 | 63P16 | Poppet Pin 1 | 1 1 | $9.26 | Add to Cart | |
| 27 | 28P191 | O-ring 1 Ratios “q” & “w” & “x” | 1 1 | $3.59 | Add to Cart | |
| 28 | 3291181X | Post And Plate Assembly, (ass’y 3 & 6) 1 | 1 1 | $69.07 | Add to Cart | |
| 28 | 3291182X | Post And Plate Assembly, (ass’y 4 & 5) 1 Ratios “f”, “h”, “l”, “r”, “s” & “u” | 1 1 | $69.07 | Add to Cart | |
| 28 | 3291201X | Post And Plate Assembly, (ass’y 3 & 6) 1 | 1 1 | $81.03 | Add to Cart | |
| 28 | 3291202X | Post And Plate Assembly, (ass’y 4 & 5) 1 Ratios “a”, “b” & “c” | 1 1 | $86.10 | Add to Cart | |
| 28 | 3292651X | Post And Plate Assembly, (ass’y 3 & 6) 1 | 1 | $155.60 | Add to Cart | |
| 28 | 3292652X | Post And Plate Assembly, (ass’y 4 & 5) 1 | 1 | $173.93 | Add to Cart | |
| 29 | 378004 | Flat Washer 1 | 1 1 | $2.01 | Add to Cart | |
| 30 | 51P22 | Shifter Lever 1 | 1 1 | $12.57 | Add to Cart | |
| 31 | 50036522 | Flat Washer 1 | 1 1 | $1.05 | Add to Cart | |
| 32 | 50035610 | Lockwasher 1 | 1 1 | $1.53 | Add to Cart | |
| 33 | 5004096 | Capscrew, Hex Head (.312" 24 X .625") 1 | 1 | $1.23 | Add to Cart | |
| 34 | 379639 | Indicator Switch Pin Style (normally Off) 1 | 1 | $25.03 | Add to Cart | |
| 379652 | Indicator Switch Pin Style (normally On) | 1 | $40.79 | Add to Cart | ||
| 35 | 35P8 | Gasket, Shifter Cover 1 | 1 1 | $3.48 | Add to Cart | |
| 35A | 5A188 | Gasket, Shifter Cover (“a”, “b” & “c” Ratio Only) 1 | 1 | $147.38 | Add to Cart | |
| 35B | 35P8 | Gasket, Shifter Cover (“a”, “b” & “c” Ratio Only) 2 | 2 | $3.48 | Add to Cart | |
| 36 | 3784309 | Capscrew, Hex Head (.312" 18 X .875") (wire, Electric & Air Shift) 4 | 4 4 | $1.76 | Add to Cart | |
| 68P2 | Name Plate 1 | 1 1 | $2.65 | Add to Cart | ||
| 378422 | Drive Screw, Name Plate 2 Loose Parts P.t.o. Mounting Kit | 2 2 | $11.52 | Add to Cart | ||
| 32817076X | Mounting Kit (“x” Mounting Type) 1 | 1 | $30.69 | Add to Cart | ||
| 32817077X | Mounting Kit (“z” Mounting Type) 1 | 1 | $38.59 | Add to Cart | ||
| 717072X | Mounting Kit (“g” Metric Mounting Type) 1 | 1 | $53.10 | Add to Cart | ||
| 328170201X | Mounting Kit (“g” Metric Mounting Type) | 1 | $74.25 | Add to Cart | ||
| 328170200X | Mounting Kit (“x” & “z” Mounting) | 1 | $31.15 | Add to Cart | ||
| 32834610X | Cable, Wire Control (“w” Shifter) 1 | 1 1 | $135.56 | Add to Cart | ||
| 328380X | Parts Bag Wire Control (“w” Shifter) 1 | 1 1 | $13.25 | Add to Cart | ||
| 329245X | Bracket Kit, Wire Control (“c” Shifter) 1 Required Continued 3 Chelsea Products | 1 | $94.08 | Add to Cart | ||
| 32838837X | Air Shift Installation Kit (“a” Shifter) 1 | 1 1 | $367.41 | Add to Cart | ||
| 32838847X | Air Shift Installation Kit (“p” Shifter) 1 | 1 1 | $563.43 | Add to Cart | ||
| 32838848X | Air Shift Installation Kit (“q” Shifter) 1 | 1 1 | $544.19 | Add to Cart | ||
| 32838865X | Air Shift Installation Kit (“s” Shifter) 1 | 1 1 | $762.60 | Add to Cart | ||
| 32838872X | Air Shift Installation Kit (“t” Shifter) 1 | 1 | $762.60 | Add to Cart | ||
| 3287511X | Installation Kit (“c”, “h”, “w”, “x”, “y”) 1 | 1 1 | $65.59 | Add to Cart | ||
| 379319 | Indicator Switch Booth 1 | 1 1 | — | Call for availability | ||
| 3289486X | Gasket And Installation Instructions 1 | 1 | $24.01 | Add to Cart | ||
| 3289488X | Gasket And Installation Instructions | 1 | $22.26 | Add to Cart | ||
| 32916612X | Electric Shift Installation Kit 1 | 1 1 | — | Call for availability | ||
| 379640 | Booted Connector (“v” Shifter Option) 1 | 1 | $18.40 | Add to Cart | ||
| 378414 | Pressure Protection Valve (“v” Shifter Option) 1 | 1 1 | $66.97 | Add to Cart | ||
| 328075X | Pressure Lube Hose (“hvp” Input Gear Only) 1 | $150.56 | Add to Cart | |||
| 328711X | Pump Mounting Kit (“xr” Output) Service Kits | 1 | $14.26 | Add to Cart | ||
| 329202X | Indicator Switch Connector Service Kit 1 | 1 | $31.23 | Add to Cart | ||
| 329218X | Indicator Switch Service Kit 1 | 1 | $18.40 | Add to Cart | ||
| 329304X | Bearing Cap And Seal Assembly (pressure Lube) 1 | 1 | $256.67 | Add to Cart | ||
| 32835667X | Gasket & Seal Kit | $105.24 | Add to Cart | |||
| 378391 | Lockring 2 | $2.47 | Add to Cart | |||
| 32835613X | Gasket & Seal Kit | 1 | $55.97 | Add to Cart | ||
| 32835650X | Gasket & Seal Kit | 1 | $50.49 | Add to Cart | ||
| 32835615X | Shifter Cover Seal Kit (wire Control) 1 | 1 1 | $85.55 | Add to Cart | ||
| 32835669X | Shifter Cover Seal Kit (wire Control “a”, “b” & “c” Ratio) 1 | 1 | $128.39 | Add to Cart | ||
| 32835671X | Shifter Cover Seal Kit (air Shift) 1 | 1 1 | $63.15 | Add to Cart | ||
| 3290961X | Field Conversion Kit (self Lube Replace 3-P-202) | 1 | — | Call for availability | ||
| 3290971X | Field Conversion Kit (self Lube Replace 3-P-282) | 1 | — | Call for availability | ||
| 32859413X | Bearing And Spacer Kit (non-pressure Lube) 1 | 1 1 | $228.03 | Add to Cart | ||
| 32859414X | Bearing And Spacer Kit (pressure Lube) | $296.36 | Add to Cart | |||
| 32859415X | Bearing And Spacer Kit (non-pressure Lube “a”, “b” & “c” Ratio) | $206.88 | Add to Cart | |||
| 32859416X | Bearing And Spacer Kit (pressure Lube “a”, “b” & “c” Ratio) 1 | 1 | $281.46 | Add to Cart | ||
| 329260X | Conversion Kit, 440 To 442 Series 1 | $392.11 | Add to Cart | |||
| 329261X | Conversion Kit, 440 Deep Mount To 442 Deep Mount 1 | $395.97 | Add to Cart | |||
| 329262X | Conversion Kit, 488 To 489 Series | 1 | — | No longer available — call for replacement | ||
| 329263X | Conversion Kit, 488 Deep Mount To 489 Deep Mount Required Continued | 1 | — | Call for availability |
Air Control Parts (“A” Designator) 442, 447 & 489 Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 329361X | Shifter Cover Assembly, Air Shift (includes Items 48-57) 1 | 1 | $337.38 | Add to Cart | ||
| 329363X | Shifter Cover Assembly, Air Shift - | 1 | $337.38 | Add to Cart | ||
| 48 | 34P130 | Shifter Cover 1 | 1 1 | $95.72 | Add to Cart | |
| 49 | 378316 | Snap Ring 2 | 2 2 | $1.68 | Add to Cart | |
| 50 | 378315 | Cover Plug 2 | 2 2 | $5.55 | Add to Cart | |
| 51 | 28P42 | O-ring 2 | 2 2 | $3.59 | Add to Cart | |
| 52 | 37P21 | Shifter Spring 1 | 1 1 | $2.86 | Add to Cart | |
| 53 | 11P75 | Shaft, Shifter 1 | 1 1 | $60.75 | Add to Cart | |
| 54 | 28P41 | O-ring 1 | 1 1 | $5.03 | Add to Cart | |
| 55 | 32P180 | Shifter Fork 1 | 1 1 | $105.58 | Add to Cart | |
| 56 | 3784474 | Capscrew, Socket Head W/lockpatch (.312" 18 X .750") 1 - | 1 1 | $1.78 | Add to Cart | |
| 57 | 379639 | Indicator Switch (normally Off) 1 | 1 1 | $25.03 | Add to Cart | |
| 58 | 379904 | Push Connect, For 1/4" Tubing 1 | 1 1 | $7.13 | Add to Cart | |
| 59 | 35P8 | Gasket, Shifter Cover 1 | 1 1 | $3.48 | Add to Cart | |
| 60 | 3784308 | Capscrew, Hex Head (.312" 18 X .875") 4 - Air Shift Conversion Kits | 4 4 | $2.06 | Add to Cart | |
| 328390117X | Lever Or Cable To Air 1 | 1 | $576.15 | Add to Cart | ||
| 328390119X | Lever Or Cable To Electric/air, 12V 1 | 1 | $1,071.10 | Add to Cart | ||
| 328390120X | Lever Or Cable To Electric/air, 24V 1 | 1 | $708.43 | Add to Cart | ||
| 328390125X | Wire To Air - | 1 | — | Call for availability | ||
| 328390127X | Wire To Electric/air 12V - | 1 | $708.41 | Add to Cart | ||
| 328390129X | Wire To Electric/air 24V - | 1 | — | Call for availability |

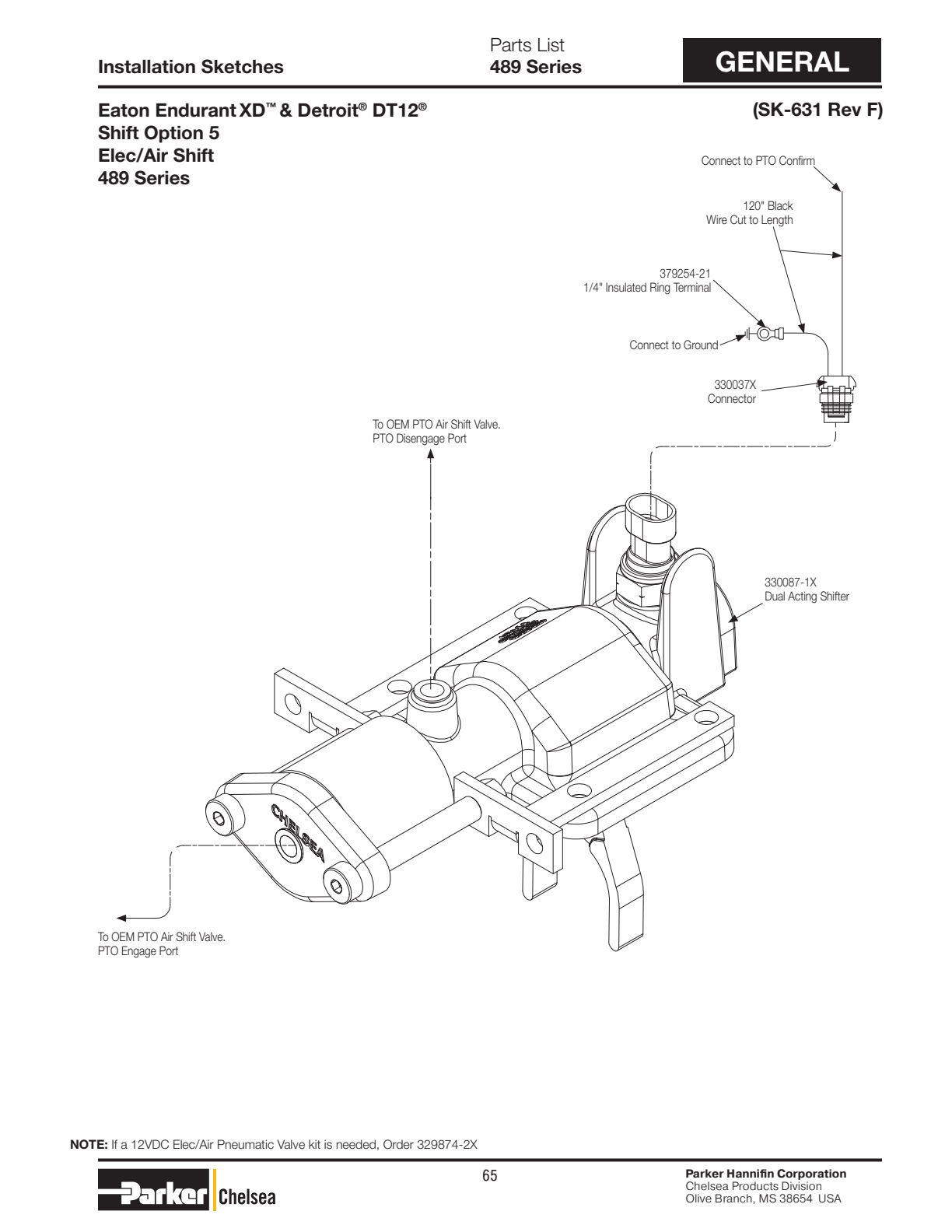

Shifter Kits 442, 447 & 489 Series for P.t.o.’s Ordered Without the Shifter (shifter Type “H ”), the Kits Shown Below Will Provide All the Components Required to Complete the Assembly
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 32910639X | Shifter Kit (air Shift, “a” Shift Option) | 1 1 | $575.22 | Add to Cart | ||
| 32910643X | Shifter Kit (air Shift, “p” Shift Option) | 1 1 | $825.45 | Add to Cart | ||
| 32910645X | Shifter Kit (air Shift, “q” Shift Option) | 1 1 | — | No longer available — call for replacement | ||
| 32910671X | Shifter Kit (air Shift, “a” Shift Option) | 1 | — | No longer available — call for replacement | ||
| 32910675X | Shifter Kit (air Shift, “p” Shift Option) | 1 | $611.09 | Add to Cart | ||
| 32910677X | Shifter Kit (air Shift, “q” Shift Option) | 1 | — | No longer available — call for replacement | ||
| 329106105X | Shifter Kit (wire Control 3 & 6, “q”, “ W”, “x” Ratio; “w” Shift Option) | 1 1 | $299.76 | Add to Cart | ||
| 329106106X | Shifter Kit (wire Control 4 & 5, “q”, “ W”, “x” Ratio; “w” Shift Option) | 1 1 | $295.91 | Add to Cart | ||
| 329106107X | Shifter Kit (wire Control 3 & 6, “q”, “ W”, “x” Ratio; “x” Shift Option) | 1 1 | $234.58 | Add to Cart | ||
| 329106108X | Shifter Kit (wire Control 4 & 5, “q”, “ W”, “x” Ratio; “x” Shift Option) | 1 1 | $234.58 | Add to Cart | ||
| 329106109X | Shifter Kit (wire Control 3 & 6, “f”, “l”, “r”, “s”, “u” Ratio; “w” Shift Option) . . | 1 1 | $291.44 | Add to Cart | ||
| 329106110X | Shifter Kit (wire Control 4 & 5, “f”, “l”, “r”, “s”, “u” Ratio; “w” Shift Option) . . | 1 1 | $291.44 | Add to Cart | ||
| 329106111X | Shifter Kit (wire Control 3 & 6, “f”, “l”, “r”, “s”, “u” Ratio; “x” Shift Option) | 1 1 | $270.02 | Add to Cart | ||
| 329106112X | Shifter Kit (wire Control 4 & 5, “f”, “l”, “r”, “s”, “u” Ratio; “x” Shift Option) | 1 1 | $270.02 | Add to Cart | ||
| 329106113X | Shifter Kit (wire Control 3 & 6, “q” & “w” Ratio; “w” Shift Option) | 1 | — | Call for availability | ||
| 329106114X | Shifter Kit (wire Control 4 & 5, “q” & “w” Ratio; “w” Shift Option) | 1 | — | No longer available — call for replacement | ||
| 329106117X | Shifter Kit (wire Control 3 & 6, “q” & “w” Ratio; “x” Shift Option) | 1 | — | No longer available — call for replacement | ||
| 329106118X | Shifter Kit (wire Control 4 & 5, “q” & “w” Ratio; “x” Shift Option) | 1 | $223.71 | Add to Cart | ||
| 329106135X | Constant Mesh Kit | 1 1 | $227.52 | Add to Cart | ||
| 329106143X | Shifter Kit (wire Control 3 & 6, “a”, “b” & “c” Ratio; “w” Shift Option) | 1 1 | $284.66 | Add to Cart | ||
| 329106144X | Shifter Kit (wire Control 4 & 5, “a”, “b” & “c” Ratio; “w” Shift Option) | 1 1 | $402.07 | Add to Cart | ||
| 329106145X | Shifter Kit (wire Control 3 & 6, “a”, “b” & “c” Ratio; “x” Shift Option) | 1 1 | — | No longer available — call for replacement | ||
| 329106146X | Shifter Kit (wire Control 4 & 5, “a”, “b” & “c” Ratio; “x” Shift Option) | 1 1 | — | No longer available — call for replacement | ||
| 329106151X | Shifter Kit (“v” Shift Option) | 1 | $147.66 | Add to Cart | ||
| 329106153X | Shifter Kit (“v” Shift Option) | 1 1 | $417.05 | Add to Cart | ||
| 329143X | Field Conversion Kit (shifter Shaft) | 1 1 1 | $42.55 | Add to Cart |
Constant Mesh Parts (“M ” Designator) 442, 447 & 489 Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 84 | 4P177 | Spacer, Drive Shaft 1 | 1 | $48.43 | Add to Cart | |
| 85 | 4P178 | Spacer, Drive Shaft 1 | 1 | $26.33 | Add to Cart | |
| 86 | 378391 | Lockring (shifter Type “m” ) 1 | 1 | $2.47 | Add to Cart | |
| 87 | 4P165 | Spacer, Drive Shaft | 1 | $18.43 | Add to Cart | |
| 34P39 | Cover Plate, Shifter 1 | 1 1 | $54.10 | Add to Cart | ||
| 35P8 | Gasket, Shifter Cover 1 | 1 1 | $3.48 | Add to Cart | ||
| 3784306 | Capscrew, Hex Head (.312" 18 X .625") 4 7 Chelsea Products | 4 4 | $3.74 | Add to Cart |
Self Lube Parts 442, 447 & 489 Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 37843010 | Capscrew, Hex Head (.312" 18 X 1 .00") 4 | 4 4 | $1.76 | Add to Cart | ||
| 87 | 3P857 | Shaft, Output (“ld” Output) 1 | 1 1 | $444.71 | Add to Cart | |
| 3P858 | Shaft, Output (“la”, “lb”, “lc”, “le”, “lf” Output) 1 | 1 1 | — | No longer available — call for replacement | ||
| 88 | 329091X | Lube Pump & Bearing Cap Assembly 1 | 1 1 | — | No longer available — call for replacement | |
| 89 | 329092X | Pressure Lube Hose Assembly 1 | 1 1 | $92.32 | Add to Cart | |
| 90 | 5008411 | Street Elbow, 90° 1 8 Chelsea Products | 1 1 | $9.09 | Add to Cart |
Input Gear Chart 489 Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 5P964 | 25 489*L 2-P-727 | 34 | $227.25 | Add to Cart | ||
| 5P965 | 19 489*Q 2-P-559 | 24 | $227.25 | Add to Cart | ||
| 5P1214 | 22 489*R 2-P-559 | 24 | $227.27 | Add to Cart | ||
| 5P966 | 24 489*S 2-P-637 | 22 | $257.25 | Add to Cart | ||
| 5P967 | 26 489*U 2-P-560 | 20 | $227.25 | Add to Cart | ||
| 5P968 | 26 489*W 2-P-561 | 17 | $227.25 | Add to Cart | ||
| 5P969 | 38 489*X 2-P-728 12 Chelsea Products | 21 | $227.25 | Add to Cart |
Direct Mount Pump Conversion Kits (cont'd) 442, 447 & 489 Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 328591143X | Kit For Pa | $221.71 | Add to Cart | |||
| 328591142X | Kit For Pf | — | No longer available — call for replacement | |||
| 32859155X | Kit For Ra | $382.35 | Add to Cart | |||
| 32859153X | Kit | $122.93 | Add to Cart | |||
| 3294361X | Kit | $245.24 | Add to Cart | |||
| 32859156X | Kit For Rb | $382.35 | Add to Cart | |||
| 32859154X | Kit | $122.93 | Add to Cart | |||
| 3294362X | Kit | $243.61 | Add to Cart | |||
| 328591112X | Kit For Rc | — | Call for availability | |||
| 328591113X | Kit For Rd | $1,002.61 | Add to Cart | |||
| 3294368X | Kit | $656.83 | Add to Cart | |||
| 328591134X | Kit For Re | $583.72 | Add to Cart | |||
| 32859178X | Kit For Rf | $586.51 | Add to Cart | |||
| DIN5462 | Ry — Rotatable, Shaft Type Din 5462, Conversion Xd To Ry | — | Call for availability | |||
| 328591131X | Kit For Ry | $1,115.57 | Add to Cart | |||
| 328591149X | Kit For Sq | — | No longer available — call for replacement | |||
| 3294369X | Kit | — | No longer available — call for replacement | |||
| 32859127X | Kit For Xe | $402.60 | Add to Cart | |||
| 32859110X | Kit For Xg | $174.50 | Add to Cart | |||
| 32859111X | Kit For Xj | $369.75 | Add to Cart | |||
| 32859116X | Kit For Xk | $357.11 | Add to Cart | |||
| 3294363X | Kit | $319.28 | Add to Cart | |||
| 32859118X | Kit For Xl | — | Call for availability | |||
| 3294364X | Kit | — | Call for availability | |||
| 32859126X | Kit For Xo | — | Call for availability | |||
| 32859123X | Kit For Xp | — | Call for availability | |||
| 3294365X | Kit | — | Call for availability | |||
| 32859117X | Kit For Xq | $357.11 | Add to Cart | |||
| 3294366X | Kit | — | No longer available — call for replacement | |||
| 32859152X | Kit For Xr | $260.80 | Add to Cart | |||
| 328591130X | Kit For Xv | $690.01 | Add to Cart | |||
| 328591122X | Kit For Xx | $639.97 | Add to Cart | |||
| 328591121X | Kit For Xy | $710.56 | Add to Cart |

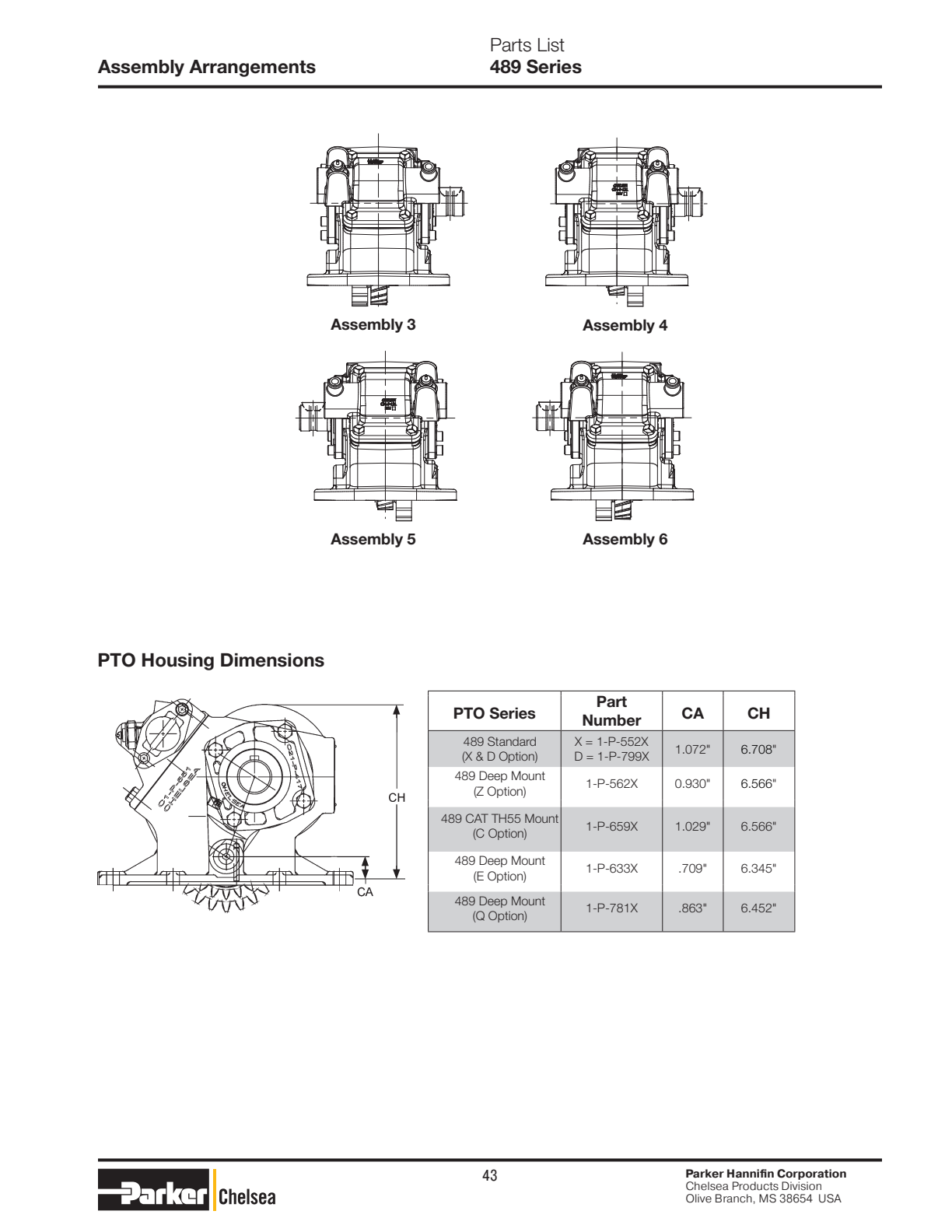

Output Options Bill of Materials 442, 447 & 489 Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 3P862 | Output Shaft | 1 | — | Call for availability | ||
| 28P216 | Oil Seal | 1 | $21.40 | Add to Cart | ||
| 239102X | Bearing Cap Ass’y (21 -P-532) | 1 | — | Call for availability | ||
| 3784478 | Socket Head Capscrew (.312" 18 X 1 .5") | 4 | $2.32 | Add to Cart | ||
| 3P854 | Output Shaft | 1 | $599.82 | Add to Cart | ||
| 28P219 | Oil Seal | 1 | $28.20 | Add to Cart | ||
| 329088X | Bearing Cap Ass’y (21 -P-522) | 1 | $363.17 | Add to Cart | ||
| 37844710 | Socket Head Capscrew (.312" 18 X 2 .0") | 4 | $4.45 | Add to Cart | ||
| 3P282 | Output Shaft | 1 | $187.84 | Superseded by 3P282XAdd to Cart | ||
| 3P979 | Output Shaft (“b” Ratio Only) | 1 | $227.80 | Add to Cart | ||
| 328989X | Bearing Cap Ass’y (21 -P-472) | 1 | $378.21 | Add to Cart | ||
| 3P844 | Output Shaft | 1 | $750.67 | Add to Cart | ||
| 28P275 | Oil Seal | 1 | $37.46 | Add to Cart | ||
| 329052X | Bearing Cap Ass’y (21 -P-508) | 1 | $613.82 | Add to Cart | ||
| 37844711 | Socket Head Capscrew (.312" 18 X 2 .5") | 4 | $7.47 | Add to Cart | ||
| 3P851 | Output Shaft | 1 | — | Call for availability | ||
| 3P923X | “ga”, “gb”, “gr”, Shaft Assemblies | 1 or | $655.03 | Add to Cart | ||
| 3P981X | “ge” Shaft Assembly | 1 or | $512.42 | Add to Cart | ||
| 3P921X | “gf” Shaft Assemblies | 1 or | $860.23 | Add to Cart | ||
| 3P933X | “gq”, “gk”, “gp” Shaft Assemblies | 1 or | $581.33 | Add to Cart | ||
| 3P938X | “gy” Shaft Assemblies | 1 or | $819.60 | Add to Cart | ||
| 3P939X | “gz” Shaft Assemblies | 1 or | $873.79 | Add to Cart | ||
| 3P941X | “gh”, “gj” Shaft Assemblies | 1 | $1,076.84 | Add to Cart | ||
| 5001682 | Lube Fitting (zerk) | 1 | $6.59 | Add to Cart | ||
| 379819 | Grease Fitting Cap | 1 | $2.07 | Add to Cart | ||
| 379688 | Coupling Lube Pack (5/8 Fl .oz) | 1 | $8.98 | Add to Cart | ||
| 28P268 | Rear Bearing Cap Shaft Oil Seal | 1 | $69.47 | Add to Cart | ||
| 328273X | Rear Bearing Cap Assembly | 1 | $64.09 | Add to Cart | ||
| 3784476 | Rear Bearing Cap Hex Head Capscrew (.312" 18" X 1 .0") | 4 | $4.33 | Add to Cart | ||
| 3P857 | Output Shaft (“ld”) | 1 | $444.71 | Add to Cart | ||
| 3P858 | Output Shaft (“la”, “lb”, “lc”, “lf”) | 1 | — | No longer available — call for replacement | ||
| 329091X | Lube Pump & Bearing Cap Ass’y | 1 | — | No longer available — call for replacement | ||
| 329092X | Pressure Lube Hose Ass’y | 1 | $92.32 | Add to Cart | ||
| 5008411 | Elbow 90° Street | 1 | $9.09 | Add to Cart | ||
| 3P283 | Output Shaft | 1 | $187.84 | Add to Cart | ||
| 329195X | Bearing Cap Ass’y (21 -P-574) | 1 | $132.25 | Add to Cart | ||
| 21P661 | Pump Flange | 1 | $294.15 | Add to Cart | ||
| 328170207X | Capscrew Bag Kit | 1 | $9.52 | Add to Cart | ||
| 3P924 | Output Shaft | 1 | $733.31 | Add to Cart | ||
| 329264X | Bearing Cap Ass’y (21 -P-629) | 1 | $164.26 | Add to Cart | ||
| 28P271 | O-ring | 1 | $28.61 | Add to Cart | ||
| 3P980 | Output Shaft (“b” Ratio Only) | 1 | $206.00 | Add to Cart | ||
| 21P628 | Pump Flange (ship Loose W/unit) | 1 | $100.24 | Add to Cart | ||
| 3781706 | Socket Head Capscrew | 3 | — | Call for availability | ||
| 21P572 | Pump Flange (ship Loose W/unit) | 1 | $114.69 | Add to Cart | ||
| 3P800 | Output Shaft | 1 | $319.56 | Add to Cart | ||
| 329322X | Bearing Cap Ass’y (21 -P-640) | 1 | $744.53 | Add to Cart | ||
| 21P638 | Pump Flange | 1 | $643.81 | Add to Cart | ||
| 328170210X | Capscrew Bag Kit | 1 | $47.78 | Add to Cart | ||
| 3784474 | Socket Head Capscrew (.312" 18 X .75") | 6 | $1.78 | Add to Cart | ||
| 21P654 | Pump Flange | 1 | $88.51 | Add to Cart | ||
| 21P626 | Pump Flange | 1 | $115.30 | Add to Cart | ||
| 3P768 | Output Shaft | 1 | $728.64 | Superseded by 3P768XAdd to Cart | ||
| 21P625 | Pump Flange | 1 | $317.28 | Add to Cart | ||
| 329356X | Bearing Cap Ass’y (21 -P-532) | 1 | $774.79 | Add to Cart | ||
| 3293551X | Standard Loose Parts Kit. | 1 | $116.34 | Add to Cart | ||
| 3797406 | Socket Head Capscrew (M10 1 .5" X .984") | 3 | $11.57 | Add to Cart | ||
| 22P100 | Gasket | 1 | $11.50 | Add to Cart | ||
| 22P84 | Gasket | 1 | $45.16 | Add to Cart | ||
| 379231 | Pipe Plug Continued 16 Chelsea Products | 2 | $1.50 | Add to Cart | ||
| 328328X | Bearing Cap Ass’y (21 -P-161) | 1 | $318.47 | Add to Cart | ||
| 3P281 | Output Shaft | 1 | $224.42 | Add to Cart | ||
| 328580X | Bearing Cap Ass’y (21 -P-259) | 1 | $439.30 | Add to Cart | ||
| 3P284 | Output Shaft | 1 | $289.72 | Add to Cart | ||
| 328333X | Bearing Cap Ass’y (21 -P-424) & (28-P-216) | 1 | $239.73 | Add to Cart | ||
| 328589X | Bearing Cap Ass’y (21 -P-269) | 1 | $324.47 | Add to Cart | ||
| 329194X | Bearing Cap Assembly (21 -P-574) | 1 | $135.04 | Add to Cart | ||
| 379673 | Hex Shoulder Screw (.312" 24) | 4 | $12.77 | Add to Cart | ||
| 379063 | Flat Washer | 4 | $2.70 | Add to Cart | ||
| 328711X | Pump Mounting Kit | 1 | $14.26 | Add to Cart | ||
| 378919 | Washer | 4 | $1.97 | Add to Cart | ||
| 5009631 | Hex Lock Nut (.312" 24) | 4 | — | No longer available — call for replacement | ||
| 3P202 | Output Shaft | 1 | $95.42 | Add to Cart | ||
| 3P978 | Output Shaft (“b” Ratio Only) | 1 | $227.78 | Add to Cart | ||
| 37843010 | Hex Capscrew (.312" 18 X 1 .0") | 4 | $1.76 | Add to Cart | ||
| 50000729 | Woodruff Key | 1 | $3.11 | Add to Cart | ||
| 379828 | Companion Flange | 1 | $705.64 | Add to Cart | ||
| 3P766 | Output Shaft | 1 | $787.30 | Add to Cart | ||
| 379111 | Square Key | 1 | $23.18 | Add to Cart | ||
| 501181 | Hex Locknut (1 .0" 20) | 1 | — | No longer available — call for replacement | ||
| 328234X | Bearing Cap Ass’y (21 -P-614) | 1 | — | Call for availability | ||
| 329449X | Bearing Cap Ass’y (21 -P-692) | 1 | $350.10 | Add to Cart |
Additional Parts Listed in This Manual
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 328170-201 | X Mounting Kit ("g" Metric Mounting Type) | 1 | — | Call for availability | ||
| 329106-1 | 0BX Shifter Kit (wire Control 4 & 5, "q", "w", "x" Ratio; "x" Shift Option) 1 | 1 | — | Call for availability | ||
| 329106-11 | Ox Shifter Kit (wire Control 4 & 5, "f", "l.:', "r", "s", "u" Ratio; "w" Shift Option) 1 | 1 | — | Call for availability | ||
| 329106-111 | X Shifter Kit (wire Control 3 & 6, "f", "l.:', "r", "s", "u" Ratio; "x" Shift Option) 1 | 1 | — | Call for availability | ||
| 5-P-1061 | Left Helix | 20 | $384.70 | Add to Cart | ||
| 5-P-1063 | Left Helix | 25 | $324.70 | Add to Cart | ||
| 5-P-1064 | Left Helix | 26 | $245.32 | Add to Cart | ||
| 5-P-1065 | Left Helix | 29 | $393.34 | Add to Cart | ||
| 5-P-1066 | Left Helix | 32 | — | Call for availability | ||
| 5-P-1067 | Left Helix | 21 | — | Call for availability | ||
| 5-P-1068 | Left Helix | 25 | — | Call for availability | ||
| 5-P-1069 | Spur | 28 | $159.06 | Add to Cart | ||
| 5-P-1070 | Left Helix | 26 | $430.19 | Add to Cart | ||
| 5-P-1071 | Left Helix | 23 | $356.85 | Add to Cart | ||
| 5-P-1072 | Left Helix | 21 | — | Call for availability | ||
| 5-P-1098 | Left Helix | 28 | — | Call for availability | ||
| 5-P-1150 | Left Helix | 26 | $356.85 | Add to Cart | ||
| 5-P-1152 | Left Helix | 29 | $414.30 | Add to Cart | ||
| 5-P-1157 | Spur | 23 | $191.75 | Add to Cart | ||
| 5-P-1235 | Spur | $299.16 | Add to Cart | |||
| 5-P-1236 | Spur | 32 | $324.97 | Add to Cart | ||
| 5-P-1237 | Left Helix | 26 | $350.67 | Add to Cart | ||
| 5-P-1243 | Left Helix | 27 | $810.05 | Add to Cart | ||
| 5-P-1248 | Left Helix | 20 | $298.78 | Add to Cart | ||
| 5-P-1256 | Left Helix | 28 | $546.46 | Add to Cart | ||
| 5-P-1257 | Left Helix | 29 | $636.08 | Add to Cart | ||
| 5-P-1261 | Left Helix | 24 | $423.27 | Add to Cart | ||
| 5-P-1263 | Left Helix | 22 | $292.22 | Add to Cart | ||
| 5-P-1268 | Left Helix | 33 | $296.52 | Add to Cart | ||
| 5-P-1310 | Left Helix | 20 | — | No longer available — call for replacement | ||
| 5-P-1313 | Left Helix | 19 | — | Call for availability | ||
| 5-P-1316 | Left Helix | 25 | $451.82 | Add to Cart | ||
| 5-P-1319 | Left Helix | 23 | $350.66 | Add to Cart | ||
| 5-P-1341 | Left Helix | 41 | — | Call for availability | ||
| 5-P-1343 | Left Helix | 32 | $243.99 | Add to Cart | ||
| 5-P-1405 | Left Helix | 33 | — | Call for availability | ||
| 5-P-1407 | Left Helix | 29 | — | Call for availability | ||
| 5-P-1383 | Left Helix | 27 | $279.18 | Add to Cart | ||
| 5-P-1411 | Left Helix | 26 | $331.47 | Add to Cart | ||
| 5-P-1279 | Spur 19 | 14 | $417.19 | Add to Cart | ||
| 5-P-1280 | Spur 22 | 14 | $492.15 | Add to Cart | ||
| 5-P-1282 | Left Helix 21 | 14 | — | Call for availability | ||
| 5-P-1283 | Left Helix 21 | 14 | $484.51 | Add to Cart | ||
| 5-P-1284 | Spur 23 | 14 | $379.80 | Add to Cart | ||
| 5-P-1285 | Left Helix 22 | 14 | $245.75 | Add to Cart | ||
| 5-P-1366 | Left Helix 27 | 14 | — | Call for availability | ||
| 5-P-1358I | Spur I 24 | 14 | — | Call for availability | ||
| 5-P-1418 | Spur 22 | 14 | $239.23 | Add to Cart | ||
| 5-P-1286 | Spur 19 | 17 | $405.21 | Add to Cart | ||
| 5-P-1287 | Spur 22 | 17 | $269.79 | Add to Cart | ||
| 5-P-1368 | Left Helix 27 | 17 | — | Call for availability | ||
| 5-P-1289 | Left Helix 21 | 17 | $315.30 | Add to Cart | ||
| 5-P-1290 | Left Helix 21 | 17 | $252.20 | Add to Cart | ||
| 5-P-1291 | Spur 23 | 17 | $419.96 | Add to Cart | ||
| 5-P-1292 | Left Helix 22 | 17 | $213.77 | Add to Cart | ||
| 5-P-1076 | Spur 19 | 21 | $401.18 | Add to Cart | ||
| 5-P-1077 | Spur 22 | 21 | $243.99 | Add to Cart | ||
| 5-P-1079 | Left Helix 21 | 21 | $338.98 | Add to Cart | ||
| 328170-21 | Ox Capscrew Bag Kit | 1 | — | Call for availability | ||
| 378446-4 | Socket Head Capscrew | 6 | $5.98 | Add to Cart | ||
| 28-P-249 | O-ring | 2 | $6.21 | Add to Cart | ||
| 3-P-881 | Ge Rotor Shatt | 1 | $38.36 | Add to Cart | ||
| 329093X | Pump Adapter | 1 | — | No longer available — call for replacement | ||
| 21-P-530 | Pump Adapter | 1 | — | Call for availability | ||
| 328388-98X | Kit Installation | 1 | $367.41 | Add to Cart | ||
| 378429-11 | Hex Capscrew | 3 | $2.63 | Add to Cart | ||
| 379173 | Plate-plump | 1 | $176.96 | Add to Cart | ||
| 379175 | Retaining | 1 | $11.60 | Add to Cart | ||
| 379176 | Pump-gerotor | 1 | $130.42 | Add to Cart | ||
| 379525 | Pump Cap | 1 | $247.07 | Add to Cart | ||
| 500037-7 | Dowel Pin | 2 | — | No longer available — call for replacement | ||
| 500566-3 | Ball | 1 | $1.26 | Add to Cart | ||
| 500897-11 | Cap Plug | 1 | — | No longer available — call for replacement | ||
| 500897-8 | Shipping Plug | 1 | — | Call for availability | ||
| 379280 | Fitting Swivel | 1 | $7.49 | Add to Cart | ||
| 385004 | Female Jic | 1 | $10.91 | Add to Cart | ||
| 385003 | Male Nptf | 1 | $12.24 | Add to Cart | ||
| 385006 | Hose Bulk | 1 | $12.24 | Add to Cart | ||
| 378441-10 | 10 Ft. Wire | 1 | $85.17 | Add to Cart | ||
| 378502 | Knob | 1 | $14.54 | Add to Cart | ||
| 379534 | Inst Instruction | 1 | $9.14 | Add to Cart | ||
| 28-P-190 | O-ring .73 | 1 | $3.94 | Add to Cart | ||
| 9-P-76 | Idler Shatt | 1 | — | Call for availability | ||
| 379646 | Installation | 1 | — | Call for availability | ||
| 62-P-45 | Shifter Plate | 1 | — | Call for availability | ||
| 63-P-20 | Shifter Pin | 1 | — | Call for availability | ||
| 64-P-1 | Shifter Shoe | 1 | — | Call for availability | ||
| 378244 | Shifter Post | 1 | — | Call for availability | ||
| 378246 | Lockring | 1 | — | Call for availability | ||
| 378313 | Litter Plate | 1 | — | Call for availability | ||
| 62-P-46 | Shifter Plate | 1 | — | Call for availability | ||
| 63-P-21 | Shifter Pin | 1 | — | Call for availability | ||
| 35-P-14 | Gasket | 1 | $2.88 | Add to Cart | ||
| 378430-4 | Capscrew Hex Head | 2 | $6.00 | Add to Cart | ||
| 65-P-23 | Cover Shift | 1 | $20.58 | Add to Cart | ||
| 329158-12X | Electric Shift | 1 | — | Call for availability | ||
| 329163-10X | Electric Shift | 1 | — | Call for availability | ||
| 379247 | Fuse Holder | 1 | — | No longer available — call for replacement | ||
| 379252 | Butt Connector | 2 | $2.30 | Add to Cart | ||
| 379253 | Ring Connector | 1 | $3.11 | Add to Cart | ||
| 379257 | Splice Connector | 1 | $2.91 | Add to Cart | ||
| 379265 | Grommet | 1 | $3.21 | Add to Cart | ||
| 379689 | Self Taping Screw | 4 | — | Call for availability | ||
| 500357-7 | Lockwasher | 4 | $1.07 | Add to Cart | ||
| 500376-6 | Nut 10-24 | 4 | — | No longer available — call for replacement | ||
| 500457-6 | Slotted Screw | 4 | $1.12 | Add to Cart | ||
| 379061X | Tie Wire | 1 | — | Call for availability | ||
| 1-P-557 | P.t.o. Housing | 1 | — | No longer available — call for replacement | ||
| 1-P-558 | Housing Deep Mount | 1 | — | Call for availability | ||
| 1-P-552 | Housing | 1 | — | Call for availability | ||
| 1-P-562 | Housing | 1 | — | Call for availability | ||
| 21-P-641 | Bearing Cap | 1 | $82.60 | Add to Cart | ||
| 28-P-224 | Oil Seal | 1 | $21.91 | Add to Cart | ||
| 63-P-23 | Shifter Pin | 1 | — | Call for availability | ||
| 379638 | P.t.o. Tag | 1 | $3.08 | Add to Cart | ||
| 379744 | Flange Nut | 3 | $1.63 | Add to Cart | ||
| 378431-11 | Hex Capscrew | 3 | $2.01 | Add to Cart | ||
| 379423-12 | Stud .375" | 3 | $5.85 | Add to Cart | ||
| 378774 | Tablock Washer | 3 | $2.19 | Add to Cart | ||
| 379224 | Tab Lockwasher | 6 | $2.68 | Add to Cart | ||
| 378432-12 | Capscrew | 6 | $2.29 | Add to Cart | ||
| 379424-18 | Stud | 2 | $4.30 | Add to Cart | ||
| 379745 | Flange Nut | 2 | $2.34 | Add to Cart | ||
| 379429-19 | Stud Metric | 8 | $5.79 | Add to Cart | ||
| 22-P-69 | Gasket | 1 | $7.85 | Add to Cart | ||
| 28-P-226 | Oil Seal | 1 | $70.54 | Add to Cart | ||
| 379423-15 | Stud .375" | 6 | $4.89 | Add to Cart | ||
| 328388-46X | Inst Kit Parts Bag | $50.94 | Add to Cart | |||
| 379900 | Ass'y Fuse | 1 | $5.99 | Add to Cart | ||
| 378416 | Hex Nipple | 1 | $4.80 | Add to Cart | ||
| 379042 | Male Connector | 2 | $5.66 | Add to Cart | ||
| 379043 | Male Elbow | 1 | $7.39 | Add to Cart | ||
| 379306 | Fork Connector | 4 | $2.50 | Add to Cart | ||
| 378881 | Rocker Swivel | 1 | $111.97 | Add to Cart | ||
| 378978 | Indicator | 1 | $25.82 | Add to Cart | ||
| 379044-7 | Nylon Tubing | 1 | $41.17 | Superseded by 3790446Add to Cart | ||
| 379258 | Bracket | 1 | $5.11 | Add to Cart | ||
| 379303-1 | Valve 12V | 1 | $334.31 | Add to Cart | ||
| 379336 | Switch Bracket | 1 | $10.11 | Add to Cart | ||
| 379254-3 | Wire, Green | 1 | $10.74 | Add to Cart | ||
| 379106 | Breather Cap | 1 | $5.65 | Add to Cart | ||
| 378326 | Nut, Hex | 1 | $2.22 | Add to Cart | ||
| 50-P-17 | Bracket, Wire Control | 1 | $5.47 | Add to Cart | ||
| 50-P-19 | Swivel Bracket | 1 | $3.48 | Add to Cart | ||
| 500396-8 | Screw, Hex | 1 | $1.17 | Add to Cart | ||
| 379005 | Indicator | 1 | — | No longer available — call for replacement | ||
| 500568-4 | Set Screw | 1 | $1.45 | Add to Cart | ||
| 378019 | Pivot Pin | 1 | $4.50 | Add to Cart | ||
| 379303-2 | Valve 24V | 1 | $538.99 | Add to Cart | ||
| 328388-44X | Air Shift | 1 | $107.93 | Add to Cart | ||
| 329090-1X | Valve Kit | 1 | — | Call for availability | ||
| 379130 | Support Bracket | 2 | $3.48 | Add to Cart | ||
| 68-P-27 | Control Plate | 1 | $17.36 | Add to Cart | ||
| 329214X | Apsco Valve | 1 | $646.87 | Add to Cart | ||
| 328388-64X | Airshift Kit | 1 | $150.02 | Add to Cart | ||
| 329316X | Valve Assembly | 1 | $646.87 | Add to Cart | ||
| 328388-97X | Airshift | $107.93 | Add to Cart | |||
| 500448-9 | Screw Slot | 4 | $1.05 | Add to Cart | ||
| 328931X | Kit Valve | 1 | $3.54 | Add to Cart | ||
| 75-P-13 | Light Indicator | 1 | $25.84 | Add to Cart | ||
| 329090-6X | Kit Valve | 1 | $216.58 | Add to Cart | ||
| 378430-11 | Hex Capscrew | 4 | $4.84 | Add to Cart | ||
| 328591-28X | "ak" Pump Conversion | $392.52 | Add to Cart | |||
| 328591-45X | "lb" Pump Conversion | — | Call for availability | |||
| 379533 | Installation | 1 | — | No longer available — call for replacement | ||
| 328591-29X | "fp' Pump Conversion | — | No longer available — call for replacement | |||
| 500897-5 | Plug Shipping | 1 | — | Call for availability | ||
| 328591-46X | "lc" Pump Conversion | — | Call for availability | |||
| 328591-30X | "af" Pump Conversion | $508.28 | Add to Cart | |||
| 328591-44X | "la" Pump Conversion | — | Call for availability | |||
| 328591-47X | "le" Pump Conversion | — | Call for availability | |||
| 328584X | Flange Assembly | 1 | — | Call for availability | ||
| 328591-48X | "lf" Pump Conversion | $1,029.12 | Add to Cart | |||
| 328591-70X | "az' Pump Conversion | $903.54 | Add to Cart | |||
| 328591-71X | Pump Conversion Kit | $845.87 | Add to Cart | |||
| 3-P-921 | Drive Shaft | 1 | $860.23 | Add to Cart | ||
| 328591-72X | Pump Conversion Kit | $591.49 | Add to Cart | |||
| 3-P-923 | Drive Shaft | 1 | $655.03 | Add to Cart | ||
| 328591-73X | Pump Conversion Kit | $405.83 | Add to Cart | |||
| 328591-76X | Pump Conversion Kit | — | No longer available — call for replacement | |||
| 328591-74X | Pump Conversion Kit | $591.49 | Add to Cart | |||
| 328591-86X | Conversion Kit To "gk" | $554.78 | Add to Cart | |||
| 328591-75X | Pump Conversion Kit | — | No longer available — call for replacement | |||
| 3-P-933 | Output Shaft | 1 | — | Call for availability | ||
| 328591-91X | Conversion Kit "xd" To "gq" | $626.74 | Add to Cart | |||
| 3-P-939 | Output Shaft | 1 | $412.43 | Add to Cart | ||
| 328591-89X | Conversion Kit "xd" To "gk'' | $569.55 | Add to Cart | |||
| 328591-92X | Conversion Kit "xd" To "gy" | $700.87 | Add to Cart | |||
| 329234X | Bearing Cap | 1 | $674.37 | Add to Cart | ||
| 3-P-938 | Output Shaft | 1 | $713.34 | Add to Cart | ||
| 328591-90X | Conversion Kit "xd"to "gp" | $483.90 | Add to Cart | |||
| 328591-93X | Conversion Kit "xd" To "gz" | $808.83 | Add to Cart | |||
| 328591-106X | Conversion Kit "ra" To "ga" | — | Call for availability | |||
| 328591-107X | Conversion Kit "rb" To "gb" | $428.82 | Add to Cart | |||
| 328591-114X | Conversion Kit "rf" To "gh" | $592.43 | Add to Cart | |||
| 328591-108X | Conversion Kit "af" To "gf" | $576.41 | Add to Cart | |||
| 3-P-941 | Drive Shaft | 1 | — | Call for availability | ||
| 328591-116X | Conversion Kit "xd" To "gh" | $864.02 | Add to Cart | |||
| 328591-138X | Conversion Kit "xd" To "gj" | $864.02 | Add to Cart | |||
| 378454-7 | Setscrew | 1 | $45.66 | Add to Cart | ||
| 68-P-18 | Name Plate | 1 | $4.50 | Add to Cart | ||
| 379085-1 | P.t.o. Instruction Decal | 1 | $4.15 | Add to Cart | ||
| 328946X | Caution Label Kit | 1 | — | No longer available — call for replacement | ||
| 379624 | Product Warranty Card | 1 | $3.72 | Add to Cart | ||
| 379428-14 | Stud M10 | 6 | $7.23 | Add to Cart | ||
| 3P1011 | Output Shaft (xb Only) | 1 or | $188.91 | Add to Cart | ||
| 22P1271 | Gasket (.010") | A.R. | $2.30 | Add to Cart | ||
| 22P1272 | Gasket (.020") | A.R. | $2.30 | Add to Cart | ||
| 22P1273 | Gasket (.015") | A.R. | $2.30 | Add to Cart | ||
| 68P511 | Adhesive Label | 1 | — | Call for availability | ||
| 50000724 | Woodruff Key (.250") (xb Output) | 1 | $1.83 | Add to Cart | ||
| 379814 | Warning Label (a & C Ratio) | 1 | $3.71 | Add to Cart | ||
| 379989 | Warning Label (b Ratio) | 1 | — | Call for availability | ||
| 329874X | 12VDC Elec/air Kit Eaton Procision™ (d Shifter) - Hydraulic Installation Kits | $543.46 | Add to Cart | |||
| 3298741X | Hydraulic Shift Kit Eaton Procision™ (e Shifter) - Shifter Kits | — | No longer available — call for replacement | |||
| 329896X | Electrical Wiring Kit (**lp & **lq Only) Service Kits | 1 | $1,117.35 | Add to Cart | ||
| 32835626X | Shifter Cover Seal Kit | — | Call for availability | |||
| 329876X | Pressure Lube Kit (**lp & **lq Only) Service Conversion Kits | 1 | $481.12 | Add to Cart | ||
| V328390138X | Electric Shift Field Conversion Kit (wire To 12VDC) (3 & 6 Assembly) | — | Call for availability | |||
| V328390139X | Electric Shift Field Conversion Kit (wire To 12VDC) (3 & 4 Assembly) | — | Call for availability | |||
| V328390140X | Electric Shift Field Conversion Kit (lever 12VDC) | — | Call for availability | |||
| 5P1312 | Right Hand 20 Js 5-P-1310 Left Hand 20 | — | Call for availability | |||
| 5P1318 | Right Hand 25 Ju 5-P-1316 Left Hand 25 | $464.31 | Add to Cart | |||
| 5P1321 | Right Hand 23 Jw 5-P-1319 Left Hand 23 | $364.77 | Add to Cart | |||
| 5P1406 | Right Hand 33 Kj 5-P-1405 Left Hand 33 | — | Call for availability | |||
| 5P1408 | Right Hand 29 Kl 5-P-1407 Left Hand 29 | — | Call for availability | |||
| 5P1384 | Right Hand 27 Kn 5-P-1383 Left Hand 27 | — | Call for availability | |||
| 5P1412 | Right Hand 26 Kx 5-P-141 1 Left Hand 26 | $294.61 | Add to Cart | |||
| 5008973 | Shipping Plug | 1 | — | No longer available — call for replacement | ||
| 34561 | #3 Integral Cooler Ports Std. — — | 378840 | — | Call for availability | ||
| 34565 | #3 Integral Cooler Ports Std. — — | 378840 | — | Call for availability | ||
| 34572 | #3 Integral Cooler Ports Std. — — | 378840 | — | Call for availability | ||
| 3293611X | Shifter Cover Assembly Hydraulic Shift (e Shift) (includes Item 1 -10 & 12) | 1 or | — | Call for availability | ||
| 3293612X | Air Shifter Cover Assembly 12VDC Elc/air Shift (d Shift) (includes Item 1 -10 & 13) | 1 or | $303.60 | Add to Cart | ||
| 380515 | Indicator Switch (329361X) | 1 or | $25.03 | Add to Cart | ||
| 50089710 | Shipping Plug (329361 -1X) | 1 or | — | Call for availability | ||
| 379990 | Indicator Switch (329361 -2X) Air Shift Conversion Kits | 1 | $56.66 | Add to Cart | ||
| 328274XC | Close End Bearing Cap Assembly | 1 | — | Call for availability | ||
| 32835617X | Shifter Cover Seal Kit (air Shift) | 1 | $77.91 | Add to Cart | ||
| 447QET | 5-P-865 19 Left Helix 19 2-P-697 | 24 | — | Call for availability | ||
| 447QES | 5-P-869 22 Left Helix 19 2-P-697 | 24 | — | Call for availability | ||
| 447SET | 5-P-866 19 Left Helix 24 2-P-698 | 22 | — | Call for availability | ||
| 447SES | 5-P-870 22 Left Helix 24 2-P-698 | 22 | — | Call for availability | ||
| 447UET | 5-P-867 19 Left Helix 26 2-P-699 | 20 | — | Call for availability | ||
| 447UES | 5-P-871 22 Left Helix 26 2-P-699 | 20 | — | Call for availability | ||
| 2P700 | No For V 447*WET | $184.49 | Add to Cart | |||
| 3293631X | Air Shifter Cover Assembly (e Shift) (includes Item 1 -10 & 12) | 1 | — | Call for availability | ||
| 379038 | Indicator Switch (329363-1X) | 1 | $46.35 | Add to Cart | ||
| 1P633X | Eaton Fts Mount Housing (e) | 1 or | $1,762.05 | Add to Cart | ||
| 1P659X | V Cat TH55 Mount Housing (c) | 1 or | — | Call for availability | ||
| 1P781X | Eaton Endurant™ Mount Housing (q) | 1 or | $390.06 | Add to Cart | ||
| 1P799X | Detroit® DT12® Housing | 1 | $272.28 | Add to Cart | ||
| 28P381 | Mounting Seal O-ring (q Mount Eaton Endurant™) 67-83 For Bill Of Materials For The Below Loose Parts. | 1 | $29.95 | Add to Cart | ||
| 32894848X | Gasket And Installation Instructions (q Mount) | 1 | $105.17 | Add to Cart | ||
| 32894853X | Gasket And Installation Instructions (d Mount) Stud Kits | 1 | $119.67 | Add to Cart | ||
| 328170127X | Stud Kit (c) | 1 | $33.26 | Add to Cart | ||
| 328170217X | Stud Kit (lz Input Only) | 1 | $254.55 | Add to Cart | ||
| 328170221X | Stud Kit (me Input Only) | 1 | $350.72 | Add to Cart | ||
| 328170219X | Stud Kit (d) Installation Kits | 1 | $297.99 | Add to Cart | ||
| 380711X | Spacer Kit Eaton Endurant Xd™ (me Input Only) Air Shift Installation Kits | 1 | $590.27 | Add to Cart | ||
| 3298742X | 12VDC Elec/air Kit Eaton Endurant Xd™ - Continued On Next | Page | $598.59 | Add to Cart | ||
| 329106158XB | Shifter Kit (air Shift) (eaton Endurant™ Eaton Procision™) | — | Call for availability | |||
| 329106162X | Detroit® DT12® Retrofit Shifter Kit (option 5) | $802.18 | Add to Cart | |||
| 380719 | Da Shaft Shifter (1 .000") | 1 | — | Call for availability | ||
| 66P24 | Shifter Piston | 1 | $134.76 | Add to Cart | ||
| 380725 | Da Cylinder Shifter | 1 | — | Call for availability | ||
| 379027 | Cylinder Cap | 1 | $155.60 | Add to Cart | ||
| 28P61 | O-ring (1 .359" X .139") | 2 | $7.18 | Add to Cart | ||
| 380726 | Mounting Bracket Da Shifter | 2 | — | Call for availability | ||
| 380722 | Shoulder Cap Screw (.312 " -18 X 3 .000") | 2 | — | Call for availability | ||
| 42P250 | Input Designator (329932X Ma) | 1 | $638.86 | Add to Cart | ||
| 42P252 | Input Designator (329954X Mb) | 1 | $577.75 | Add to Cart | ||
| 9P130 | Adapter Shaft DT12® | 1 | — | Call for availability | ||
| 43P170 | Adapter Gear (329932X Ma) | 1 | $360.38 | Add to Cart | ||
| 43P171 | Adapter Gear (329954X Mb) | 1 | $397.78 | Add to Cart | ||
| 43P172 | Adapter Gear (329955X Mc) | 1 | $347.80 | Add to Cart | ||
| 14P92 | Bearing Spacer (1 .193" X 1 .525" X .246") | 1 | $24.95 | Add to Cart | ||
| 55P441 | Shim (1 .196" X 1 .525" X .001 ") | A.R. | $9.69 | Add to Cart | ||
| 55P442 | Shim (1 .196" X 1 .525" X .003") | A.R. | $7.33 | Add to Cart | ||
| 55P443 | Shim (1 .196" X 1 .525" X .006") | A.R. | $6.21 | Add to Cart | ||
| 55P444 | Shim (1 .196" X 1 .525" X .012 ") | A.R. | $6.04 | Add to Cart | ||
| 55P445 | Shim (1 .196" X 1 .525" X .015") | A.R. | $6.29 | Add to Cart | ||
| 55P446 | $5.74 | Add to Cart | ||||
| 562001CHD | Tapered Bearing Roller Assembly (1 .181 " X 2 .835" X 1 .132 ") | 2 | — | Call for availability | ||
| 380675CHD | Flange Nut DT12®. | 1 | — | Call for availability | ||
| 50059718 | Roll Pin (.188" X 1 .500") | 1 | $1.63 | Add to Cart | ||
| 69P37 | Caution Tag | 1 | $10.00 | Add to Cart | ||
| 329658X | Flange, Sae Bb Cover Kit (wet Spline, Shaft (1 " 15T) Only), 1 | $157.74 | Add to Cart | |||
| 3294367X | Flange, Sae Bb Conversion Kit (xd, Shaft (1 " 15T) To Ak) (b Ratio) | — | No longer available — call for replacement |
This is the complete factory parts breakdown for the Chelsea PTO 489 — every part in the manual, matched to our live inventory. We stock 444 of the 581 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
No parts match that search — try the part number with no dashes.
This Chelsea Illustrated Parts List covering the 489 PTO helps you identify the correct gear sets, shifter kits and service parts for your power take-off before you order.
| Models covered | 489 |
| PTO type | Chelsea 400 Series |
| Document | Illustrated Parts List (Chelsea) |
| Length | 92 pages |
| Format | PDF — free download |
What’s inside
- Gear sets & output shaft assemblies
- Shifter & air-shift control kits
- Mounting gaskets & adapter plates
- Housings & cover assemblies
- Seal, bearing & snap-ring kits
- Application & ratio reference tables
- Exploded views with OEM part numbers
Chelsea parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Chelsea PTO units:
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert — send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
Browse all Chelsea PTO parts — rebuild kits, seal kits, gears & shift covers — or shop complete Chelsea PTO units.
489 Series service manual
The Chelsea PTO 489 Series service manual is the factory shop manual for this PTO: troubleshooting, disassembly and reassembly procedures, torque specifications and lubrication. It is free to view or download: 489 Series service manual (PDF).
Use the illustrated parts list above to identify the part number you need, then order it on this page. Every part listed is priced and in stock at Pro Gear and Transmission, and complete 489 Series units ship the same day.
