Chelsea PTO 890 Series Parts Manual
Model Number Designation
| Item | Part No. | Description | Qty | Notes | Price |
|---|
Power Take-Offs Bill of Materials 890 Series

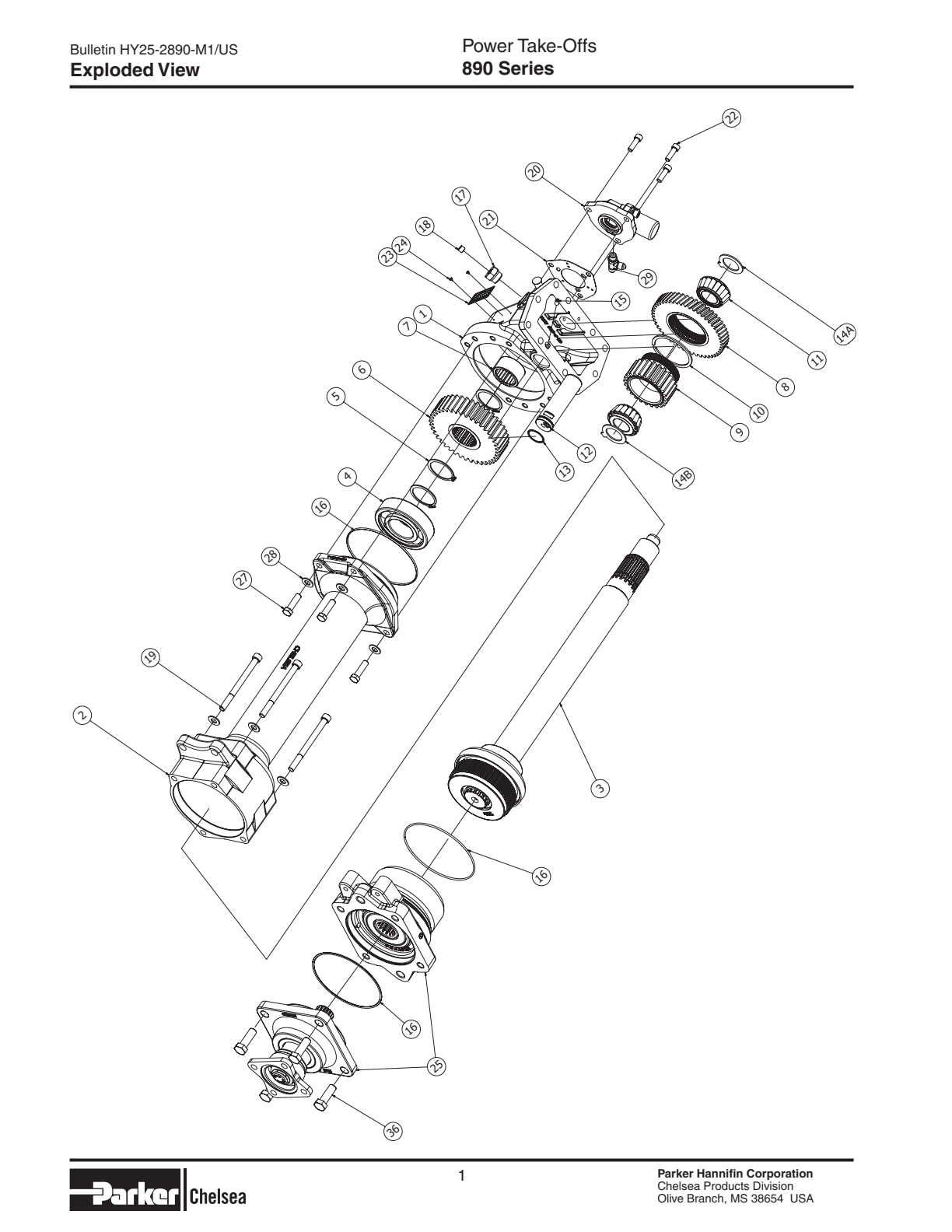

Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1P629 | Housing 890 | 1 | $544.27 | Add to Cart | ||
| 54P22 | Retainer Bearing 890 | 1 | $940.15 | Add to Cart | ||
| 329607X | Ass’y Drive Shaft & Clutch | 1 | $2,198.66 | Add to Cart | ||
| 550026 | Bearing Ball 1 .771 " X 3.937" X .984" | 1 | $222.70 | Add to Cart | ||
| 379668 | Lockring | 3 | $3.21 | Add to Cart | ||
| 560972 | Bearing Needle Roller Ass’y 1 .500" X 1 .875" X 1 .000" | 1 | $32.22 | Add to Cart | ||
| 380064 | Lockring | 1 | $14.60 | Add to Cart | ||
| 1 | 561026 | Bearing Tapered Cone 1 .181 " X .984" | 2 | $131.13 | Add to Cart | |
| 9P99 | Shaft Idler 1 .180" | 1 | $273.42 | Add to Cart | ||
| 28P42 | O-ring 1 .051 " X .070" | 1 | $3.59 | Add to Cart | ||
| 14P821 | Spacer 1 .191 " X 1 .750" X .080" | 1 | $43.74 | Add to Cart | ||
| 14P822 | Spacer 1 .191 " X 1 .750" X .085" | .A.R. | $43.74 | Add to Cart | ||
| 14P823 | Spacer 1 .191 " X 1 .750" X .090" | .A.R. | $43.74 | Add to Cart | ||
| 14P824 | Spacer 1 .191 " X 1 .750" X .094" | .A.R. | $43.74 | Add to Cart | ||
| 3784527 | Set Screw Sh .250"-20 X .500" | 1 | $4.37 | Add to Cart | ||
| 28P245 | O-ring 5.017" X .103" (“xs”, “xk”, “af”, “xy”, “az” Outputs) | 2 | $45.00 | Add to Cart | ||
| 379242 | Adapter Straight .125"-27 X .750"-16 (w/o E .o.c. Only) | 1 | $22.23 | Add to Cart | ||
| 379231 | Plug Pipe .125"-27 (w/o E .o.c. Only) | 1 | $1.50 | Add to Cart | ||
| 37943318 | Capscrew Sh .375"-16 X 4.500" | 4 | $20.84 | Add to Cart | ||
| 32946312X | Ass’y Valve Cap 12V (12 Volt) | 1 | $405.37 | Add to Cart | ||
| 32946324X | Ass’y Valve Cap 24V (24 Volt) | 1 | $433.75 | Add to Cart | ||
| 22P112 | Gasket | 1 | $20.18 | Add to Cart | ||
| 3784476 | Capscrew Sh .312"-18 X 1 .000" | 3 | $4.33 | Add to Cart | ||
| 68P2 | Plate Name | 1 | $2.65 | Add to Cart | ||
| 378422 | Screw Drive | 2 | $11.52 | Add to Cart | ||
| 5008975 | Plug Shipping | 2 | — | Call for availability | ||
| 37843113 | Capscrew Hh .375"-16 X 1 .375" | 4 | $2.73 | Add to Cart | ||
| 38007607 | Washer Flat Hardened .410" X .816" X .066" | 8 | $1.50 | Add to Cart | ||
| 379659 | Tee .438"-20 | 2 | $51.56 | Add to Cart | ||
| 3795642 | Cap Shipping | 5 | $1.23 | Add to Cart | ||
| 329403X | Ass’y Seal Cap | 1 | $490.07 | Add to Cart | ||
| 379486 | Elbow 90° .438"-20 | 1 | $28.97 | Add to Cart | ||
| 379243 | Sensor Speed (w/e .o.c. Only) | 1 | $229.65 | Add to Cart | ||
| 28P171 | O-ring .644" X .087" (w/e .o.c. Only) | 1 | $4.88 | Add to Cart | ||
| 37843314 | Capscrew Hh .500"-13 X 1 .500" (“xv”, “ab”, “ac” Outputs Only) Loose Parts | 4 | $3.89 | Add to Cart | ||
| 32894836X | Kit Gasket & Installation (all) | 1 | $42.19 | Add to Cart | ||
| 717086X | Kit Mounting (all) | 1 | $84.46 | Add to Cart | ||
| 3296451X | Kit Bracket & Hose (“l” Mount) | 1 | $317.38 | Add to Cart | ||
| 3296452X | Kit Bracket & Hose (“r” Mount) | 1 | $334.67 | Add to Cart | ||
| 3296453X | Kit Bracket & Hose (“h” Mount) | 1 | $317.38 | Add to Cart | ||
| 3296454X | Kit Bracket & Hose (“e” Mount) | 1 | $317.38 | Add to Cart | ||
| 3296455X | Kit Bracket & Hose (“t” Mount) | 1 | — | No longer available — call for replacement | ||
| 3296456X | Kit Bracket & Hose (“u” Mount) | 1 | $289.62 | Add to Cart | ||
| 3296441X | Kit Mounting & Installation (“xs” Output) | 1 | $345.99 | Add to Cart | ||
| 3296442X | Kit Mounting & Installation (“xk”, “af”, “az” Output) | 1 | $426.51 | Add to Cart | ||
| 3296443X | Kit Mounting & Installation (“xy” Output) | 1 | $403.66 | Add to Cart | ||
| 32902412X | Kit Installation 12V (“b” Shift) | 1 | $272.23 | Add to Cart | ||
| 32902424X | Kit Installation 24V (“d” Shift) Continued | 1 | $304.69 | Add to Cart | ||
| 32965312X | Kit Installation 12V Rem Valve W/o E .o.c. (“g” Shift) | 1 | $765.60 | Add to Cart | ||
| 32965324X | Kit Installation 24V Rem Valve W/o E .o.c. (“h” Shift) | 1 | $750.60 | Add to Cart | ||
| 329076X | Kit Installation E .o.c. (“k”, “l” Shift) | 1 | $152.30 | Add to Cart | ||
| 32892412X | Ass’y Speed Limiter 12V (“k” Shift) | 1 | $1,358.05 | Add to Cart | ||
| 32892424X | Ass’y Speed Limiter 24V (“l” Shift) | 1 | — | Call for availability | ||
| 3290574X | Hose Assembly (remote Valve Option Only) (all Mounts) | 1 | $45.49 | Add to Cart | ||
| 328075X | Hose Assembly (remote Valve Option Only) (all Mounts) | 1 | $150.56 | Add to Cart | ||
| 3291302X | Hose Assembly (remote Valve Option Only) (all Mounts) | 1 | $100.29 | Add to Cart | ||
| 3291305X | Hose Assembly (remote Valve Option Only) (“l”, “h”, “e” Mounts) | 1 | $106.43 | Add to Cart | ||
| 3290751X | Hose Assembly (remote Valve Option Only) (“r” Mount) | 1 | $87.88 | Add to Cart | ||
| 3290754X | Hose Assembly (remote Valve Option Only) (“t”, “u” Mounts) | 1 | $158.14 | Add to Cart | ||
| 329654X | Kit Cover (optional) (“xs” Output) | 1 | $157.74 | Add to Cart | ||
| 329658X | Kit Cover (optional) (“xk”, “af”, “az” Output) | 1 | $157.74 | Add to Cart | ||
| 329659X | Kit Cover (optional) (“xy” Output) Service Parts | 1 | $61.45 | Add to Cart | ||
| 32907146X | Kit Gasket & Seal (“xs”, “xk”, “af”, “az” Outputs) | 1 | $253.84 | Add to Cart | ||
| 32907147X | Kit Gasket & Seal (“xy” Output) | 1 | $241.51 | Add to Cart | ||
| 32907148X | Kit Bearing (“xs”, “xk”, “af”, “az” Outputs) | 1 | $717.52 | Add to Cart | ||
| 32907149X | Kit Bearing (“xy” Output) | 1 | $717.52 | Add to Cart | ||
| 32907150X | Kit Clutch Repair. | 1 | $1,039.60 | Add to Cart | ||
| 32935412X | Conversion Kit 12V Remote Mount Valve | 1 | $930.53 | Add to Cart | ||
| 32935424X | Conversion Kit 24V Remote Mount Valve | 1 | $473.86 | Add to Cart | ||
| 32916063X | Kit Conversion “xs” To “xv” (“xs” Output) | 1 | $1,068.90 | Add to Cart | ||
| 32916064X | Kit Conversion “xs” To “ab” (“xs” Output) | 1 | $1,359.67 | Add to Cart |
Assembly & Installation Kits 890 Series 329645-1X Kit Bracket & Hose Assembly
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 32913011X | Ass’y Hose. | 1 | $96.99 | Add to Cart | |
| 2 | 50P60 | Bracket Rear Support-md Left Side | 1 | $157.59 | Add to Cart | |
| 3 | 3291302X | Ass’y Hose. Hose Assembly Description | 1 | $100.29 | Add to Cart | |
| 2 | 50P61 | Bracket Rear Support-md Right Side Hose Assembly Description | 1 | $257.07 | Add to Cart | |
| 2 | 50P62 | Bracket Rear Support-md Left Side | 1 | $134.77 | Add to Cart | |
| 1 | 379556 | Tee .438"-20 | 1 | $90.82 | Add to Cart | |
| 3 | 379964 | Adapter Restriction .438"-20 X .125"-27 | 1 | $79.84 | Add to Cart | |
| 4 | 5008411 | Elbow .127"-27 Pipe | 1 | $9.09 | Add to Cart | |
| 5 | 380071 | Capscrew Sh Shoulder .375"-16 X 3.375" | 2 | $39.72 | Add to Cart | |
| 6 | 380075 | Capscrew Hh M12 X 1 .750" X 2 .17" | 3 | $13.93 | Add to Cart | |
| 7 | 28P245X | O-ring 5.017" X .103" | 2 | $70.29 | Add to Cart | |
| 8 | 37843113 | Capscrew Hh .375"-16 X 1 .375" | 4 | $2.73 | Add to Cart | |
| 9 | SK461 | Fitting Instructions & Installation “xk”, “af”, “az” Output Description | 1 | — | Call for availability | |
| 10 | 28P259X | O-ring 3.984" X .139" & Installation “xy” Output Description | 1 | $49.60 | Add to Cart | |
| 7 | 28P245 | O-ring 5.017" X .103" | 1 | $45.00 | Add to Cart | |
| 10 | 28P252X | O-ring 2 .987" X .103" | 1 | $30.05 | Add to Cart |
Gasket & Seal Bearing & Clutch Kits 890 Series 329071-46X Kit Gasket & Seal “XS”, “XK”, “AF”, “AZ” Output
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 22P112 | Gasket Valve Cap | 1 | $20.18 | Add to Cart | |
| 2 | 28P42 | O-ring 1 .051 " X .070" | 1 | $3.59 | Add to Cart | |
| 3 | 28P119 | Oil Seal 1 .379" X .875" X .249" | 1 | $26.61 | Add to Cart | |
| 4 | 28P178 | O-ring 4.484" X .138" | 1 | $41.94 | Add to Cart | |
| 5 | 28P245 | O-ring 5.017" X .103" | 2 | $45.00 | Add to Cart | |
| 6 | 28P278 | Oil Seal 2 .953" X 1 .772" X .315" | 1 | $52.57 | Add to Cart | |
| 7 | 28P285 | O-ring 1 .597" X .103" & Seal “xy” Output Description | 2 | $12.64 | Add to Cart | |
| 6 | 28P267 | Oil Seal 2 .627" X 1 .750" X .312" | 1 | $66.05 | Add to Cart | |
| 1 | 379668 | Lockring | 4 | $3.21 | Add to Cart | |
| 2 | 379919 | Lockring | 1 | $9.75 | Add to Cart | |
| 3 | 380070 | Lockring | 1 | $3.31 | Add to Cart | |
| 4 | 550026 | Bearing Ball 1 .771 " X 3.937" X .984" | 1 | $222.70 | Add to Cart | |
| 5 | 560972 | Bearing Needle Roller Ass’y 1 .500" X 1 .875" X 1 .000" | 1 | $32.22 | Add to Cart | |
| 6 | 561018 | Bearing Ball 1 .772" X 2 .953" X .630" | 1 | $37.34 | Add to Cart | |
| 7 | 561026 | Bearing Tapered Cone 1 .181 " X .984" | 2 | $131.13 | Add to Cart | |
| 8 | 561028 | Bearing Ball 1 .969" X 3.150" X .630" | 1 | $60.54 | Add to Cart | |
| 9 | 14P821 | Spacer 1 .191 " X 1 .750" (.079"- .081 ") | 2 | $43.74 | Add to Cart | |
| 10 | 14P822 | Spacer 1 .191 " X 1 .750" (.084"- .086") | 1 | $43.74 | Add to Cart | |
| 14P823 | Spacer 1 .191 " X 1 .750" (.089"- .091 ") | 1 | $43.74 | Add to Cart | ||
| 12 | 14P824 | Spacer 1 .191 " X 1 .750" (.093"- .095") “xy” Output Description | 1 | $43.74 | Add to Cart | |
| 1 | 378263 | Lockring | 1 | $19.87 | Add to Cart | |
| 2 | 379555 | Lockring | 1 | $23.13 | Add to Cart | |
| 3 | 379668 | Lockring | 3 | $3.21 | Add to Cart | |
| 4 | 380070 | Lockring | 1 | $3.31 | Add to Cart | |
| 5 | 550026 | Bearing Ball 1 .771 " X 3.937" X .984" | 1 | $222.70 | Add to Cart | |
| 6 | 550311 | Bearing Ball 1 .771 " X 3.346" X .748" | 1 | $81.15 | Add to Cart | |
| 7 | 560972 | Bearing Needle Roller Ass’y 1 .500" X 1 .875" X 1 .000" | 1 | $32.22 | Add to Cart | |
| 8 | 561026 | Bearing Tapered Cone 1 .181 " X .984" | 2 | $131.13 | Add to Cart | |
| 9 | 561028 | Bearing Ball 1 .969" X 3.150" X .630" | 1 | $60.54 | Add to Cart | |
| 10 | 14P821 | Spacer 1 .191 " X 1 .750" (.079"- .081 ") | 2 | $43.74 | Add to Cart | |
| 14P822 | Spacer 1 .191 " X 1 .750" (.084"- .086") | 1 | $43.74 | Add to Cart | ||
| 12 | 14P823 | Spacer 1 .191 " X 1 .750" (.089"- .091 ") | 1 | $43.74 | Add to Cart | |
| 13 | 14P824 | Spacer 1 .191 " X 1 .750" (.093"- .095") Description | 1 | $43.74 | Add to Cart | |
| 1 | 379485 | Disc Friction 275 | .1 1 | $14.45 | Add to Cart | |
| 2 | 380051 | Cylinder Clutch Back-up | 1 | — | No longer available — call for replacement | |
| 3 | 380110X | Piston Clutch | 1 | $507.89 | Add to Cart | |
| 4 | 380065 | Plate Clutch | 10 | $16.48 | Add to Cart | |
| 5 | 380069 | Lockring Internal | 1 | $6.90 | Add to Cart | |
| 6 | 28P178 | O-ring 4.484" X .138" | 1 | $41.94 | Add to Cart |
Gasket & Seal Bearing & Clutch Kits 890 Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 3296081X | Ass’y Output | 1 | — | Call for availability | |
| 2 | 28P245 | O-ring | 1 | $45.00 | Add to Cart | |
| 3 | 37843314 | Capscrew Hex “xs” To “ab ” Description | 4 | $3.89 | Add to Cart | |
| 1 | 28P245 | O-ring | 1 | $45.00 | Add to Cart | |
| 2 | 3296082X | Ass’y Output | 1 | — | Call for availability | |
| 1 | 3296083X | Ass’y Output | 1 | — | Call for availability |

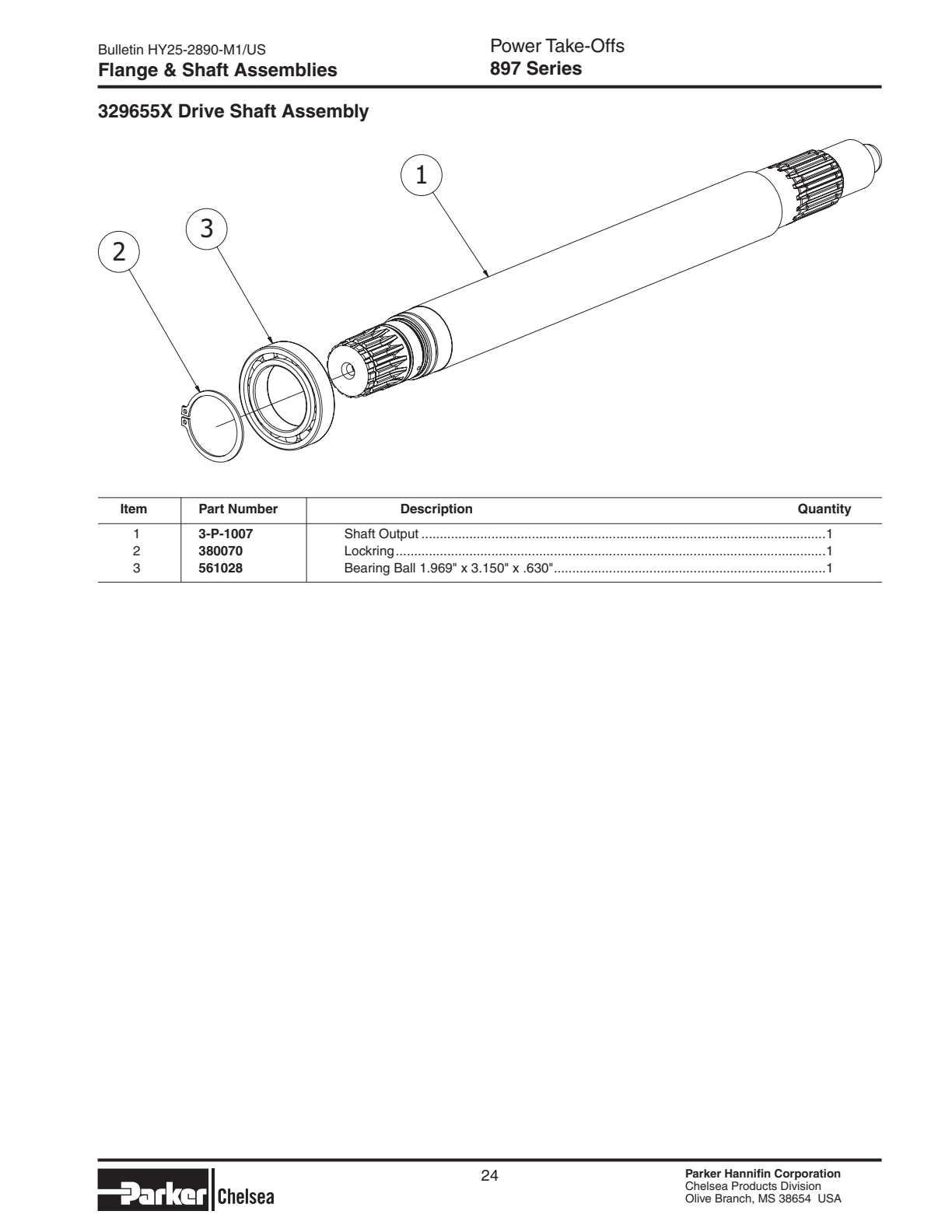

Exploded View 890 Series 329607X Drive Shaft & Clutch Assembly
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 28P285 | O-ring 1 .597" X .103" | 2 | $12.64 | Add to Cart | |
| 2 | 380051 | Cylinder Clutch Back-up | 1 | — | No longer available — call for replacement | |
| 3 | 28P178 | O-ring 4.484" X .138" | 1 | $41.94 | Add to Cart | |
| 4 | 380110X | Piston Clutch | 1 | $507.89 | Add to Cart | |
| 5 | 2P858 | Gear Output 36 Tooth | 1 | $186.14 | Add to Cart | |
| 6 | 380069 | Lockring | 1 | $6.90 | Add to Cart | |
| 7 | 3P1007 | Shaft Output | 1 | $1,944.33 | Add to Cart | |
| 8 | 379485 | Disc Friction | .1 1 | $14.45 | Add to Cart | |
| 9 | 380065 | Plate Clutch | 10 | $16.48 | Add to Cart | |
| 10 | 37P62 | Spring 2 .140" X 1 .729" | 1 | $26.96 | Superseded by 37P72Add to Cart | |
| 380070 | Lockring | 1 | $3.31 | Add to Cart | ||
| 12 | 561028 | Bearing Ball 1 .969" X 3.150" X .630" | 1 | $60.54 | Add to Cart | |
| 13 | 379231 | Plug Pipe .125"-27 | 1 | $1.50 | Add to Cart |

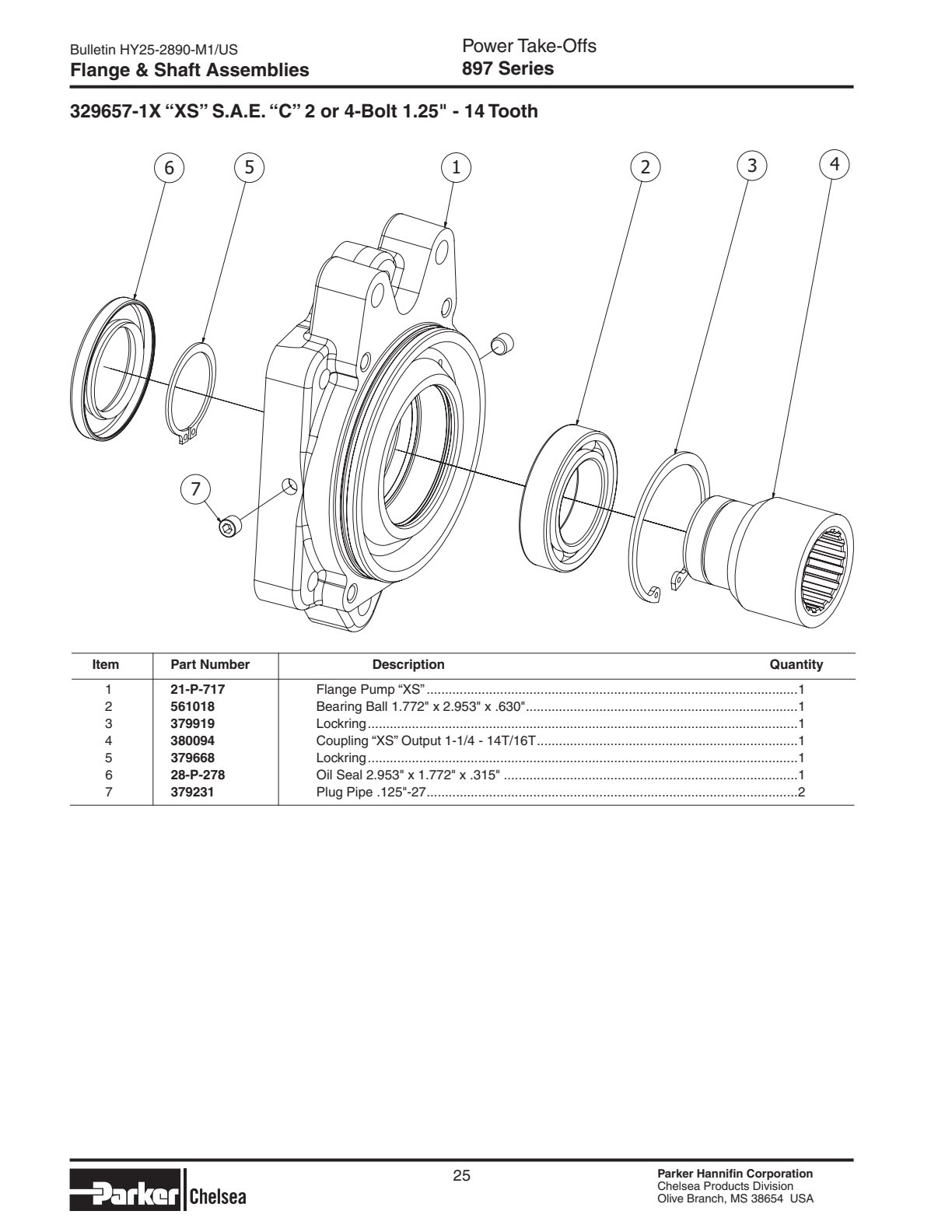

Flange & Shaft Assemblies 890 Series 329609-1X (“XS”) S .A.E “C” 2 or 4-Bolt 1 .25 " 14 Tooth
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 21P717 | Flange Pump “xs” S.a.e “c” 2 Or 4-Bolt | 1 | $646.72 | Add to Cart | |
| 2 | 561018 | Bearing Ball 1 .772" X 2 .953" X .630" | 1 | $37.34 | Add to Cart | |
| 3 | 379919 | Lockring | 1 | $9.75 | Add to Cart | |
| 4 | 2P867 | Gear Output 1 .250" 14T Spline | 1 | $1,203.43 | Add to Cart | |
| 5 | 379668 | Lockring | 1 | $3.21 | Add to Cart | |
| 6 | 28P278 | Oil Seal 2 .953" X 1 .772" X .315" | 1 | $52.57 | Add to Cart | |
| 7 | 379231 | Plug Pipe .125"-27 | 2 | $1.50 | Add to Cart | |
| 28P259X | O-ring 3.984" X .139" (wet Spline Pump Mounting) 23.480" [596.39] .531 " .719" 5.00" | 1 | $49.60 | Add to Cart |
Flange & Shaft Assemblies 890 Series 329609-2X (“XK”) S .A.E “B ” 2 or 4-Bolt 7/8 " 13 Tooth
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 21P723 | Flange Pump “xk” S.a.e “b” 2 Or 4-Bolt | 1 | $612.58 | Add to Cart | |
| 2 | 561018 | Bearing Ball 1 .772" X 2 .953" X .630" | 1 | $37.34 | Add to Cart | |
| 3 | 379919 | Lockring | 1 | $9.75 | Add to Cart | |
| 4 | 2P877 | Gear Output 7/8" 13 Tooth | 1 | $1,245.50 | Add to Cart | |
| 5 | 379668 | Lockring | 1 | $3.21 | Add to Cart | |
| 6 | 28P278 | Oil Seal 2 .953" X 1 .772" X .315" | 1 | $52.57 | Add to Cart | |
| 7 | 379231 | Plug Pipe .125"-27 | 2 | $1.50 | Add to Cart | |
| 28P259X | O-ring 3.984" X .139" (wet Spline Pump Mounting) 23.329" [592 .56] .406" .568" 4.00" 7/8" 13T | 1 | $49.60 | Add to Cart |
Flange & Shaft Assemblies 890 Series 329609-3X (“AF”) S .A.E “B-B ” 2 or 4-Bolt 1 .00 " 15 Tooth
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 21P723 | Flange Pump “xk” S.a.e 2 Or 4-Bolt | 1 | $612.58 | Add to Cart | |
| 2 | 561018 | Bearing Ball 1 .772" X 2 .953" X .630" | 1 | $37.34 | Add to Cart | |
| 3 | 379919 | Lockring | 1 | $9.75 | Add to Cart | |
| 4 | 2P875 | Gear Output 1 .0" 15 Tooth Spline | 1 | $1,179.78 | Add to Cart | |
| 5 | 379668 | Lockring | 1 | $3.21 | Add to Cart | |
| 6 | 28P278 | Oil Seal 2 .953" X 1 .772" X .315" | 1 | $52.57 | Add to Cart | |
| 7 | 379231 | Plug Pipe .125"-27 | 2 | $1.50 | Add to Cart | |
| 28P259X | O-ring 3.984" X .139" (wet Spline Pump Mounting) 23.329" [592 .56] .406" .568" 4.00" 1 " 15T | 1 | $49.60 | Add to Cart |
Flange & Shaft Assemblies 890 Series 329609-4X (“XY”) DIN 5462 4-Bolt 8 Tooth
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 21P725 | Flange Pump “xy” Din 5462 4-Bolt. | 1 | $612.58 | Add to Cart | |
| 2 | 550311 | Bearing Ball 1 .770" X 3.346" X .748" | 1 | $81.15 | Add to Cart | |
| 3 | 378263 | Lockring | 1 | $19.87 | Add to Cart | |
| 4 | 2P876 | Gear Output 8 Tooth Spline | 1 | $1,179.78 | Add to Cart | |
| 5 | 379555 | Lockring | 1 | $23.13 | Add to Cart | |
| 6 | 28P267 | Oil Seal 2 .627" X 1 .750" X .312" | 1 | $66.05 | Add to Cart | |
| 7 | 379231 | Plug Pipe .125"-27 | 2 | $1.50 | Add to Cart | |
| 28P259X | O-ring 3.984" X .139" (wet Spline Pump Mounting) 23.623" [600.02] .592" 3.150" .700" 3.15" | 1 | $49.60 | Add to Cart |
Flange & Shaft Assemblies 890 Series 329609-5X (“AZ”) S .A.E “B ” 2 or 4-Bolt 1-1/4 " 14 Tooth
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 21P723 | Flange Pump “az” S.a.e “b” 2 Or 4-Bolt | 1 | $612.58 | Add to Cart | |
| 2 | 561018 | Bearing Ball 1 .772" X 2 .953" X .630" | 1 | $37.34 | Add to Cart | |
| 3 | 379919 | Lockring | 1 | $9.75 | Add to Cart | |
| 4 | 2P877 | Gear Output14 Tooth | 1 | $1,245.50 | Add to Cart | |
| 5 | 379668 | Lockring | 1 | $3.21 | Add to Cart | |
| 6 | 28P278 | Oil Seal 2 .953" X 1 .772" X .315" | 1 | $52.57 | Add to Cart | |
| 7 | 379231 | Plug Pipe .125"-27 | 2 | $1.50 | Add to Cart | |
| 28P259X | O-ring 3.984" X .139" (wet Spline Pump Mounting) 23.329" [592 .56] .406" .568" 4.00" 14T | 1 | $49.60 | Add to Cart |
Flange & Shaft Assemblies 890 Series 329608-1X “XV” S .A.E 1410 Companion Flange
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 21P736 | Cap Bearing “xv”, “ab”, “ac” | 1 | $434.21 | Add to Cart | |
| 2 | 378161 | Gasket 4600 | 1 | $27.32 | Add to Cart | |
| 3 | 28P283 | Oil Seal 2 .754" X 2 .000" X .313" | 1 | $49.34 | Add to Cart | |
| 4 | 313431 | Companion Flange 1410 | 1 | — | Call for availability | |
| 5 | 378382 | Nut Stop .875"-14 | 1 | $60.21 | Add to Cart | |
| 6 | 561020 | Bearing Ball 1 .574" X 3.149" X .708" | 1 | $42.83 | Add to Cart | |
| 7 | 378836 | Lockring | 1 | $13.50 | Add to Cart | |
| 8 | 35P103 | Gasket Shaft Seal 890 | 1 | $25.58 | Add to Cart | |
| 9 | 3P1009 | Shaft Output 10T Straight | 1 | $761.34 | Add to Cart |
Flange & Shaft Assemblies 890 Series 329608-2X “AB ” DIN 120 Companion Flange
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 21P736 | Cap Bearing “xv”, “ab”, “ac” | 1 | $434.21 | Add to Cart | |
| 2 | 378161 | Gasket 4600 | 1 | $27.32 | Add to Cart | |
| 3 | 28P283 | Oil Seal 2 .754" X 2 .000" X .313" | 1 | $49.34 | Add to Cart | |
| 4 | 379558 | Companion Flange Din 120 | 1 | $698.00 | Add to Cart | |
| 5 | 378382 | Nut Stop .875"-14 | 1 | $60.21 | Add to Cart | |
| 6 | 561020 | Bearing Ball 1 .574" X 3.149" X .708" | 1 | $42.83 | Add to Cart | |
| 7 | 378836 | Lockring | 1 | $13.50 | Add to Cart | |
| 8 | 35P103 | Gasket Shaft Seal 890 | 1 | $25.58 | Add to Cart | |
| 9 | 3P1009 | Shaft Output 10T Straight | 1 | $761.34 | Add to Cart |
Flange & Shaft Assemblies 890 Series 329608-3X “AC” DIN 100 Companion Flange
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 21P736 | Cap Bearing “xv”, “ab”, “ac” | 1 | $434.21 | Add to Cart | |
| 2 | 378161 | Gasket 4600 | 1 | $27.32 | Add to Cart | |
| 3 | 28P283 | Oil Seal 2 .754" X 2 .000" X .313" | 1 | $49.34 | Add to Cart | |
| 4 | 379742 | Companion Flange Din 100 | 1 | $1,076.21 | Add to Cart | |
| 5 | 378382 | Nut Stop .875"-14 | 1 | $60.21 | Add to Cart | |
| 6 | 561020 | Bearing Ball 1 .574" X 3.149" X .708" | 1 | $42.83 | Add to Cart | |
| 7 | 378836 | Lockring | 1 | $13.50 | Add to Cart | |
| 8 | 35P103 | Gasket Shaft Seal 890 | 1 | $25.58 | Add to Cart | |
| 9 | 3P1009 | Shaft Output 10T Straight | 1 | $761.34 | Add to Cart |
Wet Spline Output Cover Plates 890 Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 22P252 | Gasket “xs” Output | .1 or | $6.29 | Add to Cart | |
| 35P104 | Gasket “xk”, “af”, “az” Output | .1 or | $33.17 | Add to Cart | ||
| 379943 | Gasket “xy” Output | 1 | $4.18 | Add to Cart | ||
| 2 | 34P284 | Cover “xs” | .1 or | $128.55 | Add to Cart | |
| 34P285 | Cover “xk”, “af”, “az” | .1 or | $128.55 | Add to Cart | ||
| 379940 | Cover “xy” | 1 | $36.51 | Add to Cart | ||
| 3 | 37843310 | Capscrew “xs”. | .1 or | $10.44 | Add to Cart | |
| 37843310 | Capscrew “xk”, “af”, “az” | .1 or | $10.44 | Add to Cart | ||
| 3795794 | Capscrew “xy” | 1 | $10.36 | Add to Cart |
Housing Dimensions Model Number Designation
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 5P1428 | 50 5-P-1429 24 2-P-862 | 40 | — | Call for availability | ||
| XS23480 | [596.39] [112.1] | — | Call for availability | |||
| XY23623 | [600.02] | — | Call for availability | |||
| AF23329 | [592.56] | — | Call for availability | |||
| AZ23329 | [592.56] | — | Call for availability |
Housing Dimensions Model Number Designation
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 5P1428 | 50 5-P-1429 24 2-P-862 | 40 | — | Call for availability |
Additional Parts Listed in This Manual
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 329609-1X | ("xs") S.a.e "c" 2 Or 4-Bolt 1 .25" 14 Tooth | $1,677.85 | Add to Cart | |||
| 329609-2X | ("xk") S.a.e. "b" 2 Or 4-Bolt 7/8" 13 Tooth | $1,677.85 | Add to Cart | |||
| 329609-3X | ("af") S.a.e. "b-b" 2 Or 4-Bolt 1 .00" 15 Tooth | $1,677.85 | Add to Cart | |||
| 329609-4X | ("xy") Din 5462 4-Bolt 8 Tooth | $1,260.96 | Add to Cart | |||
| 329609-5X | ("az") S.a.e. "b" 2 Or 4-Bolt 1-1/4" 14 Tooth | $1,260.96 | Add to Cart | |||
| 329657-1X | "xs" S.a.e. "c" 2 Or 4-Bolt 1 .25" 14 Tooth | $834.98 | Add to Cart | |||
| 329657-2X | "xk" S.a.e. "b" 2 Or 4-Bolt 7/8" 13 Tooth | $834.98 | Add to Cart | |||
| 329657-3X | "af" S.a.e. "b-b" 2 Or 4-Bolt 1 .00" 15 Tooth | $834.98 | Add to Cart | |||
| 329657-4X | "xy" Din 5462 4-Bolt 1 .25" 8 Tooth | $834.98 | Add to Cart | |||
| 329657-5X | "az" S.a.e. "b" 2 Or 4-Bolt 1-1/4" 14 Tooth | $834.98 | Add to Cart | |||
| 1P631 | Housing (3 Arrangement) | 1 or | $1,098.32 | Add to Cart | ||
| 1P668 | Housing (3 Arrangement) (n Mounting) | 1 or | $690.34 | Add to Cart | ||
| 1P658 | Housing (5 Arrangement) (m & P Mounting) | 1 or | $493.53 | Add to Cart | ||
| 28P252 | O-ring (2 .987 " X .103") (xy Output) | 1 or | $14.67 | Add to Cart | ||
| 28P259 | O-ring (3 .984" X .139") (af, Az, Cf, Ck, Cz, Xk Outputs) | 1 or | $52.57 | Add to Cart | ||
| 28P291 | O-ring (5 .984" X .139") (da Output) | 1 | $69.22 | Add to Cart | ||
| 33017512X | 12VDC Valve Cap Assembly (see Page 8) | 1 or | $419.56 | Add to Cart | ||
| 33017524X | 24VDC Valve Cap Assembly (see Page 8) | 1 | — | Call for availability | ||
| 68P511 | Adhesive Label | 1 | — | Call for availability | ||
| 330159X | Cover Kit (xy Output Only) | 1 or | — | Call for availability | ||
| 329722X | Cover Kit (da Output Only) | 1 | $118.75 | Add to Cart | ||
| 69P30 | Caution Tag | 1 | — | Call for availability | ||
| 7170123X | Stud Kit (3 Arrangement) | 1 | $119.77 | Add to Cart | ||
| 3298991X | Lube Hose Kit (all Outputs) Bracket & Hose Kits | 1 | $295.33 | Add to Cart | ||
| 3298971X | Bracket & Hose Kit (l Mount) | 1 | $430.29 | Add to Cart | ||
| 3298972X | Bracket & Hose Kit (r Mount) | 1 | $478.91 | Add to Cart | ||
| 3298973X | Bracket & Hose Kit (h Mount) | 1 | $398.97 | Add to Cart | ||
| 3298974X | Bracket & Hose Kit (e Mount) | 1 | $364.52 | Add to Cart | ||
| 3298975X | Bracket & Hose Kit (t Mount) | 1 | $408.06 | Add to Cart | ||
| 3298976X | Bracket & Hose Kit (u Mount) | 1 | $530.56 | Add to Cart | ||
| 3298977X | Bracket & Hose Kit (c Mount) | 1 | $400.57 | Add to Cart | ||
| 32989710X | Bracket & Hose Kit (j Mount) | 1 | $423.52 | Add to Cart | ||
| 32989711X | Bracket & Hose Kit (k Mount) | 1 | $465.17 | Add to Cart | ||
| 32989712X | Bracket & Hose Kit (m Mount) | 1 | $860.29 | Add to Cart | ||
| 32989713X | Bracket & Hose Kit (n Mount) | 1 | $378.20 | Add to Cart | ||
| 32989714X | Bracket & Hose Kit (f Mount) | 1 | — | No longer available — call for replacement | ||
| 32989715XV | Bracket & Hose Kit (g Mount) | 1 | — | Call for availability | ||
| 32989719X | Bracket & Hose Kit (p Mount) | 1 | $507.03 | Add to Cart | ||
| 3298981X | Mounting & Installation Kit (as, Cs, Xs, Zs Outputs) | 1 or | $135.33 | Add to Cart | ||
| 3298982X | Mounting & Installation Kit (af, Az, Cf, Vck, Cz, Vxk Outputs) | 1 or | $195.64 | Add to Cart | ||
| 3298983X | Mounting & Installation Kit (xy Output) | 1 or | $176.91 | Add to Cart | ||
| 3298984X | Mounting & Installation Kit (da Output) | 1 | $201.53 | Add to Cart | ||
| 32907624X | 24VDC Installation Kit W/ Eoc (k & L Shift Option) | 1 | — | Call for availability | ||
| 329650X | Controls Electronic Overspeed (k & L Shift Option) Hose Assemblies | 1 | $1,358.05 | Add to Cart | ||
| 32907153X | Bearing Kit (da) | 1 | — | No longer available — call for replacement | ||
| 32907154X | Gasket & Seal Kit (da) | 1 | $244.81 | Add to Cart | ||
| 32916066X | Conversion Kit (xs To Ac) (rk Outputs) (5 Arrangement) Chelsea Suggested List Price | 1 | $1,429.91 | Add to Cart | ||
| 5P14281 | 1X 5-P-1428 50 5-P-1545 24 2-P-862 40 | — | Call for availability | |||
| 5P142812X | 5-P-1428 50 5-P-1546 25 2-P-872 39 | $940.37 | Add to Cart | |||
| 5P14283X | 5-P-1428 50 5-P-1439 26 2-P-873 38 | $1,116.80 | Add to Cart | |||
| 5P14284X | 5-P-1428 50 5-P-1440 27 2-P-874 37 | $1,116.80 | Add to Cart | |||
| 5P14285X | 5-P-1428 50 5-P-1432 29 2-P-865 35 | $1,116.80 | Add to Cart | |||
| 5P14286X | 5-P-1428 50 5-P-1433 31 2-P-866 33 | $1,010.01 | Add to Cart | |||
| 5P14287X | 5-P-1428 50 5-P-1457 33 2-P-888 31 | $1,042.27 | Add to Cart | |||
| 5P14288X | 5-P-1428 50 5-P-1455 34 2-P-881 30 | $942.58 | Add to Cart | |||
| 5P16631X | 5-P-1663X 50 5-P-1545 24 2-P-862 40 | $1,523.96 | Add to Cart | |||
| 5P16632X | 5-P-1663X 50 5-P-1546 25 2-P-872 39 | $1,523.96 | Add to Cart | |||
| 5P16633X | 5-P-1663X 50 5-P-1439 26 2-P-873 38 | $1,523.96 | Add to Cart | |||
| 5P16634X | 5-P-1663X 50 5-P-1440 27 2-P-874 37 | $1,523.96 | Add to Cart | |||
| 5P16635X | 5-P-1663X 50 5-P-1432 29 2-P-865 35 | $1,523.97 | Add to Cart | |||
| 5P16636X | 5-P-1663X 50 5-P-1433 31 2-P-866 33 | $1,523.96 | Add to Cart | |||
| 5P16637X | 5-P-1663X 50 5-P-1457 33 2-P-888 31 | $1,523.97 | Add to Cart | |||
| 5P16638X | 5-P-1663X 50 5-P-1455 34 2-P-881 30 On Md Transmissions | $1,523.96 | Add to Cart | |||
| 34P357 | Valve Cap | 1 | — | Call for availability | ||
| 378811 | Washer | 1 | $5.21 | Add to Cart | ||
| 378849 | Lockring | 1 | $2.12 | Add to Cart | ||
| 380012 | Clamp (fj) Used With 38001 1 Valve | 1 or | — | Call for availability | ||
| 380124 | Clamp (fj) Used With 380123 Valve | 1 | — | Call for availability | ||
| 38012312 | Hydraulic Valve (12VDC) (fj) (white Connector Top) (new Style) | 1 or | $222.19 | Add to Cart | ||
| 38012324 | Hydraulic Valve (24VDC) (fj) (black Connector Top) (new Style) | 1 | $213.64 | Add to Cart | ||
| 32907183X | Hydraulic Solenoid Valve O-ring Kit Assembly 329403X – Seal Seal (1 .379" X .875" X .250") Plug | 1 | $135.56 | Add to Cart | ||
| 329678X | Gear & Plates Kit | $474.31 | Add to Cart | |||
| 37P72 | Spring (2 .140" X 1 .941 ") | 1 | $26.96 | Add to Cart | ||
| 380486 | Stop Nut (7/8" 14T) Spline | 1 | $60.21 | Add to Cart | ||
| 38007613 | Flat Hardened Washer (.950" X 1 .762 " X .157 ") | 1 | $3.51 | Add to Cart | ||
| 2P906 | Output Gear | 1 | — | Call for availability | ||
| 21P739 | Pump Flange | 1 | $624.84 | Add to Cart | ||
| 21P742 | Pump Flange | 1 | $646.72 | Add to Cart | ||
| 21P746 | Pump Flange | 1 | $888.26 | Add to Cart | ||
| 550509 | Ball Bearing (2 .362 " X 3 .740" X .708") | 1 | $213.92 | Add to Cart | ||
| 378553 | Lockring | 1 | $18.98 | Add to Cart | ||
| 2P882 | Output Gear (3/4" 13T) Spline | 1 | $1,110.48 | Add to Cart | ||
| 28P292 | Oil Seal (3 .346" X 2 .362 " X .315") | 1 | $68.29 | Add to Cart | ||
| 28P291X | O-ring (5 .984" X .139") (wet Spline Pump Mount) | 1 | — | Call for availability | ||
| 21P764 | Pump Flange | 1 | $620.57 | Add to Cart | ||
| 22P114 | Gasket (da Output) | 1 | $48.39 | Add to Cart | ||
| 34P309 | Cover (da Output) | 1 | — | No longer available — call for replacement | ||
| 5004037 | 1 -1/4" Hex Head Cap Screw (da) (.750" -10 X 1 .250") | 4 | $3.93 | Add to Cart | ||
| 329895X | Seal Cap (after February 22 2016) (see Page 33) | 1 | $430.29 | Add to Cart | ||
| 21P846 | Seal Cap | 1 | $343.76 | Add to Cart | ||
| XS2348 | [596.4] | — | Call for availability | |||
| XY2362 | [600.0] | — | Call for availability | |||
| AF2333 | [592.6] 3.96" | — | Call for availability | |||
| AZ2333 | [592.6] [100.6] | — | Call for availability | |||
| 380457 | Coupling Xs Output (1 -3/8" 21T/16T) | 1 | — | Call for availability | ||
| 380268 | Coupling Da Output (1 -3/4" 13T/16T) | 1 | $594.71 | Add to Cart | ||
| 378552 | Lockring | 1 | $8.78 | Add to Cart | ||
| 2B72 | [596.4] | — | Call for availability | |||
| 15255 | 329657-6X Output Assembly 1 | — | Call for availability | |||
| 15248 | 69-P-18 Wet Spline Tag 1 Wet Spline Loose Parts 1 .24" 28-P-291X O-ring (5 .984" X .139") 1 [31 .5] 24.1 1 " [612.3] | — | Call for availability | |||
| M12175X | 2 .170") 3 379257 Electrical Connector 2 Cap Screw 379265 Grommet 1 .375") 2 SK-347 Installation Sketch 1 379502 Pressure Switch 1 Kit (d Mount) 379504 Valve Connector Wiring 1 | — | Call for availability | |||
| M12175X2 | .170") 3 (890 Series) Screw Shoulder 380668X Bracket & Label Assembly 1 2 75-P-45-24 Light Rocker Switch Electrical 24VDC. 1 379061 Plastic Wire Tie 6 Kit (d Mount) 379252 Electrical Butt Connector 1 | — | Call for availability |
This is the complete factory parts breakdown for the Chelsea PTO 890 — every part in the manual, matched to our live inventory. We stock 287 of the 329 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
No parts match that search — try the part number with no dashes.
This Chelsea Illustrated Parts List covering the 890 PTO helps you identify the correct gear sets, shifter kits and service parts for your power take-off before you order.
| Models covered | 890 |
| PTO type | Chelsea 800 Series |
| Document | Illustrated Parts List (Chelsea) |
| Length | 64 pages |
| Format | PDF — free download |
What’s inside
- Gear sets & output shaft assemblies
- Shifter & air-shift control kits
- Mounting gaskets & adapter plates
- Housings & cover assemblies
- Seal, bearing & snap-ring kits
- Application & ratio reference tables
- Exploded views with OEM part numbers
Chelsea parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Chelsea PTO units:
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert — send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
Browse all Chelsea PTO parts — rebuild kits, seal kits, gears & shift covers — or shop complete Chelsea PTO units.
