Meritor 210/220/230/240 2-Speed Axle Parts Manual
Two Speed Axles

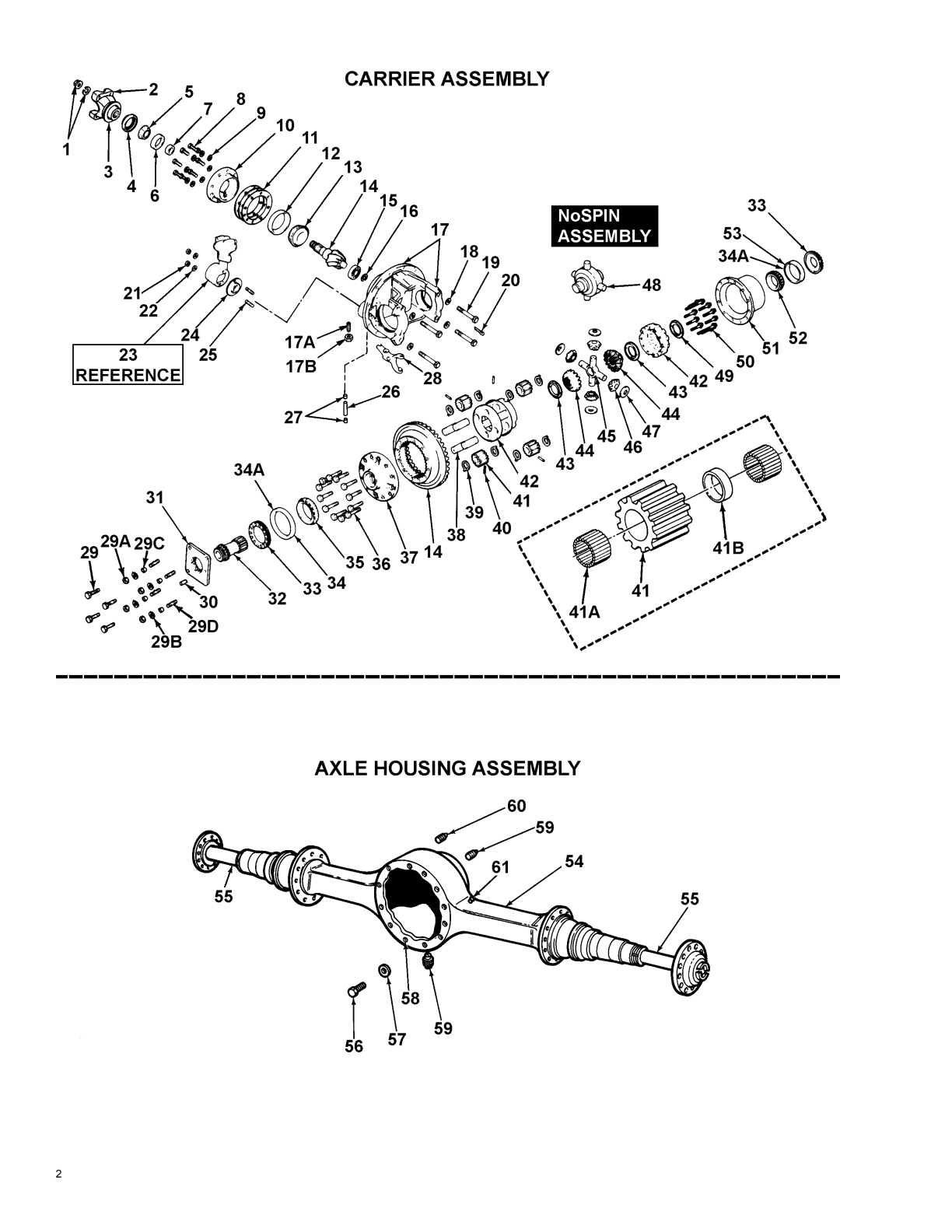

Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| KIT2636 | Pinion | 1 | — | Call for availability | ||
| KIT2637 | 1 | $23.72 | Add to Cart | |||
| Yoke Assy. | 1 | See yoke section | — | Call for availability | ||
| DEFR404 | Yoke | 1 | — | Call for availability | ||
| DEFR507 | 1 | $34.56 | Add to Cart | |||
| A1205D1928 | Seal-pinion Cage Assy. | 1 | $79.80 | Add to Cart | ||
| A1205N2588 | 1 | $92.72 | Superseded by A11205Z2730Add to Cart | |||
| M804049 | Pinion Outer Bearing | 1 | $38.43 | Add to Cart | ||
| HM804846 | 1 | $53.56 | Add to Cart | |||
| 55206C | 1 | $50.60 | Add to Cart | |||
| M804010 | Pinion Outer Bearing | 1 | $21.96 | Add to Cart | ||
| HM804810 | 1 | $27.20 | Add to Cart | |||
| 55437 | 1 | $33.17 | Add to Cart | |||
| 2203D9156 | .234 inch/5 .94 Mm | $80.17 | Add to Cart | |||
| 2203E9157 | .235 inch/5 .97 Mm | $84.46 | Add to Cart | |||
| 2203F9158 | .236 inch/5 .99 Mm | Available in | $216.96 | Add to Cart | ||
| 2203G9159 | .237 inch/6 .02 Mm | KIT 2343 | — | Call for availability | ||
| 2203H9160 | .238 inch/6 .04 Mm | Use | $82.67 | Add to Cart | ||
| 2203J9162 | .239 inch/6 .07 Mm | 2 | — | No longer available — call for replacement | ||
| 2203K9163 | .244 inch/6 .20 Mm | as | $498.60 | Add to Cart | ||
| 2203L9164 | .250 inch/6 .35 Mm | As req. | $657.80 | Add to Cart | ||
| 2203M9165 | .256 inch/6 .35 Mm | — | No longer available — call for replacement | |||
| 2203N9166 | .262 inch/6 .65 Mm | — | Call for availability | |||
| 2203P9168 | .268 inch/6 .81 Mm | $82.02 | Add to Cart | |||
| 2203C9103 | .360 inch/9 .14 Mm | — | Call for availability | |||
| 2203D9104 | .361 inch/9 .17 Mm | — | Call for availability | |||
| 2203E9105 | .362 inch/9 .19 Mm | Available in | $113.32 | Add to Cart | ||
| 2203F9106 | .363 inch/9 .22 Mm | KIT 2336 | — | Call for availability | ||
| 2203G9107 | .364 inch/9 .25 Mm | Use | — | Call for availability | ||
| 2203H9108 | .365 inch/9 .27 Mm | 2 | — | Call for availability | ||
| 2203J9110 | .372 inch/9 .45 Mm | as | — | Call for availability | ||
| 2203K9111 | .378 inch/9 .60 Mm | As req. | — | Call for availability | ||
| 2203L9112 | .385 inch/9 .78 Mm | — | Call for availability | |||
| 2203M9113 | .391 inch/9 .93 Mm | — | No longer available — call for replacement | |||
| 2203N9114 | .398 inch/10 .11 Mm | — | Call for availability | |||
| MS2120401 | Bearing Cage | 8 | — | Call for availability | ||
| MWA512 | Bearing Cage | 8 | — | Call for availability | ||
| A3226R1058 | Bearing Cage Assy. | 1 | — | No longer available — call for replacement | ||
| A3226S1059 | 1 | — | Call for availability | |||
| A3226U1061 | 1 | — | Call for availability | |||
| 2203S9171 | .003 inch/.076 Mm | Use | $101.00 | Add to Cart | ||
| 2203Q9169 | Cage .005 inch/.127 Mm Available | in KIT 2365; as | — | Call for availability | ||
| 2203R9170 | .010 inch/.254 Mm | As req. | $127.80 | Add to Cart | ||
| 2203D9052 | .003 inch/.076 Mm | Use | $167.20 | Add to Cart | ||
| 2203E9053 | .005 inch/.127 Mm Available | in KIT 2332; as | — | Call for availability | ||
| 2203F9054 | .010 inch/.254 Mm | As req. | — | No longer available — call for replacement | ||
| 55437 | Pinion Inner Bearing | 1 | $33.17 | Add to Cart | ||
| 78551 | 1 | $55.81 | Add to Cart | |||
| 55200C | Pinion Bearing | 1 | $55.89 | Add to Cart | ||
| 78225C | 1 | $188.98 | Add to Cart | |||
| A396961 | Gear Pinion And Nut Assy. | 4 .10 Ratio | — | Call for availability | ||
| A396981 | 4 .56 Ratio; Use | $2,274.74 | Add to Cart | |||
| A397001 | 1 | 4 .88 Ratio | $1,693.94 | Add to Cart | ||
| A397021 | 5 .38 Ratio; as | $1,565.06 | Add to Cart | |||
| A400161 | As req. | 5 .86 Ratio | — | Call for availability | ||
| A397041 | 6 .14 Ratio | $1,762.40 | Add to Cart | |||
| A397061 | 6 .83 Ratio | — | Call for availability | |||
| A397261 | 3 .91 Ratio | — | No longer available — call for replacement | |||
| A397281 | 4 .10 Ratio | — | Call for availability | |||
| A400121 | 4 .30 Ratio | $2,062.95 | Add to Cart | |||
| A397301 | 4 .56 Ratio; Use | $2,925.50 | Add to Cart | |||
| A397321 | 1 | 4 .88 Ratio | — | No longer available — call for replacement | ||
| A397341 | 5 .38 Ratio; as | — | Call for availability | |||
| A397381 | As req. | 5 .86 Ratio | — | Call for availability | ||
| A397401 | 6 .14 Ratio | $2,885.77 | Add to Cart | |||
| A397421 | 6 .50 Ratio | $1,994.77 | Add to Cart | |||
| A397441 | 6 .83 Ratio | — | Call for availability | |||
| A397461 | 7 .17 Ratio | — | No longer available — call for replacement | |||
| A397661 | 3 .91 Ratio | — | No longer available — call for replacement | |||
| A397681 | 4 .10 Ratio | — | No longer available — call for replacement | |||
| A400141 | 4 .30 Ratio | $2,076.86 | Add to Cart | |||
| A397701 | 4 .56 Ratio; Use | $3,110.66 | Add to Cart | |||
| A397721 | 1 | 4 .88 Ratio | $3,389.57 | Add to Cart | ||
| A397761 | 5 .38 Ratio; as | $4,084.13 | Add to Cart | |||
| A397801 | As req. | 5 .86 Ratio | — | Call for availability | ||
| A399261 | 6 .50 Ratio | — | No longer available — call for replacement | |||
| A399281 | 6 .83 Ratio | $3,189.04 | Add to Cart | |||
| A399301 | 7 .17 Ratio | $3,414.43 | Add to Cart | |||
| A399521 | 4 .10 Ratio | $2,299.20 | Add to Cart | |||
| A399541 | 4 .30 Ratio | — | No longer available — call for replacement | |||
| A399561 | 4 .56 Ratio; Use | — | No longer available — call for replacement | |||
| A399581 | 1 | 4 .88 Ratio | $4,275.83 | Add to Cart | ||
| A399621 | 5 .38 Ratio; as | $2,922.12 | Add to Cart | |||
| A399641 | As req. | 5 .57 Ratio | — | No longer available — call for replacement | ||
| A399681 | 6 .14 Ratio | $4,235.15 | Add to Cart | |||
| A399701 | 6 .50 Ratio | $2,990.81 | Add to Cart | |||
| A399741 | 7 .17 Ratio | $5,156.12 | Add to Cart | |||
| 1228H580 | Pinion Spigot | 1 | — | Call for availability | ||
| 1228F552 | 1 | $44.92 | Add to Cart | |||
| 1228E1045 | 1 | $134.55 | Add to Cart | |||
| 1229W1167 | Ring-spigot Bearing Retainer | 1 | $159.00 | Add to Cart | ||
| 1229A1301 | 1 | $21.00 | Add to Cart | |||
| A23200H1568 | Carrier And Cap Assy. | 1 | — | Call for availability | ||
| A23200D1616 | 1 | $1,958.68 | Add to Cart | |||
| A23200D1564 | 1 | — | Call for availability | |||
| A23200F1566 | 1 | — | Call for availability | |||
| 41X1155 | 4 .10/4 | 1 | .30/4 .56/4 .88; ratios only | — | No longer available — call for replacement | |
| 41X1150 | All | 1 | other ratios | — | No longer available — call for replacement | |
| 40X1093 | 1 | $1,750.30 | Add to Cart | |||
| MWA516 | Bearing Cap | 4 | — | Call for availability | ||
| 42X1021 | 4 | $102.00 | Add to Cart | |||
| MS2161101 | Bearing Cap | 4 | — | Call for availability | ||
| MS2161301 | 4 | — | No longer available — call for replacement | |||
| MS2201301 | 4 | — | Call for availability | |||
| 1199R2176 | Pin-adjusting Ring (r.h .) | 1 | $141.00 | Add to Cart | ||
| 1227D1278 | Assy. To Carrier | 2 | — | Call for availability | ||
| WALM72 | Assy. Stud | 2 | — | Call for availability | ||
| A3280M8307 | Unit (boot Assy.) | 1 | $113.88 | Add to Cart | ||
| SN7141 | Assembly To Carrier | 2 | — | No longer available — call for replacement | ||
| 1246L1026 | Fork | 1 | — | No longer available — call for replacement | ||
| 1250J1024 | Fork Pin Hole | 2 | — | Call for availability | ||
| A3296J1024 | Fork Assy. | 1 | — | Call for availability | ||
| A3296L1026 | 1 | $112.02 | Add to Cart | |||
| A3296N1028 | 1 | $682.10 | Add to Cart | |||
| A3296Q1031 | 1 | $746.70 | Add to Cart | |||
| 41X1158 | Plate To Carrier | 4 | — | Call for availability | ||
| 41X1157 | 4 | $81.60 | Add to Cart | |||
| 40X1091 | Plate Stud | 4 | — | Call for availability | ||
| 42X1078 | Plate To Carrier | 4 | — | Call for availability | ||
| 42X1076 | Plate To Carrier | 4 | — | Call for availability | ||
| 44X1066 | Plate To Carrier | 4 | — | No longer available — call for replacement | ||
| 1246J1024 | Pin (l .h .) (clutch Plate) | 1 | — | No longer available — call for replacement | ||
| 1246H1022 | 1 | $278.00 | Add to Cart | |||
| 3280T8314 | Plate Avail | 1 | in KIT 2455 | — | No longer available — call for replacement | |
| 3280A8321 | Avail | 1 | in KIT 2456 | — | No longer available — call for replacement | |
| 3280H8328 | Avail | 1 | in KIT 2457 | — | Call for availability | |
| 3280L8306 | Avail | 1 | in KIT 2458 | — | Call for availability | |
| 3892H4844 | Gear Avail | 1 | in KIT 2455 | — | No longer available — call for replacement | |
| 3892J4846 | Avail | 1 | in KIT 2456 | — | Call for availability | |
| 3892K4847 | Avail | 1 | in KIT 2457 | — | Call for availability | |
| 3892L4848 | Avail | 1 | in KIT 2458 | — | Call for availability | |
| 2214D1044 | Rings | 1 | L .H | — | No longer available — call for replacement | |
| 2214H1048 | 1 | $277.74 | Add to Cart | |||
| 2214M1053 | 1 | $234.95 | Add to Cart | |||
| 2214B1042 | 1 | $262.15 | Add to Cart | |||
| 2214F1046 | 1 | R.H | $243.13 | Add to Cart | ||
| 2214K1051 | 1 | $204.37 | Add to Cart | |||
| 1228L1130 | Bearing (l .h .) | 1 | $153.96 | Add to Cart | ||
| 42584 | 1 | $139.86 | Add to Cart | |||
| 52618 | 1 | $60.66 | Add to Cart | |||
| JP12010 | 1 | — | No longer available — call for replacement | |||
| 2297T4180 | Cup | 1 | — | Call for availability | ||
| A1228L1130 | Bearing (l .h .) | 1 | $247.70 | Add to Cart | ||
| 42381 | 1 | $123.32 | Add to Cart | |||
| 52400 | 1 | $162.89 | Add to Cart | |||
| JP12049 | 1 | $257.15 | Add to Cart | |||
| 41X1154 | Case To Gear | 8 | — | Call for availability | ||
| 41X1152 | 8 | $40.08 | Add to Cart | |||
| 41X1151 | 8 | — | No longer available — call for replacement | |||
| 41X1153 | 8 | $6.52 | Add to Cart | |||
| 3280R8312 | Case-planetary Half (l .h .) Avail | 1 | in KIT 2455 | — | No longer available — call for replacement | |
| 3280W8317 | Avail | 1 | in KIT 2456 | — | No longer available — call for replacement | |
| 3280Y8319 | Avail | 1 | in KIT 2457 | — | Call for availability | |
| 3280U8315 | Avail | 1 | in KIT 2458 | — | Call for availability | |
| 3198C1017 | Pinion Old | 4 | style non-needle | — | Call for availability | |
| 3198U1009 | Bronze | 4 | replacement | $970.46 | Superseded by KIT2650Add to Cart | |
| 3198V1010 | (before | 4 | Aug 1991) | — | No longer available — call for replacement | |
| 3198W1011 | 4 | — | Call for availability | |||
| 3198A1015 | New | 4 | style needle | $46.76 | Add to Cart | |
| 3198Z1014 | (after | 4 | Aug 1991) | — | Call for availability | |
| 3198X1012 | 4 | $59.74 | Add to Cart | |||
| 3198Y1013 | 4 | $156.44 | Add to Cart | |||
| 1229K3183 | Washer-planetary Pinion Old | 8 | style non-needle | — | No longer available — call for replacement | |
| 1229H3180 | (before | 8 | Aug 1991) | — | Call for availability | |
| 1229W3195 | New | 8 | style needle | $15.60 | Add to Cart | |
| 1229V3194 | (after | 8 | Aug 1991) | — | Call for availability | |
| 1246K1025 | Pin-planetary Pinion | 4 | — | No longer available — call for replacement | ||
| 3892G4843 | Pinion | 4 | — | No longer available — call for replacement | ||
| 3892M4849 | Old | 4 | style non-needle | — | Call for availability | |
| 3892N4850 | (before | 4 | Aug 1991) | — | Call for availability | |
| 3892U2803 | 4 | $393.94 | Add to Cart | |||
| 3892T4856 | 4 | $161.30 | Add to Cart | |||
| 3892S4855 | New | 4 | style needle | $437.73 | Add to Cart | |
| 3892Q4853 | (after | 4 | Aug 1991) | — | No longer available — call for replacement | |
| 3892R4854 | 4 | $325.73 | Add to Cart | |||
| 2297E5179 | Bearing-planetary Pinion Shaft | 200 | — | No longer available — call for replacement | ||
| 2297C5177 | 200 | $55.50 | Add to Cart | |||
| 2297D5178 | 224 | $239.68 | Add to Cart | |||
| 2203E9599 | Bearing | 4 | — | No longer available — call for replacement | ||
| 2203C9597 | 4 | — | No longer available — call for replacement | |||
| 2203D9598 | 4 | $43.79 | Add to Cart | |||
| A33235Q18891 | Case Assy. Used | 1 | to replace | — | Call for availability | |
| A33235H19061 | Old | 1 | style non-needle | — | Call for availability | |
| A33235G19051 | (before | 1 | Aug 1991) | — | Call for availability | |
| A43235S18651 | Contains Bearing | 1 | new style; parts | — | Call for availability | |
| A3235Q1889 | New | 1 | style needle | — | Call for availability | |
| A3235H1906 | (after | 1 | Aug 1991) | — | Call for availability | |
| A3235G1905 | 1 | $536.04 | Add to Cart | |||
| A43235S18651 | 1 | — | Call for availability | |||
| A43235Q18892 | Case And Nest Assy. Used | 1 | to replace | — | Call for availability | |
| A43235H19062 | Old | 1 | style non-needle | — | Call for availability | |
| A43235G19052 | (before | 1 | Aug 1991) | — | Call for availability | |
| A53235S18652 | Contains Bearing | 1 | new style; parts | — | Call for availability | |
| A13235Q1889 | 1 | $1,296.32 | Add to Cart | |||
| A13235H1906 | New | 1 | style needle | $1,957.87 | Add to Cart | |
| A13235G1905 | (after | 1 | Aug 1991) | — | Call for availability | |
| A53235S18652 | 1 | — | Call for availability | |||
| 1229Z3172 | Washer-side Gear | 2 | $184.30 | Add to Cart | ||
| 1229G4661 | 2 | $140.42 | Add to Cart | |||
| 1229B3174 | 2 | $150.00 | Add to Cart | |||
| 2234L1130 | Gears L | 1 | .H short hub | — | No longer available — call for replacement | |
| 2234M1131 | R.h | 1 | long hub | — | No longer available — call for replacement | |
| 2234T1086 | L | 1 | .H short hub | $1,269.15 | Add to Cart | |
| 2234S1085 | R.h | 1 | long hub | $2,237.54 | Add to Cart | |
| 2234K1077 | L | 1 | .H short hub | — | No longer available — call for replacement | |
| 2234M1079 | R.h | 1 | long hub | $1,665.15 | Add to Cart | |
| 2234X1090 | L | 1 | .H short hub | $2,056.65 | Add to Cart | |
| 2234W1089 | R.h | 1 | long hub | $208.27 | Add to Cart | |
| 3278Z104 | Cross | 1 | — | Call for availability | ||
| 3278D82 | 1 | $318.87 | Add to Cart | |||
| 3278S305 | 1 | $62.29 | Add to Cart | |||
| 3278Q1031 | Numbers 38 39 40 41 41A, 41B 42 , , , , , Numbers 38 39 40 41 41A, 41B 42 , , , , , | 1 | & 50; 43 44 45 46; , , , , | — | Call for availability | |
| 2233Q1031 | Pinion | 4 | — | No longer available — call for replacement | ||
| 2233M1027 | 4 | $207.03 | Add to Cart | |||
| 2233J1024 | 4 | $31.35 | Add to Cart | |||
| 2233P1030 | 4 | $78.36 | Add to Cart | |||
| 1229Q2877 | Washer-differential Pinion | 4 | $211.20 | Add to Cart | ||
| 1229L1026 | 4 | $991.20 | Add to Cart | |||
| 1229R1032 | 4 | $124.00 | Add to Cart | |||
| 1229A3173 | 4 | $23.40 | Add to Cart | |||
| A3230R1032 | Diff. Assy. 1 | 1 | .75"-34 spline | — | Call for availability | |
| A3230S1033 | As Assembly Only. 1 | 1 | .85"-36 spline | — | Call for availability | |
| A3230X1038 | Items 43-47 .) 2 | 1 | .00"-39 spline | $1,730.17 | Add to Cart | |
| A3230W1037 | 2 | 1 | .10"-41 spline | — | Call for availability | |
| 1229Z3172 | Washer-differential Case | 1 | $184.30 | Add to Cart | ||
| 41X1149 | Case | 12 | — | Call for availability | ||
| 3280P8310 | Case-plain Half (r.h .) | 1 | $942.33 | Add to Cart | ||
| 3280G8301 | 1 | $845.52 | Add to Cart | |||
| 3280H8302 | 1 | $284.94 | Add to Cart | |||
| 3280J8304 | 1 | $185.30 | Add to Cart | |||
| JLM714149 | Bearing (r.h .) | 1 | $65.21 | Add to Cart | ||
| JM716649 | 1 | $99.68 | Add to Cart | |||
| JLM714110 | Bearing (r.h .) | 1 | $25.66 | Add to Cart | ||
| JM716610 | Housing Assembly | 1 | — | Call for availability | ||
| Assy. | 1 | As specified | — | Call for availability | ||
| Shafts | 2 | See axle shaft section | — | Call for availability | ||
| S28142 | To Housing | 12 | — | Call for availability | ||
| 10X1594 | 8 | Short | $69.40 | Add to Cart | ||
| S21020A2 | 4 | Long | $35.00 | Add to Cart | ||
| 1229C1511 | To Housing | 12 | — | Call for availability | ||
| 1229U1503 | 12 | $113.00 | Add to Cart | |||
| 2297A7021 | To Housing (silastic) | as | — | Call for availability | ||
| 1250E473 | Indicator | 2 | — | Call for availability | ||
| A1199P1394 | Assembly-housing | 1 | $175.80 | Superseded by A1199W4053Add to Cart |
Axle Shafts
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| RS15220RS17220 | Axle Shafts — Number Location Body Diameter L Model | — | Call for availability | |||
| RS17224RS19224 | Axle Shafts — Number Location Body Diameter L Model | — | Call for availability | |||
| 3202J8902 | Axle Shafts — Part L L | $571.00 | Add to Cart | |||
| 3202H8900 | Axle Shafts — Number Location Body Diameter L Model | — | Call for availability | |||
| 18536 | Axle Shafts — Shafts HOLE1/HOLE Size Type | — | Call for availability | |||
| 3202L8904 | Axle Shafts — Part L L | $616.86 | Add to Cart | |||
| 3202K8903 | Axle Shafts — Number Location Body Diameter L Model | — | Call for availability | |||
| 3202W8915 | Axle Shafts — Part L L | $816.16 | Add to Cart | |||
| 3202V8914 | Axle Shafts — Number Location Body Diameter L Model | — | Call for availability | |||
| 20039 | Axle Shafts — Shafts HOLE1/HOLE Size Type | — | Call for availability | |||
| 3202Y8917 | Axle Shafts — Part L L | $749.25 | Add to Cart | |||
| 3202X8916 | Axle Shafts — Number Location Body Diameter L Model | — | Call for availability | |||
| 21041 | Axle Shafts — Shafts HOLE1/HOLE Size Type | — | Call for availability | |||
| 3202Q8935 | Axle Shafts — Part L L | $829.43 | Add to Cart | |||
| 3202P8934 | Axle Shafts — Number Location Body Diameter L Model | — | Call for availability | |||
| 3202S8937 | Axle Shafts — Part L L | $1,019.92 | Add to Cart | |||
| 3202R8936 | Axle Shafts — Number Location Body Diameter L Model | — | Call for availability | |||
| 3202E9001 | Axle Shafts — Part L L | $583.55 | Add to Cart | |||
| 3202C8999 | Axle Shafts — Number Location Body Diameter L Model | — | Call for availability | |||
| 17534 | Axle Shafts — Shafts HOLE1/HOLE Size Type | — | Call for availability | |||
| 3202F9002 | Axle Shafts — Part L L | $503.85 | Add to Cart | |||
| 3202D9000 | Axle Shafts — Number Location Body Diameter L Model | — | Call for availability | |||
| 3206P1602 | Axle Shafts — Part L L | $1,695.00 | Add to Cart | |||
| 3206N1600 | Axle Shafts — Number Location Body Diameter L Model | — | Call for availability | |||
| 3206Q1603 | Axle Shafts — Part L L | — | No longer available — call for replacement | |||
| 3206K1623 | Axle Shafts — Part L L | $2,259.72 | Add to Cart | |||
| 3206J1622 | Axle Shafts — Number Location Body Diameter L Model | — | Call for availability | |||
| 3206L1624 | Axle Shafts — Part L L | $1,541.85 | Add to Cart |
Two Speed Repair Kit References
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| KIT2323 | Two Speed Repair Kit References — Repair Kit Number | $2,615.13 | Add to Cart | |||
| KIT2324 | Two Speed Repair Kit References — Repair Kit Number | $2,272.36 | Add to Cart | |||
| KIT2343 | Two Speed Repair Kit References — Repair Kit Number | — | Call for availability | |||
| KIT2344 | Two Speed Repair Kit References — Repair Kit Number | $975.02 | Add to Cart | |||
| KIT2345 | Two Speed Repair Kit References — Repair Kit Number | $363.71 | Add to Cart | |||
| KIT2346 | Two Speed Repair Kit References — Repair Kit Number | — | Call for availability | |||
| KIT2361 | Two Speed Repair Kit References — Repair Kit Number | $15.84 | Add to Cart | |||
| KIT2365 | Two Speed Repair Kit References — Repair Kit Number | $84.86 | Add to Cart | |||
| KIT2455 | Two Speed Repair Kit References — Repair Kit Number | $976.24 | Add to Cart | |||
| KIT2636 | Two Speed Repair Kit References — Repair Kit Number | $41.13 | Add to Cart | |||
| KIT2653 | Two Speed Repair Kit References — Repair Kit Number | — | Call for availability | |||
| KIT4360 | Two Speed Repair Kit References — Repair Kit Number | $602.36 | Add to Cart | |||
| KIT2325 | Two Speed Repair Kit References — Repair Kit Number | $4,673.71 | Add to Cart | |||
| KIT2326 | Two Speed Repair Kit References — Repair Kit Number | $2,279.00 | Add to Cart | |||
| KIT2347 | Two Speed Repair Kit References — Repair Kit Number | $753.42 | Add to Cart | |||
| KIT2348 | Two Speed Repair Kit References — Repair Kit Number | $970.46 | Superseded by KIT2650Add to Cart | |||
| KIT2349 | Two Speed Repair Kit References — Repair Kit Number | — | No longer available — call for replacement | |||
| KIT2456 | Two Speed Repair Kit References — Repair Kit Number | $1,081.29 | Add to Cart | |||
| KIT2650 | Two Speed Repair Kit References — Repair Kit Number | $970.46 | Add to Cart | |||
| KIT2682 | Two Speed Repair Kit References — Repair Kit Number | — | No longer available — call for replacement | |||
| KIT4365 | Two Speed Repair Kit References — Repair Kit Number | $605.93 | Add to Cart | |||
| KITRS17220 | Two Speed Repair Kit References — Repair Kit Number | — | Call for availability | |||
| KIT2327 | Two Speed Repair Kit References — Repair Kit Number | $1,727.78 | Add to Cart | |||
| KIT2328 | Two Speed Repair Kit References — Repair Kit Number | — | Call for availability | |||
| KIT2350 | Two Speed Repair Kit References — Repair Kit Number | — | No longer available — call for replacement | |||
| KIT2351 | Two Speed Repair Kit References — Repair Kit Number | $350.69 | Add to Cart | |||
| KIT2352 | Two Speed Repair Kit References — Repair Kit Number | — | No longer available — call for replacement | |||
| KIT2457 | Two Speed Repair Kit References — Repair Kit Number | $1,884.23 | Add to Cart | |||
| KIT2651 | Two Speed Repair Kit References — Repair Kit Number | — | No longer available — call for replacement | |||
| KIT2683 | Two Speed Repair Kit References — Repair Kit Number | — | No longer available — call for replacement | |||
| KIT4370 | Two Speed Repair Kit References — Repair Kit Number | $489.84 | Add to Cart | |||
| KITRS20230 | Two Speed Repair Kit References — Repair Kit Number | — | Call for availability | |||
| KIT2329 | Two Speed Repair Kit References — Repair Kit Number | — | No longer available — call for replacement | |||
| KIT2330 | Two Speed Repair Kit References — Repair Kit Number | — | Call for availability | |||
| KIT2332 | Two Speed Repair Kit References — Repair Kit Number | $90.71 | Add to Cart | |||
| KIT2336 | Two Speed Repair Kit References — Repair Kit Number | — | Call for availability | |||
| KIT2353 | Two Speed Repair Kit References — Repair Kit Number | $1,025.41 | Add to Cart | |||
| KIT2354 | Two Speed Repair Kit References — Repair Kit Number | — | No longer available — call for replacement | |||
| KIT2355 | Two Speed Repair Kit References — Repair Kit Number | — | Call for availability | |||
| KIT2458 | Two Speed Repair Kit References — Repair Kit Number | $2,643.17 | Add to Cart | |||
| KIT2637 | Two Speed Repair Kit References — Repair Kit Number | $23.72 | Add to Cart | |||
| KIT2652 | Two Speed Repair Kit References — Repair Kit Number | $2,381.15 | Add to Cart | |||
| KIT2684 | Two Speed Repair Kit References — Repair Kit Number | — | No longer available — call for replacement | |||
| KIT4375 | Two Speed Repair Kit References — Repair Kit Number | $989.05 | Add to Cart | |||
| KITRS23240 | Two Speed Repair Kit References — Repair Kit Number | — | Call for availability |
Two Speed Kits
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1229Q2877 | Washer-pinion Thrust Main Differential | 4 | kit for RS-15-210 | $211.20 | Add to Cart | |
| 2233Q1031 | Gear-differential Pinion With Spider. | 4 | — | No longer available — call for replacement | ||
| 3278Z104 | Spider-differential Cross | 1 | $87.54 | Add to Cart | ||
| 2234L1130 | Gear Side-l .h Short Hub | 1 | — | No longer available — call for replacement | ||
| 2234M1131 | Gear Side-r.h Long Hub | 1 | — | No longer available — call for replacement | ||
| 1229Z3172 | Washer-side Gear Thrust | 2 | $184.30 | Add to Cart | ||
| 2233Q1031 | Gear-differential Pinion Less Spider. | 4 | — | No longer available — call for replacement | ||
| 1229L1026 | Washer-pinion Thrust Main Differential | 4 | kit for 220's & 224's | $991.20 | Add to Cart | |
| 2233M1027 | Gear-differential Pinion With Spider. | 4 | $207.03 | Add to Cart | ||
| 3278D82 | Spider-differential Cross | 1 | $318.87 | Add to Cart | ||
| 2234T1086 | Gear Side-l .h Short Hub | 1 | $1,269.15 | Add to Cart | ||
| 2234S1085 | Gear Side-r.h Long Hub | 1 | $2,237.54 | Add to Cart | ||
| 2233M1027 | Gear-differential Pinion Less Spider. | 4 | $207.03 | Add to Cart | ||
| 1229R1032 | Washer-pinion Thrust Main Differential | 4 | kit for RS-21 -230 | $124.00 | Add to Cart | |
| 2233J1024 | Gear-differential Pinion With Spider. | 4 | $31.35 | Add to Cart | ||
| 3278S305 | Spider-differential Cross | 1 | $62.29 | Add to Cart | ||
| 2234K1077 | Gear Side-l .h Short Hub | 1 | — | No longer available — call for replacement | ||
| 2234M1079 | Gear Side-r.h Long Hub | 1 | $1,665.15 | Add to Cart | ||
| 1229G4661 | Washer-side Gear Thrust | 2 | $140.42 | Add to Cart | ||
| 2233J1024 | Gear-differential Pinion Less Spider. | 4 | $31.35 | Add to Cart | ||
| 1229A3173 | Washer-pinion Thrust Main Differential | 4 | kit for RS-23-240 | $23.40 | Add to Cart | |
| 2233P1030 | Gear-differential Pinion With Spider. | 4 | $78.36 | Add to Cart | ||
| 3278Q1031 | Spider-differential Cross | 1 | $277.20 | Add to Cart | ||
| 2234X1090 | Gear Side-l .h Short Hub | 1 | $2,056.65 | Add to Cart | ||
| 2234W1089 | Gear Side-r.h Long Hub | 1 | $208.27 | Add to Cart | ||
| 1229B3174 | Washer-side Gear Thrust | 2 | $150.00 | Add to Cart | ||
| 2203D9052 | Shim-pinion Cage .003 Thick Shim Kit For RS-23-240 | 3 | $167.20 | Add to Cart | ||
| 2203E9053 | I Shim-pinion Cage .005 Thick | I 2 | $202.60 | Add to Cart | ||
| 2203F9054 | Shim-pinion Cage .010 Thick | 1 | — | No longer available — call for replacement | ||
| 2203C9103 | Shim-pinion Bearing .360 Thick Spacer Kit For RS-23-240 | 2 | — | Call for availability | ||
| 2203D9104 | Shim-pinion Bearing .361 Thick | 2 | — | Call for availability | ||
| 2203E9105 | Shim-pinion Bearing .362 Thick | 2 | — | Call for availability | ||
| 2203F9106 | Shim-pinion Bearing .363 Thick | 2 | — | Call for availability | ||
| 2203G9107 | Shim-pinion Bearing .364 Thick | 2 | — | Call for availability | ||
| 2203H9108 | Shim-pinion Bearing .365 Thick | 2 | — | Call for availability | ||
| 2203J9110 | Shim-pinion Bearing .372 Thick | 2 | — | Call for availability | ||
| 2203K9111 | Shim-pinion Bearing .378 Thick | 2 | — | Call for availability | ||
| 2203L9112 | Shim-pinion Bearing .385 Thick | 2 | — | Call for availability | ||
| 2203M9113 | Shim-pinion Bearing .391 Thick | 2 | — | No longer available — call for replacement | ||
| 2203N9114 | Shim-pinion Bearing .398 Thick | 2 | — | Call for availability | ||
| 2203D9156 | Shim-pinion Bearing .234 Thick Spacer Kit For RS-15-210 | 2 | RS-15-220; , , | $80.17 | Add to Cart | |
| 2203E9157 | Shim-pinion Bearing .235 Thick RS-17-220 RS-17-224 , | 2 | RS-19-224; , , | — | Call for availability | |
| 2203F9158 | Shim-pinion Bearing .236 Thick RS-21 -230 | 2 | — | Call for availability | ||
| 2203G9159 | Shim-pinion Bearing .237 Thick | 2 | — | Call for availability | ||
| 2203H9160 | Shim-pinion Bearing .238 Thick | 2 | — | Call for availability | ||
| 2203J9162 | Shim-pinion Bearing .239 Thick | 2 | — | No longer available — call for replacement | ||
| 2203K9163 | Shim-pinion Bearing .244 Thick | 2 | — | Call for availability | ||
| 2203L9164 | Shim-pinion Bearing .250 Thick | 2 | — | Call for availability | ||
| 2203M9165 | Shim-pinion Bearing .256 Thick | 2 | — | No longer available — call for replacement | ||
| 2203N9166 | Shim-pinion Bearing .262 Thick | 2 | — | Call for availability | ||
| 2203P9168 | Shim-pinion Bearing .268 Thick | 2 | — | Call for availability | ||
| 1246J1024 | Roll Pin Two Speed Repair | 1 | kit for RS-15-210 | — | No longer available — call for replacement | |
| 41X1158 | Capscrew | 4 | $3.14 | Add to Cart | ||
| 3280T8314 | Plate-clutch | 1 | — | No longer available — call for replacement | ||
| 3892H4844 | Gear-sun | 1 | — | No longer available — call for replacement | ||
| 3280R8312 | Case-support L .h | 1 | — | No longer available — call for replacement | ||
| A3296J1024 | Shift Fork Assy. Shift Fork And Boot | 1 | repair kit for | — | Call for availability | |
| 1246L1026 | I Pin RS-15-210 | I 1 | — | No longer available — call for replacement | ||
| A3280M8307 | Boot Assy. | 1 | $113.88 | Add to Cart | ||
| 3198C1017 | Shaft-pinion Planetary Pinion | 4 | gear repair kit for | — | Call for availability | |
| 1229K3183 | Washer-planetary Pinion RS-15-210 | 8 | — | No longer available — call for replacement | ||
| 1246K1025 | Pin-roll | 4 | — | No longer available — call for replacement | ||
| 3892G4843 | Gear-planetary Pinion | 4 | — | No longer available — call for replacement | ||
| 41X1157 | Capscrew RS-17-220 RS-19-220 , | 4 | RS-17-224; , , | $81.60 | Add to Cart | |
| 3280A8321 | Plate-clutch RS-19-224 | 1 | — | No longer available — call for replacement | ||
| 3892J4846 | Gear-sun | 1 | $562.77 | Add to Cart | ||
| 3280W8317 | Case-support L .h | 1 | — | No longer available — call for replacement | ||
| 3198U1009 | Shaft-pinion Planetary Pinion | 4 | gear repair kit for | $970.46 | Superseded by KIT2650Add to Cart | |
| 1229K3183 | Washer-planetary Pinion RS-15-220 RS-17-220 , | 8 | RS-19-220; , , | — | No longer available — call for replacement | |
| 1246H1022 | Pin-roll RS-17-224 RS-19-224 , | 4 | $278.00 | Add to Cart | ||
| 3892M4849 | Gear-planetary Pinion | 4 | $219.50 | Add to Cart | ||
| A3296L1026 | Shift Fork Assy. Shift Fork And Boot | 1 | repair kit for | $112.02 | Add to Cart | |
| 1246L1026 | I Pin 220's & 224's | I 1 | — | No longer available — call for replacement | ||
| 1246H1022 | Roll Pin Two Speed Repair | 1 | kit for RS-21 -230 | $278.00 | Add to Cart | |
| 44X1066 | Stud-clutch Plate | 4 | — | No longer available — call for replacement | ||
| 42X1076 | Dowel-clutch Plate | 4 | $108.90 | Add to Cart | ||
| 40X1091 | Nut-clutch Plate | 4 | $85.00 | Add to Cart | ||
| 42X1078 | Washer-clutch Plate | 4 | $2.02 | Add to Cart | ||
| 3280H8328 | Plate-clutch | 1 | $378.05 | Add to Cart | ||
| 3892K4847 | Gear-sun | 1 | $706.24 | Add to Cart | ||
| 3280Y8319 | Case-support L .h | 1 | 15 | $799.94 | Add to Cart | |
| A3296N1028 | Shift Fork Assy. Shift Fork And Boot | 1 | repair kit for | $682.10 | Add to Cart | |
| 1246L1026 | I Pin RS-21 -230 | I 1 | — | No longer available — call for replacement | ||
| 3198V1010 | Shaft-pinion Planetary Pinion | 4 | gear repair kit for | — | No longer available — call for replacement | |
| 1229K3183 | Washer-planetary Pinion RS-21 -230 | 8 | — | No longer available — call for replacement | ||
| 1246H1022 | Pin-roll | 4 | $278.00 | Add to Cart | ||
| 3892N4850 | Gear-planetary Pinion | 4 | $282.01 | Add to Cart | ||
| 3280L8306 | Plate-clutch | 1 | $564.99 | Add to Cart | ||
| 3892L4848 | Gear-sun | 1 | $814.52 | Add to Cart | ||
| 3280U8315 | Case-support L .h | 1 | $1,263.64 | Add to Cart | ||
| A3296Q1031 | Shift Fork Assy. Shift Fork And Boot | 1 | repair kit for | $746.70 | Add to Cart | |
| 1246L1026 | I Pin RS-23-240 | I 1 | — | No longer available — call for replacement | ||
| 3198W1011 | Shaft-pinion Planetary Pinion | 4 | gear repair kit for | — | Call for availability | |
| 1229H3180 | Washer-planetary Pinion RS-23-240 | 8 | $32.04 | Add to Cart | ||
| 3892U2803 | Gear-planetary Pinion | 4 | $393.94 | Add to Cart | ||
| 1246L1026 | Fork Shift Fork Pin And | plugs kit for all; I 1 I Pin-shift | — | No longer available — call for replacement | ||
| 1250J1024 | Fork Pin Models | 2 | Plug-shift | — | Call for availability | |
| 2203S9171 | Bearing Cage .003 Thick Shim Kit For All | 1 | except RS-23-240; Shim-pinion | $101.00 | Add to Cart | |
| 2203Q9169 | Bearing Cage .005 Thick | I 3 I Shim-pinion | — | Call for availability | ||
| 2203R9170 | Bearing Cage .010 Thick | 2 | Shim-pinion | — | Call for availability | |
| 3280T8314 | Plate-clutch Two Speed Repair | 1 | kit for RS-15-210 | — | No longer available — call for replacement | |
| 3892H4844 | I Gear-sun Neutral Stroke | length has been; I 1 | — | No longer available — call for replacement | ||
| 3280R8312 | Case-support L .h Modified Do Not | 1 | mix parts | — | No longer available — call for replacement | |
| 3280A8321 | Two Speed Repair | 1 | kit for RS-17-220 &; Plate-clutch | — | No longer available — call for replacement | |
| 3892J4846 | RS-19-220 Neutral | stroke length has; I 1 I Gear-sun | — | Call for availability | ||
| 3280W8317 | L .h Been Modified | 1 | Do not mix parts; Case-support | — | No longer available — call for replacement | |
| 3280H8328 | Two Speed Repair | 1 | kit for RS-21 -230; Plate-clutch | — | Call for availability | |
| 3892K4847 | Neutral Stroke | length has been; I 1 I Gear-sun | — | Call for availability | ||
| 3280Y8319 | L .h Modified Do Not | 1 | mix parts; Case-support | — | Call for availability | |
| 3280L8306 | Plate-clutch Two Speed Repair | 1 | kit for RS-23-240 | $564.99 | Add to Cart | |
| 3892L4848 | I Gear-sun Neutral Stroke | length has been; I 1 | $814.52 | Add to Cart | ||
| 3280U8315 | Case-support L .h Modified Do Not | 1 | mix parts | $1,263.64 | Add to Cart | |
| 40X1236 | Hardware Kit For | drive pinion For all; I 1 I Locknut | — | Call for availability | ||
| 1229A2653 | Models Except | 1 | RS-23-240; Washer | $45.10 | Add to Cart | |
| 40X1237 | Hardware Kit For | drive pinion; I 1 I Locknut | — | Call for availability | ||
| 1229T1736 | For RS-23-240 | 1 | Washer | $21.60 | Add to Cart | |
| 3892S4855 | Gear-planetary Pinion Planetary Pinion | 4 | repair kit for | $437.73 | Add to Cart | |
| 3198Z1014 | Shaft-planetary Pinion RS-15-220 RS-17-220 , | 4 | RS-19-220; , , | $112.54 | Add to Cart | |
| 1229W3195 | Washer-thrust Planetary Pinion RS-17-224 RS-19-224 , | 8 | $15.60 | Add to Cart | ||
| 2203E9599 | Spacer-needle Bearing | 4 | — | No longer available — call for replacement | ||
| 2297C5177 | Bearing-needle | 200 | $55.50 | Add to Cart | ||
| 3892Q4853 | Gear-planetary Pinion Planetary Pinion | 4 | repair kit for | — | No longer available — call for replacement | |
| 3198X1012 | Shaft-planetary Pinion RS-21 -230 | 4 | $59.74 | Add to Cart | ||
| 1229W3195 | Washer-thrust Planetary Pinion | 8 | $15.60 | Add to Cart | ||
| 2203C9597 | Spacer-needle Bearing | 4 | — | No longer available — call for replacement | ||
| 3892R4854 | Gear-planetary Pinion Planetary Pinion | 4 | repair kit for | $325.73 | Add to Cart | |
| 3198Y1013 | Shaft-planetary Pinion RS-23-240 | 4 | $156.44 | Add to Cart | ||
| 1229V3194 | Washer-thrust Planetary Pinion | 8 | $12.28 | Add to Cart | ||
| 2203D9598 | Spacer-needle Bearing | 4 | $43.79 | Add to Cart | ||
| 2297D5178 | Bearing-needle | 224 | — | Call for availability | ||
| 3892T4856 | Gear-planetary Pinion Planetary Pinion | 4 | repair kit for | $161.30 | Add to Cart | |
| 3198A1015 | Shaft-planetary Pinion RS-15-210 | 4 | $46.76 | Add to Cart | ||
| 2297E5179 | Bearing-needle | 200 | — | No longer available — call for replacement | ||
| 2203E9599 | Bearing Needle Bearing | 4 | repair kit for; Spacer-needle | — | No longer available — call for replacement | |
| 2297C5177 | 220's And 224's | 200 | Bearing-needle | $55.50 | Add to Cart | |
| 2203C9597 | Bearing Needle Bearing | 4 | repair kit for; Spacer-needle | — | No longer available — call for replacement | |
| 2297C5177 | RS-21 -230 | 200 | Bearing-needle | $55.50 | Add to Cart | |
| 2203D9598 | Bearing Needle Bearing | 4 | repair kit for; Spacer-needle | — | Call for availability | |
| 2297D5178 | RS-23-240 | 224 | Bearing-needle | $239.68 | Add to Cart | |
| M804010 | Cup-pinion Bearing Outer Bearing And Seal | 1 | kit for RS-15-210 | $21.96 | Add to Cart | |
| M804049 | Cone-pinion Bearing Outer | 1 | $38.43 | Add to Cart | ||
| 55437 | Cup-pinion Bearing Inner | 1 | $33.17 | Add to Cart | ||
| 55200C | Cone-pinion Bearing Inner | 1 | $55.89 | Add to Cart | ||
| 1228H580 | Bearing-spigot | 1 | $244.44 | Add to Cart | ||
| 1228L1130 | Cup-main Differential Bearing L .h | 1 | $153.96 | Add to Cart | ||
| A1228L1130 | Cone-main Differential Bearing L .h | 1 | $247.70 | Add to Cart | ||
| JLM714110 | Cup-main Differential Bearing R.h | 1 | $25.66 | Add to Cart | ||
| JLM714149 | Cone-main Differential Bearing R.h | 1 | $65.21 | Add to Cart | ||
| A1205D1928 | Seal-pinion Oil | 1 | $79.80 | Add to Cart | ||
| M804049 | Cone-pinion Bearing Outer 224's | 1 | $38.43 | Add to Cart | ||
| 1228F552 | Bearing-spigot | 1 | $44.92 | Add to Cart | ||
| 42584 | Cup-main Differential Bearing L .h | 1 | $139.86 | Add to Cart | ||
| 42381 | Cone-main Differential Bearing L .h | 1 | $123.32 | Add to Cart | ||
| HM804810 | Cup-pinion Bearing Outer Bearing And Seal | 1 | kit for RS-21 -230 | $27.20 | Add to Cart | |
| HM804846 | Cone-pinion Bearing Outer | 1 | $53.56 | Add to Cart | ||
| 1228E1045 | Bearing-spigot | 1 | — | Call for availability | ||
| 52618 | Cup-main Differential Bearing L .h | 1 | $60.66 | Add to Cart | ||
| 52400 | Cone-main Differential Bearing L .h | 1 | $162.89 | Add to Cart | ||
| JM716610 | Cup-main Differential Bearing R.h | 1 | $125.34 | Add to Cart | ||
| JM716649 | Cone-main Differential Bearing R.h | 1 | $99.68 | Add to Cart | ||
| 55437 | Cup-pinion Bearing Outer Bearing And Seal | 1 | kit for RS-23-240 | $33.17 | Add to Cart | |
| 55206C | Cone-pinion Bearing Outer | 1 | $50.60 | Add to Cart | ||
| 78551 | Cup-pinion Bearing Inner | 1 | $55.81 | Add to Cart | ||
| 78225C | Cone-pinion Bearing Inner | 1 | $188.98 | Add to Cart | ||
| JP12010 | Cup-main Differential Bearing L .h | 1 | — | No longer available — call for replacement | ||
| JP12049 | Cone-main Differential Bearing L .h | 1 | $257.15 | Add to Cart | ||
| A1205N2588 | Assy. -oil Seal | 1 | 19 | $92.72 | Superseded by A11205Z2730Add to Cart | |
| 1229L1026 | Washer-pinion Thrust Overhaul Kit For | 4 | 220's and 224's | $991.20 | Add to Cart | |
| 2233M1027 | Gear-differential Pinion | 4 | $207.03 | Add to Cart | ||
| 2203D9156 | Spacer-pinion Bearing .234 Thick | 2 | $80.17 | Add to Cart | ||
| 2203E9157 | Spacer-pinion Bearing .235 Thick | 2 | $84.46 | Add to Cart | ||
| 2203F9158 | Spacer-pinion Bearing .236 Thick | 2 | $216.96 | Add to Cart | ||
| 2203G9159 | Spacer-pinion Bearing .237 Thick | 2 | — | Call for availability | ||
| 2203H9160 | Spacer-pinion Bearing .238 Thick | 2 | $82.67 | Add to Cart | ||
| 2203J9162 | Spacer-pinion Bearing .239 Thick | 2 | — | No longer available — call for replacement | ||
| 2203K9163 | Spacer-pinion Bearing .244 Thick | 2 | $498.60 | Add to Cart | ||
| 2203L9164 | Spacer-pinion Bearing .250 Thick | 2 | $657.80 | Add to Cart | ||
| 2203M9165 | Spacer-pinion Bearing .256 Thick | 2 | — | No longer available — call for replacement | ||
| 2203N9166 | Spacer-pinion Bearing .262 Thick | 2 | — | Call for availability | ||
| 2203P9168 | Spacer-pinion Bearing .268 Thick | 2 | $82.02 | Add to Cart | ||
| 2203Q9169 | Shim-pinion Bearing Cage .005 Thick | 3 | $146.30 | Add to Cart | ||
| 2203R9170 | Shim-pinion Bearing Cage .010 Thick | 2 | $127.80 | Add to Cart | ||
| 2203S9171 | Shim-pinion Bearing Cage .003 Thick | 1 | $101.00 | Add to Cart | ||
| M804010 | Cup-pinion Bearing Outer | 1 | $21.96 | Add to Cart | ||
| 1229R1032 | Washer-pinion Thrust Overhaul Kit For | 4 | RS-20-230 | $124.00 | Add to Cart | |
| 2233J1024 | Gear-differential Pinion | 4 | $31.35 | Add to Cart | ||
| HM804810 | Cup-pinion Bearing Outer | 1 | $27.20 | Add to Cart | ||
| 1229A3173 | Washer-pinion Thrust Overhaul Kit For | 4 | RS-23-240 | $23.40 | Add to Cart | |
| 2233P1030 | Gear-differential Pinion | 4 | $78.36 | Add to Cart | ||
| 2203D9052 | Shim-pinion Cage .003 Thick | 3 | $167.20 | Add to Cart | ||
| 2203E9053 | Shim-pinion Cage .005 Thick | 2 | $202.60 | Add to Cart | ||
| 2203C9103 | Spacer-pinion Bearing .360 Thick | 2 | — | Call for availability | ||
| 2203D9104 | Spacer-pinion Bearing .361 Thick | 2 | — | Call for availability | ||
| 2203E9105 | Spacer-pinion Bearing .362 Thick | 2 | $113.32 | Add to Cart | ||
| 2203F9106 | Spacer-pinion Bearing .363 Thick | 2 | — | Call for availability | ||
| 2203G9107 | Spacer-pinion Bearing .364 Thick | 2 | — | Call for availability | ||
| 2203H9108 | Spacer-pinion Bearing .365 Thick | 2 | — | Call for availability | ||
| 2203J9110 | Spacer-pinion Bearing .372 Thick | 2 | — | Call for availability | ||
| 2203K9111 | Spacer-pinion Bearing .378 Thick | 2 | — | Call for availability | ||
| 2203L9112 | Spacer-pinion Bearing .385 Thick | 2 | — | Call for availability | ||
| 2203M9113 | Spacer-pinion Bearing .391 Thick | 2 | — | No longer available — call for replacement | ||
| 2203N9114 | Spacer-pinion Bearing .398 Thick | 2 | — | Call for availability | ||
| 55437 | Cup-pinion Bearing Outer | 1 | $33.17 | Add to Cart | ||
| A1205J2558 | Assy. -oil Seal | 1 | — | No longer available — call for replacement |
This is the complete factory parts breakdown for the Meritor 210/220/230/240 2-Speed Axle — every part in the manual, matched to our live inventory. We stock 266 of the 524 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
No parts match that search — try the part number with no dashes.
