Spicer ES46-5A Parts Manual

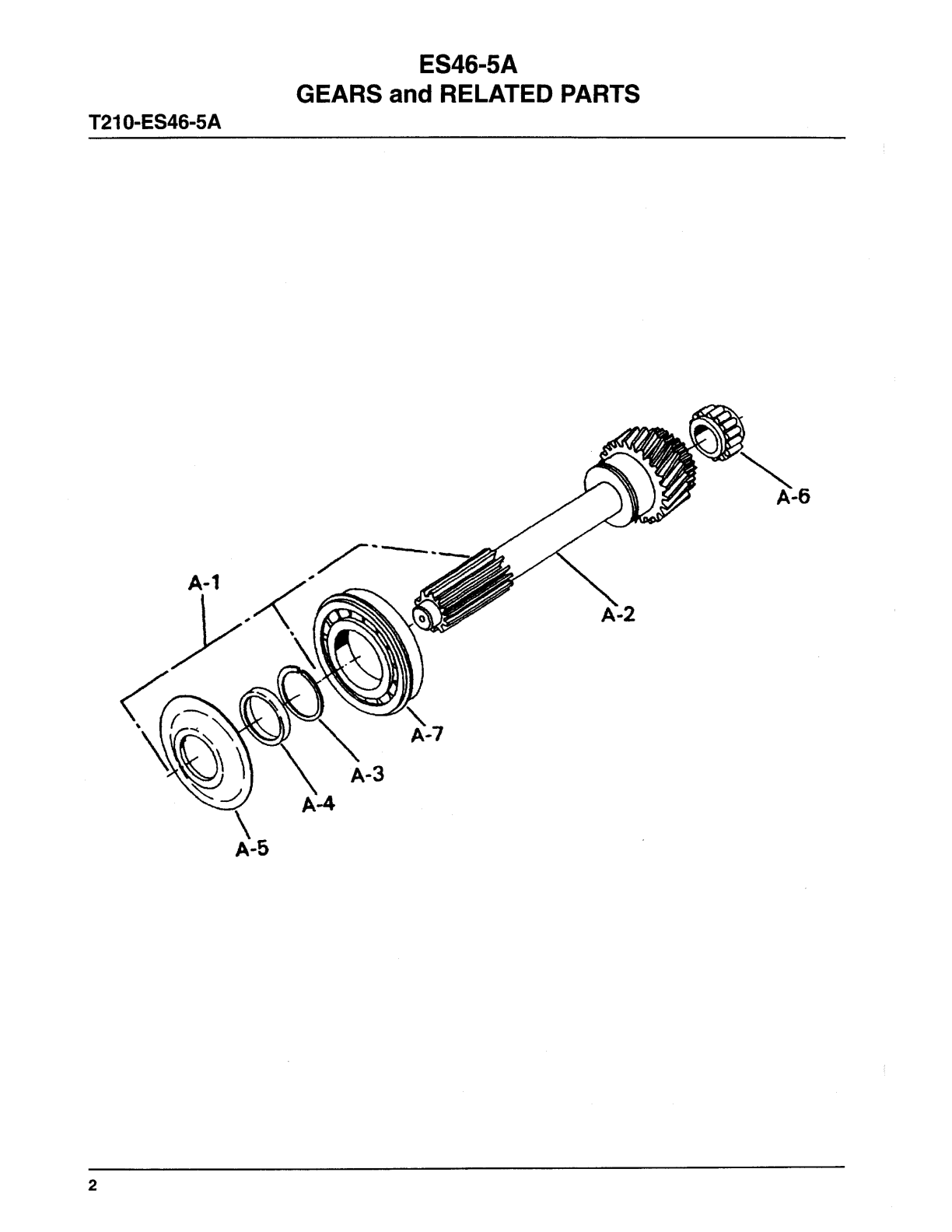

Drive Gear Group
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| A-2 | Drive Gear (see Table Below) | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| A-3 | 82-381-2 | Snap Ring | 1 | $6.64 | Add to Cart | |
| A-4 | 101-468-2 | Oil Ring | 1 | $3.15 | Add to Cart | |
| A-5 | 101-468-1 | Baffle - Oil | 1 | $16.15 | Add to Cart | |
| A-6 | 56-482-1 | Bearing - Mainshaft Pocket | 1 | $78.59 | Add to Cart | |
| A-7 | 101-482-1 | Bearing - Drive Gear | 1 | $128.90 | Add to Cart |

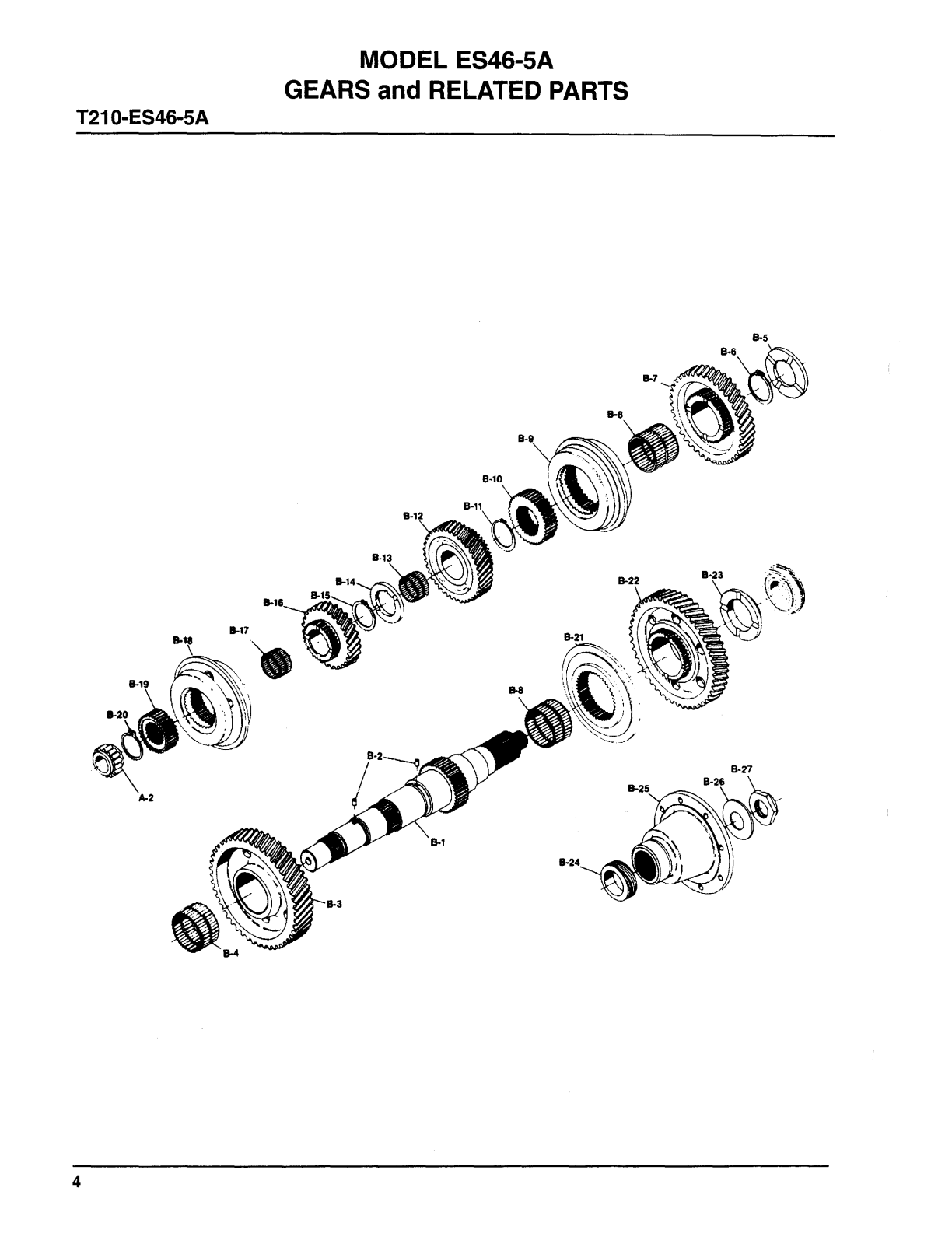

Mainshaft Group Output
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| B-1 | 56-362-1 | Mainshaft | 1 | $660.18 | Superseded by 5636222XAdd to Cart | |
| B-2 | 545087 | Pin - Thrust Washer Lock | 2 | $5.49 | Add to Cart | |
| B-3 | 56-8-16 | Gear - 1st Speed Mainshaft (35T) | 1 | $347.13 | Add to Cart | |
| B-4 | 550991 | Bearing - 1st Speed Needle | 1 | $47.16 | Add to Cart | |
| B-5 | 49-47-1 | Washer - 1st & 2nd Speed Thrust | 1 | $32.24 | Add to Cart | |
| B-6 | 49-381-1 | Snap Ring - 1st & 2nd Thrust Washer | 1 | $6.27 | Add to Cart | |
| B-7 | 56-8-12 | Gear - 2nd Speed Mainshaft (38T) | 1 | $361.53 | Add to Cart | |
| B-8 | 550963 | Bearing - 2nd & Reverse Needle | 2 | $30.69 | Add to Cart | |
| B-9 | 49-464-1X | Synchronizer - 2nd & 3rd Mainshaft | 1 | $1,082.30 | Add to Cart | |
| B-10 | 101-466-4 | Gear - 2nd & 3rd Mainshaft Clutch | 1 | $102.22 | Add to Cart | |
| B-11 | 40-381-4 | Snap Ring -2nd & 3rd Clutch Gear | 1 | $2.39 | Add to Cart | |
| B-12 | 56-8-13 | Gear - 3rd Speed Mainshaft (34T) | 1 | $357.41 | Add to Cart | |
| B-13 | 550968 | Bearing - 3rd Speed Gear | 1 | $40.49 | Add to Cart | |
| B-14 | 49-47-2 | Washer - 3rd & 4th Speed Thrust | 1 | $36.17 | Add to Cart | |
| B-15 | 40-381-3 | Snap Ring - 3rd & 4th Thrust Washer | 1 | $2.39 | Add to Cart | |
| B-16 | 56-8-15 | Gear - 4th Speed Mainshaft (22T) (for ES46-5A) | 1 | $265.75 | Add to Cart | |
| B-17 | 550990 | Bearing - 4th Speed Gear | 1 | $21.96 | Add to Cart | |
| B-18 | 101-464-1X | Synchronizer- 4th & 5th Mainshaft | 1 | $1,537.04 | Add to Cart | |
| B-19 | 56-466-1 | Gear - 4th & 5th Speed Clutch (33T) | 1 | $117.78 | Add to Cart | |
| B-20 | 40-381-1 | Snap Ring - 4th & 5th Speed Clutch Gear | 1 | $2.46 | Add to Cart | |
| B-21 | 101-465-7 | Clutch 1st & Rev. | 1 | $199.50 | Add to Cart | |
| B-22 | 56-8-17 | Gear Reverse (33T) | 1 | $330.23 | Add to Cart | |
| B-23 | 101-47-4 | Washer- Reverse Thrust | 1 | $201.33 | Add to Cart | |
| B-26 | 53-205-1 | Washer - Mainshaft Nut | 1 | $4.42 | Add to Cart | |
| B-27 | 501200 | Nut - Mainshaft ( 1 1/4" - 18) | 1 | $15.74 | Add to Cart |
Countershaft Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| C-1 | 56-30-3 | Countershaft (without P.t.o. Drive) | 1 | $494.21 | Add to Cart | |
| C-2 | 550868 | Cone - Bearing - Countershaft Rear | 1 | $33.17 | Add to Cart | |
| C-3 | 550978 | Cup - Bearing - Countershaft Rear | 1 | $22.03 | Add to Cart | |
| C-4 | 56-196-9 | Gear - 2nd Speed Countershaft (20T) | 1 | $158.85 | Add to Cart | |
| C-5 | 49-37-5 | Spacer - 2nd & 3rd Speed Countershaft Gear | 1 | $28.33 | Add to Cart | |
| C-6 | 56-196-10 | Gear - 3rd Speed Countershaft (32T) | 1 | $190.13 | Add to Cart | |
| C-7 | 56-196-12 | Gear- 4th Speed Countershaft (32T) For ES46-5A | 1 | $201.20 | Add to Cart | |
| C-8 | 56-37-2 | Spacer - 4th & 5th Speed Countershaft Gear | 1 | $16.27 | Add to Cart | |
| C-9 | 56-1-3 | Gear- Drive (44T) Countershaft | 1 | $259.51 | Add to Cart | |
| C-10 | 56-381-1 | Snap Ring - Countershaft Drive Gear | 1 | $3.91 | Add to Cart | |
| C-11 | 550868 | Cone - Bearing - Countershaft Front | 1 | $33.17 | Add to Cart | |
| C-12 | 550978 | Cup - Bearing - Countershaft Front | 1 | $22.03 | Add to Cart |
Reverse Idler Group
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| D-1 | 56-5-3 | Gear - Reverse Idler (17T) | 1 | $154.14 | Add to Cart | |
| D-2 | 49-37-7 | Spacer - Bearing Reverse Idler Gear | 1 | $11.22 | Add to Cart | |
| D-3 | 550886 | Bearing - Reverse Idler | 2 | $11.32 | Add to Cart | |
| D-4 | 63-60-1 | Shaft - Idler Gear | 1 | $33.08 | Add to Cart |
Clutch Housing Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 101-518-7-2X | Clutch Housing Assembly (includes E-1 Thru E-5) | 1 | $1,177.51 | Add to Cart | ||
| E-1 | Clutch Housing (C1 01 -518-1) | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| E-2 | 128C-20 | Bushing - Clutch Release Shaft | 4 | $8.55 | Add to Cart | |
| E-3 | 46-96-2-1X | Hand Hole Cover | 1 | $44.01 | Add to Cart | |
| E-4 | 40-468-1 | Oil Trough | 1 | $2.38 | Superseded by 404682Add to Cart | |
| E-5 | 545141 | Drive Pin | 2 | $3.05 | Add to Cart | |
| E-6 | 330969-4 | Lift Hook | 1 | — | Call for availability | |
| E-7 | 545002-4 | Bolt - Clutch Housing ( .375-16 X 1 .125) | 16 | $6.93 | Add to Cart | |
| E-8 | 545086 | Dowel Pin - Clutch Housing To Front Case | 2 | $5.54 | Add to Cart | |
| E-9 | 101-477-5 | Support - Shift Bar - Front | 1 | $16.78 | Add to Cart | |
| E-10 | 545002 | Screw- Shift Bar Support- Front | 2 | $1.98 | Add to Cart | |
| E-11 | 545002-3 | Screw - Case To Clutch Housing | 2 | — | Call for availability | |
| E-12 | 500370-3 | Nut - Case To Clutch Housing | 2 | — | Call for availability |

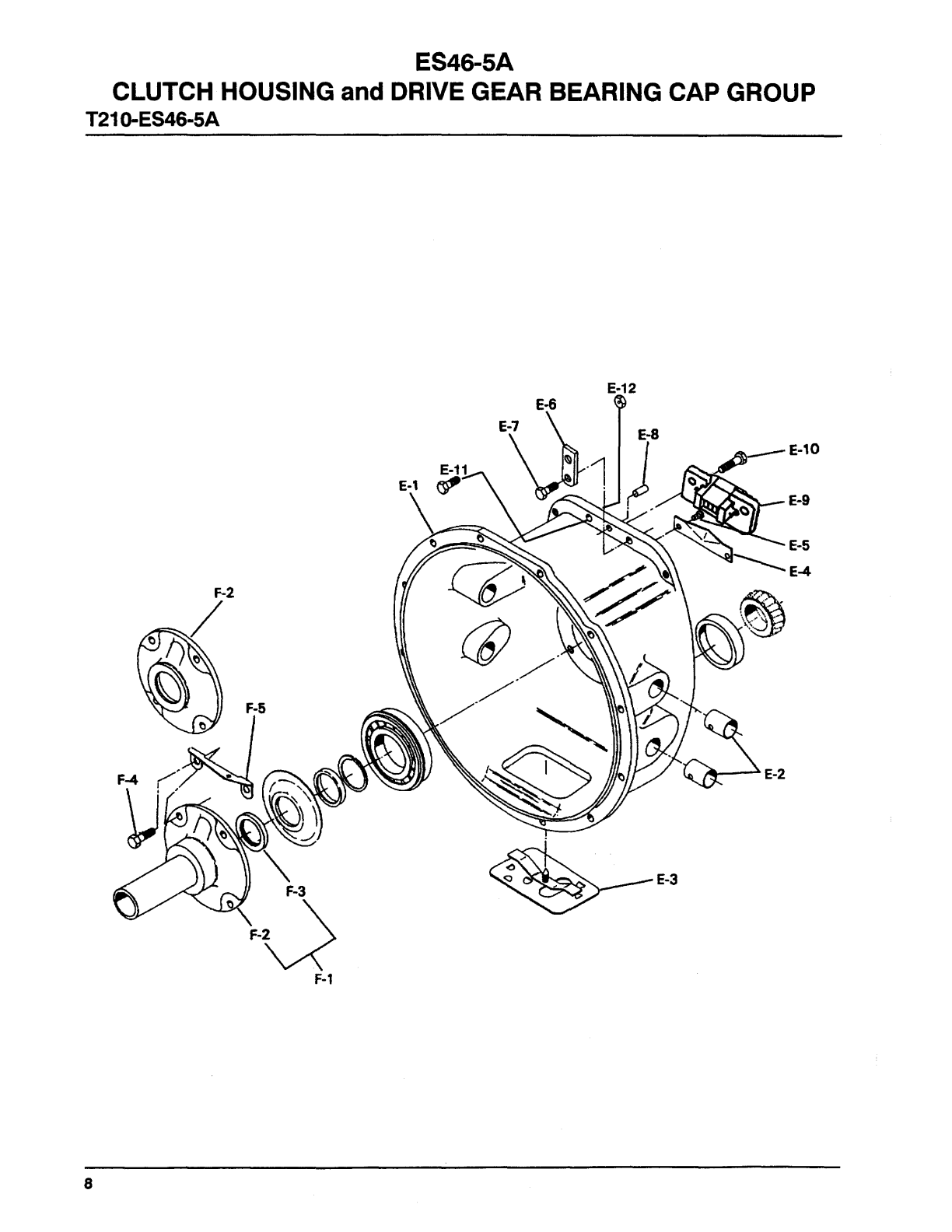

Drive Gear Bearing Cap Group
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| E-12 | 101-19-2-1X | Cap & Seal Assembly- (flat Cap) (C101 -19-1) | 1 | $222.01 | Add to Cart | |
| E-12 | 101-19-6-1X | Cap & Seal Assembly- (stem Cap) (C101 -19-5) | 1 | $287.12 | Add to Cart | |
| F-2 | Cap Drive Gear | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| F-3 | 60-463-10-1X | Oil Seal (includes Installation Sleeves) | 1 | $37.74 | Add to Cart | |
| F-4 | 545002 | Screw - Drive Gear Bearing Cap ( .375-16 X 1 .00) | 4 | $1.98 | Add to Cart | |
| F-5 | 101-411-1 | Bracket - Clutch Return Spring (navistar Only) | 1 | $3.65 | Add to Cart |

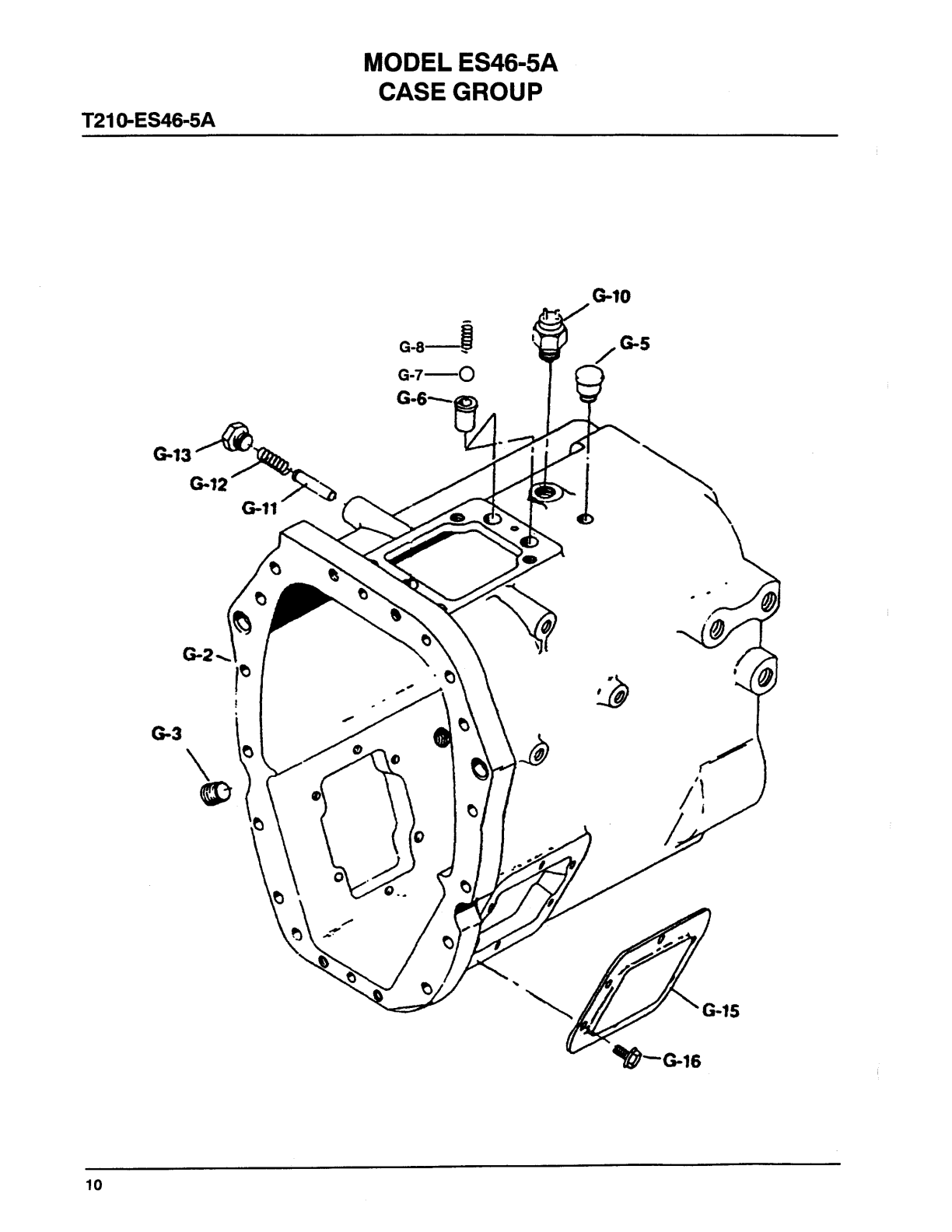

Case Group
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| G-2 | Case (casting Number C49-15-7) | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| N .S | NP-96 | Name Plate | 1 | $2.16 | Add to Cart | |
| N .S | NP-196 | Patent Plate | 1 | $2.97 | Add to Cart | |
| N .S | 252-SP | Pin Name Plate | 4 | $1.90 | Add to Cart | |
| N .S | 330934 | Magnet - Ceramic | 2 | $4.72 | Add to Cart | |
| N .S | 330800 | Plug Side Hole (3/8" 16 X 3/4") | 4 | $3.27 | Add to Cart | |
| G-3 | 545123 | Plug - Filler/drain (3/4" - 14 N .p.i .f .) | 2 | $22.03 | Add to Cart | |
| G-5 | 312268 | Breather | 1 | $31.32 | Add to Cart | |
| G-6 | 101-487-1 | Insert - Poppet Spring & Plunger | 2 | $3.15 | Add to Cart | |
| G-7 | 101-80-2 | Ball - Poppet | 2 | $3.15 | Add to Cart | |
| G-8 | 101-72-10 | Spring - Poppet | 2 | $6.27 | Add to Cart | |
| G-10 | 313538 | Switch - Back-up Light (navistar Only) | 1 | $31.37 | Add to Cart | |
| G-10 | 313539 | Switch - Back-up Light (ford) | 1 | $25.13 | Add to Cart | |
| N .S | 40-263-1 | Sleeve Back-up Light (shipping) | 1 | — | Call for availability | |
| G-11 | 49-438-1 | Pin - 1st & Reverse Select Plunger | 1 | — | Call for availability | |
| G-12 | 30-72-6 | Spring - 1st & Reverse Shift Finger Plunger | 1 | $2.72 | Add to Cart | |
| G-13 | 545128 | Plug- 1st & Reverse Plunger | 1 | $2.84 | Add to Cart | |
| G-15 | 50-267-2 | Cover - Pto Aperture (6 Bolt) | 2 | $122.97 | Add to Cart | |
| N .S | 545056-6 | Anaerobic Sealant | AIR | — | Call for availability | |
| G-16 | 330800 | Screw- Pto Aperture Cover ( .375-16 X .750) | 12 | — | Call for availability |
Mainshaft Rear Bearing Cap Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| H-2 | 63-463-1 | Oil Seal - Mainshaft Rear Bearing Cap | 1 | $28.23 | Add to Cart | |
| H-4 | Cap Mainshaft Rear Bearing | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| H-6 | 40-223-4 | Gasket - Mainshaft Rear Bearing Cap | 1 | $9.44 | Add to Cart | |
| H-6 | 40-223-5 | Gasket - Mainshaft Rear Bearing Cap (brake Only) | 1 | $10.41 | Add to Cart | |
| H-7 | 545002-4 | Bolt - Rear Bearing Cap ( .375-16 X 1 .125) | 4 | $6.93 | Add to Cart | |
| H-9 | 97-454-2-1X | Sleeve & Oil Seal | 1 | — | Call for availability | |
| N .S | 44-539-1 | Cap Speedometer Dust | 1 | $9.19 | Add to Cart | |
| N .S | 55-334-1 | Plug - Speedometer (used Without Driven Gear) | 1 | $88.44 | Add to Cart | |
| N .S | 545106 | Plug Speedometer Outlet (electronic) | 1 | — | Call for availability | |
| H-10 | 550989 | Bearing - Mainshaft Rear | 1 | $72.30 | Add to Cart | |
| N .S | 545021 | Plug Electronic Speedometer (ford) | 1 | $18.89 | Add to Cart | |
| H-12 | 37179 | Tube - Vent (assembly To Front Of Transmission) | 1 | — | Call for availability | |
| H-13 | 545134 | Bolt- Cap (d .c .m Brake) | 2 | $11.12 | Add to Cart | |
| H-13 | 545012 | Plug - Case (rear Holes) | 2 | — | Call for availability |
Countershaft Rear Bearing Cap Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| J-1 | 101-22-1 | Cap - Countershaft Rear Bearing | 1 | $18.10 | Add to Cart | |
| J-2 | 49-228-1-1 | Shim - Countershaft Rear Bearing ( .0055/.0045) | 1 | — | No longer available — call for replacement | |
| J-2 | 49-228-1-2 | Shim - Countershaft Rear Bearing ( .0110/.0090) | 1 | $3.93 | Add to Cart | |
| J-2 | 49-228-1-3 | Shim - Countershaft Rear Bearing ( .0165/.0135) | 1 | — | Call for availability | |
| J-3 | 550978 | Cup - Countershaft Rear Bearing | 1 | $22.03 | Add to Cart | |
| J-4 | 330564-1 | Lift Hook | 1 | $3.15 | Add to Cart | |
| J-5 | 545015 | Bolt- Countershft Rear Bearing Cap ( .375-16 X 1 .00) | 4 | $3.14 | Add to Cart |
Interlock Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| M-1 | 101-200-7 | Plate - Interlock Retainer | 1 | $453.19 | Add to Cart | |
| M-2 | 101-118-1 | Gasket- Case To Interlock Plate (bottom) | 1 | $24.73 | Add to Cart | |
| and | 101-118-2 | Gasket- Case To Interlock Plate (top) | 1 | $27.69 | Add to Cart | |
| M-3 | 545091 | Screw - Drive (interlock Retainer) | 2 | $2.92 | Add to Cart | |
| M-4 | 101-12-1 | Plate - Interlock | 1 | $22.03 | Add to Cart |
Rear Shaft Bar Support Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| N-1 | 49-477-5X | Support - Rear Shift Bar | 1 | — | Call for availability | |
| N-2 | 40-96-1 | Cap - Rear Bar | 1 | $27.89 | Add to Cart | |
| N-3 | 330564-1 | Lift- Hook | 1 | $3.15 | Add to Cart | |
| N-4 | 545002 | Screw- Shift Bar Cap ( .375-16 X 1 .00) | 4 | $1.98 | Add to Cart | |
| N-5 | 545002-9-3 | Screw- Shift Bar Support ( .375-16 X 2 .250) | 4 | — | Call for availability | |
| N-6 | 49-223-1 | Gasket - Shift Bar Cover | 1 | $2.46 | Add to Cart |
Remote Control Assembly
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 40-18-1-1X | Remote Control Cover Assembly 1 1 1 | — | Call for availability | |||
| L-1 | Remote Control Cover 1 1 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | ||
| L-2 | 40-24-1 | Bushing - Remote Control Cover 2 2 2 | — | Call for availability | ||
| L-3 | 28P-19 | Seal - Remote Control Rod 1 1 1 | — | Call for availability | ||
| N .S | 40-65-1-1X | Inner Shifter Shaft, Finger And Key 1 1 1 | — | Call for availability | ||
| L-5 | 500007-19 | Key - Shift Bracket 1 1 1 | — | Call for availability | ||
| L-6 | 40-65-1 | Shaft - Remote Control 1 1 1 | — | Call for availability | ||
| L-7 | 40-6-1 | Finger - Shift 1 1 1 | — | Call for availability | ||
| L-8 | 545063 | Set Screw- - 20 X .72 Square Head 1 1 1 | $6.27 | Add to Cart | ||
| L-9 | 97-483-3 | Boot- Shift Rod 1 1 1 | — | Call for availability | ||
| N .S | LW-3-9 | Lockwire 2 2 2 | — | Call for availability | ||
| L-10 | 40-6-3 | Control Lever 1 - 1 | — | Call for availability | ||
| L-10 | 40-6-5 | Control Lever - 1 - | — | Call for availability | ||
| L-11 | 545136 | Set Screw- 7/1s"- 14 7/a Square Head 1 1 1 | — | Call for availability | ||
| L-12 | 40-65-3-1X | Shift Rod 1 1 - | — | Call for availability | ||
| L-13 | 330938 | Rod End 1 1 - | — | Call for availability | ||
| L-14 | 545001-2 | Bolt- Control Lever (1/2"- 13 X 2 Hex Head) 1 1 - | — | Call for availability | ||
| L-15 | 40-38-2 | Spacer - Control Lever Bolt 1 1 - | — | Call for availability | ||
| L-16 | 500370-5 | Nut- Control Lever And Rod End (1/2"- 13 Hex) 1 1 - | — | Call for availability | ||
| L-17 | 500370-3 | Nut - Tie Rod Assembly Mounting Bolt (%" - 16 Hex) 2 2 - | — | Call for availability | ||
| L-18 | 40-38-3 | Spacer - Tie Rod Assembly Mounting Bolt 2 2 - | — | Call for availability | ||
| L-19 | 545002-5 | Bolt- Tie Rod Assembly (3fe"- 16 X 1 .75 Hex Hed) 2 2 - | $2.49 | Add to Cart | ||
| L-20 | 40-354-3 | Bracket - Tie Rod 1 1 - | — | Call for availability | ||
| L-21 | 40-65-2-1X | Tie Rod Assembly 1 1 - | — | Call for availability | ||
| L-22 | 500371-5 | Nut- Control Shift Rod 1 1 1 | — | Call for availability |
Shift BAR and FORK Assembly
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 56-69-1-1X | Sub Assy. Opti-rail Shift System (includes R-1 Thru R-12) | 1 | $1,107.36 | Add to Cart | ||
| R-1 | 56-69-1X | Sub Assy. - Rail Channel (includes R-2 Thru R-9) | 1 | $513.10 | Add to Cart | |
| R-2 | 101-477-5 | Support - Front Shift Bar | 1 | $16.78 | Add to Cart | |
| R-3 | Rail - Shift 1st/Rev. | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| R-4 | Rail - Shift 2nd/3rd | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| R-5 | Rail - Shift 4th/5th | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| R-6 | Channel | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| R-7 | 49-477-5X | Sub Assy. - Rear Shift Bar Support | 1 | — | Call for availability | |
| R-8 | Spacer - Shift Rail | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| R-9 | Spacer - Shift Rail | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| R-10 | 101-66-27X | Sub Assy. - Shift Fork 1st/Rev 2nd/3rd & Clips | 2 | $92.28 | Add to Cart | |
| R-11 | 101-66-28X | Sub Assy. - Shift Fork 4th/5th & Clips | 1 | $89.97 | Add to Cart | |
| R-12 | 101-999-21 | Cross Slide - Shift Rail | 1 | $44.10 | Add to Cart | |
| N .S | 56-429-1X | Kit Small Parts ES56-5 Opti-rail (includes A-13 Thru R-16) | 1 | — | Call for availability | |
| R-13 | 101-12-1 | Interlock Plate | 1 | $22.03 | Add to Cart | |
| N .S | 101-487-1 | Insert Poppet Spring And Ball | 2 | $3.15 | Add to Cart | |
| R-14 | 101-72-10 | Spring- Poppet | 2 | $6.27 | Add to Cart | |
| R-15 | 101-80-2 | Ball-poppet | 2 | $3.15 | Add to Cart | |
| R-16 | 49-438-1 | Pin - Side Detent | 1 | — | Call for availability | |
| R-17 | 101-200-7 | Plate - Interlock Retainer | 1 | $453.19 | Add to Cart |
Parts Not Included in Tower Assemblies
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 313768-2X | Sub -assembly- Shift Knob (includes P-1 Thru P-5) 1 | 1 | $68.33 | Add to Cart | ||
| P-1 | 390-35 | Handle - Shift Lever 1 | 1 | — | Call for availability | |
| P-2 | 49-20-1 | Insert - Shift Lever Handle (ES43-5 & ES53-5) 1 | 1 | $22.31 | Add to Cart | |
| P-2 | 101-20-9 | Insert- Shift Lever Handle (ES52-7 & ES066-7B) 1 | 1 | $19.60 | Add to Cart | |
| P-3 | 500370-5 | Nut - Shift Knob Retaining 1 | 1 | — | Call for availability | |
| P-3A | 500357-13 | Washer- Shift Lever Retaining (lock Type) 1 | 1 | $2.33 | Add to Cart | |
| P-4 | 204-W | Washer - Shift Knob 1 | 1 | — | Call for availability | |
| P-5 | 201-438-8 | Pin - Shift Knob 1 | 1 | $2.79 | Add to Cart | |
| N .S | 101-17-2-10X | Sub Assembly Shift Tower (includes P-6 Thru P-13) 1 | 1 | $1,186.14 | Add to Cart | |
| P-6 | 101-483-2 | Boot - Shift Tower And Lever 1 | 1 | $26.15 | Add to Cart | |
| P-7 | 530-20 | Pin - Pivot (gimbal) 1 | 1 | — | Call for availability | |
| P-8 | 480-60 | Yoke - Shift (gimbal) 1 | 1 | — | Call for availability | |
| P-9 | 101-17-2 | Tower- Shift (gimbal) 1 | 1 | — | Call for availability | |
| P-10 | 330-15-1 | Tie Cable - Upper 1 | 1 | — | Call for availability | |
| P-11 | 330-15-2 | Tie Cable - Lower 1 | 1 | — | Call for availability | |
| P-12 | 313591X | Kit- Trunion Screws (includes (2) Trunion Screws) 1 | 1 | $62.87 | Add to Cart | |
| P-13 | 545028 | Screw - Shift Tower 4 | 4 | $3.00 | Add to Cart | |
| P-14 | 250-2594-10 | Shift Lever (26 .400" Long) Straight 1 | — | Call for availability | ||
| P-14 | 250-2594-11 | Shift Lever (30. 712" Long) Straight - | 1 | — | Call for availability | |
| P-14 | 2851 | Bulletin - Installation Shift Knob 1 | 1 | — | Call for availability | |
| N .S | 201-483-4 | Boot- Floorboard (oval) | — | Call for availability | ||
| N .S | 201-483-5 | Boot Floorboard {rectangular) | — | Call for availability | ||
| N .S | 101-483-13 | Boot Internal (ups) 1 | 1 | — | Call for availability |
Major Overhaul Kit
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 56-400-1X | Major Overhaul Kit | 1 | $950.66 | Add to Cart | ||
| 501200 | Nut- Mainshaft Output | 1 | $15.74 | Add to Cart | ||
| 53-205-1 | Washer - Mainshaft Nut | 1 | $4.42 | Add to Cart | ||
| 313401-34X | Thrust Washer Kit | 1 | $122.86 | Add to Cart | ||
| 56-429-1X | Shifter Housing Small Parts Kit | 1 | — | Call for availability | ||
| 56-432-1X | Minor Overhaul Kit | 1 | $676.42 | Add to Cart |
Minor Overhaul Kit {included in Major Overhaul Kit)
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 56-432-1X | Minor Overhaul Kit | 1 | $676.42 | Add to Cart | ||
| 56-482-1 | Mainshaft Pocket | 1 | — | Call for availability | ||
| 550989 | Mainshaft Rear Cone | 1 | — | Call for availability | ||
| 101-482-1 | Drive Gear Front | 1 | $128.90 | Add to Cart | ||
| 550963 | Mainshaft 2nd & Reverse | 2 | — | Call for availability | ||
| 550886 | Reverse Idler Gear | 2 | — | Call for availability | ||
| 550868 | Countershaft Rear & Front - Cone | 2 | — | Call for availability | ||
| 550978 | Countershaft Rear & Front - Cup | 2 | — | Call for availability | ||
| 550968 | Mainshaft 3rd Needle | 1 | — | Call for availability | ||
| 550991 | Mainshaft 1 St Speed | 1 | — | Call for availability | ||
| 550990 | Mainshaft 4th Speed | 1 | $21.96 | Add to Cart | ||
| 101-486-1 | Clip - Shift Fork | 6 | $9.90 | Superseded by 10148611XAdd to Cart | ||
| 60-463-10-1X | Seal - Drive Gear | 1 | $37.74 | Add to Cart | ||
| 63-463-1 | Seal - Mainshaft Rear | 1 | $28.23 | Add to Cart | ||
| 545077 | #2. Moly Grease (packet) | 1 | — | Call for availability | ||
| 545080-1 | Loctite - Threadlock Adhesive (vial) | 1 | — | Call for availability | ||
| 312475-47X | Gasket Kit | 1 | $203.31 | Add to Cart | ||
| 313438-3X | Shim Kit - Countershaft Rear | 1 | $7.85 | Add to Cart | ||
| 56-381-2X | Snap Ring - Kit | 1 | $34.11 | Add to Cart | ||
| 2770 | Bulletin - Bearing Lube Instruction | 1 | — | Call for availability | ||
| 2783 | Bulletin - Loctite Application For Mainshaft Nut | 1 | — | Call for availability | ||
| 313401-34X | Thrust Washer Kit {included In Major Overhaul Kit) | 1 | $122.86 | Add to Cart | ||
| 49-47-2 | Mainshaft - 3rd & 4th Speed | 1 | $36.17 | Add to Cart | ||
| 49-47-1 | Mainshaft - 1st & 2nd Speed | 1 | — | Call for availability | ||
| 101-47-4 | Mainshaft - Reverse | 1 | — | Call for availability | ||
| 545087 | Pin - Lock | 2 | $5.49 | Add to Cart | ||
| 56-429-1X | Shifter Housing Small Parts {included In Major Overhaul Kit) | 1 | — | Call for availability | ||
| 101-80-2 | Ball - Poppet | 2 | $3.15 | Add to Cart | ||
| 101-487-1 | Insert - Poppet Spring And Ball | 2 | $3.15 | Add to Cart | ||
| 49-438-1 | Pin - 1st And Reverse Select Plunger | 1 | — | Call for availability | ||
| 101-72-10 | Spring - Shift Bar Poppet | 2 | $6.27 | Add to Cart | ||
| 30-72-6 | Spring - 1st & Reverse Shift Finger Plunger | 1 | $2.72 | Add to Cart |
Overhaul Kits
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 312475-47X | Gasket Kit (included In Minor Overhaul Kit) | 1 | $203.31 | Add to Cart | ||
| 40-223-4 | Mainshaft Rear Bearing Cap | 1 | $9.44 | Add to Cart | ||
| 40-223-5 | Mainshaft Rear Bearing Cap (d .c .m Brake) | 1 | — | Call for availability | ||
| 101-118-1 | Tower | 1 | $24.73 | Add to Cart | ||
| 101-118-2 | Tower | 1 | $27.69 | Add to Cart | ||
| 545056-10 | Anaerobic Sealant | 1 | — | Call for availability | ||
| 49-223-1 | Gasket - Shift Bar Cover | 1 | $2.46 | Add to Cart | ||
| 2792 | Bulletin - Liquid Gasket | 1 | — | Call for availability | ||
| 56-381-2X | Snap Ring Kit (included In Minor Overhaul Kit) | 1 | $34.11 | Add to Cart | ||
| 40-381-3 | Mainshaft 3rd & 4th Thrust Washer | 1 | — | Call for availability | ||
| 56-381-1 | Countershaft Head End Gear | 1 | — | Call for availability | ||
| 40-381-4 | Mainshaft 2nd & 3rd Clutch Gear | 1 | $2.39 | Add to Cart | ||
| 49-381-1 | Main Shaft 1st & 2nd Speed Thrust Washer | 1 | — | Call for availability | ||
| 82-381-2 | Mainshaft Front Bearing | 1 | $6.64 | Add to Cart | ||
| 40-381-1 | 4th & 5th Gear | 1 | — | Call for availability | ||
| 313438-3X | Shim Kit (included In Minor Overhaul Kit) | 1 | $7.85 | Add to Cart | ||
| 49-228-1-3 | Countershaft Rear Bearing Cap ( .0165/.0135) | 1 | — | Call for availability | ||
| 49-228-1-2 | Countershaft Rear Bearing Cap (.011 0/.0090) | 1 | — | Call for availability | ||
| 49-228-1-1 | Countershaft Rear Bearing Cap ( .055/.0045) | 1 | — | No longer available — call for replacement | ||
| 2793 | Bulletin - Countershaft Shim Kit | 1 | — | Call for availability |
Breakdown of Oil Seals in the Minor Overhaul Kit
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 60-463-10-1X | Sub Assembly - Oil Seal & Installation Sleeve | 1 | $37.74 | Add to Cart | ||
| 60-463-10 | Seal - Drive Gear Bearing Cap | 1 | — | Call for availability | ||
| 40-204-1 | Sleeve - Oil Seal Installation (1 .75 Diameter Shaft) | 1 | — | Call for availability | ||
| 40-204-2 | Sleeve - Oil Seal Installation (1 .50 Diameter Shaft) | 1 | — | Call for availability | ||
| 2821 | Bulletin - Oil Seal Installation Instruction | 1 | — | Call for availability | ||
| 40-204-3 | Sleeve - Oil Seal Installation (1 .375 Diameter Shaft) | 1 | — | Call for availability |
Tabulated Bills of Material
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| -1 | 40-19-53-2X | 53 -452 -5 | $390.47 | Add to Cart | ||
| -2 | 40-19-42-2X | 53-452 -5 | $229.19 | Add to Cart | ||
| -3 | 40-19-41-2X | 53-452 -5 | — | No longer available — call for replacement | ||
| -4 | 40-19-43-2X | 53-452 -5 | $177.21 | Add to Cart | ||
| -5 | 40-19-53-2X | 53-452 -5 | $390.47 | Add to Cart | ||
| -26 | 201-37-7 | 53-452 -5 | — | Call for availability |
No parts match that search — try the part number with no dashes.
This is the complete factory parts breakdown for the Spicer Transmission ES46-5A — every part in the manual, matched to our live inventory. We stock 152 of the 258 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
This is the Spicer Illustrated Parts List covering the ES46-5A transmission. Use it to identify every serviceable part in your unit — assemblies, gears, shafts, housings and seals — before you order replacements.
| Models covered | ES46-5A |
| Transmission type | 5-speed, twin-countershaft, heavy duty |
| Document | Illustrated Parts List (Spicer) |
| Length | 26 pages |
| Format | PDF — free download |
What’s inside
- Service kits & assemblies with recommended stocking quantities
- Mainshaft & countershaft gear groups
- Drive gears, idler & auxiliary drive gears
- Case, clutch & shift-bar housings
- Shift lever, forks & selector assemblies
- Bearings, seals, snap rings & small parts
- Air-shift and range-control components (where fitted)
- Exploded parts diagrams with OEM part numbers
Spicer parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Spicer transmission units:
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert — send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
