Eaton Fuller FS-6305A Parts Manual
This is the Eaton Fuller Illustrated Parts List covering the FS-6305A transmission. Use it to identify every serviceable part in your unit — assemblies, gears, shafts, housings and seals — before you order replacements.
| Models covered | FS-6305A |
| Transmission type | 5-speed, twin-countershaft, heavy duty |
| Document | Illustrated Parts List (Eaton Fuller) |
| Length | 19 pages |
| Format | PDF — view below or download free |
What’s inside
- Service kits & assemblies with recommended stocking quantities
- Mainshaft & countershaft gear groups
- Drive gears, idler & auxiliary drive gears
- Case, clutch & shift-bar housings
- Shift lever, forks & selector assemblies
- Bearings, seals, snap rings & small parts
- Air-shift and range-control components (where fitted)
- Exploded parts diagrams with OEM part numbers
Read the manual
This is the complete factory parts breakdown for the Eaton Fuller FS-6305A — every part in the manual, matched to our live inventory. We stock 196 of the 218 parts below; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
Case Countershaft Assy Input Shaft Kits & Assemblies Lever Assy Mainshaft Assy Miscellaneous Remote Control Reverse Idler Gear Assy Shift Bar Housing
No parts match that search — try the part number with no dashes.

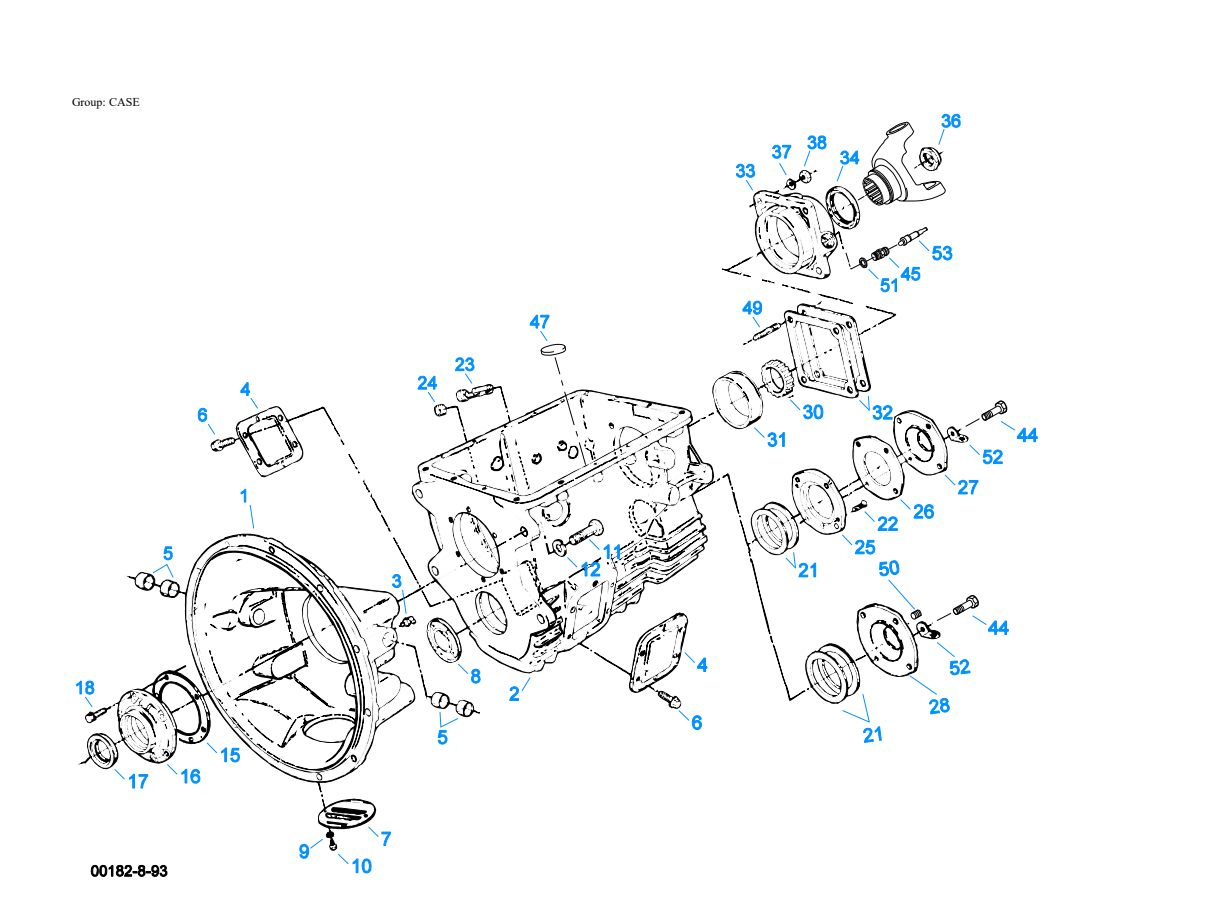

Case
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-5631 | Clutch Hsg Assy | 1 | Replaces 23723. #2 PULL-IRON, W/90 DEG FITTINGS | $402.19 | Add to Cart |
| 1 | A-5634 | Clutch Hsg Assy | 1 | Replaces 23726, 3316236, 3316237, A-5632, A-5771. #2 ALUMINUM, ABOVE CENTER LINE PULL TYPE | $429.71 | Add to Cart |
| 1 | A-6228 | Clutch Hsg Assy | 1 | Replaces 23723. #2 PULL-IRON, W/45 DEG FITTINGS | $660.36 | Add to Cart |
| 1 | A-7514 | Clutch Hsg Assy | 1 | Replaces 3316241. #2 ALUMINUM, PUSH TYPE (FORK) | — | No longer available — call for replacement |
| 2 | S-2952 | Case Assy | 1 | Replaces 3316276, 4301285, 4304643, 4305177. | $1,717.12 | Add to Cart |
| 3 | 4300301 | FITTING-45 Degree | 2 | Replaces 11H15. | $5.45 | Add to Cart |
| 3 | 4872 | FITTING-90 Degree | 2 | Replaces 12H15. | $3.41 | Add to Cart |
| 4 | 201398 | Pto Cover | 2 | $9.08 | Add to Cart | |
| 5 | 12815 | Bushing | 4 | $5.26 | Add to Cart | |
| 6 | 239613 | Capscrew | 12 | 3/8"-16X5/8" | $4.45 | Add to Cart |
| 7 | 23380 | Cover | 1 | Replaces 206466. | $5.20 | Add to Cart |
| 8 | 3315679 | Plug | 1 | $5.72 | Add to Cart | |
| 9 | X-3-400 | Lockwasher | 2 | Replaces 4E04. 1/4" | $1.17 | Add to Cart |
| 10 | 1C408 | Capscrew | 2 | 1/4"-20 | $1.41 | Add to Cart |
| 11 | X-8-1011 | Capscrew | 4 | Replaces 1C1036. 5/8"-11X2-1/4" | $3.64 | Add to Cart |
| 12 | X-3-1000 | Lockwasher | 4 | 5/8" | $1.69 | Add to Cart |
| 15 | 3315659 | Gasket | 1 | $2.58 | Add to Cart | |
| 16 | 3316171 | Front Brg Cover-pull | 1 | USE 4300121 OIL SEAL | — | Call for availability |
| 16 | 3316313 | Front Brg Cover-push | 1 | USE 4300798 OIL SEAL | $511.80 | Add to Cart |
| 16 | 4300888 | Front Brg Cover-pull | 1 | USE 4300121 OR 4300204 OIL SEAL | $203.38 | Add to Cart |
| 16 | 4301144 | Front Brg Cover-pull | 1 | USE 4300121 OIL SEAL | $148.24 | Add to Cart |
| 16 | 4302356 | Front Brg Cover-pull | 1 | USE 4300121 OIL SEAL | $125.76 | Add to Cart |
| 17 | 4300121 | Oil Seal | 1 | Replaces 3315623. SHAFT 1.873, WIDTH .375, OD 2.68 | $9.12 | Add to Cart |
| 17 | 4300204 | Oil Seal | 1 | Replaces 235394. SHAFT 1.873, WIDTH .375 | $7.21 | Add to Cart |
| 17 | 4300798 | Oil Seal | 1 | Replaces 235393. SHAFT 1.625, WIDTH .375 | $6.14 | Add to Cart |
| 18 | 239614 | Screw | 6 | 5/16-18X.81 | $7.31 | Add to Cart |
| 21 | 3315681 | Shim .004 | 1 | QUANTITY AS REQUIRED | $3.01 | Add to Cart |
| 21 | 3315682 | Shim .007 | 1 | QUANTITY AS REQUIRED | $2.24 | Add to Cart |
| 21 | 3315683 | Shim .010 | 1 | QUANTITY AS REQUIRED | $3.06 | Add to Cart |
| 21 | 3315684 | Shim .020 | 1 | QUANTITY AS REQUIRED | $3.74 | Add to Cart |
| 21 | 4300977 | Shim .040 | 1 | $3.34 | Add to Cart | |
| 22 | 9G416H | Screw | 2 | 1/4"-20X1" | $6.60 | Add to Cart |
| 23 | X-12-1207 | Pipe Plug | 1 | Replaces X121202X121206. 3/4" MAGNETIC | $4.53 | Add to Cart |
| 24 | X-12-1210 | Pipe Plug | 1 | Replaces X121206. | $4.89 | Add to Cart |
| 25 | 4301607 | C/s Rear Brg Cover | 1 | Replaces K-3430. | $72.73 | Add to Cart |
| 26 | 3315671 | Gasket | 1 | $5.69 | Add to Cart | |
| 27 | 4301607 | C/s Rear Brg Cover | 1 | Replaces K-3430. | $72.73 | Add to Cart |
| 28 | 4301607 | C/s Rear Brg Cover | 1 | $72.73 | Add to Cart | |
| 30 | 3316160 | Speedo Rotor | 1 | 16 TEETH | $71.38 | Add to Cart |
| 30 | 3316283 | Speedo Drive Gear | 1 | 6 TEETH | $84.78 | Add to Cart |
| 30 | 5501508 | No Longer Available | 1 | — | Call for availability | |
| 30 | 5501516 | No Longer Available | 1 | — | Call for availability | |
| 30 | 86302 | Speedo Drive Gear | 1 | 5 TEETH | $118.45 | Add to Cart |
| 30 | 86307 | Speedo Drive Gear | 1 | $110.80 | Add to Cart | |
| 30 | 86313 | No Longer Available | 1 | 6 TEETH | — | Call for availability |
| 31 | 711123 | Bearing Cup | 1 | — | Call for availability | |
| 32 | 3315662 | Shim .004 | 1 | QUANTITY AS REQUIRED | $5.74 | Add to Cart |
| 32 | 3315663 | Shim .007 | 1 | QUANTITY AS REQUIRED | $6.73 | Add to Cart |
| 32 | 3315664 | Shim .010 | 1 | QUANTITY AS REQUIRED | $3.71 | Add to Cart |
| 32 | 3315665 | Shim .020 | 1 | QUANTITY AS REQUIRED | $5.51 | Add to Cart |
| 32 | 4300978 | Shim .040 | 1 | $12.31 | Add to Cart | |
| 33 | 21901 | No Longer Available | 1 | USE 4300119 OIL SEAL | — | Call for availability |
| 33 | 21947 | Rear Brg Cover | 1 | USE 4300119 OIL SEAL | $319.65 | Add to Cart |
| 33 | 22020 | Rear Brg Cover | 1 | USE 4300119 OIL SEAL | $199.60 | Add to Cart |
| 33 | 3316278 | Rear Brg Cover | 1 | USE 4300119 OIL SEAL | $198.89 | Add to Cart |
| 33 | K-7044 | Rear Brg Cover Kit | 1 | Replaces 4302620. USE 4300119 OIL SEAL NOTE: PUSH- IN TYPE SPEEDO SENSOR | $276.42 | Add to Cart |
| 33 | K-7045 | Rear Brg Cover Kit | 1 | Replaces 4302621. USE 4300119 OIL SEAL NOTE: PUSH- IN TYPE SPEEDO SENSOR | $158.90 | Add to Cart |
| 33 | S-7036 | Rear Brg Cover Assy | 1 | Replaces 21979, 4302005. USE 4300119 OIL SEAL NOTE: SENSOR SEAL REQUIRED | $329.08 | Add to Cart |
| 33 | S-7037 | Rear Brg Cover Assy | 1 | Replaces 3315657, 4302029. USE 4300119 OIL SEAL NOTE: SENSOR SEAL REQUIRED | $216.02 | Add to Cart |
| 34 | 4300119 | Oil Seal | 1 | SHAFT 2.753, WIDTH .5 | $11.37 | Add to Cart |
| 36 | 21937 | Nut | 1 | Replaces 216053, 235656, 238026. 1-1/4"-18 | $20.79 | Add to Cart |
| 37 | 239436 | Washer | 4 | 1/2" | $2.49 | Add to Cart |
| 38 | 86D8 | Nut | 4 | Replaces 86D08. 1/2"-20 | $2.63 | Add to Cart |
| 44 | X-8C-604 | Capscrew | 4 | 3/8"-16X1-1/4" | $3.74 | Add to Cart |
| 45 | 3316225 | Sleeve | 1 | $38.30 | Add to Cart | |
| 45 | 86147 | Sleeve | 1 | $86.48 | Add to Cart | |
| 47 | 14373 | Magnet | 1 | $3.89 | Add to Cart | |
| 49 | 239433 | Stud | 4 | 1/2"-20X2-5/16" | $5.16 | Add to Cart |
| 50 | X-12-405 | Pipe Plug | 1 | $2.19 | Add to Cart | |
| 51 | 4301954 | Sensor Seal | 1 | $4.84 | Add to Cart | |
| 52 | 238370 | Lifting Eye | 1 | $4.99 | Add to Cart | |
| 53 | 5501506 | No Longer Available | 1 | — | Call for availability | |
| 53 | 5501507 | No Longer Available | 1 | — | Call for availability | |
| 53 | 5501513 | No Longer Available | 1 | — | Call for availability | |
| 53 | 86303 | Speedo Driven Gear | 1 | 15 TEETH | $73.23 | Add to Cart |
| 53 | 86309 | No Longer Available | 1 | 12 TEETH | — | Call for availability |
| 53 | 86315 | No Longer Available | 1 | — | Call for availability |

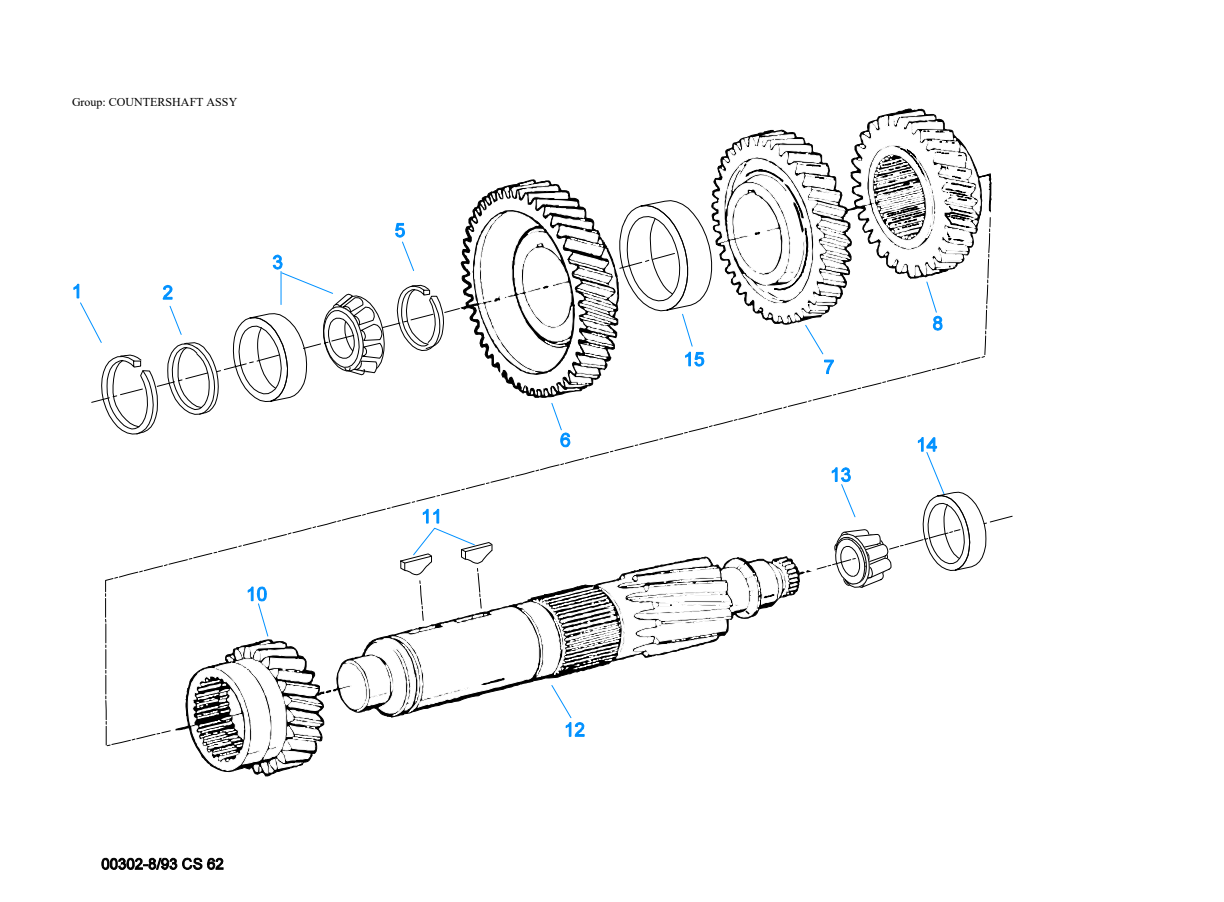

Countershaft Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 3315686 | Snap Ring | 1 | $5.26 | Add to Cart | |
| 2 | 3315687 | Washer | 1 | $20.36 | Add to Cart | |
| 3 | K-3795 | Countershaft Brg Kit | 1 | Replaces 1313645, 791943. | $34.45 | Add to Cart |
| 5 | 3315752 | Snap Ring | 1 | Replaces 3315751. | $5.01 | Add to Cart |
| 6 | 3316196 | Drive Gear-cntrshft | 1 | $170.73 | Add to Cart | |
| 7 | 3316198 | 4TH Gear-cntrshft | 1 | $163.47 | Add to Cart | |
| 8 | 3316200 | 3RD Gear-cntrshft | 1 | $153.83 | Add to Cart | |
| 10 | 3316202 | 2ND Gear-cntrshft | 1 | $142.66 | Add to Cart | |
| 11 | 230292 | Key | 2 | $4.27 | Add to Cart | |
| 12 | 3316194 | Countershaft | 1 | $734.60 | Add to Cart | |
| 13 | 658981 | Bearing Cone | 1 | — | Call for availability | |
| 14 | 660181 | Bearing Cup | 1 | — | Call for availability | |
| 15 | 3316251 | Spacer | 1 | $57.52 | Add to Cart |
Input Shaft
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 675250 | Bearing Cup | 1 | 1.75" INPUT | — | Call for availability |
| 2 | 742259 | Bearing Cone | 1 | 1.75" INPUT | — | Call for availability |
| 3 | 4301748 | Input SHAFT-1.75" Pull | 1 | USE 3316171 FRONT BRG COVER | $293.21 | Add to Cart |
| 3 | 4301750 | Input SHAFT-1.75" Pull | 1 | USE 4300888 OR 4301144 FRONT BRG COVER | $292.31 | Add to Cart |
Kits & Assemblies
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-2183 | Shim Kit | 1 | $65.70 | Add to Cart | ||
| K-2406 | Oil Seal Kit | 1 | Replaces 20807, 20808. | $30.59 | Add to Cart | |
| K-3421 | Synchronizer Kit | 1 | Replaces K-7004. | $515.53 | Add to Cart | |
| K-3795 | Countershaft Brg Kit | 1 | Replaces 1313645, 791943. | $34.45 | Add to Cart | |
| K-7026 | Small Parts Kit | 1 | $154.18 | Add to Cart | ||
| K-7027 | Synchronizer Kit | 1 | — | No longer available — call for replacement | ||
| K-7028 | Gasket Kit | 1 | $17.54 | Add to Cart | ||
| K-7035 | Basic Rebuild Kit | 1 | $519.57 | Add to Cart | ||
| K-7036 | Synchronizer Kit | 1 | — | No longer available — call for replacement | ||
| K-7044 | Rear Brg Cover Kit | 1 | Replaces 4302620. | $276.42 | Add to Cart | |
| K-7045 | Rear Brg Cover Kit | 1 | Replaces 4302621. | $158.90 | Add to Cart | |
| K-7061 | Shift Lever Hsg Kit | 1 | Replaces 241075, 4302711, A-6439. ALUMINUM HOUSING MEDIUM - LEVER HEIGHT 3-1/8" | $54.04 | Add to Cart | |
| K-7062 | Shift Lever Hsg Kit | 1 | Replaces 233080, 4302711, A-6440. ALUMINUM HOUSING HIGH - LEVER HEIGHT 3-1/2" | $127.25 | Add to Cart | |
| K-7069 | Remote Control Kit | 1 | Replaces A-5403. LEVER HEIGHT 85MM (3.35") | $510.56 | Add to Cart | |
| S-1578 | Shift Lever Assy 3-1/2" | 1 | COMPLETE ASSY - ALUMINUM HOUSING HIGH - LEVER HEIGHT 3- 1/2" 27-1/2" STRAIGHT LEVER - "BEND TO SUIT" 3/8" X 24 THREAD | $494.57 | Add to Cart | |
| S-1827 | Shift Lever Assy 3-1/8" | 1 | Replaces S-7079. COMPLETE ASSY - ALUMINUM HOUSING MEDIUM - LEVER HEIGHT 3-1/8" 27-1/2" STRAIGHT LEVER - "BEND TO SUIT" 3/8" X 24 THREAD | $483.17 | Add to Cart | |
| S-2952 | Case Assy | 1 | Replaces 3316276, 4301285, 4304643, 4305177. | $1,717.12 | Add to Cart | |
| S-7028 | Shift Bar Hsg Assy | 1 | Replaces 3315760. COMPLETE | $1,161.58 | Add to Cart | |
| S-7036 | Rear Brg Cover Assy | 1 | Replaces 21979, 4302005. | $329.08 | Add to Cart | |
| S-7037 | Rear Brg Cover Assy | 1 | Replaces 3315657, 4302029. | $216.02 | Add to Cart | |
| S-7045 | Shift Lever Assy 2-7/8" | 1 | COMPLETE ASSY - ALUMINUM HOUSING LOW - LEVER HEIGHT 2- 7/8" 33" STRAIGHT LEVER - "BEND TO SUIT" 3/8" X 24 THREAD | $548.46 | Add to Cart |

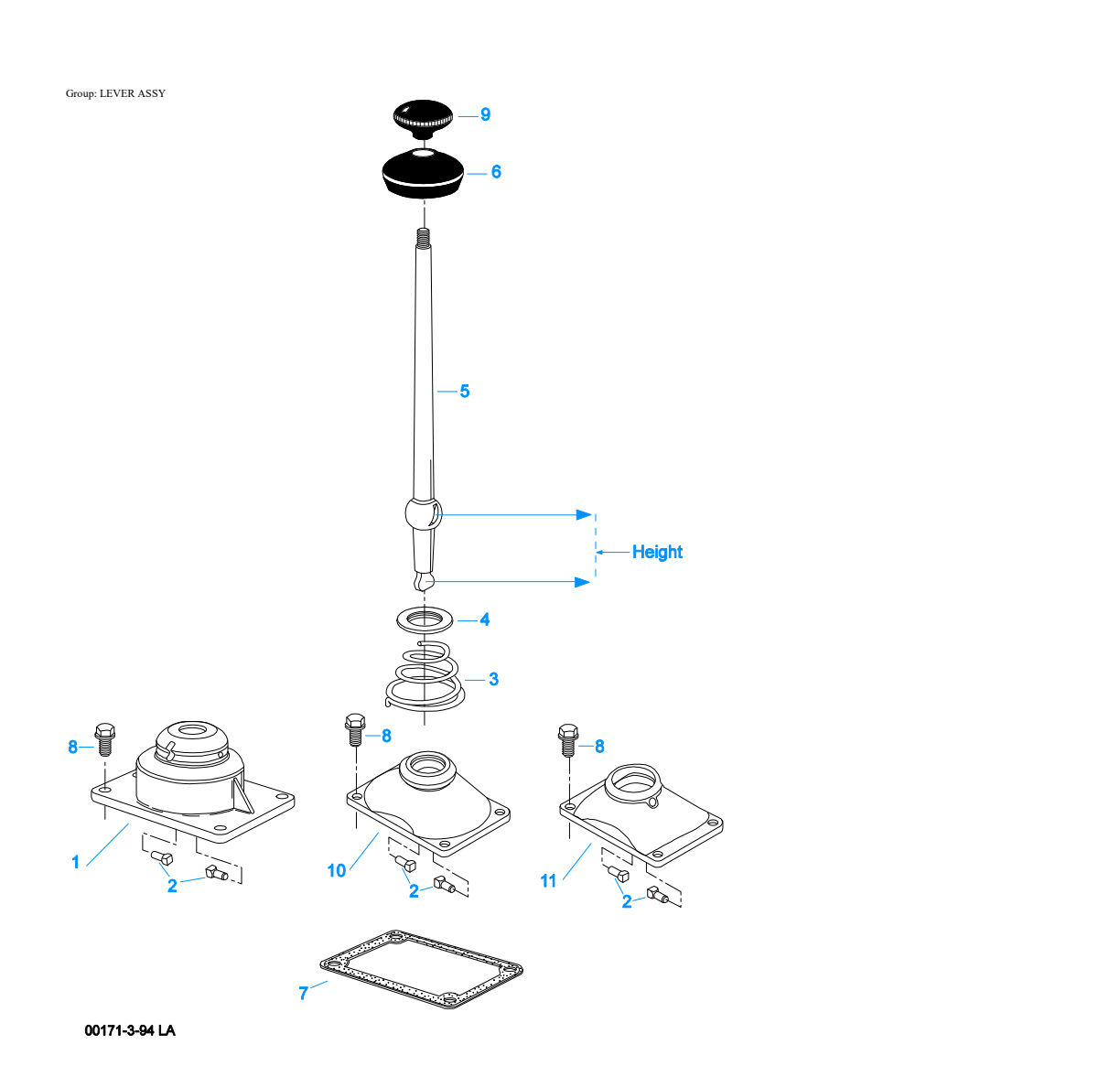

Lever Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-7062 | Shift Lever Hsg Kit | 1 | Replaces 233080, 4302711, A-6440. ALUMINUM HOUSING HIGH - LEVER HEIGHT 3-1/2" | $127.25 | Add to Cart |
| 2 | 201054 | Pin | 2 | FOR HSGS WITHOUT PIN SLEEVES | $5.88 | Add to Cart |
| 2 | 23180 | Pin | 2 | FOR HSGS WITH PIN SLEEVES | $4.86 | Add to Cart |
| 3 | 4300690 | Spring | 1 | Replaces 229337. | $9.49 | Add to Cart |
| 4 | 23181 | Washer | 1 | $2.77 | Add to Cart | |
| 5 | 21722 | Shift Lever 27-1/2" | 1 | USE WITH K-7062 STRAIGHT LEVER - "BEND TO SUIT" | $369.68 | Add to Cart |
| 5 | 228648 | Gear Shift Lever | 1 | USE WITH 233080 STRAIGHT LEVER - "BEND TO SUIT" | — | No longer available — call for replacement |
| 5 | 241076 | Shift Lever 27-1/2" | 1 | USE WITH K-7061 STRAIGHT LEVER - "BEND TO SUIT" | $369.68 | Add to Cart |
| 5 | 4302823 | Shift Lever 33" | 1 | USE WITH A-6448 STRAIGHT LEVER - "BEND TO SUIT" | $369.68 | Add to Cart |
| 6 | 202484 | Dust Cover | 1 | $7.34 | Add to Cart | |
| 7 | 4301958 | Gasket | 1 | $13.93 | Add to Cart | |
| 8 | X-8C-604 | Capscrew | 4 | 3/8"-16X1-1/4" | $3.74 | Add to Cart |
| 9 | 201401 | Shift Knob | 1 | 3/8"X24 THREAD | $19.73 | Add to Cart |
| 10 | K-7061 | Shift Lever Hsg Kit | 1 | Replaces 241075, 4302711, A-6439. ALUMINUM HOUSING MEDIUM - LEVER HEIGHT 3-1/8" | $54.04 | Add to Cart |
| 11 | K-7065 | Shift Lever Hsg Kit | 1 | Replaces 4302704, 4302711, A-6448. ALUMINUM HOUSING LOW - LEVER HEIGHT 2-7/8" | $52.90 | Add to Cart |

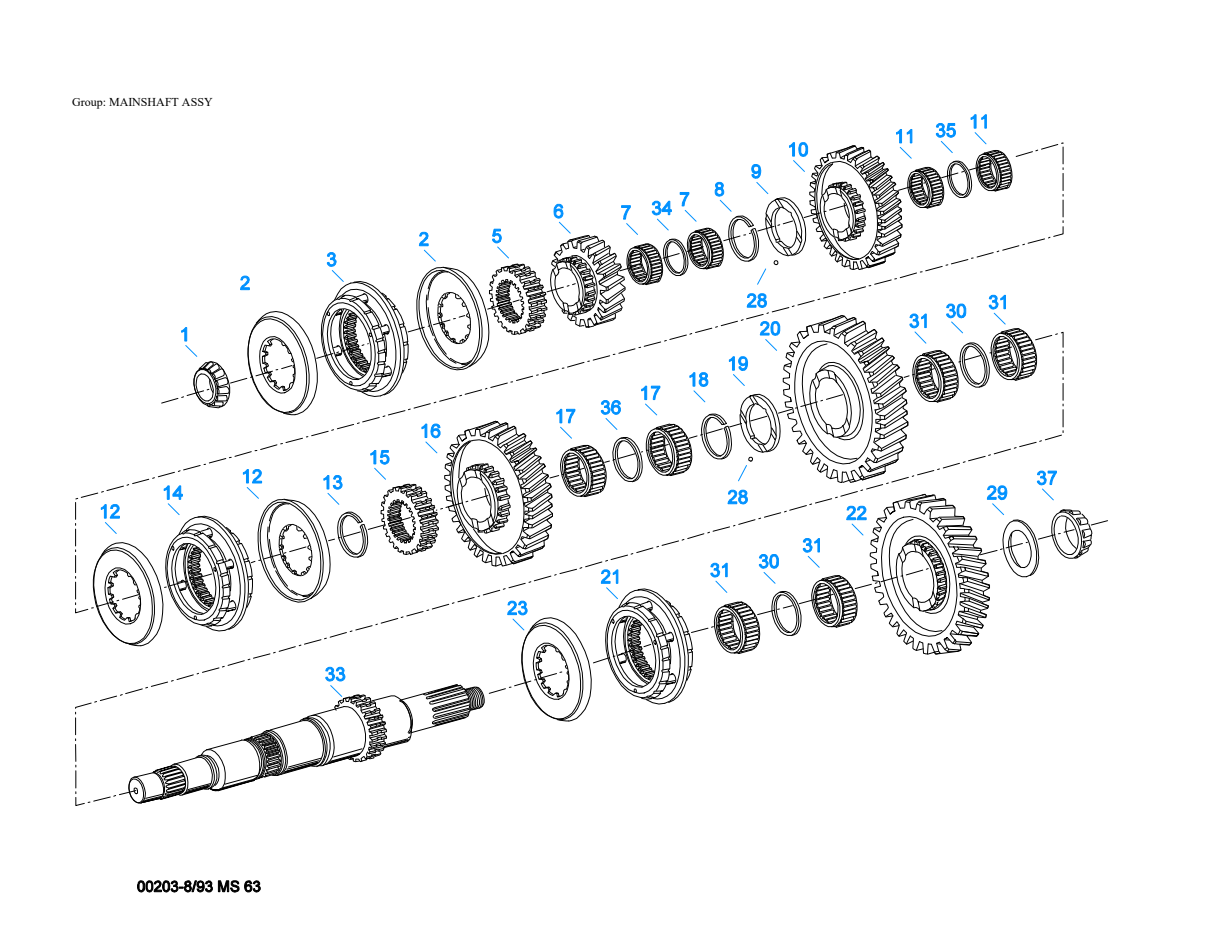

Mainshaft Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 710787 | Bearing Cone | 1 | $35.16 | Add to Cart | |
| 2 | 4301467 | Synchronizer Cup | 2 | $44.85 | Add to Cart | |
| 3 | A-6608 | Synchronizer Assy 4/5 | 1 | Replaces A-6137. | $370.99 | Add to Cart |
| 5 | 4301766 | Clutch Hub 4/5 | 1 | $68.57 | Add to Cart | |
| 6 | 4301759 | 4TH Gear-mainshaft | 1 | $185.33 | Add to Cart | |
| 7 | 3315737 | Bearing | 2 | $26.96 | Add to Cart | |
| 8 | 3315728 | Snap Ring | 1 | Replaces 3315729. | $3.06 | Add to Cart |
| 9 | 3315727 | Washer | 1 | $28.00 | Add to Cart | |
| 10 | 4301761 | 3RD Gear-mainshaft | 1 | $199.73 | Add to Cart | |
| 11 | 4124075 | Bearing | 2 | $34.53 | Add to Cart | |
| 12 | 4301466 | Synchronizer Cup | 2 | $49.75 | Add to Cart | |
| 13 | 3315725 | Snap Ring | 1 | $3.33 | Add to Cart | |
| 14 | A-6136 | Synchronizer Assy 2/3 | 1 | Replaces 4301457, 4304050, 4304452. | $441.59 | Add to Cart |
| 15 | 4301765 | Clutch Hub 2/3 | 1 | $59.65 | Add to Cart | |
| 16 | 4301762 | 2ND Gear-mainshaft | 1 | $243.11 | Add to Cart | |
| 17 | 3315722 | Bearing | 2 | $19.60 | Add to Cart | |
| 18 | 3315717 | Snap Ring | 1 | Replaces 3315718. | $4.63 | Add to Cart |
| 19 | 3315719 | Washer | 1 | $42.55 | Add to Cart | |
| 20 | 4301763 | 1ST Gear-mainshaft | 1 | $337.47 | Add to Cart | |
| 21 | A-6154 | Synchronizer Assy 1/REV | 1 | $388.66 | Add to Cart | |
| 22 | 4301764 | Reverse Gear- Mainshaft | 1 | $455.09 | Add to Cart | |
| 23 | 4301465 | Synchronizer Cup | 1 | $66.94 | Add to Cart | |
| 28 | 10J06 | Steel Ball | 2 | 3/16" | $1.71 | Add to Cart |
| 29 | 3315704 | Washer | 1 | $45.54 | Add to Cart | |
| 30 | 21738 | Spacer | 2 | $32.47 | Add to Cart | |
| 31 | 3315703 | Bearing | 4 | $40.64 | Add to Cart | |
| 33 | 4301758 | Mainshaft | 1 | $547.98 | Add to Cart | |
| 34 | 21741 | Spacer | 1 | $39.55 | Add to Cart | |
| 35 | 21740 | Spacer | 1 | $39.70 | Add to Cart | |
| 36 | 21739 | Spacer | 1 | $36.27 | Add to Cart | |
| 37 | 5557003 | Bearing Cone | 1 | — | Call for availability |
Miscellaneous
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 71203 | Silicone Lube | 1 | 8 OZ (236.59 CC)-FLEET SIZE | $46.48 | Add to Cart | |
| 71204 | Adhesive Sealant | 1 | 0.5 CC (SINGLE APPLICATION SIZE) | $10.64 | Add to Cart | |
| 71205 | Sealant | 1 | 2 CC (SINGLE APPLICATION SIZE) | $10.82 | Add to Cart | |
| 71206 | Silicone Lube | 1 | 4 CC (SINGLE APPLICATION SIZE) | $4.23 | Add to Cart | |
| 71231 | Gasket Sealant | 1 | 8 MILLILITER SIZE | $33.25 | Add to Cart | |
| 71232 | Thread Adhesive | 1 | 10 MILLILITER SIZE | $28.73 | Add to Cart |

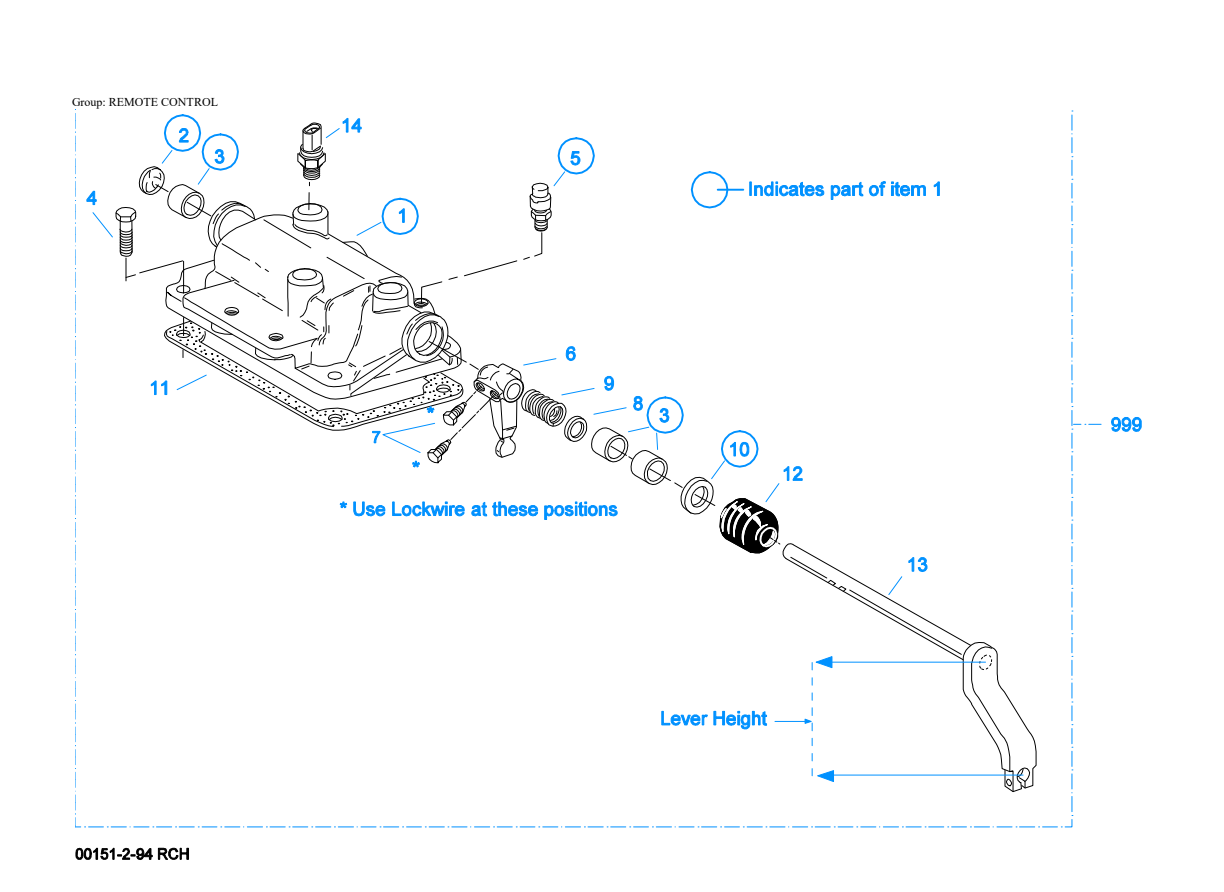

Remote Control
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 3316308 | Control Housing Assy | 1 | Replaces 221153316309. | $155.91 | Add to Cart |
| 2 | 12F100 | Plug 1" | 1 | $2.88 | Add to Cart | |
| 3 | 3312252 | Bushing | 3 | $5.88 | Add to Cart | |
| 4 | X-8C-604 | Capscrew | 4 | 3/8"-16X1-1/4" | $3.74 | Add to Cart |
| 5 | 3315948 | Breather | 1 | $14.64 | Add to Cart | |
| 6 | 3316290 | Shift Finger | 1 | $108.97 | Add to Cart | |
| 7 | 3315272 | Screw | 2 | $5.85 | Add to Cart | |
| 8 | 3312745 | Washer | 1 | $4.32 | Add to Cart | |
| 9 | 3315837 | Spring | 1 | $7.74 | Add to Cart | |
| 10 | 3312225 | Oil Seal | 1 | $11.35 | Add to Cart | |
| 11 | 4301958 | Gasket | 1 | $13.93 | Add to Cart | |
| 12 | 3314302 | Boot | 1 | $8.81 | Add to Cart | |
| 13 | A-5312 | Shaft & Lever Assy | 1 | LEVER HEIGHT 85MM (3.35") | $122.12 | Add to Cart |
| 13 | A-6230 | No Longer Available | 1 | LEVER HEIGHT 3.0" | — | Call for availability |
| 999 | A-6229 | No Longer Available | 1 | LEVER HEIGHT 3.0" | — | Call for availability |
| 999 | K-7069 | Remote Control Kit | 1 | Replaces A-5403. LEVER HEIGHT 85MM (3.35") | $510.56 | Add to Cart |

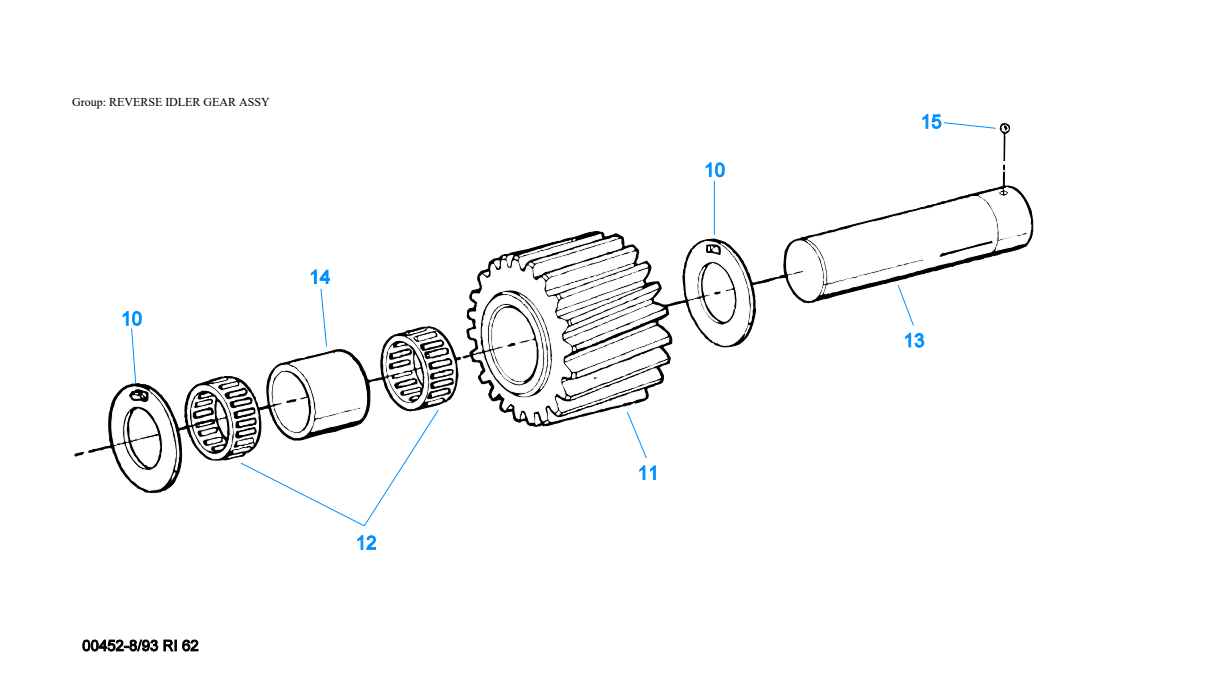

Reverse Idler Gear Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 10 | 3315673 | Washer | 2 | $24.98 | Add to Cart | |
| 11 | 4305252 | Reverse Idler Gear | 1 | Replaces 3316163. | $210.21 | Add to Cart |
| 12 | 3315674 | Bearing | 2 | $19.40 | Add to Cart | |
| 13 | 3315672 | Reverse Idler Shaft | 1 | $133.45 | Add to Cart | |
| 14 | 3315676 | Spacer | 1 | $22.06 | Add to Cart | |
| 15 | 10J06 | Steel Ball | 1 | 3/16" | $1.71 | Add to Cart |

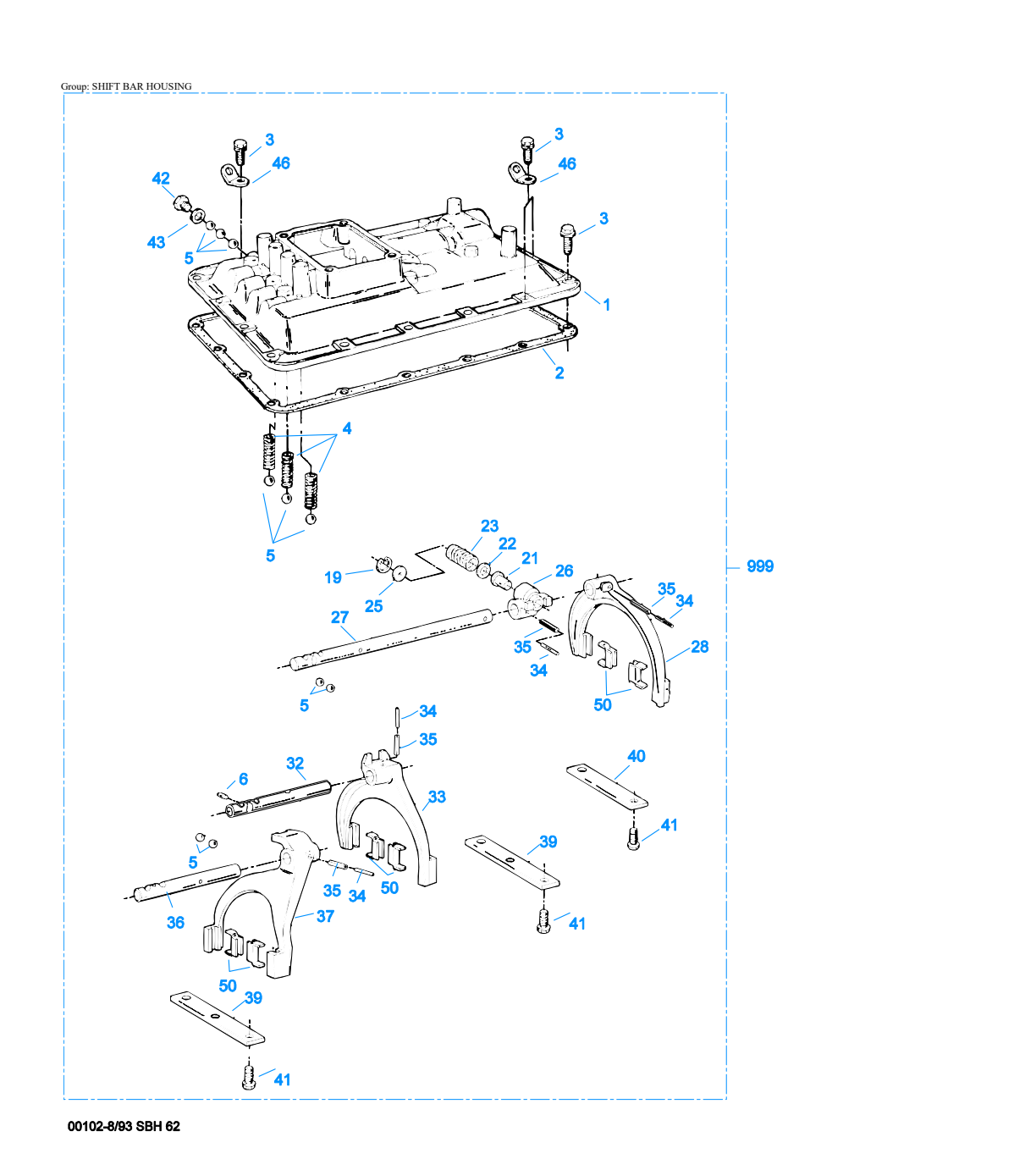

Shift Bar Housing
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-6744 | Shift Bar Hsg Assy | 1 | Replaces 3315760, 4302947. | $190.54 | Add to Cart |
| 2 | 4300854 | Gasket | 1 | Replaces 3315678. | $6.04 | Add to Cart |
| 3 | X-8C-600 | Capscrew | 17 | Replaces 239611. 3/8"-16X1" | $4.58 | Add to Cart |
| 4 | 3315765 | Spring | 3 | $2.77 | Add to Cart | |
| 5 | 10J14 | Steel Ball | 10 | 7/16" | $1.81 | Add to Cart |
| 6 | 201044 | Pin | 1 | $2.91 | Add to Cart | |
| 19 | 21736 | Snap Ring | 1 | $2.02 | Add to Cart | |
| 21 | 3316296 | Plunger | 1 | $18.55 | Add to Cart | |
| 22 | 3316298 | Washer | 1 | $4.99 | Add to Cart | |
| 23 | 21723 | Spring | 1 | $10.31 | Add to Cart | |
| 25 | 3316295 | Washer | 1 | $4.70 | Add to Cart | |
| 26 | 21765 | Shift Block 1ST/REV | 1 | $71.53 | Add to Cart | |
| 27 | 4301796 | Yoke Bar 1ST/REV | 1 | $96.62 | Add to Cart | |
| 28 | A-6234 | Yoke Assy 1ST/REV | 1 | Replaces 4301905. | $125.68 | Add to Cart |
| 32 | 4301471 | Yoke Bar 2ND/3RD | 1 | $49.86 | Add to Cart | |
| 33 | 3316207 | Yoke Assy 2ND/3RD | 1 | Replaces 3316208. | $158.22 | Add to Cart |
| 34 | 1JM6028 | Pin | 4 | $2.24 | Add to Cart | |
| 35 | 1JM3528 | Pin | 4 | $1.78 | Add to Cart | |
| 36 | 4301472 | Yoke Bar 4TH/5TH | 1 | $44.60 | Add to Cart | |
| 37 | 3316210 | Yoke Assy 4TH/5TH | 1 | Replaces 3316211. | $127.35 | Add to Cart |
| 39 | 4301279 | Shift Bar Retainer | 2 | Replaces 3315756. | $18.50 | Add to Cart |
| 40 | 3315757 | Shift Bar Retainer | 1 | $31.20 | Add to Cart | |
| 41 | 233043 | Capscrew | 8 | 3/8"-16X1" | $4.04 | Add to Cart |
| 42 | 235052 | Ca Plug | 1 | 9/16 - 18 | $1.50 | Add to Cart |
| 42 | 4303656 | Plug | 1 | Replaces 15917. 9/16 - 18, THREADED | $2.91 | Add to Cart |
| 43 | 15900 | Gasket | 1 | $2.24 | Add to Cart | |
| 46 | 238370 | Lifting Eye | 2 | $4.99 | Add to Cart | |
| 50 | 227675 | Insert - Yoke Pad | 6 | $7.01 | Add to Cart | |
| 999 | S-7028 | Shift Bar Hsg Assy | 1 | Replaces 3315760. COMPLETE | $1,161.58 | Add to Cart |
Eaton Fuller parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Eaton Fuller transmission units:
- All Eaton Fuller transmission parts & units
- Remanufactured transmissions
- Search our catalog for FS-6305A
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert — send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
