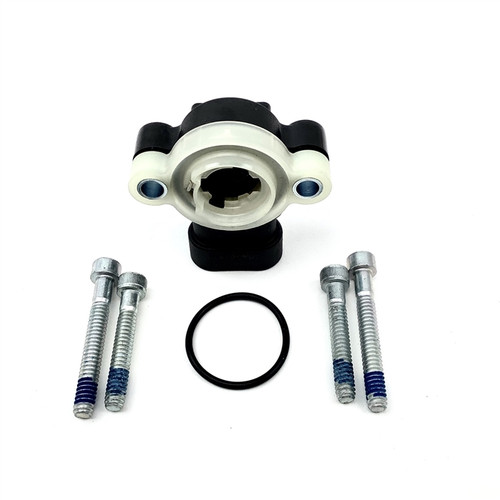

The Eaton Fuller Position Sensor Kit P/N K-3438 or K3438 is a complete rotary position sensor kit for automated transmissions. The kit centers on a rotary (dual) position sensor, part number 4308829, used to signal shift position on Eaton Fuller automated gearboxes. It comes with the O-ring (5568556), two #10-24 x 1-1/4 in. screws and two #10-24 x 1-1/2 in. screws for mounting, plus the position sensor replacement instruction sheet (L-2017-07). Call us to confirm proper fit for your application.
4308829 - Rotary position sensor, qty 1
5568556 - O-ring, qty 1
L-2017-07 - Position sensor replacement instruction sheet, qty 1
X 8 261 - Screw #10-24 x 1-1/4 in., qty 2
X-8-270 - Screw #10-24 x 1-1/2 in., qty 2
Interchanges:
- 5312849
- 691551
- 691926
- 85105830
- 88958883
- 900377
- K3438-SP
Features
Rotary (dual) position sensor, P/N 4308829, for Eaton Fuller automated transmissions
Includes O-ring 5568556 for sealed mounting
Mounting hardware: two #10-24 x 1-1/4 in. and two #10-24 x 1-1/2 in. screws
Includes position sensor replacement instruction sheet L-2017-07
Tech Specs
- Sensor type: Rotary (dual) position sensor
- Application: Eaton Fuller automated transmissions
- Sensor part number: 4308829
- Included O-ring: 5568556
- Mounting screws: two #10-24 x 1-1/4 in. and two #10-24 x 1-1/2 in.
- Included instruction sheet: L-2017-07
Additional Information
Kit contents (Eaton BOM for K-3438):4308829 - Rotary position sensor, qty 1
5568556 - O-ring, qty 1
L-2017-07 - Position sensor replacement instruction sheet, qty 1
X 8 261 - Screw #10-24 x 1-1/4 in., qty 2
X-8-270 - Screw #10-24 x 1-1/2 in., qty 2
