Eaton Fuller TA-C75 Parts Manual

View the official TA-C75 parts manual (PDF)Download PDF

This is the complete factory parts breakdown for the Eaton Fuller TA-C75 — every part in the manual, matched to our live inventory. We stock 20 of the 30 parts below; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.

No parts match that search — try the part number with no dashes.

Base Transmission

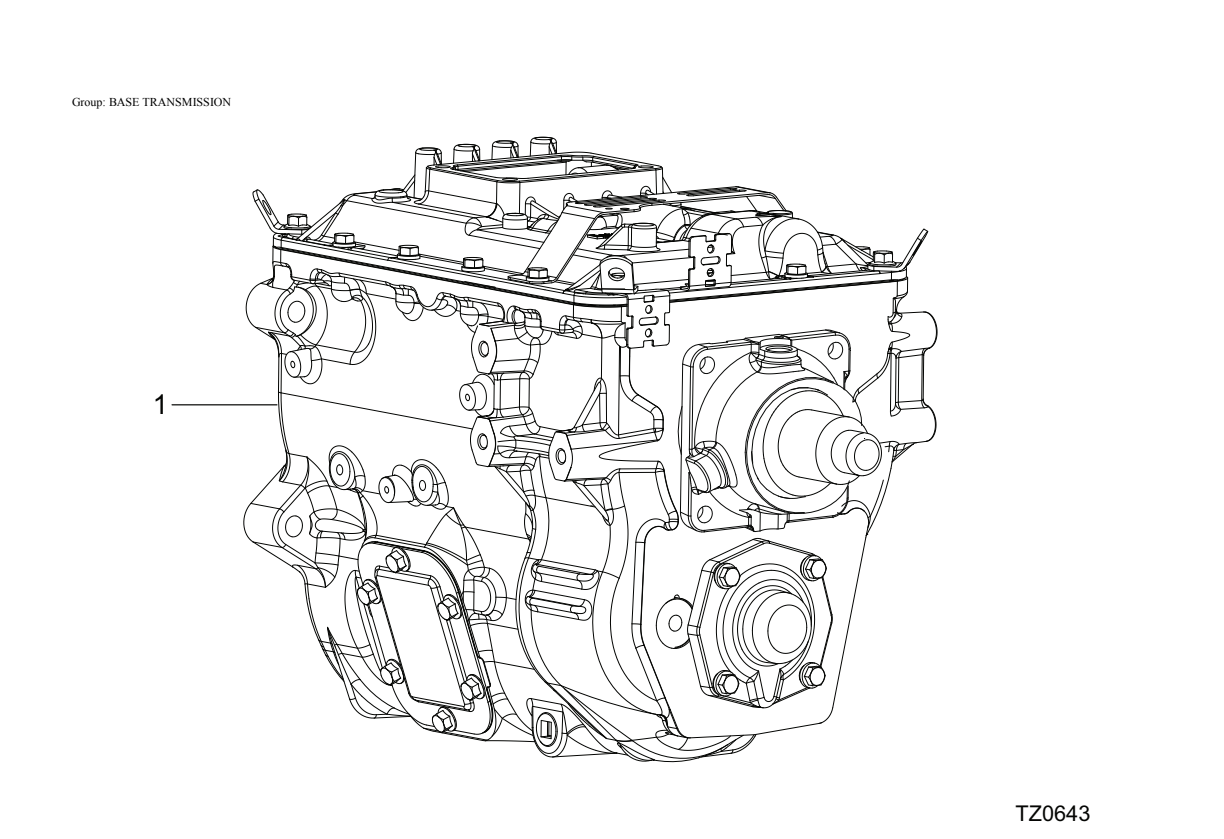

Eaton Fuller TA-C75 Base Transmission exploded-view diagram

Click a number on the diagram to highlight that part below.

Item	Part No.	Description	Qty	Notes	Price
1	TN-C75-01	Base Transmission	1		—	Call for availability

Clutch Assy

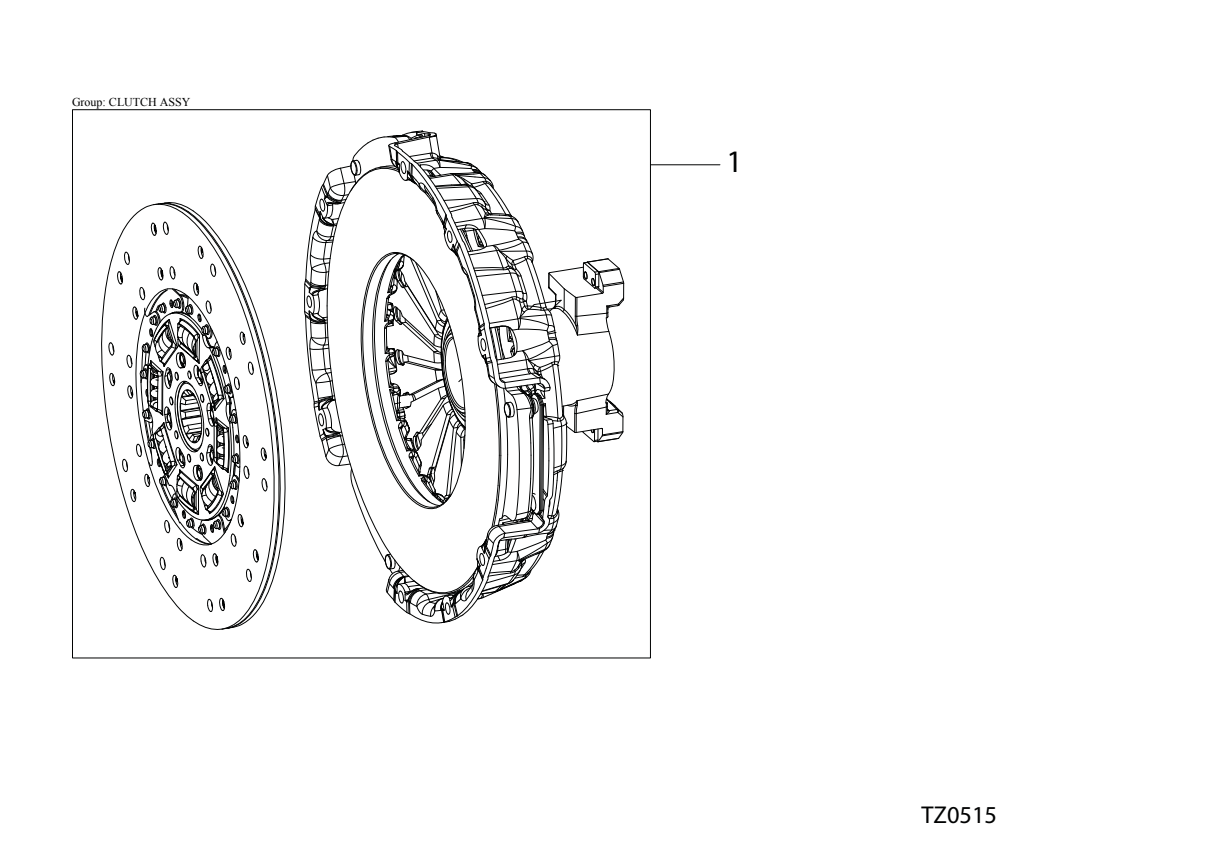

Eaton Fuller TA-C75 Clutch Assy exploded-view diagram

Click a number on the diagram to highlight that part below.

Item	Part No.	Description	Qty	Notes	Price
1	104101-17Y	Clutch Assembly Kit	1		$1,834.09	Add to Cart

Eca Speed Sensor Kit

Item	Part No.	Description	Qty	Notes	Price
1	K-3776	Eca Speed Sensor Kit	1	Replaces 4306190.	$87.96	Add to Cart

Electric Clutch Actuator

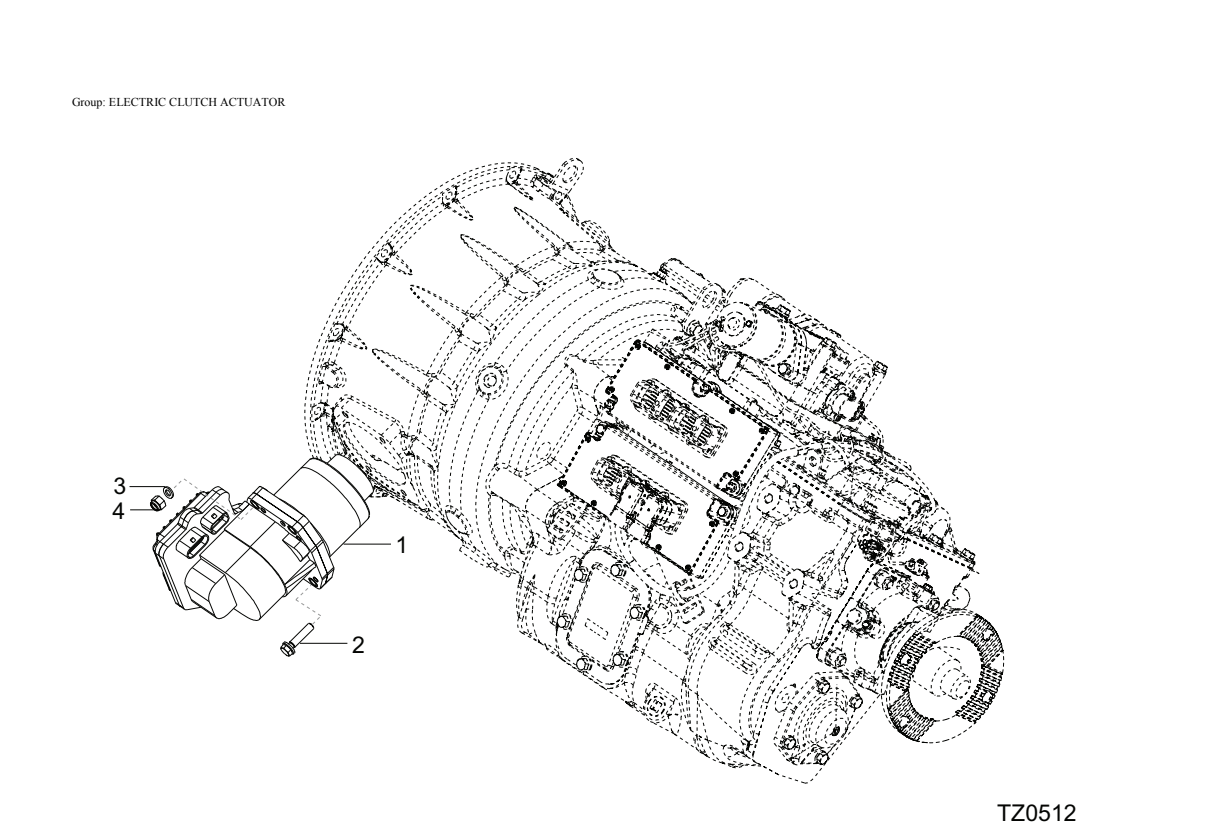

Eaton Fuller TA-C75 Electric Clutch Actuator exploded-view diagram

Click a number on the diagram to highlight that part below.

Item	Part No.	Description	Qty	Notes	Price
1	K-3777	Electric Clutch Actuator Kit	1	Replaces 4306483, 4306447.	$3,269.11	Add to Cart
2	X-8L-609	Screw	3	INCLUDED IN KIT: K-3777	$2.11	Add to Cart
3	X10-600	Washer Plain	1	3/8, INCLUDED IN KIT: K-3777	$1.13	Add to Cart
4	X-1-604	Nut	1	3/8, INCLUDED IN KIT: K-3777	—	Call for availability

Hybrid Controllers

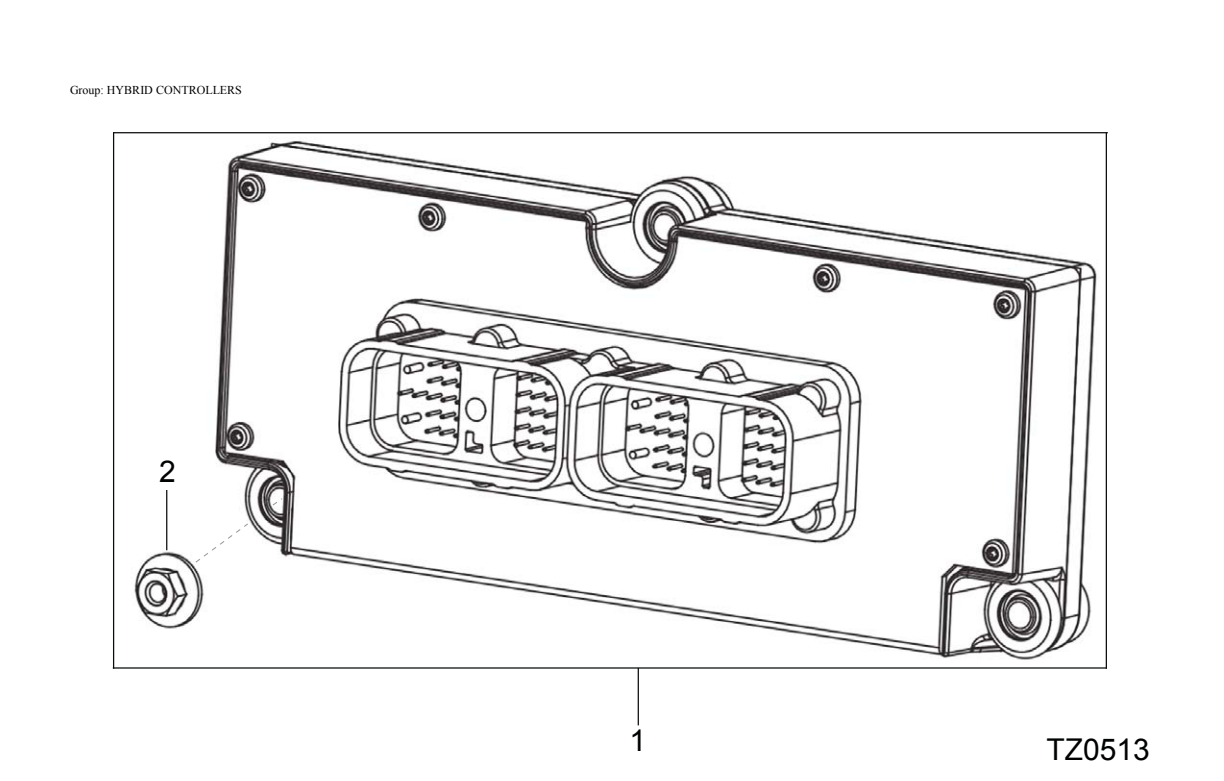

Eaton Fuller TA-C75 Hybrid Controllers exploded-view diagram

Click a number on the diagram to highlight that part below.

Item	Part No.	Description	Qty	Notes	Price
1	K-4099	Hybrid Controller Kit (cd)	1	RESTRICTED PART - ONLY AVAILABLE TO AUTHORIZED EATON HYBRID DEALERS	—	Call for availability
2	4305919	Nut Assembly	3	INCLUDED IN KIT: K-4099	$1.81	Add to Cart

Hybrid Drive Unit

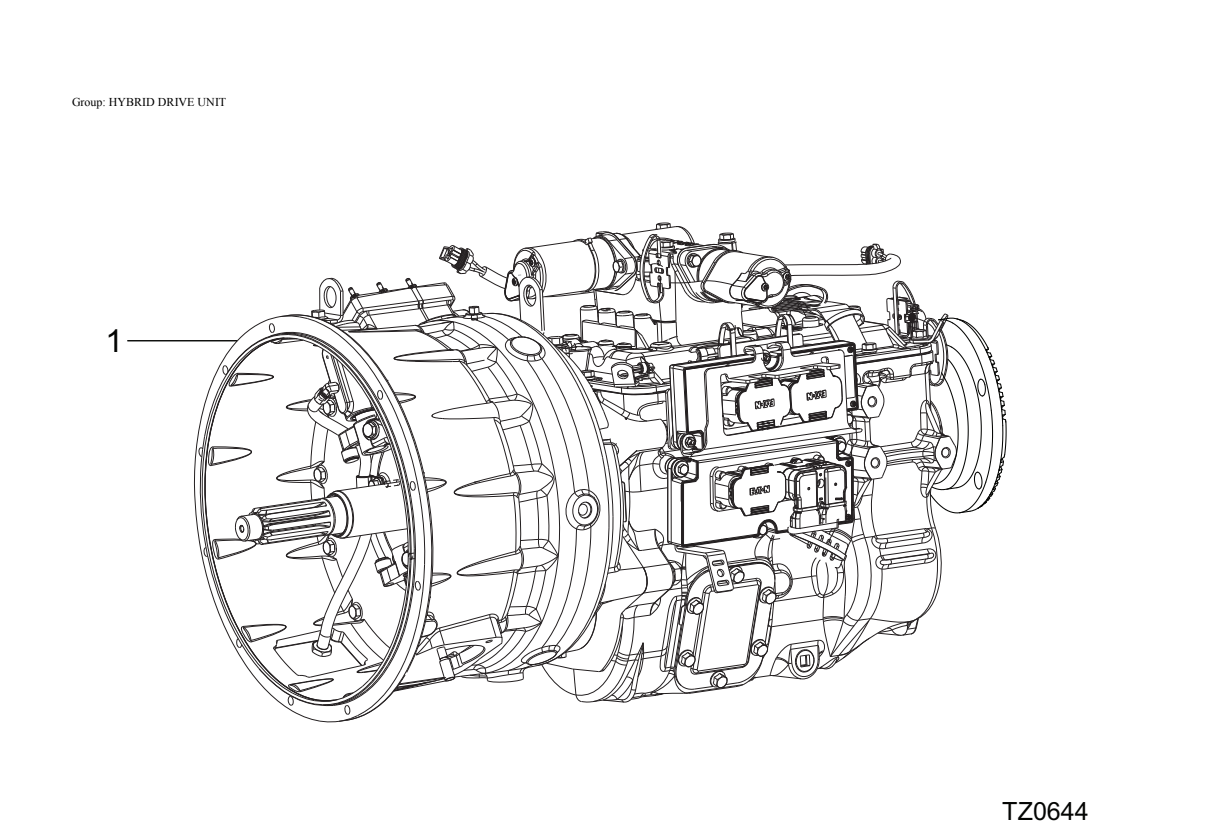

Eaton Fuller TA-C75 Hybrid Drive Unit exploded-view diagram

Click a number on the diagram to highlight that part below.

Item	Part No.	Description	Qty	Notes	Price
1	TA-C75-01	Hybrid Drive Unit	1		—	Call for availability

Input-Output Speed Sensors Kit

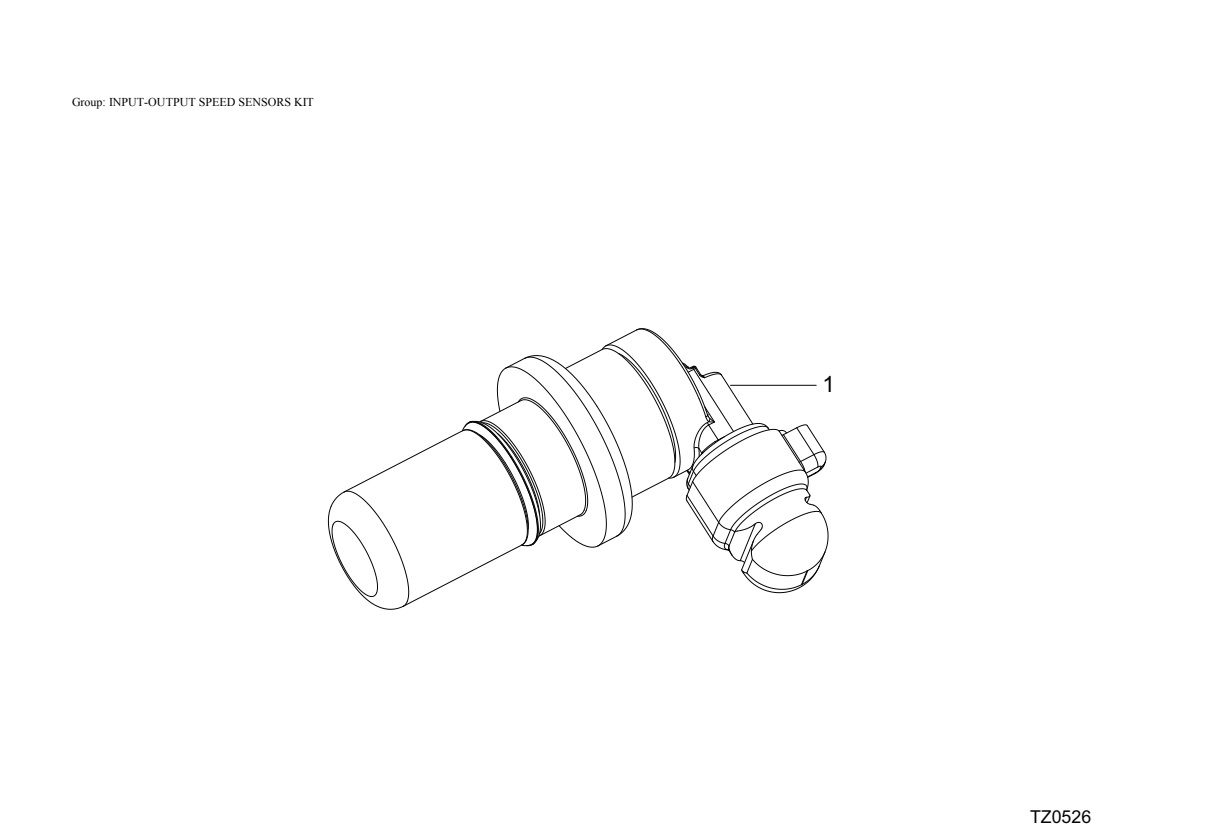

Eaton Fuller TA-C75 Input-Output Speed Sensors Kit exploded-view diagram

Click a number on the diagram to highlight that part below.

Item	Part No.	Description	Qty	Notes	Price
1	K-3772	Input-output Speed Sensors Kit	1		$56.79	Add to Cart

Inverter

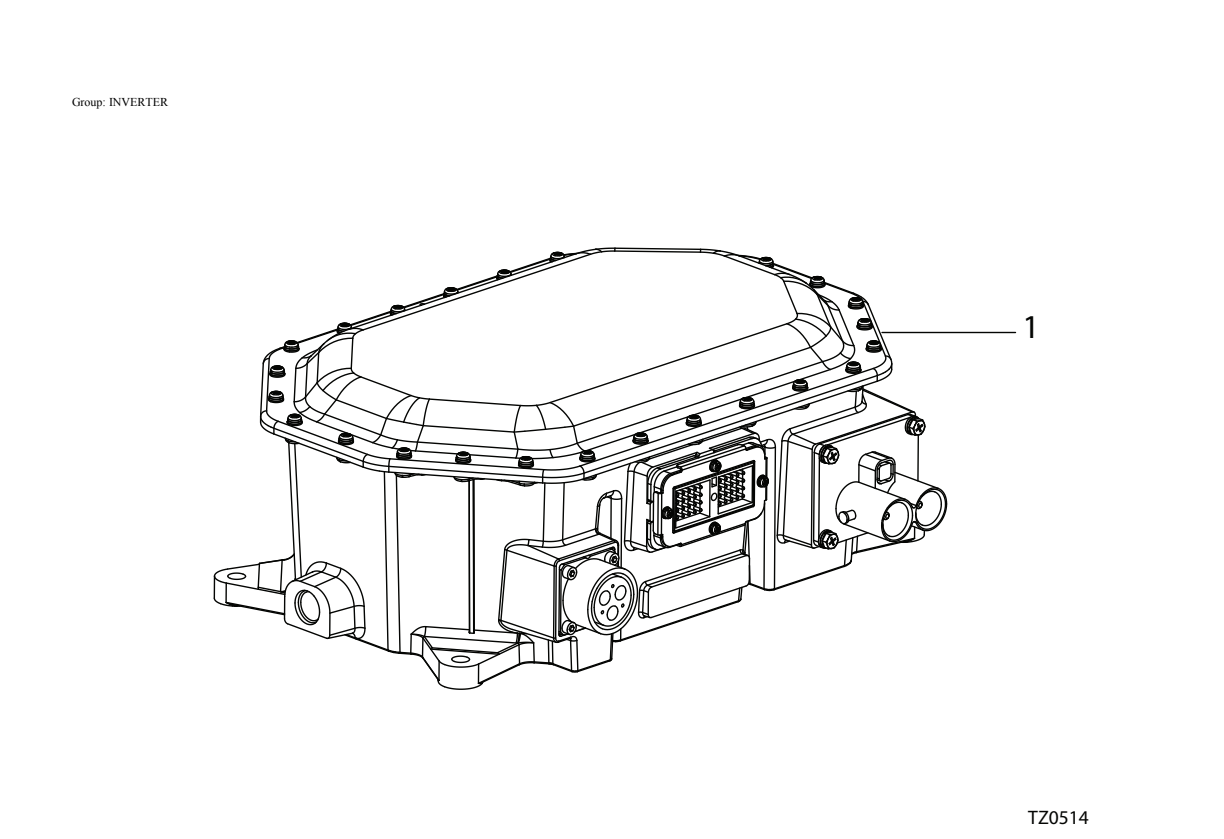

Eaton Fuller TA-C75 Inverter exploded-view diagram

Click a number on the diagram to highlight that part below.

Item	Part No.	Description	Qty	Notes	Price
1	K-4089	Inverter Kit	1	Replaces 4305985. RESTRICTED PART - ONLY AVAILABLE TO AUTHORIZED EATON HYBRID DEALERS	—	Call for availability

Motor Generator

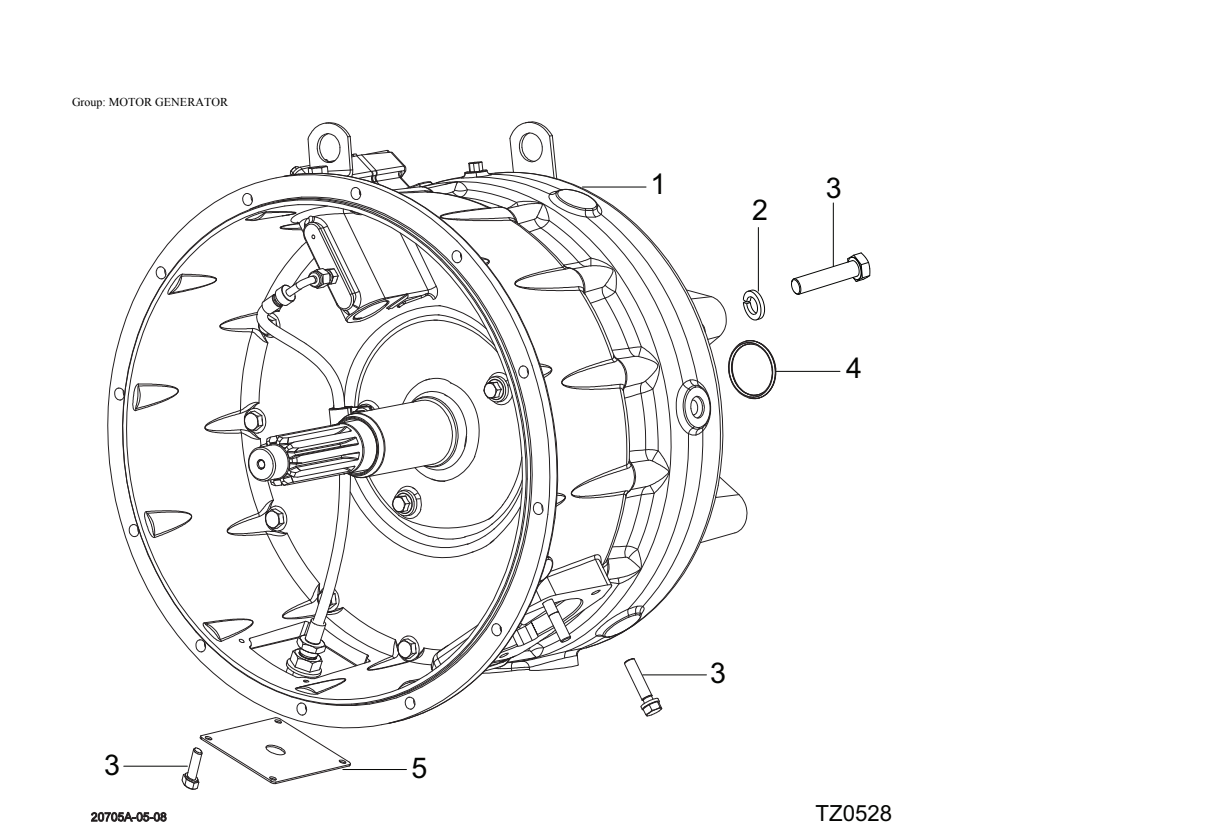

Eaton Fuller TA-C75 Motor Generator exploded-view diagram

Click a number on the diagram to highlight that part below.

Item	Part No.	Description	Qty	Notes	Price
1	K-4080	Motor/generator Kit	1	RESTRICTED PART-ONLY AVAILABLE TO AUTHORIZED EATON HYBRID DEALERS.	$27,968.04	Add to Cart
2	X-3-1000	Lockwasher	4		$1.69	Add to Cart
3	X-8-1014	Hex Screw	4	.625 - 11 X 2.75	$5.40	Add to Cart
3	X-8L-609	Screw	3		$2.11	Add to Cart
4	5568550	O-ring	1	K-3791	$3.24	Add to Cart
5	4306347	Hand Hole Cover	1		$20.34	Add to Cart

Pec Air Filter

Eaton Fuller TA-C75 Pec Air Filter exploded-view diagram

Click a number on the diagram to highlight that part below.

Item	Part No.	Description	Qty	Notes	Price
1	K-4096	Pec Air Filter Kit	1		$91.54	Add to Cart

Pec Blower (24V) Kit

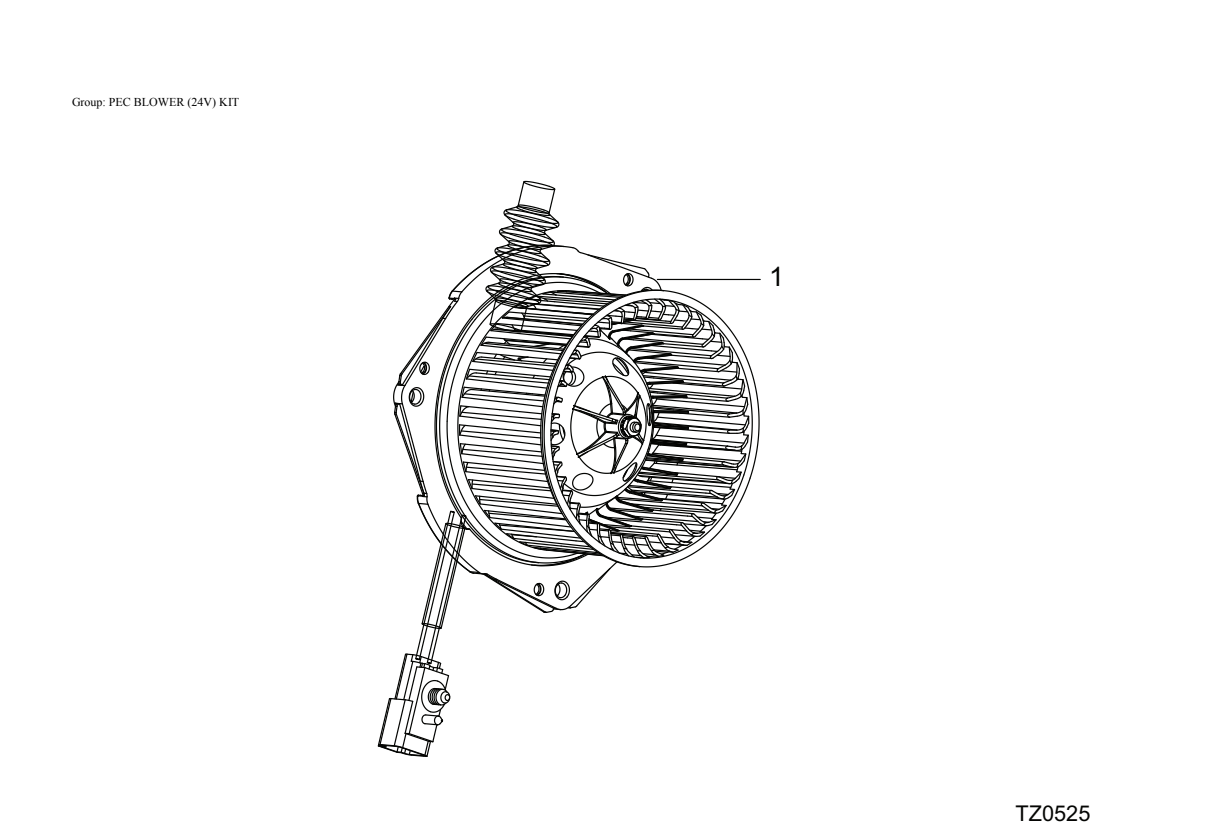

Eaton Fuller TA-C75 Pec Blower (24V) Kit exploded-view diagram

Click a number on the diagram to highlight that part below.

Item	Part No.	Description	Qty	Notes	Price
1	K-4102	Pec Blower (24V) Kit	1		—	Call for availability

Pec Cd Battery

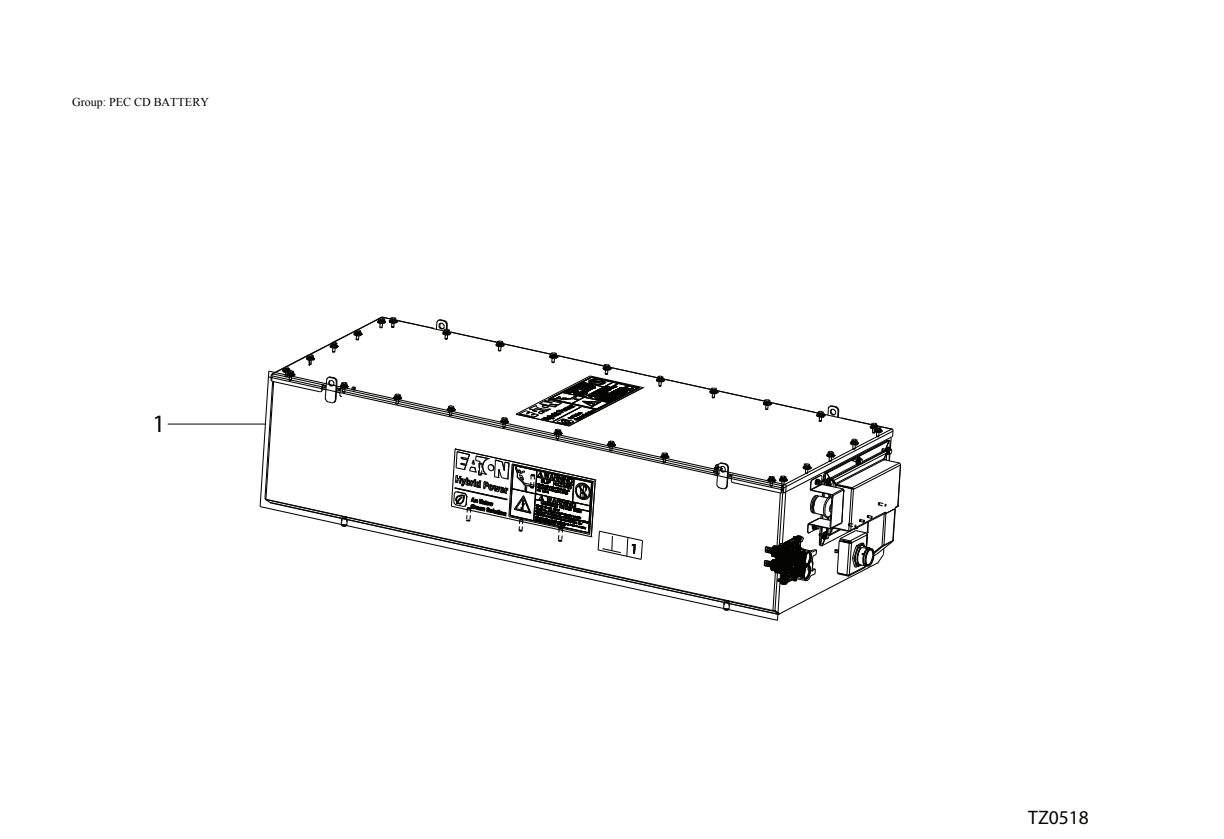

Eaton Fuller TA-C75 Pec Cd Battery exploded-view diagram

Click a number on the diagram to highlight that part below.

Item	Part No.	Description	Qty	Notes	Price
1	K-4098	Pec Cd 2 Battery Kit	1	RESTRICTED PART-ONLY AVAILABLE TO AUTHORIZED EATON HYBRID DEALERS.	—	Call for availability

Pec Relay Box Kit

Eaton Fuller TA-C75 Pec Relay Box Kit exploded-view diagram

Click a number on the diagram to highlight that part below.

Item	Part No.	Description	Qty	Notes	Price
1	K-4043	Pec Relay Box Kit	1		$3,033.05	Add to Cart

Pec Service Fuse Kit

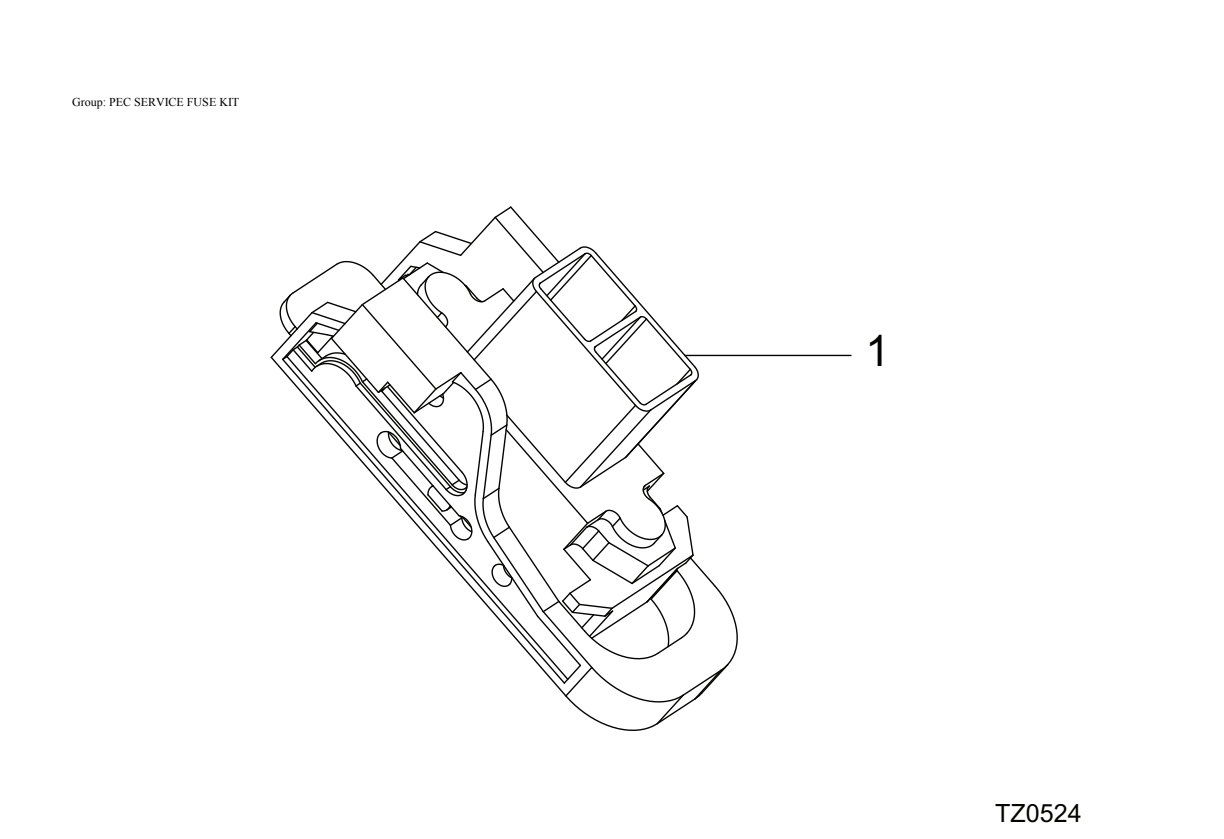

Eaton Fuller TA-C75 Pec Service Fuse Kit exploded-view diagram

Click a number on the diagram to highlight that part below.

Item	Part No.	Description	Qty	Notes	Price
1	K-4045	Pec Service Fuse Kit	1		$609.53	Add to Cart

Shift Controls

Item	Part No.	Description	Qty	Notes	Price
1	4306043	Pushbutton Shift Selector	1	Replaces S-3068.	$1,088.67	Add to Cart

Speedo Sensor Kit

Eaton Fuller TA-C75 Speedo Sensor Kit exploded-view diagram

Click a number on the diagram to highlight that part below.

Item	Part No.	Description	Qty	Notes	Price
1	K-4101	Speedo Sensor Kit	1		—	Call for availability

Transmission Controller

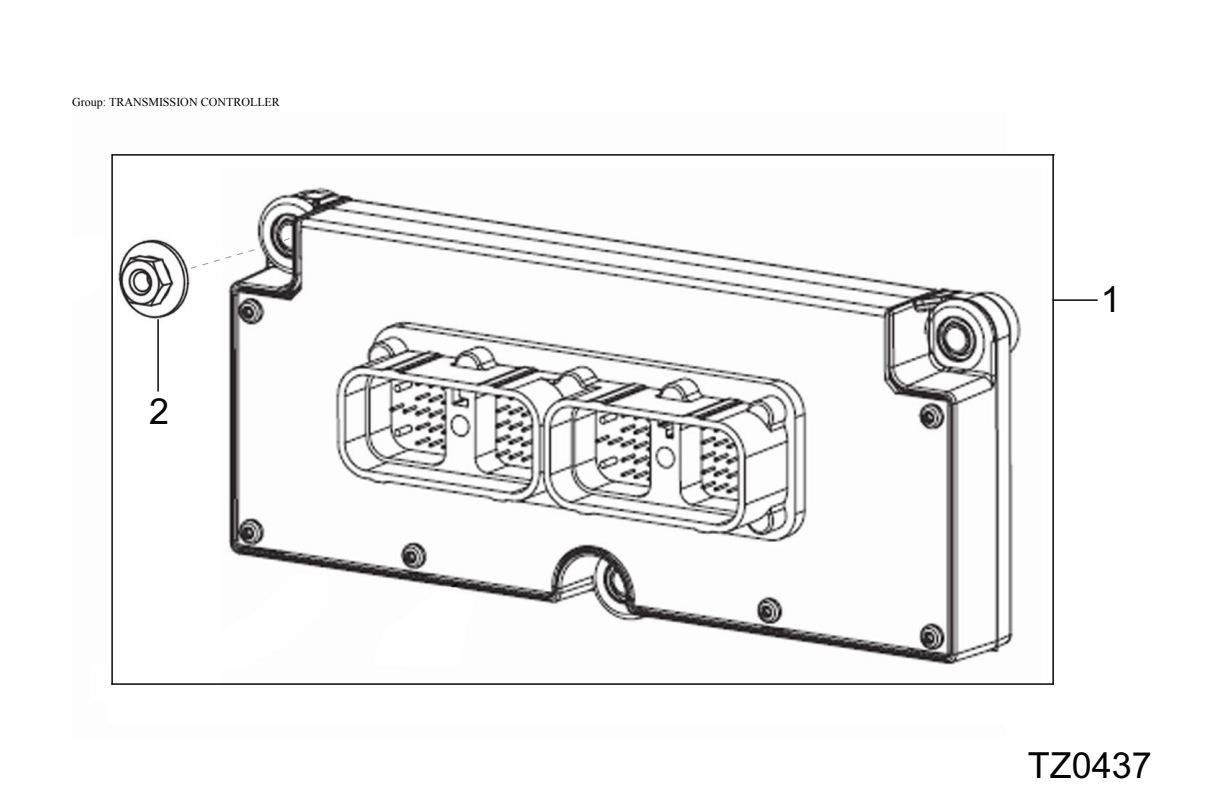

Eaton Fuller TA-C75 Transmission Controller exploded-view diagram

Click a number on the diagram to highlight that part below.

Item	Part No.	Description	Qty	Notes	Price
1	K-4100	Transmission Controller Kit (cd)	1		—	Call for availability
2	4305919	Nut Assembly	3	INCLUDED IN KIT: K-4100	$1.81	Add to Cart

Transmission Harness

Item	Part No.	Description	Qty	Notes	Price
1	K-3781	Transmission Harness (hybrid)	1	Replaces 4306086.	$1,114.58	Add to Cart

X-Y Shifter Module

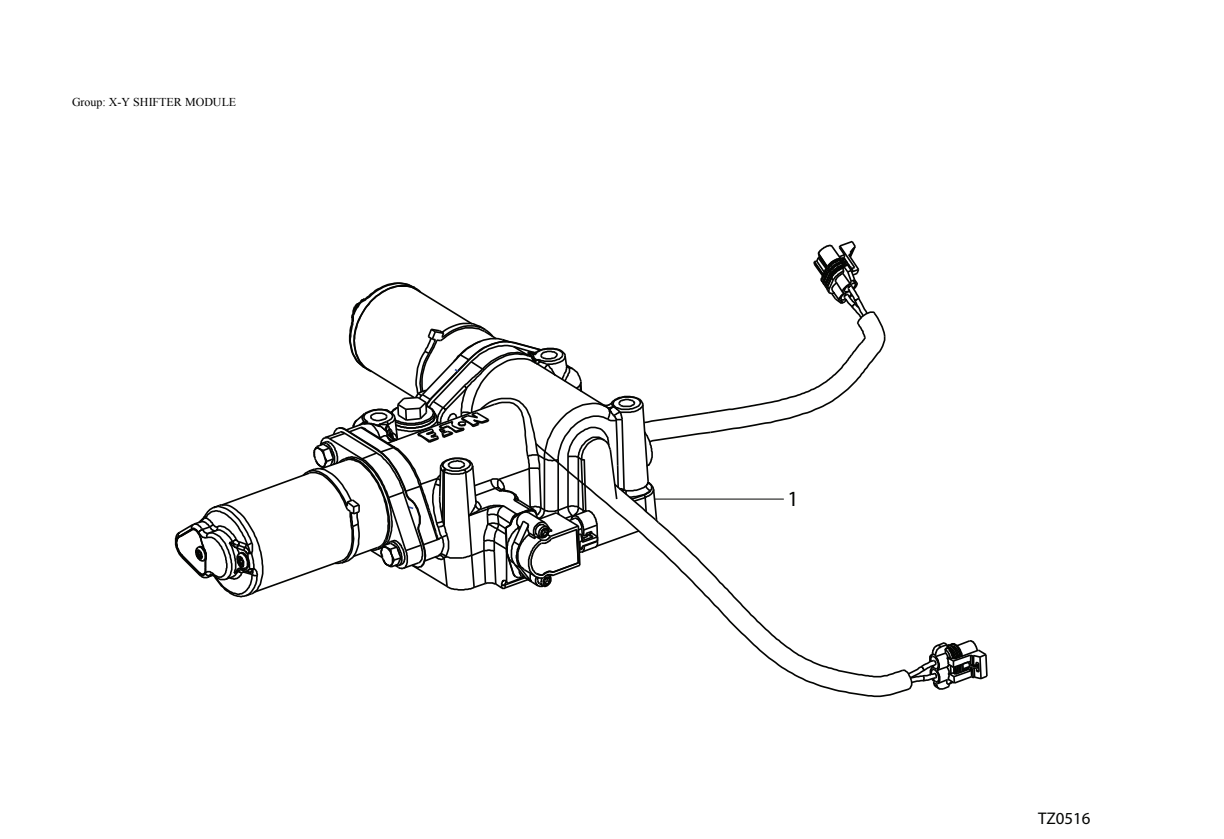

Eaton Fuller TA-C75 X-Y Shifter Module exploded-view diagram

Click a number on the diagram to highlight that part below.

Item	Part No.	Description	Qty	Notes	Price
1	K-3784RX	Reman Exch Gen 3 X-y Shifter Kit	1	Replaces A-7670, A-7856, K-3784.	—	No longer available — call for replacement

X-Y Shifter Rotary Sensor Kit

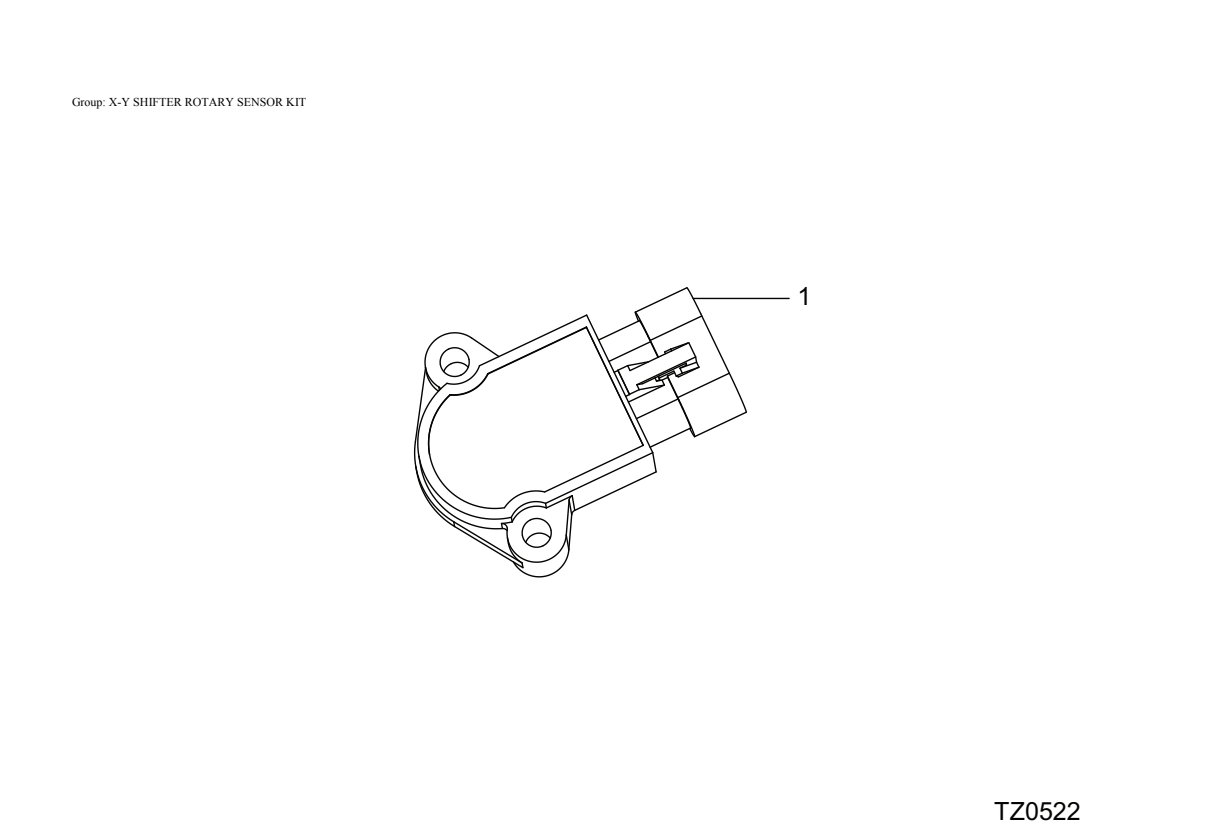

Eaton Fuller TA-C75 X-Y Shifter Rotary Sensor Kit exploded-view diagram

Click a number on the diagram to highlight that part below.

Item	Part No.	Description	Qty	Notes	Price
1	K-3438	X-y Shifter Rotary Sensor Kit	1		$117.41	Add to Cart
