Eaton Fuller F-5405B-DM3 Parts Manual
Rebuilding this unit? Every part below is priced and ready to order. If the F-5405B-DM3 is past saving, we also stock reman Eaton Fuller transmissions for sale in every speed, ready to ship.

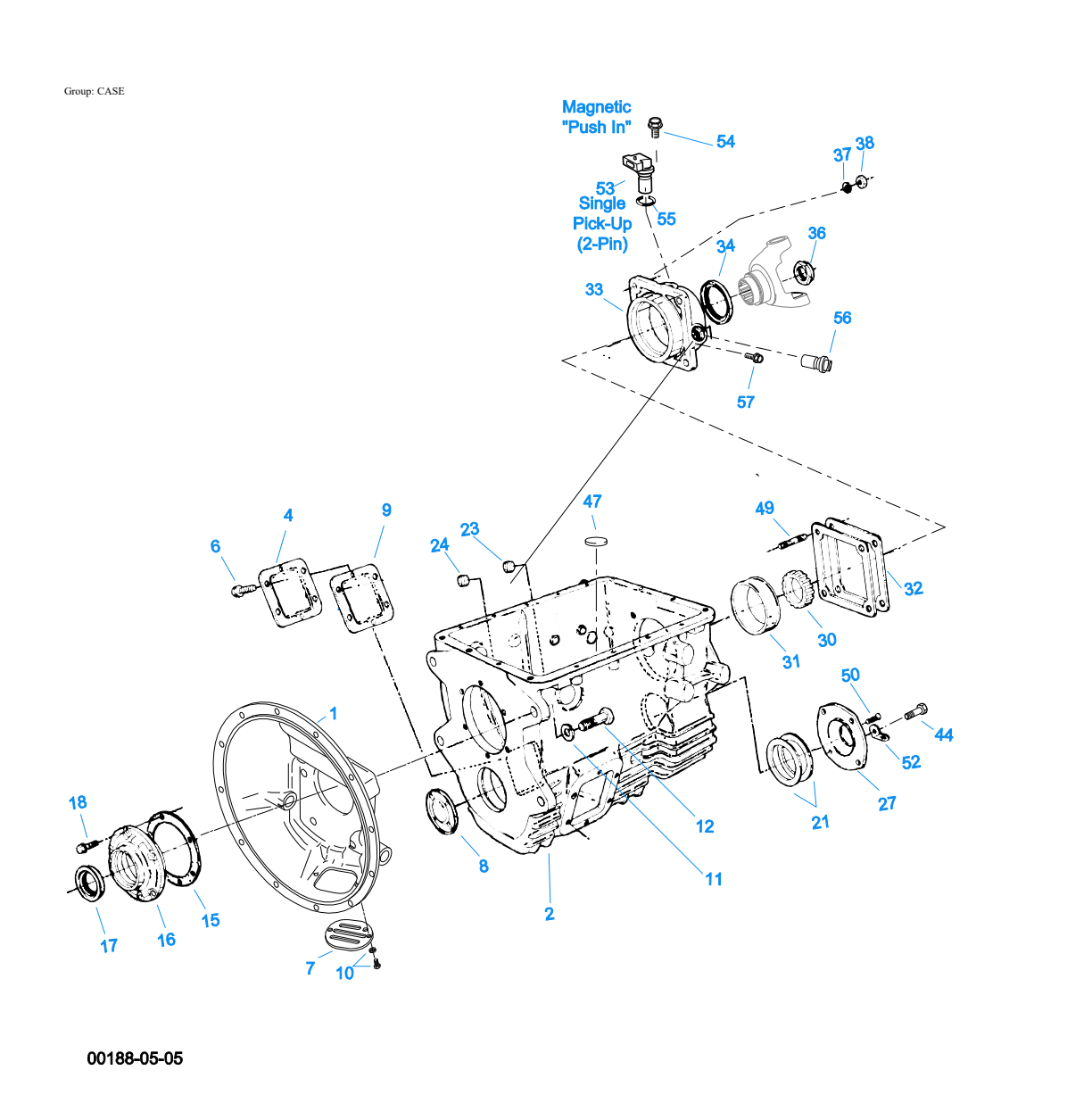

Case
Item 7Item 47Item 57Item 4Item 9Item 44Item 10Item 56Item 54Item 36Item 55Item 12Item 11Item 33Item 6Item 8Item 30Item 34Item 1Item 49Item 6Item 31Item 16Item 23Item 18Item 32Item 24Item 2Item 21Item 17Item 38Item 37Item 50Item 27Item 15Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-7636 | Clutch Hsg Assy | 1 | Replaces 4305882. | $646.31 | Add to Cart |
| 2 | A-7635 | Case Assy | 1 | Replaces 4305847. | $2,040.08 | Add to Cart |
| 4 | 201398 | Pto Cover | 1 | $9.08 | Add to Cart | |
| 6 | 239613 | Capscrew | 6 | 3/8"-16X5/8" | $4.45 | Add to Cart |
| 7 | 4303692 | Hand Hole Cover | 1 | $14.49 | Add to Cart | |
| 8 | 3315679 | Plug | 1 | $5.72 | Add to Cart | |
| 9 | 4305309 | Gasket | 1 | Replaces 1684. | $8.58 | Add to Cart |
| 10 | X-8L-408 | Screw & Washer Assy | 2 | $1.79 | Add to Cart | |
| 11 | X-3-1000 | Lockwasher | 4 | 5/8" | $1.69 | Add to Cart |
| 12 | X-8-1013 | Hex Head Screw | 4 | .625-11 X 3.00 | $4.65 | Add to Cart |
| 15 | 3315659 | Gasket | 1 | $1.13 | Add to Cart | |
| 16 | 4300888 | Front Brg Cover-pull | 1 | $203.38 | Add to Cart | |
| 17 | 4300121 | Oil Seal | 1 | Replaces 3315623. SHAFT 1.873, WIDTH .375, OD 2.68 | $9.12 | Add to Cart |
| 18 | 239614 | Screw | 6 | 5/16-18X.81 | $7.31 | Add to Cart |
| 21 | 3315681 | Shim .004 | 1 | $3.01 | Add to Cart | |
| 21 | 3315682 | Shim .007 | 1 | $2.24 | Add to Cart | |
| 21 | 3315683 | Shim .010 | 1 | $3.06 | Add to Cart | |
| 21 | 3315684 | Shim .020 | 1 | $3.74 | Add to Cart | |
| 21 | 4300977 | Shim .040 | 1 | $3.34 | Add to Cart | |
| 23 | X-12-1209 | Pipe Plug | 1 | $8.05 | Add to Cart | |
| 24 | X-12-1207 | Pipe Plug | 2 | Replaces X121202, X121206. 3/4" MAGNETIC | $4.53 | Add to Cart |
| 27 | 4301607 | C/s Rear Brg Cover | 1 | $72.73 | Add to Cart | |
| 30 | 3316160 | Speedo Rotor | 1 | 16 TEETH | $71.38 | Add to Cart |
| 31 | 711123 | Bearing Cup | 1 | Call for availability | ||
| 32 | 3315662 | Shim .004 | 1 | $5.74 | Add to Cart | |
| 32 | 3315663 | Shim .007 | 1 | $6.73 | Add to Cart | |
| 32 | 3315664 | Shim .010 | 1 | $3.71 | Add to Cart | |
| 32 | 3315665 | Shim .020 | 1 | $5.51 | Add to Cart | |
| 32 | 4300978 | Shim .040 | 1 | $12.31 | Add to Cart | |
| 33 | S-2864 | Rear Brg Cover Assy | 1 | Replaces 691423, 691666. | $199.83 | Add to Cart |
| 34 | 4300119 | Oil Seal | 1 | SHAFT 2.753, WIDTH .5 | $11.37 | Add to Cart |
| 36 | K-3411 | Nut Kit | 1 | Replaces 21937, 4301920, 4304690. | $34.14 | Add to Cart |
| 37 | 239436 | Washer | 4 | 1/2" | $2.49 | Add to Cart |
| 38 | 86D8 | Nut | 4 | Replaces 86D08. 1/2"-20 | $2.63 | Add to Cart |
| 44 | X-8C-604 | Capscrew | 4 | 3/8"-16X1-1/4" | $3.74 | Add to Cart |
| 47 | 14373 | Magnet | 2 | $3.89 | Add to Cart | |
| 49 | 239433 | Stud | 4 | 1/2"-20X2-5/16" | $5.16 | Add to Cart |
| 50 | X-12-405 | Pipe Plug | 1 | $2.19 | Add to Cart | |
| 52 | 238370 | Lifting Eye | 2 | $4.99 | Add to Cart | |
| 53 | K-3231 | Speed Sensor Kit | 1 | Replaces A-6398, A-6724. SINGLE PICK-UP (2 PIN) | $48.61 | Superseded by K4148Add to Cart |
| 54 | X-8C-409 | Capscrew | 1 | 1/4"-20X5/8" | $1.87 | Add to Cart |
| 55 | 14142 | O-ring | 1 | $1.96 | Add to Cart | |
| 56 | K-3125 | Speedo Plug Kit | 2 | Replaces 4302707. | $5.13 | Add to Cart |
| 57 | X-8C-409 | Capscrew | 2 | 1/4"-20X5/8" | $1.87 | Add to Cart |
Controller Ecu & Harness
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-3712 | Trans Controller Kit | 1 | $2,469.36 | Superseded by K3712RXAdd to Cart | |
| 2 | K-3743 | Trans Harness Kit | 1 | Replaces 4306024. | $278.60 | Add to Cart |
| 3 | X-8C-455 | Hex Head Washer/screw | 3 | $5.42 | Add to Cart |

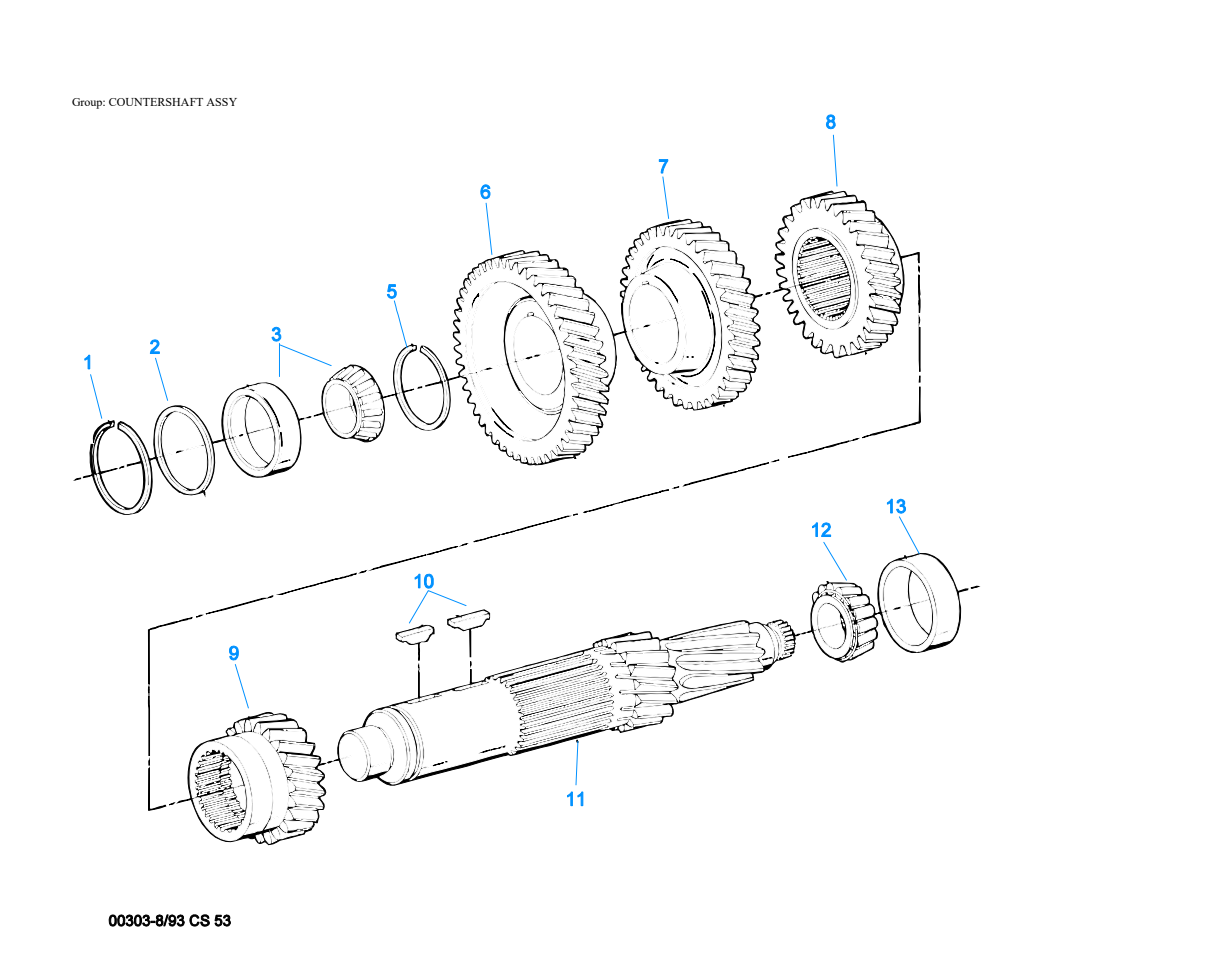

Countershaft Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 3315686 | Snap Ring | 1 | $5.26 | Add to Cart | |
| 2 | 3315687 | Washer | 1 | $20.36 | Add to Cart | |
| 3 | K-3795 | Countershaft Brg Kit | 1 | Replaces 1313645, 791943. | $34.45 | Add to Cart |
| 5 | 3315752 | Snap Ring | 1 | Replaces 3315751. | $5.01 | Add to Cart |
| 6 | 4304541 | Drive Gear-cntrshft | 1 | $244.37 | Add to Cart | |
| 7 | 4304542 | 5TH Gear-cntrshft | 1 | $176.43 | Add to Cart | |
| 8 | 4304097 | 4TH Gear-cntrshft | 1 | Replaces 4304099. | $114.39 | Add to Cart |
| 9 | 4304056 | 3RD Gear-cntrshft | 1 | Replaces 4304062. | $127.86 | Add to Cart |
| 10 | 230292 | Key | 2 | $4.27 | Add to Cart | |
| 11 | 4303868 | Countershaft | 1 | $361.07 | Add to Cart | |
| 12 | 658981 | Bearing Cone | 1 | $69.47 | Superseded by K4155Add to Cart | |
| 13 | 660181 | Bearing Cup | 1 | $69.47 | Superseded by K4155Add to Cart |

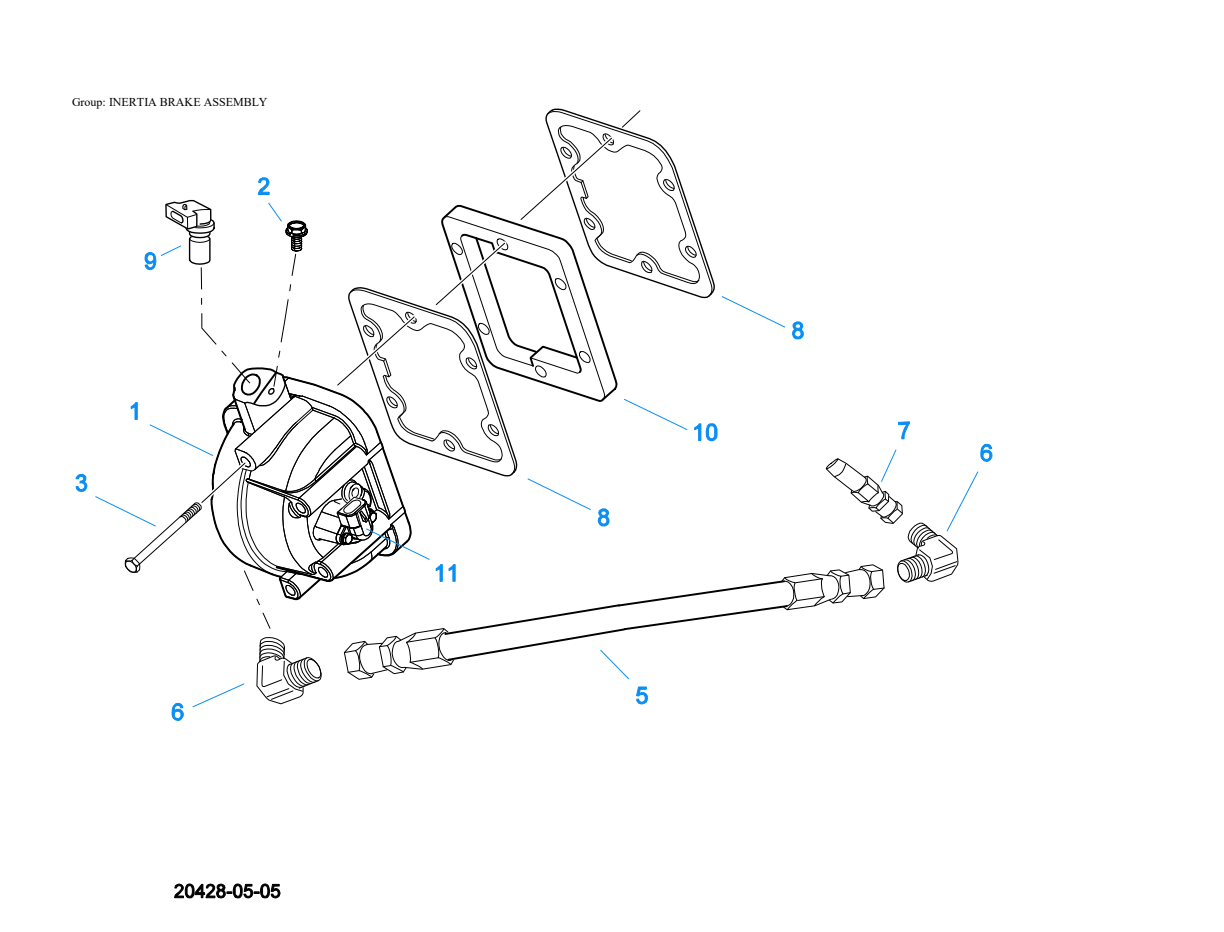

Inertia Brake Assembly
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-3648 | Inertia Brake Kit | 1 | Replaces A-7434, K-3508, A-7828. | $3,340.11 | Add to Cart |
| 2 | X-8C-409 | Capscrew | 1 | 1/4"-20X5/8" | $1.87 | Add to Cart |
| 3 | X-8C-690 | Capscrew | 6 | $4.23 | Add to Cart | |
| 4 | 4303677 | Elbow | 1 | $52.01 | Add to Cart | |
| 5 | 5588207 | Oil Hose Assy (12.70") | 1 | $48.36 | Add to Cart | |
| 6 | 691651 | Elbow, 90 Deg Male | 2 | $13.37 | Add to Cart | |
| 7 | 691517 | Filter Fitting | 1 | $34.29 | Add to Cart | |
| 8 | 4305309 | Gasket | 2 | Replaces 1684. | $8.58 | Add to Cart |
| 9 | K-3231 | Speed Sensor Kit | 1 | Replaces A-6398, A-6724. SINGLE PICK-UP (2 PIN) | $48.61 | Superseded by K4148Add to Cart |
| 10 | 691519 | Plate-adapter 6 Bolt Pto | 1 | $236.16 | Superseded by K4129Add to Cart | |
| 11 | K-3638 | I-brake Connector Kit | 1 | Replaces 691499. | $42.14 | Add to Cart |
Input Shaft
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 675250 | Bearing Cup | 1 | 1.75" INPUT | Call for availability | |
| 2 | 742259 | Bearing Cone | 1 | 1.75" INPUT | $93.34 | Superseded by K4152Add to Cart |
| 3 | 4304539 | Input SHAFT-1.75" Pull | 1 | PILOT 30MM | $343.81 | Add to Cart |
Kits & Assemblies
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-2183 | Shim Kit | 1 | $65.70 | Add to Cart | ||
| K-3125 | Speedo Plug Kit | 1 | Replaces 4302707. | $5.13 | Add to Cart | |
| K-3231 | Speed Sensor Kit | 1 | Replaces A-6398, A-6724. SINGLE PICK-UP (2 PIN) | $48.61 | Superseded by K4148Add to Cart | |
| K-3411 | Nut Kit | 1 | Replaces 21937, 4301920, 4304690. | $34.14 | Add to Cart | |
| K-3438 | Position Sensor Kit | 1 | Replaces 691551, 691926. | $117.41 | Add to Cart | |
| K-3440 | Basic Rebuild Kit | 1 | $919.86 | Add to Cart | ||
| K-3638 | I-brake Connector Kit | 1 | Replaces 691499. | $42.14 | Add to Cart | |
| K-3648 | Inertia Brake Kit | 1 | Replaces A-7434, K-3508. | $3,340.11 | Add to Cart | |
| K-3712 | Trans Controller Kit | 1 | $2,469.36 | Superseded by K3712RXAdd to Cart | ||
| K-3738 | Gasket Kit | 1 | $59.37 | Add to Cart | ||
| K-3743 | Trans Harness Kit | 1 | Replaces 4306024. | $278.60 | Add to Cart | |
| K-3784RX | Reman Exch Gen 3 X-y Shifter Kit | 1 | Replaces A-7670, A-7856, K-3784. | No longer available - Call for replacement | ||
| K-3795 | Countershaft Brg Kit | 1 | Replaces 1313645, 791943. | $34.45 | Add to Cart | |
| S-2864 | Rear Brg Cover Assy | 1 | Replaces 691423, 691666. | $199.83 | Add to Cart | |
| S-2865 | Shift Bar Housing Assy | 1 | Replaces 691655, A-7053. | $711.60 | Add to Cart |

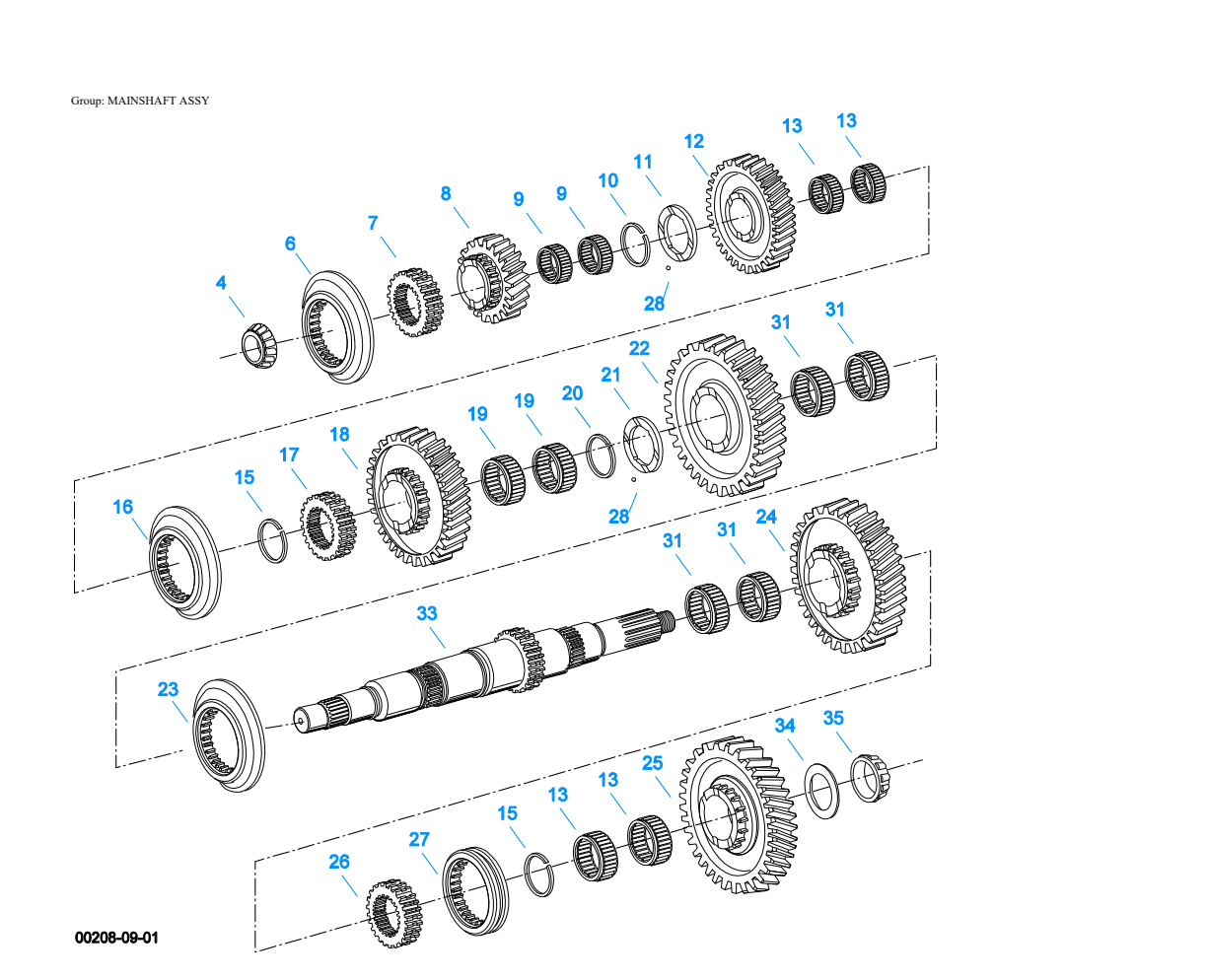

Mainshaft Assy
Item 7Item 27Item 4Item 12Item 19Item 31Item 25Item 17Item 16Item 26Item 8Item 9Item 9Item 24Item 10Item 22Item 28Item 31Item 31Item 19Item 13Item 13Item 35Item 15Item 21Item 31Item 13Item 34Item 11Item 15Item 20Item 13Item 6Item 18Item 23Item 33Item 28Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 4 | 710787 | Bearing Cone | 1 | $35.16 | Add to Cart | |
| 6 | 691415 | Sliding Clutch (5TH/6TH) | 1 | $93.24 | Add to Cart | |
| 7 | 4301476 | Clutch Hub 5/6 | 1 | $48.99 | Add to Cart | |
| 8 | 4304543 | 5TH Gear-mainshaft | 1 | $192.24 | Add to Cart | |
| 9 | 3315737 | Bearing | 2 | $26.96 | Add to Cart | |
| 10 | 3315728 | Snap Ring | 1 | Replaces 3315729. | $3.06 | Add to Cart |
| 11 | 3315727 | Washer | 1 | $28.00 | Add to Cart | |
| 12 | 4304098 | 4TH Gear-mainshaft | 1 | Replaces 4304401. | $219.90 | Add to Cart |
| 13 | 4124075 | Bearing | 4 | $34.53 | Add to Cart | |
| 15 | 3315725 | Snap Ring | 2 | $3.33 | Add to Cart | |
| 16 | 691414 | Sliding Clutch (3RD/4TH) | 1 | $163.83 | Add to Cart | |
| 17 | 4301475 | Clutch Hub 3/4 | 1 | $36.51 | Add to Cart | |
| 18 | 4304057 | 3RD Gear-mainshaft | 1 | Replaces 4304063. | $191.71 | Add to Cart |
| 19 | 3315722 | Bearing | 2 | $19.60 | Add to Cart | |
| 20 | 3315717 | Snap Ring | 1 | Replaces 3315718. | $4.63 | Add to Cart |
| 21 | 3315719 | Washer | 1 | $42.55 | Add to Cart | |
| 22 | 4303231 | 2ND Gear-mainshaft | 1 | Replaces 4301482. | $261.34 | Add to Cart |
| 23 | 4301852 | Sliding Clutch 1ST/REV | 1 | $115.37 | Add to Cart | |
| 24 | 4303298 | 1ST Gear-mainshaft | 1 | $384.62 | Add to Cart | |
| 25 | 4303301 | Reverse Gear- Mainshaft | 1 | $252.33 | Add to Cart | |
| 26 | 4301474 | Clutch Hub-rev | 1 | $42.60 | Add to Cart | |
| 27 | 4301473 | Sliding Clutch-rev | 1 | $101.13 | Add to Cart | |
| 28 | 10J06 | Steel Ball | 2 | 3/16" | $1.71 | Add to Cart |
| 31 | 3315703 | Bearing | 4 | $40.64 | Add to Cart | |
| 33 | 4301468 | Mainshaft | 1 | $465.65 | Add to Cart | |
| 34 | 4301492 | Washer | 1 | $20.56 | Add to Cart | |
| 35 | 5557003 | Bearing Cone | 1 | $165.84 | Superseded by K4160Add to Cart |

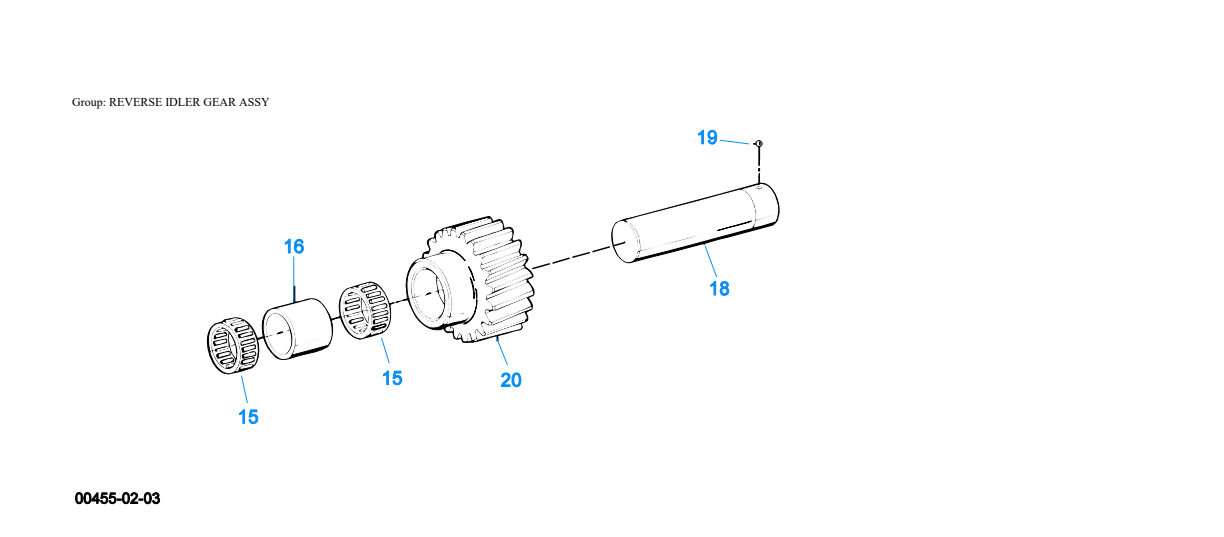

Reverse Idler Gear Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 15 | 3315674 | Bearing | 2 | $19.40 | Add to Cart | |
| 16 | 3315676 | Spacer | 1 | $22.06 | Add to Cart | |
| 18 | 3315672 | Reverse Idler Shaft | 1 | $133.45 | Add to Cart | |
| 19 | 10J06 | Steel Ball | 1 | 3/16" | $1.71 | Add to Cart |
| 20 | 4304319 | Reverse Idler Gear | 1 | $134.34 | Add to Cart |

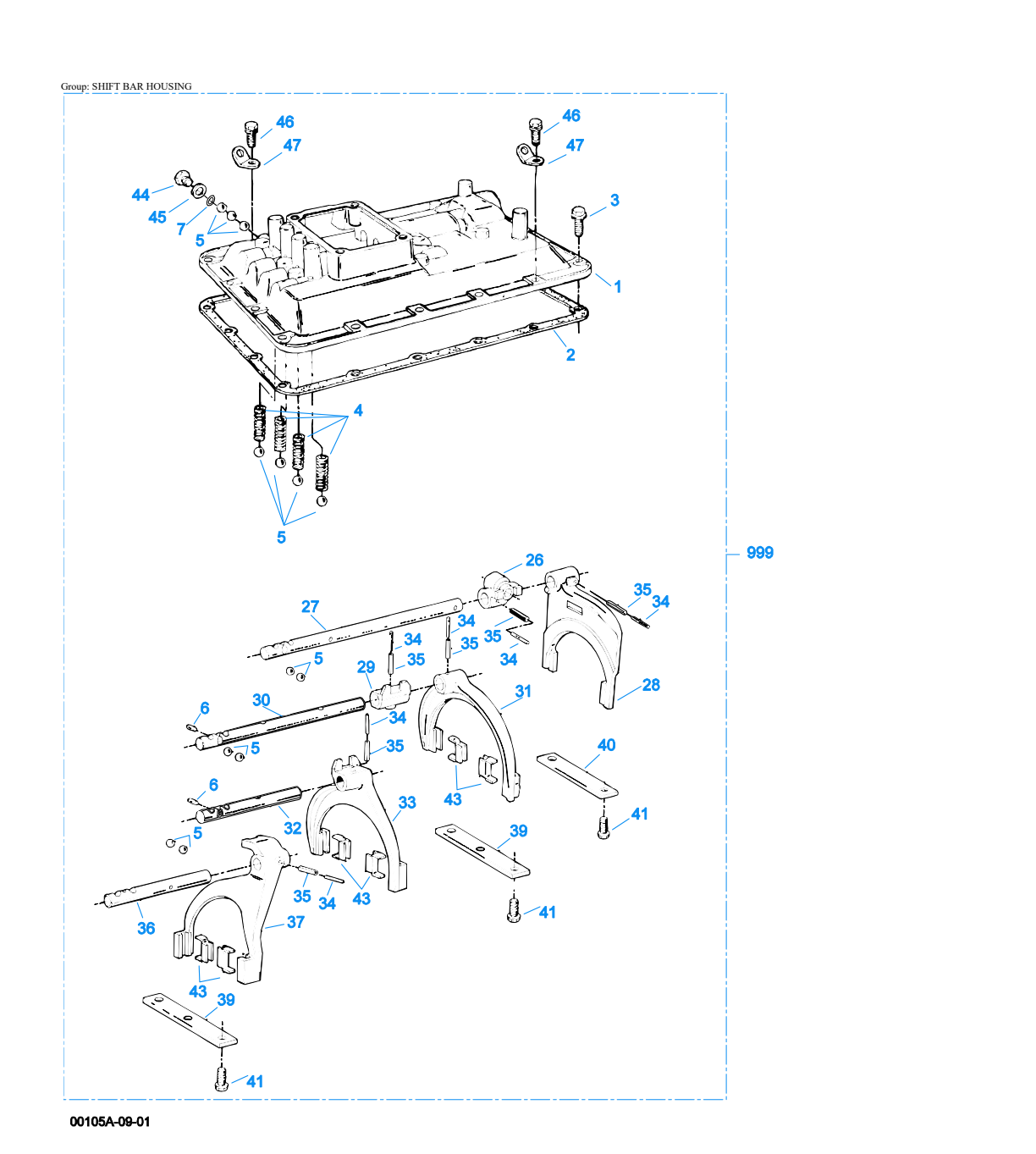

Shift Bar Housing
Item 1Item 4Item 47Item 7Item 5Item 3Item 5Item 44Item 47Item 46Item 3Item 34Item 5Item 35Item 36Item 30Item 34Item 43Item 41Item 41Item 5Item 35Item 32Item 35Item 34Item 46Item 40Item 6Item 43Item 37Item 39Item 2Item 6Item 39Item 33Item 31Item 26Item 28Item 27Item 41Item 43Item 29Item 34Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-2865 | Shift Bar Housing | 1 | Replaces 691655, A-7053. | $711.60 | Add to Cart |
| 2 | 4300854 | Gasket | 1 | Replaces 3315678. | $4.98 | Add to Cart |
| 3 | X-8C-600 | Capscrew | 12 | Replaces 239611. 3/8"-16X1" | $4.58 | Add to Cart |
| 4 | 691644 | Spring | 4 | $5.01 | Add to Cart | |
| 5 | 10J14 | Steel Ball | 13 | 7/16" | $1.81 | Add to Cart |
| 6 | 201044 | Pin | 2 | $2.91 | Add to Cart | |
| 7 | 4301719 | Ball Retainer- Reverse | 1 | $1.76 | Add to Cart | |
| 26 | 691526 | Shift Block - Reverse | 1 | $89.99 | Add to Cart | |
| 27 | 691654 | Yoke Bar - Reverse | 1 | Replaces 691422. | $80.45 | Add to Cart |
| 28 | 3315897 | Shift Yoke Assy | 1 | $95.85 | Add to Cart | |
| 29 | 691522 | Shift Block (1ST/2ND) | 1 | $43.68 | Add to Cart | |
| 30 | 691419 | Yoke Bar (1ST/2ND) | 1 | $32.75 | Add to Cart | |
| 31 | 3315772 | Shift Yoke Assy | 1 | Replaces 3315770. | $107.37 | Add to Cart |
| 32 | 691420 | Yoke Bar (3RD/4TH) | 1 | $24.67 | Add to Cart | |
| 33 | A-7038 | Yoke Assy (3RD/4TH) | 1 | Replaces 691524. | $111.01 | Add to Cart |
| 34 | 1JM6028 | Pin | 6 | $2.24 | Add to Cart | |
| 35 | 1JM3528 | Pin | 6 | $1.78 | Add to Cart | |
| 36 | 691421 | Yoke Bar (5TH/6TH) | 1 | $23.99 | Add to Cart | |
| 37 | A-7039 | Yoke Assy (5TH/6TH) | 1 | Replaces 691525. | $118.80 | Add to Cart |
| 39 | 4301279 | Shift Bar Retainer | 2 | Replaces 3315756. | $18.50 | Add to Cart |
| 40 | 3315757 | Shift Bar Retainer | 1 | $31.20 | Add to Cart | |
| 41 | 233043 | Capscrew | 8 | 3/8"-16X1" | $4.04 | Add to Cart |
| 43 | 227675 | Insert - Yoke Pad | 6 | $7.01 | Add to Cart | |
| 44 | 235052 | Ca Plug | 1 | 9/16 - 18 | $1.50 | Add to Cart |
| 44 | 4303656 | Plug | 1 | Replaces 15917. 9/16 - 18, THREADED | $2.91 | Add to Cart |
| 45 | 15900 | Gasket | 1 | $2.24 | Add to Cart | |
| 46 | X-8-688 | Capscrew | 3 | 3/8"-16X1" | $2.77 | Add to Cart |
| 47 | 238370 | Lifting Eye | 3 | $4.99 | Add to Cart | |
| 999 | S-2865 | Shift Bar Housing Assy | 1 | Replaces 691655, A-7053. | $711.60 | Add to Cart |
Shift Controls
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 4306043 | Pushbutton Assy | 1 | Replaces A-7466, S-3007. | $1,088.67 | Add to Cart |
X-Y Shifter Module
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-3784RX | Reman Exch Gen 3 X-y Shifter Kit | 1 | Replaces A-7670, A-7856, K-3784. | No longer available - Call for replacement | |
| 2 | 4305452 | Gasket | 1 | Replaces 4301958. | $13.93 | Add to Cart |
| 3 | K-3438 | Position Sensor Kit | 2 | Replaces 691551, 691926. | $117.41 | Add to Cart |
| 4 | X-8C-615 | Capscrew | 4 | $10.25 | Add to Cart | |
| 5 | 4304602 | Breather | 1 | Replaces 23605. 1/4" NPT | $8.22 | Add to Cart |
| 6 | 5559348 | Ty-rap | 6 | $2.40 | Add to Cart | |
| 7 | K-4009 | Xy Shifter Repair Kit | 1 | $17.59 | Add to Cart |
This is the complete factory parts breakdown for the Eaton Fuller F-5405B-DM3, with every part in the manual matched to our live inventory. We stock 145 of the 159 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
No parts match that search. Try the part number with no dashes.
This is the Eaton Fuller Illustrated Parts List covering the F-5405B-DM3 transmission. Use it to identify every serviceable part in your unit (assemblies, gears, shafts, housings and seals) before you order replacements.
| Models covered | F-5405B-DM3 |
| Transmission type | 5-speed, twin-countershaft, heavy duty |
| Document | Illustrated Parts List (Eaton Fuller) |
| Length | 19 pages |
| Format | PDF, view below or download free |
What’s inside
- Service kits & assemblies with recommended stocking quantities
- Mainshaft & countershaft gear groups
- Drive gears, idler & auxiliary drive gears
- Case, clutch & shift-bar housings
- Shift lever, forks & selector assemblies
- Bearings, seals, snap rings & small parts
- Air-shift and range-control components (where fitted)
- Exploded parts diagrams with OEM part numbers
Eaton Fuller parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Eaton Fuller transmission units:
- All Eaton Fuller transmission parts & units
- Remanufactured transmissions
- Search our catalog for F-5405B-DM3
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert. Send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
