Eaton Fuller FM-15E310B-LAS Parts Manual
This is the complete factory parts breakdown for the Eaton Fuller FM-15E310B-LAS — every part in the manual, matched to our live inventory. We stock 277 of the 294 parts below; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
Aftermarket Transmissions Auxiliary Drive Gear Case (Aux) Case (Front) Controller Ecu & Harness Countershaft & Brgs (Aux) Countershaft Assy Electric Clutch Actuator Filter Regulator Heat Exchanger Input Shaft & Drive Gear Integral Oil Pump Kits & Assemblies Mainshaft & Synchro(Aux) Mainshaft Assy Oil Filter Range Cylinder Reverse Idler Shift Bar Housing Shift Controls X-Y Shifter Module
No parts match that search — try the part number with no dashes.
Aftermarket Transmissions
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| TA-J01- | FM-15E310B-LAS New Svc Exch Trans | 1 | WITH INTERNAL PUMP - NO CLUTCH HOUSING | — | Call for availability | |
| TN-J01- | FM-15E310B-LAS Reman Trans | 1 | WITH INTERNAL PUMP | — | Call for availability | |
| TN-J01- | FM-15E310B-LAS New Svc Exch Trans | 1 | WITH INTERNAL PUMP - NO CLUTCH HOUSING | — | Call for availability |
Auxiliary Drive Gear
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 4306291 | Spacer | 1 | $83.47 | Add to Cart | |
| 2 | 5566508-BOX | Bearing | 1 | Replaces 5566503, 5566508. | $147.25 | Add to Cart |
| 3 | 4300894 | Retainer | 1 | $50.06 | Add to Cart | |
| 4 | X-8-645 | Capscrew | 6 | Replaces X8612. 3/8"-16X1" | $1.78 | Add to Cart |
| 5 | 4303360 | Auxiliary Drive Gear | 1 | $213.15 | Add to Cart | |
| 6 | 16763 | Snap Ring | 1 | $2.01 | Add to Cart |
Case (Aux)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-2501 | Speedo Rotor Assy | 1 | Replaces 4302242. MAGNETIC | $97.27 | Add to Cart |
| 2 | 5568511 | O-ring | 1 | $3.85 | Add to Cart | |
| 3 | K-2918 | Oil Seal Kit | 1 | Replaces 43023224302323. "FOR MAGNETIC COVER" | $46.53 | Add to Cart |
| 4 | X-8-0801M | Capscrew | 2 | M8 X 1.25 X 12MM | $2.57 | Add to Cart |
| 5 | S-3106 | Rear Bearing Cover Assy | 1 | Replaces 4306498. | $204.22 | Add to Cart |
| 6 | 1009551 | Gasket - Red Edge Molded | 1 | $6.27 | Add to Cart | |
| 7 | X-8L-611 | Capscrew | 4 | 3/8"-16X3-1/4" | $2.85 | Add to Cart |
| 7 | X-8L-614 | Capscrew | 2 | 3/8"-16X2" | $3.24 | Add to Cart |
| 8 | X-8L-602 | Capscrew | 16 | 3/8"-16X1-1/2" | $2.09 | Add to Cart |
| 8 | X-8L-614 | Capscrew | 2 | 3/8"-16X2" | $3.24 | Add to Cart |
| 8 | X-8L-616 | Capscrew | 1 | Replaces X8616. 3/8"-16X2-3/4" | $3.01 | Add to Cart |
| 9 | 4302320 | Cover | 2 | Replaces 21346. | $43.61 | Add to Cart |
| 10 | 4305978 | Gasket | 2 | Replaces 4302246. | — | Call for availability |
| 11 | K-2805 | Shim Kit | 1 | Replaces 21452, K-2106. | $46.55 | Add to Cart |
| 12 | 14335 | Gasket | 1 | $4.43 | Add to Cart | |
| 13 | 4306562 | Rear Housing | 1 | $559.38 | Add to Cart | |
| 14 | 5505543 | YOKE-1710 Half Round | 1 | $283.85 | Add to Cart | |
| 15 | 20815 | Lifting Eye | 2 | Replaces 17105. | $2.88 | Add to Cart |
| 16 | X-8L-600 | Capscrew | 8 | 3/8"-16X1" | $1.76 | Add to Cart |
| 17 | X-8C-409 | Capscrew | 1 | 1/4"-20X5/8" | $1.87 | Add to Cart |
| 18 | K-3947 | Directional Speed Sensor Kit | 1 | Replaces 4306497. | $133.60 | Add to Cart |
| 19 | K-3523 | Speedo Plug Kit | 2 | Replaces 4302707. | $5.15 | Add to Cart |
| 20 | 4304653 | Shield | 1 | $7.90 | Add to Cart |
Case (Front)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-3113 | Case Assy | 1 | Replaces 4306553. | $3,684.35 | Add to Cart |
| 2 | 4304023 | Plug | 2 | Replaces 4303747. 1-1/16" MAGNETIC, O-RING INCLUDED | $15.41 | Add to Cart |
| 3 | A-7471 | Extended Lube Tube Assy | 1 | Replaces 4305393. | $78.66 | Add to Cart |
| 4 | 4305310 | Gasket | 1 | Replaces 4302810. | $8.53 | Add to Cart |
| 5 | 4302809 | Pto Cover | 1 | Replaces 16596, 4300571. | $19.11 | Add to Cart |
| 6 | X-8-725 | Capscrew | 8 | Replaces X8724. 7/16"-14X7/8" | $2.42 | Add to Cart |
| 7 | 4306584 | Clutch Housing Gasket | 1 | Replaces 4304815, 4305668. | $22.49 | Add to Cart |
| 8 | A-8117 | Clutch Housing Assy | 1 | Replaces 4307000. STANDARD | $678.12 | Add to Cart |
| 8 | A-8118 | Clutch Housing Assy, Nodal | 1 | Replaces 4306906. NODAL | $1,485.03 | Add to Cart |
| 9 | X-8C-401 | Capscrew | 1 | 1/4"-20X1-1/8" | $4.03 | Add to Cart |
| 10 | K-4088 | Hand Hole Cover Kit | 1 | Replaces 4306459. | $31.78 | Add to Cart |
| 11 | 4306583 | Stud | 4 | Replaces 5966. FOR CLUTCH HOUSING | $3.21 | Add to Cart |
| 11 | 5577005 | Stud | 2 | (.625 X 3.75), FOR LCIB | $4.89 | Add to Cart |
| 12 | X-10-1005 | Washer | 6 | Replaces X31000, X101000, X101004. 1.23 X 6.60 | $1.50 | Add to Cart |
| 13 | X-1-1012 | Hex Nut | 6 | Replaces X-1-1005. .625-18 | $2.04 | Add to Cart |
| 14 | 4308012 | Front Bearing Cover | 1 | MUST BE USED WITH 4308011 INPUT SHAFT | $44.85 | Add to Cart |
| 14 | K-4144 | Input Shaft Replacement Kit | 1 | Replaces 4306466. | $267.68 | Add to Cart |
| 15 | X-8L-604 | Capscrew | 6 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 16 | K-3938 | Speed Sensor Kit | 1 | — | Call for availability | |
| 17 | 14311 | Gasket | 1 | $2.04 | Add to Cart | |
| 18 | 12815 | Bushing | 2 | $5.26 | Add to Cart | |
| 19 | X-8-423 | Capscrew | 2 | 1/4"-20X1/2" | $4.98 | Add to Cart |
| 20 | X-8C-830 | Hex Head Screw/washer Assy | 6 | Replaces X-8, C-826. .500-13 X 1.490 | $3.46 | Add to Cart |
| 21 | 4305550 | Sight Plug (1-5/8) | 1 | Replaces 4304123. | — | Call for availability |
| 22 | X-8-686 | Capscrew | 6 | 3/8"-16X3/4" | $1.97 | Add to Cart |
| 23 | 14575 | Pto Cover | 1 | Replaces 4302254. | $14.97 | Add to Cart |
| 24 | 4305309 | Gasket | 1 | Replaces 1684. | $8.58 | Add to Cart |
| 27 | 14373 | Magnet | 3 | $3.89 | Add to Cart | |
| 28 | 18128 | Pin | 2 | $24.16 | Add to Cart | |
| 29 | X-1-1012 | Hex Nut | 2 | .625-18 | $2.04 | Add to Cart |
| 30 | X-10-1005 | Washer | 2 | Replaces X31000, X101000, X101004. 1.23 X 6.60 | $1.50 | Add to Cart |
| 31 | 14554 | Stud | 2 | Replaces 1632, 6579. 5/8" X 2-3/16" | $3.29 | Add to Cart |
| 36 | 23104 | Plug | 2 | Replaces 1712. | $5.64 | Add to Cart |
| 37 | X-8-1005 | Capscrew | 2 | 5/8"-11X1-1/4" | $8.23 | Add to Cart |
| 38 | 20814 | Spacer | 2 | $2.70 | Add to Cart | |
| 39 | X-12-802 | Pipe Plug | 1 | Replaces X12800. 1/2" | $1.94 | Add to Cart |
| 40 | 691447 | Pin | 1 | $5.34 | Add to Cart | |
| 41 | 13835 | O-ring | 2 | $2.17 | Add to Cart | |
| 42 | 13653 | O-ring | 2 | $3.00 | Add to Cart | |
| 43 | 5568544 | O-ring | 1 | $2.11 | Add to Cart | |
| 45 | X-12-1212 | Pipe Plug | 1 | $3.23 | Add to Cart | |
| 46 | 13834 | O-ring | 1 | $1.50 | Add to Cart |
Controller Ecu & Harness
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-3996 | Ecu Assembly Kit (las) Direct | 1 | $2,260.70 | Add to Cart | |
| 2 | K-3985 | Transmission Harness Kit | 1 | $259.20 | Add to Cart | |
| 4 | K-3682 | Range/splitter Valve Kit | 1 | Replaces 5561801, 5561804, K-2907. | $300.65 | Add to Cart |
| 5 | X-8-264 | Hex Flange Head Screw | 4 | Replaces X8259. #10-24 X 1 1/4 | $3.95 | Add to Cart |
| 6 | K-2908 | O-ring Kit | 1 | FOR SOLENOID VALVE | $5.80 | Add to Cart |
Countershaft & Brgs (Aux)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 4302074-BOX | Bearing | 4 | Replaces 21343, 4302074. | $33.91 | Add to Cart |
| 2 | A-8023 | Welded Countershaft Assy | 2 | C/S 4302091 - D/G 21341 | $419.35 | Add to Cart |
| 3 | 21342 | Spacer | 2 | $8.55 | Add to Cart |
Countershaft Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 4302082 | Snap Ring | 2 | $1.99 | Add to Cart | |
| 2 | 4302712 | Bearing | 2 | — | No longer available — call for replacement | |
| 3 | 4306555 | Cntrshft-w/rev & 1ST | 2 | $451.01 | Add to Cart | |
| 4 | X-6-E | Key | 2 | — | No longer available — call for replacement | |
| 5 | 62511 | Roll Pin | 2 | $1.54 | Add to Cart | |
| 6 | 4304840 | Key | 2 | Replaces 19673. | $12.44 | Add to Cart |
| 7 | 4306076 | 2ND Gear-cntrshft | 2 | $111.39 | Add to Cart | |
| 8 | 4306072 | 3RD Gear-cntrshft | 2 | $192.01 | Add to Cart | |
| 9 | 4306069 | 4TH Gear-cntrshft | 2 | $187.16 | Add to Cart | |
| 10 | 15953 | Pto Gear - Lower | 1 | $103.41 | Add to Cart | |
| 10 | 20840 | Pto Gear - Upper | 1 | $105.45 | Add to Cart | |
| 11 | 4306079 | Drive Gear - Cntrshft | 2 | $244.32 | Add to Cart | |
| 12 | 19198 | Snap Ring | 2 | $2.12 | Add to Cart | |
| 13 | 4304599 | Bearing | 2 | Replaces 43026774304598. | $64.23 | Add to Cart |
| 14 | 4304605 | Retainer | 2 | Replaces 19548. | $26.65 | Add to Cart |
| 15 | X-7-1005 | Capscrew | 2 | 5/8"-18X1-3/4" | $5.13 | Add to Cart |
Electric Clutch Actuator
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 0 | K-4103 | Eca Shield Kit | 1 | Replaces A-8155, A-8602. NOT PICTURED | $136.50 | Add to Cart |
| 1 | K-3936 | Eca Inline Kit | 1 | $1,788.78 | Add to Cart | |
| 2 | X-8L-609 | Capscrew | 4 | $2.11 | Add to Cart |

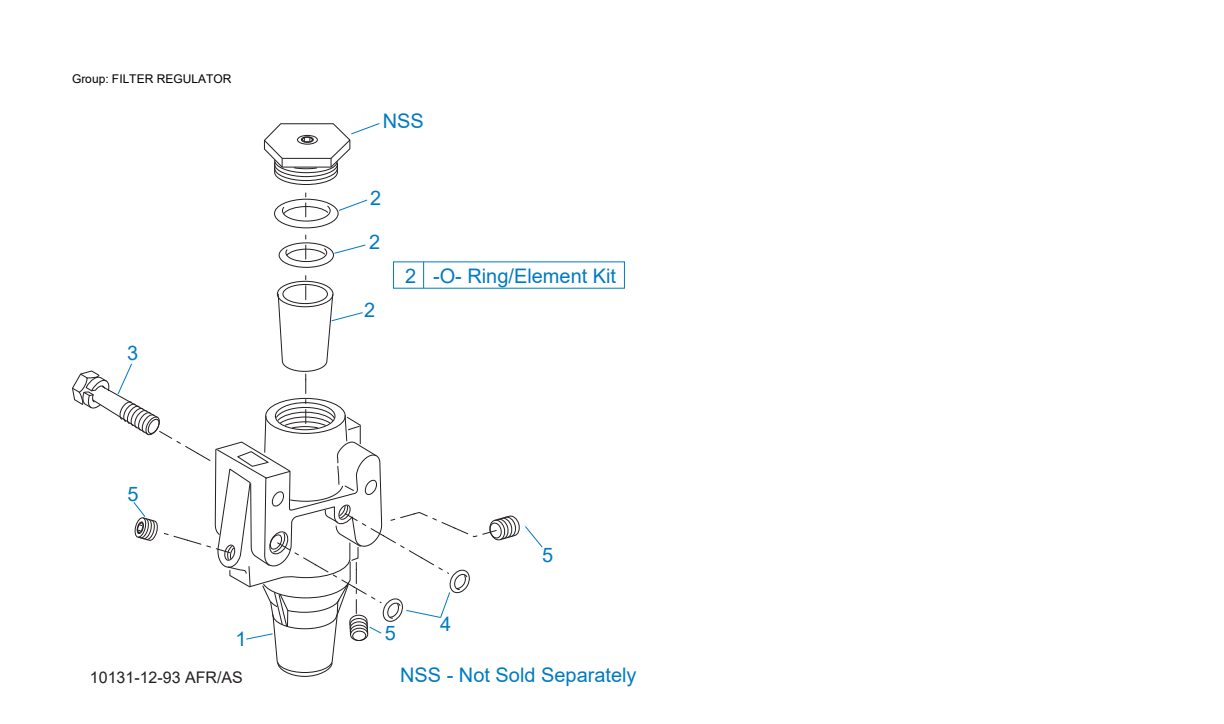

Filter Regulator
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-4095 | Filter Regulator Kit | 1 | 80 PSI | $140.79 | Add to Cart |
| 2 | K-1698 | O-ring/element Kit | 1 | FOR FILTER REGULATOR | $16.42 | Add to Cart |
| 3 | X-8C-412 | Capscrew | 2 | Replaces X8S412. 1/4"-20X2-1/4" | $2.11 | Add to Cart |
| 4 | 15114 | O-ring | 2 | $1.59 | Add to Cart | |
| 5 | X-12-208 | Pipe Plug | 3 | 1/8" NPT | $2.30 | Add to Cart |
Heat Exchanger
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 5586645 | Heat Exchanger | 1 | $425.54 | Add to Cart | |
| 2 | X-8C-604 | Capscrew | 2 | 3/8"-16X1-1/4" | $3.74 | Add to Cart |
| 3 | 5588108 | Oil Hose Assembly | 1 | Replaces 5586908. 52" | $59.88 | Add to Cart |
| 3 | 5588110 | Oil Hose Assembly | 1 | 57.5", FOR USE WITH OIL FILTER | $85.29 | Add to Cart |
| 4 | 5588107 | Oil Hose Assembly | 1 | Replaces 5586907. 45" | $56.36 | Add to Cart |
| 4 | 5588111 | Oil Hose Assembly | 1 | 50", FOR USE WITH OIL FILTER | $51.76 | Add to Cart |
| 5 | K-3902 | Mounting Bracket | 1 | Replaces 4306412. | $113.45 | Add to Cart |
| 6 | X-8C-609 | Screw | 5 | 3/8 - 16 X 1-3/4 | $4.50 | Add to Cart |
Input Shaft & Drive Gear
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 2 | 5568554 | O-ring | 1 | NOT SOLD FOR SERVICE | — | Call for availability |
| 3 | 16980 | Snap Ring | 1 | $2.75 | Add to Cart | |
| 4 | 4301417 | Bearing | 1 | — | Call for availability | |
| 5 | 16463 | Spacer | 1 | $26.65 | Add to Cart | |
| 6 | 14750 | Snap Ring | 1 | $2.20 | Add to Cart | |
| 7 | 4306078 | Main Drive Gear | 1 | $177.24 | Add to Cart | |
| 8 | K-4144 | Input Shaft Replacement Kit | 1 | Replaces 4306467, S-3078. | $267.68 | Add to Cart |
| 9 | 16566 | Bushing | 1 | $2.88 | Add to Cart | |
| 10 | K-4142 | Seal Kit | 1 | Replaces 23559. | $5.25 | Add to Cart |
| 11 | K-4143 | Input Shaft Kit | 1 | Replaces 4308011, S-3127. MUST BE USED WITH 4308012 FRONT BEARING COVER | $245.14 | Add to Cart |
Integral Oil Pump
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 4 | 20823 | Plug | 1 | $25.18 | Add to Cart | |
| 5 | 14765 | O-ring | 1 | $2.70 | Add to Cart | |
| 6 | K-4126 | Fastener Kit | 1 | Replaces 20824, X-8-448. KIT CONTAINS 3 FASTENERS AND 3 WASHERS | $46.89 | Add to Cart |
| 8 | 20825 | Dowel Pin | 1 | $2.82 | Add to Cart | |
| 9 | 4303773 | Retainer | 1 | $41.32 | Add to Cart | |
| 10 | K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-7173. | $367.14 | Add to Cart |
| 11 | K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-7173. | $367.14 | Add to Cart |
| 12 | 20509 | Key | 1 | $10.21 | Add to Cart | |
| 13 | 14853 | Snap Ring | 2 | $1.66 | Add to Cart | |
| 14 | 4303774 | Pump Drive Gear | 1 | Replaces 4304880. | $64.04 | Add to Cart |
| 15 | K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-7173. | $367.14 | Add to Cart |
| 16 | X-14-700 | Steel Ball | 1 | 7/16" | $1.63 | Add to Cart |
| 17 | 4303775 | Spring | 1 | $8.37 | Add to Cart | |
| 18 | 4305713 | Suction Tube | 1 | Replaces 4304628. O-RING INCLUDED ON SUCTION TUBE | $19.40 | Add to Cart |
| 19 | 4304629 | Plug | 1 | $7.19 | Add to Cart | |
| 21 | X-8-686 | Capscrew | 2 | 3/8"-16X3/4" | $1.97 | Add to Cart |
| 22 | 4305715 | Splitter Lube Tube | 1 | Replaces A-7197. | $41.73 | Add to Cart |
| 26 | X-8-447 | Screw | 2 | $2.85 | Add to Cart | |
| 27 | 20225 | O-ring | 1 | $2.06 | Add to Cart | |
| 999 | K-3367 | Oil Pump Kit | 1 | Replaces 4301829, 4301948, 4303776, 4304529, 4304572, A-6963, A-7173. | $367.14 | Add to Cart |
Kits & Assemblies
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-1698 | O-ring/element Kit | 1 | $16.42 | Add to Cart | ||
| K-2805 | Shim Kit | 1 | $46.55 | Add to Cart | ||
| K-2908 | O-ring Kit | 1 | $5.80 | Add to Cart | ||
| K-2918 | Oil Seal Kit | 1 | $46.53 | Add to Cart | ||
| K-3365 | Range Cyl Cover Kit | 1 | $147.56 | Add to Cart | ||
| K-3367 | Oil Pump Kit | 1 | $367.14 | Add to Cart | ||
| K-3438 | Position Sensor Kit | 1 | $117.41 | Add to Cart | ||
| K-3441 | Oil Filter/adapter Kit | 1 | $256.71 | Add to Cart | ||
| K-3492 | Synchronizer Kit | 1 | $228.43 | Add to Cart | ||
| K-3523 | Speedo Plug Kit | 1 | $5.15 | Add to Cart | ||
| K-3682 | Range/splitter Valve Kit | 1 | $300.65 | Add to Cart | ||
| K-3734 | Trans Controller Mounting Kit | 1 | $81.96 | Add to Cart | ||
| K-3784RX | Reman Exch Gen 3 X-y Shifter Kit | 1 | — | No longer available — call for replacement | ||
| K-3902 | Heat Exchanger Mounting Bracket Kit | 1 | $113.45 | Add to Cart | ||
| K-3936 | Eca Inline Kit | 1 | $1,788.78 | Add to Cart | ||
| K-3938 | Speed Sensor Kit | 1 | FOR USE AT INPUT SHAFT, MAINSHAFT AND CLUTCH LOCATIONS | — | Call for availability | |
| K-3947 | Directional Speed Sensor Kit | 1 | USED IN OUTPUT SHAFT LOCATION | $133.60 | Add to Cart | |
| K-3985 | Transmission Harness Kit | 1 | $259.20 | Add to Cart | ||
| K-3996 | Ecu Assembly Kit (las) Direct | 1 | $2,260.70 | Add to Cart | ||
| K-4009 | Xy Shifter Repair Kit | 1 | $17.59 | Add to Cart | ||
| K-4010 | Basic Rebuild Kit | 1 | $877.40 | Add to Cart | ||
| K-4011 | Gasket Kit | 1 | $61.13 | Add to Cart | ||
| K-4035 | Output Yoke / Flange Retainer Kit | 1 | Replaces 4306303. | $43.40 | Add to Cart | |
| K-4036 | Cross-shaft | 1 | $822.31 | Add to Cart | ||
| K-4037 | Eca Clutch Grease Line Kit | 1 | $62.19 | Add to Cart | ||
| K-4058 | Eca Speed Sensor Jumper Harness Kit | 1 | $35.64 | Add to Cart | ||
| K-4088 | Hand Hole Cover Kit | 1 | $31.78 | Add to Cart | ||
| K-4095 | Filter Regulator Kit | 1 | $140.79 | Add to Cart | ||
| K-4103 | Eca Shield Kit | 1 | Replaces A-8155. | $136.50 | Add to Cart | |
| K-4134 | Lcib Brake Assy Kit | 1 | Replaces 1271043. | — | No longer available — call for replacement | |
| K-4140 | Small Parts Kit | 1 | $145.38 | Add to Cart | ||
| K-4142 | Seal Kit | 1 | $5.25 | Add to Cart | ||
| K-4143 | Input Shaft Kit | 1 | $245.14 | Add to Cart | ||
| K-4144 | Input Shaft Replacement Kit | 1 | Replaces S-3078. | $267.68 | Add to Cart | |
| K-4145 | Clutch Installation Kit | 1 | Replaces K-4059. | $728.44 | Add to Cart | |
| S-3106 | Rear Bearing Cover Assy | 1 | $204.22 | Add to Cart | ||
| S-3110 | Mainshaft Assy | 1 | $221.36 | Add to Cart | ||
| S-3113 | Case Assy | 1 | Replaces 4306553. | $3,684.35 | Add to Cart | |
| S-3114 | Shift Bar Housing Assy | 1 | Replaces 4306393. HOUSING ONLY | $369.22 | Add to Cart | |
| S-3115 | Shift Bar Housing Assy | 1 | Replaces 4306393. COMPLETE | $1,491.65 | Add to Cart |

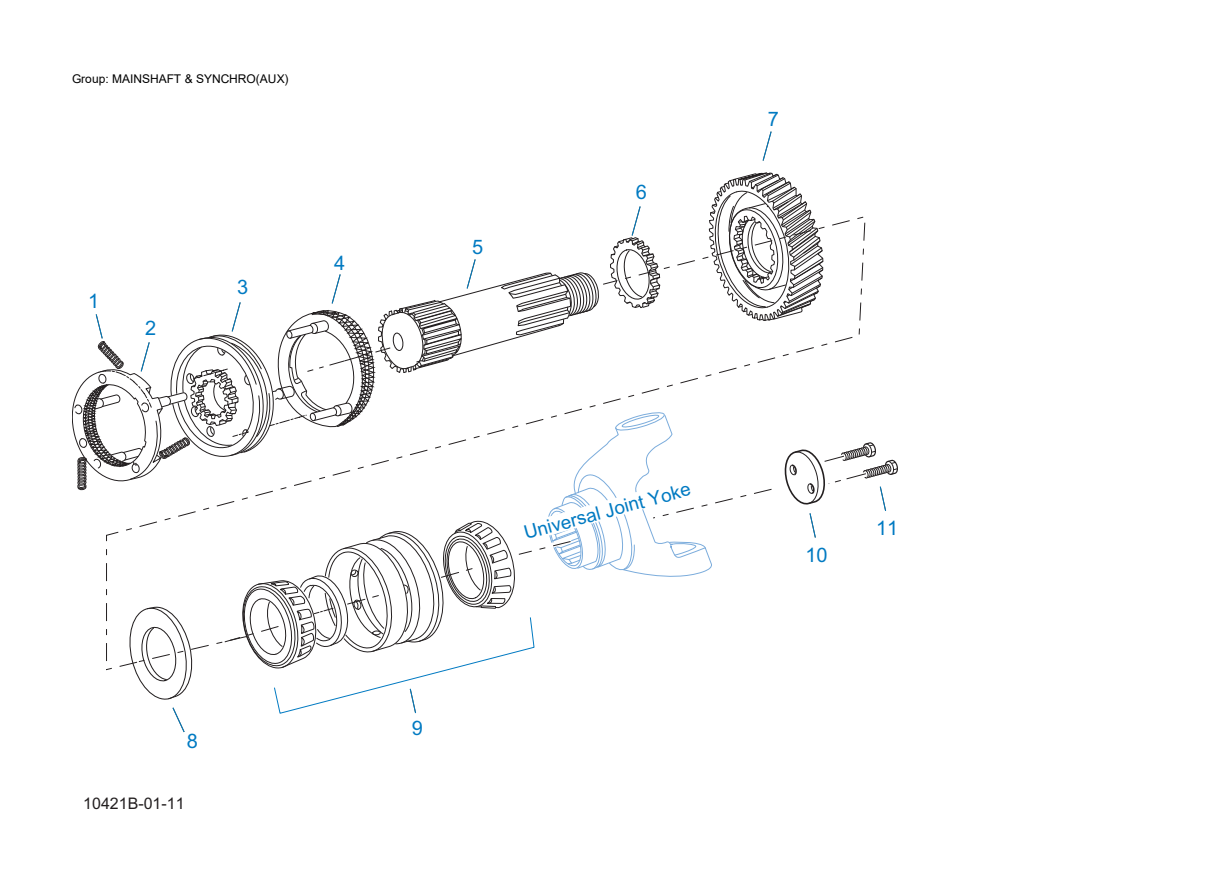

Mainshaft & Synchro(Aux)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 14897 | Spring | 3 | $1.40 | Add to Cart | |
| 2 | A-7331 | Synchronizer Assy | 1 | Replaces 43043964304397, A-5917. HI RANGE | $118.88 | Add to Cart |
| 3 | 20323 | Sliding Clutch | 1 | $122.31 | Add to Cart | |
| 4 | A-7254 | Synchronizer Assembly | 1 | Replaces A-4937, A-5876. LO RANGE | $146.52 | Add to Cart |
| 5 | 4306551 | Auxiliary Mainshaft | 1 | $346.34 | Add to Cart | |
| 6 | 22899 | Washer | 1 | $64.19 | Add to Cart | |
| 7 | 4302090 | Reduction Gear | 1 | Replaces 4301227. | $255.35 | Add to Cart |
| 8 | 22898 | Spacer | 1 | $71.12 | Add to Cart | |
| 9 | 5556507 | Tapered Roller Bearing | 1 | $224.32 | Add to Cart | |
| 10 | K-4035 | Output Yoke / Flange Retainer Kit | 1 | Replaces 4306303. | $43.40 | Add to Cart |
| 11 | X-8-1209M | Hex Flange Head Screw | 2 | M12X1.25X60 | $5.16 | Add to Cart |
Mainshaft Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-3110 | Mainshaft | 1 | Replaces 4306315. | $221.36 | Add to Cart |
| 2 | 62504 | Roll Pin | 1 | $1.28 | Add to Cart | |
| 3 | 4306293 | Key, Mainshaft (special) | 1 | $5.12 | Add to Cart | |
| 4 | 4306308 | Snap Ring | 1 | $8.75 | Add to Cart | |
| 5 | 4306282 | Reverse Gear- Mainshaft | 1 | $204.77 | Add to Cart | |
| 6 | 4306292 | Spacer | 1 | $21.75 | Add to Cart | |
| 7 | 4306541 | Mainshaft Sleeve | 1 | $129.03 | Add to Cart | |
| 8 | 4306604 | 1ST Gear-mainshaft | 1 | $167.38 | Add to Cart | |
| 9 | 4303603 | Washer | 2 | $14.45 | Add to Cart | |
| 10 | 4303477 | 2ND Gear-mainshaft | 1 | $180.99 | Add to Cart | |
| 11 | 4306070 | 3RD Gear-mainshaft | 1 | $252.52 | Add to Cart | |
| 12 | 4306080 | 4TH Gear-mainshaft | 1 | $304.38 | Add to Cart | |
| 13 | 4306540 | Sliding Clutch | 1 | 1ST / REVERSE | $230.16 | Add to Cart |
| 14 | 4302398 | Washer | 4 | $10.08 | Add to Cart | |
| 15 | 4305997 | Sliding Clutch | 2 | $41.73 | Add to Cart | |
| 17 | 16763 | Snap Ring | 1 | $2.01 | Add to Cart |
Oil Filter
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 19419 | Connector | 1 | $9.93 | Add to Cart | |
| 2 | X-8-453 | Screw | 4 | $2.49 | Add to Cart | |
| 3 | X-8-452 | Screw | 1 | $2.75 | Add to Cart | |
| 4 | 4304820 | Gasket | 1 | $9.09 | Add to Cart | |
| 5 | 4301123 | Elbow | 1 | $18.13 | Add to Cart | |
| 6 | K-3441 | Oil Filter/adapter Kit | 1 | Replaces A-7174. | $256.71 | Add to Cart |
| 7 | 4304827 | Oil Filter Element | 1 | $28.15 | Add to Cart | |
| 8 | 17007 | Elbow | 1 | $12.99 | Add to Cart | |
| 9 | K-3441 | Oil Filter/adapter Kit | 1 | $256.71 | Add to Cart | |
| 10 | A-7300 | Aux Countershaft Cover Assy | 1 | $140.84 | Add to Cart | |
| 11 | K-3547 | Oil Filter Cover Kit | 1 | CONTAINS A-7300 | $199.53 | Add to Cart |
Range Cylinder
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-5474 | Shift Yoke Assy | 1 | $105.70 | Add to Cart | |
| 2 | 14347 | Gasket | 1 | $2.29 | Add to Cart | |
| 3 | 691348 | Range Cylinder | 1 | $111.33 | Add to Cart | |
| 4 | 14765 | O-ring | 1 | $2.70 | Add to Cart | |
| 5 | 14341 | Piston | 1 | Replaces 23353. | $26.70 | Add to Cart |
| 6 | 14345 | O-ring | 1 | $1.84 | Add to Cart | |
| 7 | 14344 | O-ring | 1 | $8.00 | Add to Cart | |
| 8 | X-1-1010 | Nut | 1 | 5/8"-18 | $2.11 | Add to Cart |
| 9 | 691955 | Gasket | 1 | Replaces 691440. | $8.09 | Add to Cart |
| 10 | K-3365 | Range Cyl Cover Kit | 1 | Replaces 691442. | $147.56 | Add to Cart |
| 11 | X-8-647 | Capscrew | 2 | 3/8"-16X4-3/4" | $6.37 | Add to Cart |
| 12 | X-8L-605 | Capscrew | 2 | 3/8"-16X3" | $4.71 | Add to Cart |
| 13 | X-3-600 | Lockwasher | 2 | 3/8" | $1.33 | Add to Cart |
| 15 | X-12-208 | Pipe Plug | 3 | 1/8" NPT | $2.30 | Add to Cart |
| 16 | K-2908 | O-ring Kit | 1 | FOR SOLENOID VALVE | $5.80 | Add to Cart |
| 17 | X-8-264 | Hex Flange Head Screw | 4 | Replaces X8259. #10-24 X 1 1/4 | $3.95 | Add to Cart |
| 18 | K-3682 | Range/splitter Valve Kit | 1 | Replaces 5561801, 5561804, K-2907. | $300.65 | Add to Cart |
Reverse Idler
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 3 | 4302982 | Washer | 4 | Replaces 14282. | $5.69 | Add to Cart |
| 4 | 14287 | Bearing | 2 | Replaces 4305020. | $20.16 | Add to Cart |
| 5 | 16757 | Reverse Idler Gear | 2 | Replaces 22409. | $145.40 | Add to Cart |
| 8 | 4303336 | Retaining Ring | 4 | $3.99 | Add to Cart | |
| 9 | 4305513 | Idler Shaft | 2 | $22.92 | Add to Cart |
Shift Bar Housing
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-3114 | Shift Bar Housing Assy | 1 | Replaces 4306393. HOUSING ONLY | $369.22 | Add to Cart |
| 2 | 4302676 | Gasket | 1 | Replaces 14918. | $5.64 | Add to Cart |
| 5 | 20332 | Air Valve Shaft | 1 | Replaces 17177. | $17.23 | Add to Cart |
| 7 | X-12-603 | Pipe Plug | 1 | Replaces X12602. 3/8" NPT | $4.40 | Add to Cart |
| 10 | 21966 | Plunger | 1 | $17.64 | Add to Cart | |
| 11 | 4301372 | Spring | 1 | $9.57 | Add to Cart | |
| 12 | 17179 | Gasket | 1 | $2.25 | Add to Cart | |
| 13 | 4303655 | Plug | 1 | Replaces 17178. | $5.22 | Add to Cart |
| 14 | 22941 | Neutral Light Switch | 1 | Replaces 12639. SWITCH NORMALLY CLOSED | $42.29 | Add to Cart |
| 15 | 20815 | Lifting Eye | 2 | Replaces 17105. | $2.88 | Add to Cart |
| 16 | X-8L-602 | Capscrew | 5 | 3/8"-16X1-1/2"- TWO FOR LIFTING EYES, 2 FOR HARNESS BRACKET AND 1 FOR STRAIN RELIEF VALVE | $2.09 | Add to Cart |
| 16 | X-8L-604 | Capscrew | 2 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 17 | 15899 | Pin | 1 | $4.30 | Add to Cart | |
| 18 | 15900 | Gasket | 1 | $2.24 | Add to Cart | |
| 19 | 22940 | Reverse Light Switch | 1 | Replaces 16830. SWITCH NORMALLY OPEN | $17.31 | Add to Cart |
| 20 | 4303656 | Plug | 1 | Replaces 15917. | $2.91 | Add to Cart |
| 21 | 691661 | Compression Spring | 3 | $5.05 | Add to Cart | |
| 22 | X-14-800 | Steel Ball | 3 | 1/2" | $1.78 | Add to Cart |
| 23 | 4306286 | Shift Yoke | 1 | REVERSE/1ST | $125.57 | Add to Cart |
| 24 | X-14-1200 | Steel Ball | 2 | 3/4" | $2.83 | Add to Cart |
| 25 | 14658 | Shift Block | 1 | 2ND/3RD | $43.77 | Add to Cart |
| 26 | 3220 | Lockscrew | 5 | $4.28 | Add to Cart | |
| 27 | 1634 | Interlock Pin | 1 | $3.13 | Add to Cart | |
| 28 | 14659 | Shift Block | 1 | 4TH/5TH | $31.48 | Add to Cart |
| 29 | 691601 | Shift Yoke | 1 | Replaces 4302212. 4TH/5TH | $289.67 | Add to Cart |
| 30 | 4301366 | Yoke Bar | 1 | 4TH/5TH | $99.83 | Add to Cart |
| 31 | 691600 | Shift Yoke | 1 | Replaces 4302994. 2ND/3RD | $301.54 | Add to Cart |
| 32 | 4301365 | Yoke Bar | 1 | 2ND/3RD | $101.23 | Add to Cart |
| 33 | 4301364 | Yoke Bar | 1 | REVERSE/1ST | $99.83 | Add to Cart |
| 34 | K-3938 | Speed Sensor Kit | 2 | SINGLE PICK-UP (2 PIN) | — | Call for availability |
| 35 | 14142 | O-ring | 2 | $1.96 | Add to Cart | |
| 36 | X-8C-409 | Capscrew | 2 | 1/4"-20X5/8" | $1.87 | Add to Cart |
| 37 | 4303656 | Plug | 3 | Replaces 15917. | $2.91 | Add to Cart |
| 38 | 15900 | Gasket | 3 | $2.24 | Add to Cart | |
| 39 | 4305869 | Screw | 9 | 3/8 & 5/16 | $7.03 | Add to Cart |
| 40 | 4305870 | Nut Assembly | 3 | 5/16-18 | $1.89 | Add to Cart |
| 999 | S-3115 | Shift Bar Housing Assy | 1 | Replaces 4306393. COMPLETE | $1,491.65 | Add to Cart |

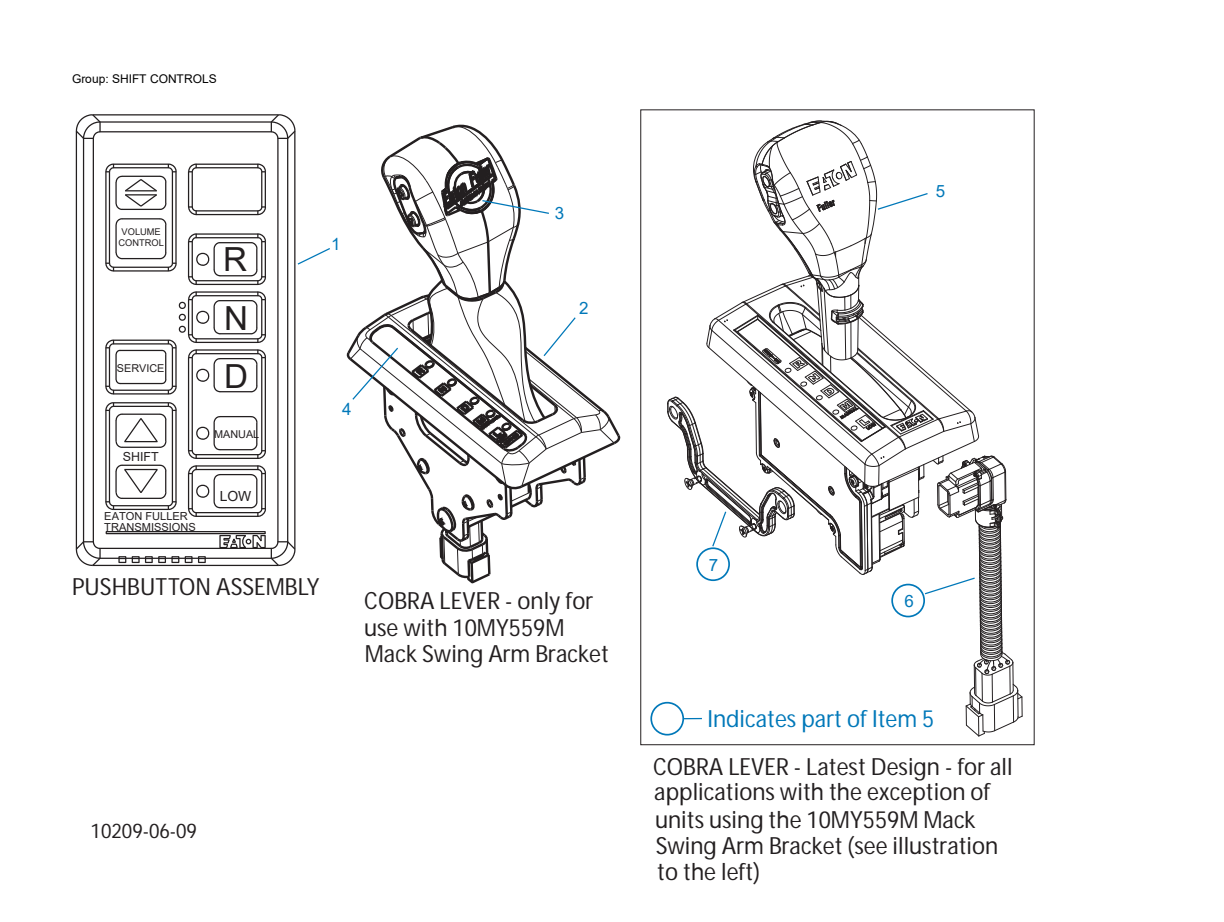

Shift Controls
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 4306043 | Pushbutton Assy | 1 | Replaces A-7466, S-3007. | $1,088.67 | Add to Cart |
| 2 | K-3997 | Cobra Shift Lever Kit (rho) W/mack Swing Arm | 1 | Replaces 4305447, K-3680. (LEFT HAND DRIVE), ALSO KNOWN AS (RHO) RIGHT HAND OPERATION - FOR UNITS USING THE MACK 10MY559M SWING ARM BRACKET | — | No longer available — call for replacement |
| 3 | 5505111 | Shift Lever Knob Decal | 1 | — | No longer available — call for replacement | |
| 4 | 5505110 | Shift Lever Position Strip | 1 | $11.88 | Add to Cart | |
| 5 | K-3980 | Cobra Shift Lever Kit (rho) | 1 | Replaces K-3680. (LEFT HAND DRIVE), ALSO KNOWN AS (RHO) RIGHT HAND OPERATION | $1,557.68 | Add to Cart |
| 6 | A-7982 | Jumper Harness Assy | 1 | $50.70 | Add to Cart | |
| 7 | K-3979 | Spacer Kit | 1 | INCLUDES (4) SPACER MOUNTING SCREWS | $40.18 | Add to Cart |
X-Y Shifter Module
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-3784RX | Reman Exch Gen 3 X-y Shifter Kit | 1 | Replaces A-7670, K-3665, K-3784. | — | No longer available — call for replacement |
| 2 | 4305452 | Gasket | 1 | Replaces 4301958. | $11.02 | Add to Cart |
| 3 | K-3438 | Position Sensor Kit | 2 | Replaces 691551, 691926. | $117.41 | Add to Cart |
| 4 | X-8C-615 | Capscrew | 4 | $10.25 | Add to Cart | |
| 5 | 4304602 | Breather | 1 | Replaces 23605. 1/4" NPT | $8.22 | Add to Cart |
| 7 | K-4009 | Xy Shifter Repair Kit | 1 | $17.59 | Add to Cart |
