Eaton Fuller T-11605A Parts Manual
This is the complete factory parts breakdown for the Eaton Fuller T-11605A — every part in the manual, matched to our live inventory. We stock 229 of the 287 parts below; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
Case (Front) Countershaft Assy Input Shaft & Drive Gear Isolators Kits & Assemblies Levers/Housings Mainshaft Assy Miscellaneous Output Shaft Rear Bearing Covers Reverse Idler Shift Bar Housing (Std)
No parts match that search — try the part number with no dashes.

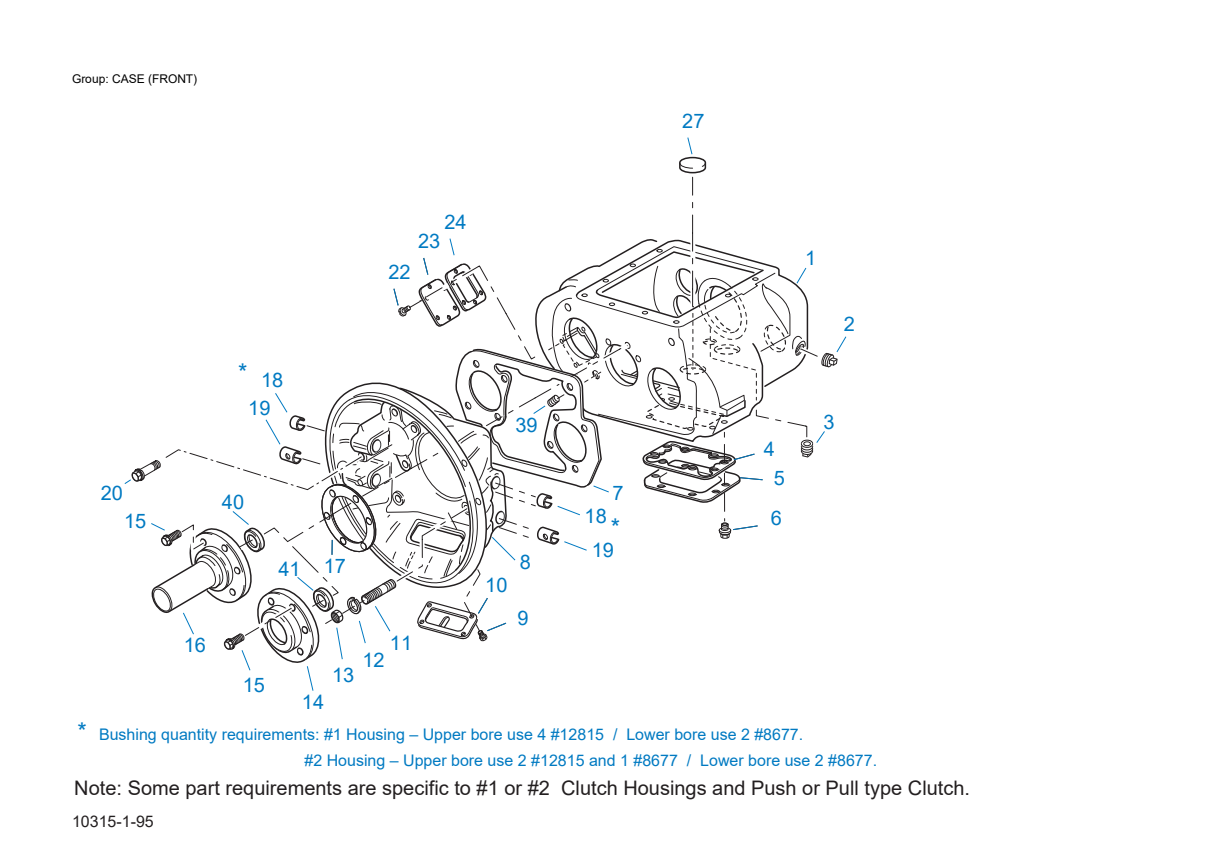

Case (Front)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-1314 | No Longer Available | 1 | Replaces 14705. | — | Call for availability |
| 1 | S-1422 | No Longer Available | 1 | Replaces 20153. | — | Call for availability |
| 1 | S-1424 | No Longer Available | 1 | Replaces 20230. | — | Call for availability |
| 2 | X-12-2007 | Pipe Plug | 1 | Replaces X122006. | $9.36 | Add to Cart |
| 3 | X-12-1207 | Pipe Plug | 1 | Replaces X121202, X121206. 3/4" MAGNETIC | $4.53 | Add to Cart |
| 4 | 4305310 | Gasket | 1 | Replaces 4302810. | $8.53 | Add to Cart |
| 5 | 4302809 | Pto Cover | 1 | Replaces 16596, 4300571. | $19.11 | Add to Cart |
| 6 | X-8-725 | Capscrew | 8 | Replaces X8724. 7/16"-14X7/8" | $2.42 | Add to Cart |
| 7 | 4306584 | Clutch Housing Gasket | 1 | Replaces 4304815, 4305668. | $22.49 | Add to Cart |
| 8 | A-3713 | Clutch Housing Assy | 1 | Replaces A-3700. #1 PUSH-PULL IRON | $1,231.08 | Add to Cart |
| 8 | A-3723 | Clutch Housing Assy | 1 | Replaces A-3721, A-3722. #2 PUSH-PULL IRON | $1,887.32 | Add to Cart |
| 8 | A-4772 | Clutch Housing Assy | 1 | Replaces A-4344, A-4771. #2 PUSH-PULL ALUM. | $2,336.63 | Add to Cart |
| 8 | A-6064 | Clutch Housing Assy | 1 | Replaces A-4342, A-4770, A-6062, A-6063, A-6065. #1 PUSH-PULL ALUM. | $1,376.22 | Add to Cart |
| 8 | K-1660 | Clutch Housing Kit | 1 | Replaces 16329, A-4189, A-4190, S-1207. #2 PUSH-PULL ALUM. | — | No longer available — call for replacement |
| 8 | S-1237 | No Longer Available | 1 | #2 PUSH-PULL IRON | — | Call for availability |
| 9 | 239614 | Screw | 4 | Replaces X-8, L-509. 5/16-18X.81 QUANTITY DEPENDENT ON DESIGN | $7.31 | Add to Cart |
| 10 | 14506 | Hand Hole Cover | 1 | #2 PUSH | $25.71 | Add to Cart |
| 10 | 14507 | Hand Hole Cover | 1 | #2 PULL | $9.50 | Add to Cart |
| 10 | 4305230 | Hand Hole Cover | 1 | Replaces 11453. #1 PULL | $10.20 | Add to Cart |
| 10 | 4305231 | Hand Hole Cover | 1 | Replaces 1565. #1 PUSH | $11.29 | Add to Cart |
| 11 | 4306583 | Stud | 6 | Replaces 5966. | $3.21 | Add to Cart |
| 12 | X-10-1005 | Washer | 6 | Replaces X31000, X101000, X101004. 1.23 X 6.60 | $1.50 | Add to Cart |
| 13 | X-1-1012 | Hex Nut | 6 | Replaces X-1-1005. .625-18 | $2.04 | Add to Cart |
| 14 | 14267 | Front Brg. Cover | 1 | 1-3/4" PULL | $36.25 | Add to Cart |
| 14 | 15111 | Front Brg. Cover | 1 | 2" PULL | $47.29 | Add to Cart |
| 14 | 18699 | Front Brg. Cover | 1 | 1-3/4" & 2" PULL W/SEAL | $234.50 | Add to Cart |
| 14 | 20550 | Front Brg Cover | 1 | 2" PULL | $42.67 | Add to Cart |
| 14 | 20552 | Front Brg Cover | 1 | 1-3/4" PULL | $72.77 | Add to Cart |
| 15 | X-8L-604 | Capscrew | 6 | 3/8"-16X1-1/4" USE 6 PCS WITH PULL TYPE COVER USE 4 PCS WITH PUSH TYPE COVER | $2.34 | Add to Cart |
| 15 | X-8L-619 | Capscrew | 2 | 3/8"-16X1-1/4" - USE WITH PUSH TYPE COVER | $13.50 | Add to Cart |
| 16 | 14994 | Front Brg. Cover | 1 | 2" PUSH | $221.55 | Add to Cart |
| 16 | 15113 | Front Brg. Cover | 1 | 1-3/4" & 2" PUSH W/SEAL | $317.56 | Add to Cart |
| 16 | 20549 | Front Brg Cover | 1 | 2" PUSH | $107.56 | Add to Cart |
| 16 | 20551 | Front Brg. Cover | 1 | 1-3/4" PUSH | $97.05 | Add to Cart |
| 16 | S-1478 | No Longer Available | 1 | 1-3/4" PUSH | — | Call for availability |
| 17 | 14311 | Gasket | 1 | $2.04 | Add to Cart | |
| 18 | 12815 | Bushing | 2 | FOR #2 HOUSING - UPPER | $5.26 | Add to Cart |
| 18 | 12815 | Bushing | 4 | FOR #1 HOUSING - UPPER | $5.26 | Add to Cart |
| 18 | 8677 | Bushing | 1 | FOR #2 HOUSING - UPPER | $19.09 | Add to Cart |
| 19 | 8677 | Bushing | 3 | FOR #1 AND #2 HOUSING - LOWER | $19.09 | Add to Cart |
| 20 | X-8C-830 | Hex Head Screw/washer Assy | 4 | Replaces X-8, C-826. .500-13 X 1.490, USE 2 PCS FOR IRON HOUSING, USE 4 PCS FOR ALUMINUM HOUSING | $3.46 | Add to Cart |
| 20 | X-8C-831 | Hex Head Screw/washer Assy | 2 | Replaces X-8, C-822. .500-13 X 3.460, FOR IRON HOUSING | $3.46 | Add to Cart |
| 22 | X-8-686 | Capscrew | 6 | 3/8"-16X3/4" | $1.97 | Add to Cart |
| 23 | 14575 | Pto Cover | 1 | Replaces 4302254. | $14.97 | Add to Cart |
| 24 | 4305309 | Gasket | 1 | Replaces 1684. | $8.58 | Add to Cart |
| 27 | 14373 | Magnet | 3 | $3.89 | Add to Cart | |
| 39 | X-12-802 | Pipe Plug | 1 | Replaces X12800. 1/2" | $1.94 | Add to Cart |
| 40 | 12581 | Oil Seal | 1 | USE W/15113 COVER ONLY | $8.63 | Add to Cart |
| 41 | 16976 | Seal | 1 | 1-3/4" | $14.47 | Add to Cart |
| 41 | 16977 | Seal | 1 | 2" | $17.24 | Add to Cart |

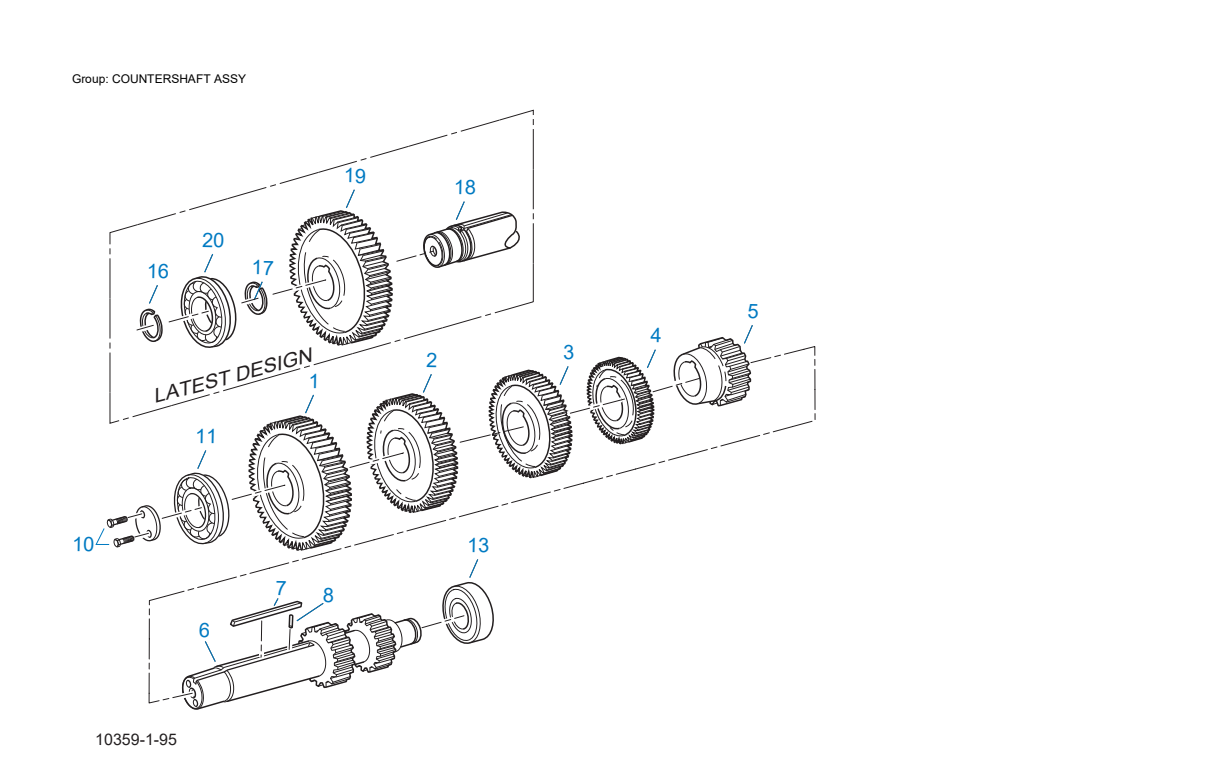

Countershaft Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 19647 | Drive Gear-cntrshft | 2 | — | Call for availability | |
| 2 | 14307 | No Longer Available | 1 | — | Call for availability | |
| 2 | 14886 | No Longer Available | 1 | — | Call for availability | |
| 2 | 14905 | No Longer Available | 2 | — | Call for availability | |
| 3 | 19175 | No Longer Available | 2 | — | Call for availability | |
| 4 | 19613 | 3RD Gear-cntrshft | 2 | $192.26 | Add to Cart | |
| 5 | 4300293 | 2ND Gear-cntrshft | 2 | Replaces 19178. | — | No longer available — call for replacement |
| 6 | 14720 | No Longer Available | 2 | — | Call for availability | |
| 7 | 16664 | Key | 2 | $9.41 | Add to Cart | |
| 8 | 62511 | Roll Pin | 2 | $1.54 | Add to Cart | |
| 9 | 7484 | No Longer Available | 2 | — | Call for availability | |
| 10 | X-7-802 | Capscrew | 4 | 1/2"-20X1" | $5.49 | Add to Cart |
| 11 | 20899 | Bearing | 2 | Replaces 81007. | $265.80 | Add to Cart |
| 13 | 14366 | Bearing | 2 | $54.68 | Add to Cart | |
| 16 | 15253 | Snap Ring | 2 | $5.67 | Add to Cart | |
| 17 | 20085 | Snap Ring | 2 | $2.29 | Add to Cart | |
| 18 | 20147 | No Longer Available | 2 | — | Call for availability | |
| 19 | 20149 | No Longer Available | 2 | — | Call for availability | |
| 20 | 81022 | Ball Bearing | 2 | Replaces 5566509. | $65.37 | Add to Cart |

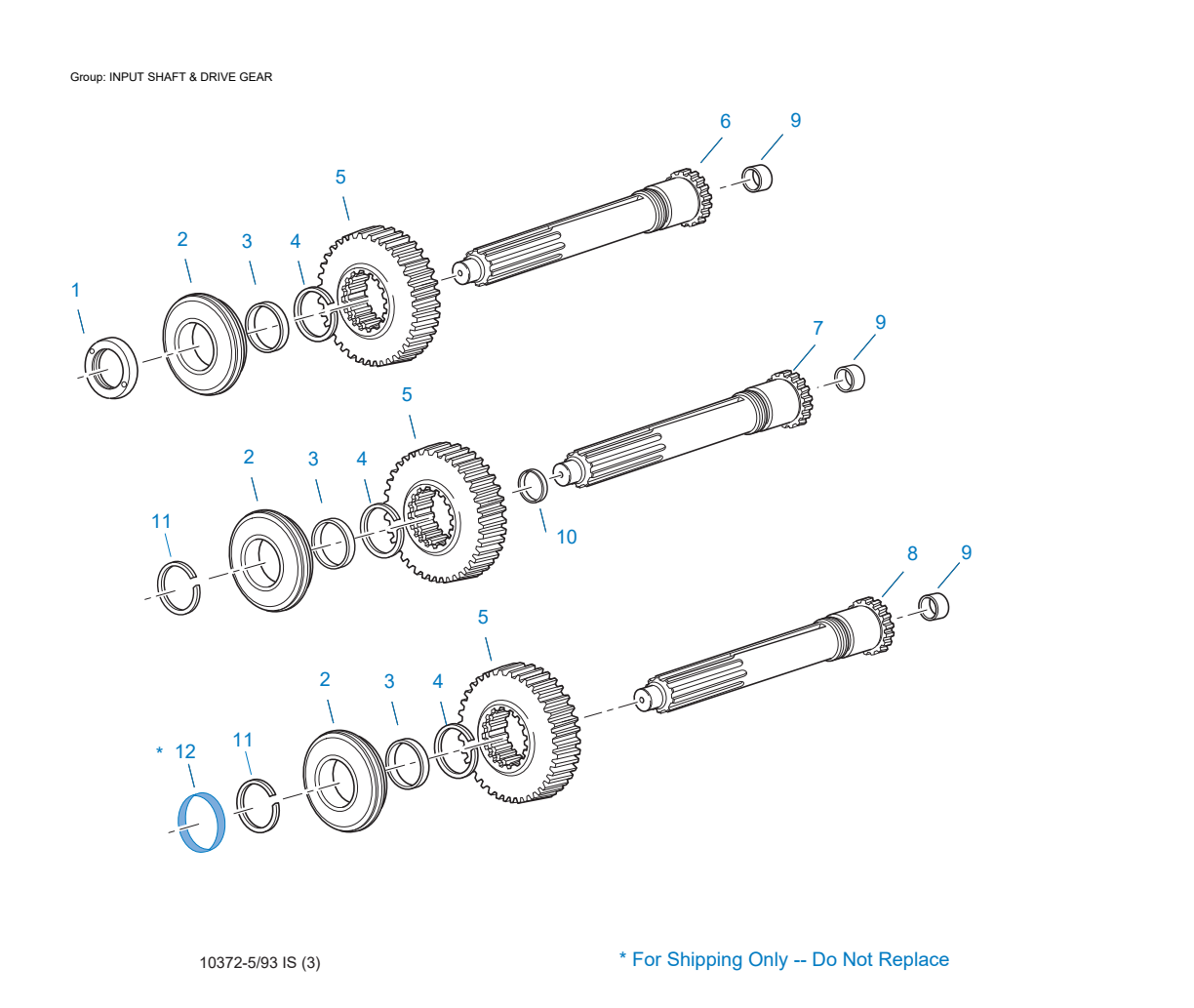

Input Shaft & Drive Gear
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 11466 | Nut | 1 | USE W/15112 SHAFT | $37.21 | Add to Cart |
| 1 | 8858 | Nut | 1 | PUSH | $45.47 | Add to Cart |
| 1 | 8997 | Nut | 1 | PULL | $18.45 | Add to Cart |
| 2 | 81504 | Bearing | 1 | $51.99 | Add to Cart | |
| 3 | 16396 | Spacer | 1 | $27.52 | Add to Cart | |
| 4 | 14289 | Snap Ring | 1 | $2.37 | Add to Cart | |
| 5 | 19646 | Main Drive Gear | 1 | $349.16 | Add to Cart | |
| 6 | 14660 | Input Shaft | 1 | 1-3/4" PUSH - USE W/FBC 14370 | $322.89 | Add to Cart |
| 6 | 14661 | Input Shaft | 1 | 1-3/4" PULL - USE W/FBC 14267 | $313.58 | Add to Cart |
| 6 | 14995 | No Longer Available | 1 | 2" PUSH - USE W/FBC 14994 | — | Call for availability |
| 6 | 15110 | Input Shaft | 1 | 2" PULL - USE W/FBC 15111 | $205.26 | Add to Cart |
| 6 | 15112 | No Longer Available | 1 | 2" PUSH W/SEAL - USE W/FBC 15113 | — | Call for availability |
| 7 | S-1343 | No Longer Available | 1 | Replaces 16983. 1-3/4" PULL W/SEAL - USE W/FBC 18699 | — | Call for availability |
| 7 | S-1344 | No Longer Available | 1 | Replaces 16984. 2" PULL W/SEAL - USE W/FBC 18699 | — | Call for availability |
| 8 | S-1661 | Input Shaft Assy | 1 | Replaces 2054023569, 691518. 2" PULL - USE W/FBC 20550 | $166.91 | Add to Cart |
| 8 | S-1662 | Input Shaft Assy | 1 | Replaces 20541, 23570, 4300430, S-1507. 2" PUSH - USE W/FBC 20549 | — | Call for availability |
| 8 | S-2916 | Input Shaft Assy | 1 | Replaces 20530, 4304354. 1-3/4" PUSH | — | Call for availability |
| 8 | S-2917 | Input Shaft Assy | 1 | Replaces 205314304355. 1-3/4" PULL | $391.22 | Add to Cart |
| 9 | 16566 | Bushing | 1 | $2.88 | Add to Cart | |
| 10 | 16978 | Sleeve | 1 | 2" W/SEAL | $27.60 | Add to Cart |
| 10 | 16979 | Wear Sleeve | 1 | 1-3/4" W/SEAL | $14.47 | Add to Cart |
| 11 | 16980 | Snap Ring | 1 | $2.75 | Add to Cart | |
| 12 | 23559 | Seal | 1 | NOT SOLD FOR SERVICE | $2.62 | Add to Cart |

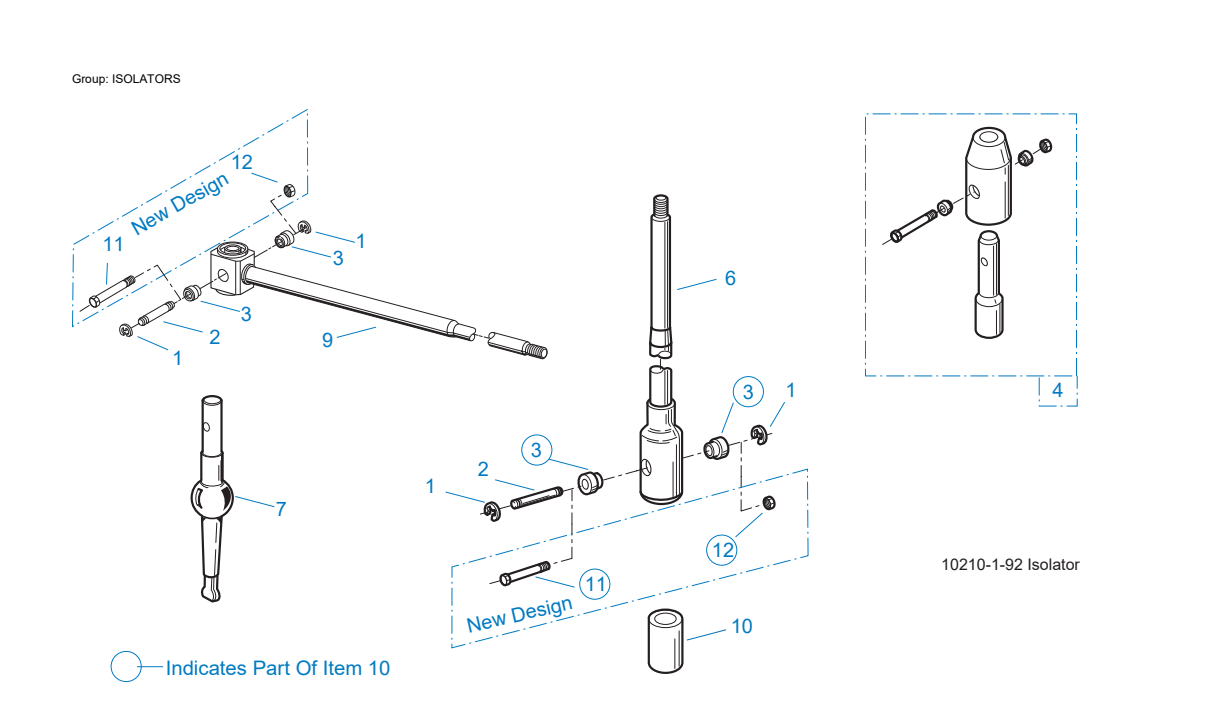

Isolators
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 19124 | -e- Ring | 2 | $1.56 | Add to Cart | |
| 2 | K-3467 | Pin Replacement Kit | 1 | Replaces 21245. | $3.56 | Add to Cart |
| 3 | 21246 | Bushing | 2 | $2.02 | Add to Cart | |
| 4 | S-1794 | Isolator Assy | 1 | $170.02 | Add to Cart | |
| 6 | 21247 | Lever | 1 | STRAIGHT 18.67" | $327.38 | Add to Cart |
| 7 | 21235 | Stub Lever | 1 | LOW TOWER | $111.77 | Add to Cart |
| 7 | 21236 | Stub Lever | 1 | HIGH TOWER | $111.26 | Add to Cart |
| 9 | 21767 | 90 Deg Lever | 1 | STRAIGHT 33" | $369.68 | Add to Cart |
| 10 | K-3399 | Isolator Bushing Kit | 1 | Replaces 21244, 23311. | $22.46 | Add to Cart |
| 11 | X-8-560 | Screw | 1 | $2.39 | Add to Cart | |
| 12 | X-9-503 | Nut | 1 | $1.99 | Add to Cart |
Kits & Assemblies
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-1476 | Shift Lever Hsg | 1 | Replaces 4530, 17163, 18298, 4304905, A-4437. LOW TOWER | $103.90 | Add to Cart | |
| K-1503 | Small Parts Kit | 1 | $175.44 | Add to Cart | ||
| K-1631 | Shift Lever Hsg | 1 | Replaces 14456, 17168, 4304327. LOW | $219.19 | Add to Cart | |
| K-1660 | Clutch Housing Kit | 1 | Replaces 16329, A-4189, A-4190, S-1207. #2 PUSH-PULL ALUM. | — | No longer available — call for replacement | |
| K-1782 | Gasket Kit | 1 | $38.59 | Add to Cart | ||
| K-1873 | Basic Rebuild Kit | 1 | $389.28 | Add to Cart | ||
| K-1983 | Basic Overhaul Kit | 1 | 1-3/4" SHAFT & PULL TYPE CLUTCH | $816.87 | Add to Cart | |
| K-1984 | Basic Overhaul Kit | 1 | 2" SHAFT & PULL TYPE CLUTCH | $714.29 | Add to Cart | |
| K-2003 | Pin & Bushing Kit | 1 | $5.31 | Add to Cart | ||
| K-2262 | Oil Seal W/slinger | 1 | Replaces 19109, 20807, 20808. "FOR MECHANICAL COVER" | $26.86 | Add to Cart | |
| K-2360 | Key & Washer Kit | 1 | Replaces 18365. CONTAINS 3-SIDED KEY | — | No longer available — call for replacement | |
| K-2428 | Lever Replacement Kit | 1 | LOW TOWER | $171.72 | Add to Cart | |
| K-2429 | Lever Replacement Kit | 1 | HIGH TOWER | $156.85 | Add to Cart | |
| K-2973 | Shift Lever Hsg Kit | 1 | Replaces 17166, 17167, 4303050, 4304910, K-1630, K-1941. HIGH TOWER | $136.74 | Add to Cart | |
| K-3399 | Isolator Bushing Kit | 1 | Replaces 21244, 23311. | $22.46 | Add to Cart | |
| K-3467 | Pin Replacement Kit | 1 | Replaces 21245. | $3.56 | Add to Cart | |
| K-3651 | Oil Seal Tool Kit | 1 | — | No longer available — call for replacement | ||
| S-1130 | Input Shaft Assy | 1 | Replaces 14660. 1-3/4" PUSH | $176.19 | Add to Cart | |
| S-1131 | Input Shaft Assy | 1 | Replaces 14661. 1-3/4" PULL | $314.24 | Add to Cart | |
| S-1132 | Input Shaft Assy | 1 | Replaces 14995. 2" PUSH | — | Call for availability | |
| S-1133 | Input Shaft Assy | 1 | Replaces 15110. 2" PULL | $90.67 | Add to Cart | |
| S-1220 | Mainshaft Assy | 1 | Replaces 18362. | $383.89 | Add to Cart | |
| S-1343 | No Longer Available | 1 | Replaces 16983. 1-3/4" PULL W/ SEAL | — | Call for availability | |
| S-1344 | No Longer Available | 1 | Replaces 16984. 2" PULL W/ SEAL | — | Call for availability | |
| S-1661 | Input Shaft Assy | 1 | Replaces 2054023569, 691518. 2" PULL | $166.91 | Add to Cart | |
| S-1662 | Input Shaft Assy | 1 | Replaces 20541, 23570, 4300430, S-1507. 2" PUSH | — | Call for availability | |
| S-1794 | Isolator Assy | 1 | $170.02 | Add to Cart | ||
| S-2129 | Shift Lever Hsg Assy | 1 | LOW TOWER | $320.71 | Add to Cart | |
| S-2130 | Shift Lever Hsg Assy | 1 | Replaces S-2053. HIGH TOWER | $334.77 | Add to Cart | |
| S-2155 | Rear Brg Cover Assy | 1 | Replaces 14708, 20811, 21639, S-1540. | $703.16 | Add to Cart | |
| S-2916 | Input Shaft Assy | 1 | Replaces 20530, 4304354. 1-3/4" PUSH | — | Call for availability | |
| S-2917 | Input Shaft Assy | 1 | Replaces 205314304355. 1-3/4" PULL | $391.22 | Add to Cart |

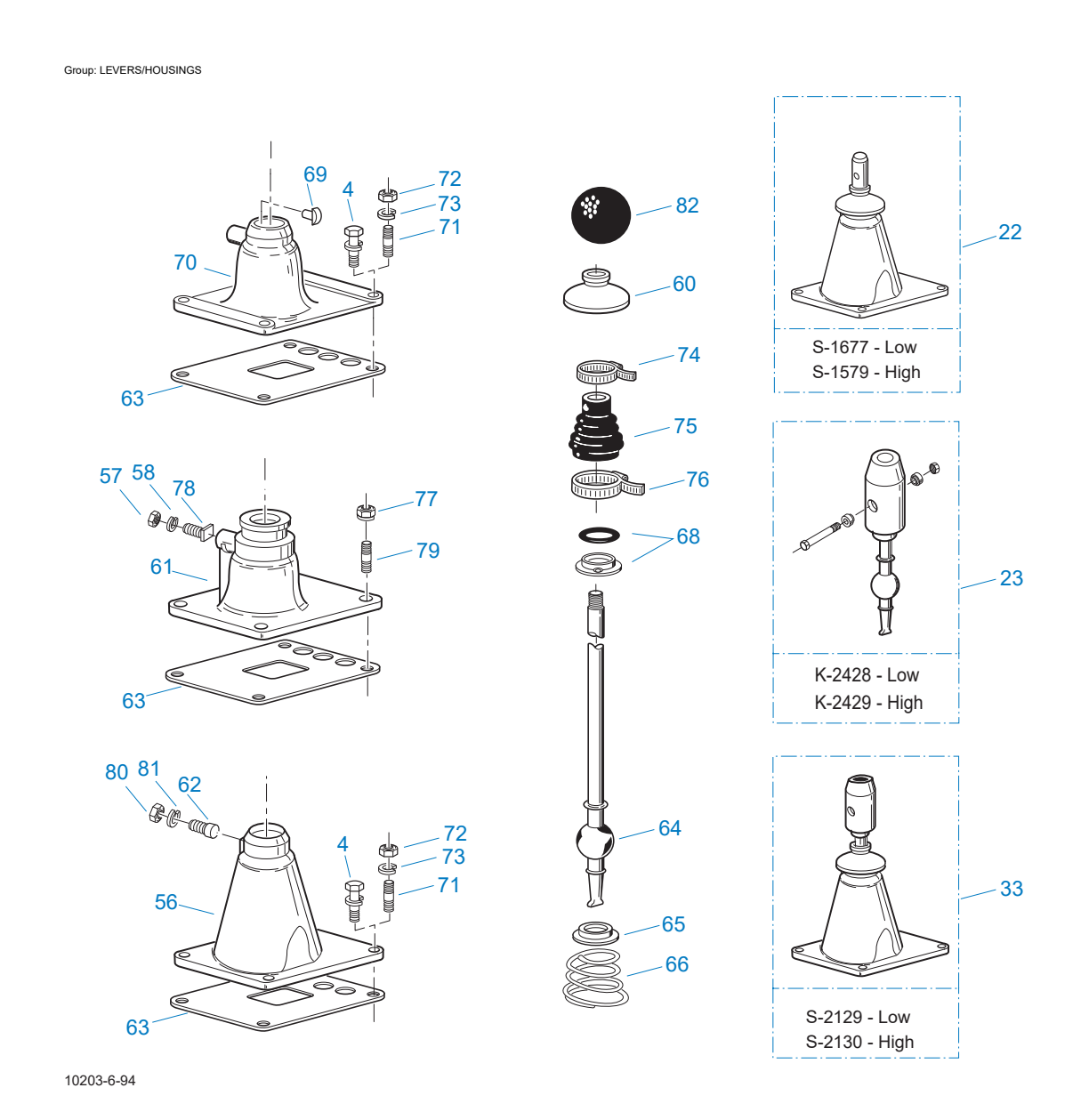

Levers/Housings
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 4 | X-8C-604 | Capscrew | 4 | 3/8"-16X1-1/4" | $3.74 | Add to Cart |
| 23 | K-2428 | Lever Replacement Kit | 1 | LOW TOWER | $171.72 | Add to Cart |
| 23 | K-2429 | Lever Replacement Kit | 1 | HIGH TOWER | $156.85 | Add to Cart |
| 24 | S-1579 | Shift Tower Assy | 1 | HIGH TOWER | $238.95 | Add to Cart |
| 24 | S-1677 | Shift Tower Assy | 1 | LOW TOWER | $257.10 | Add to Cart |
| 33 | S-2129 | Shift Lever Hsg Assy | 1 | LOW TOWER | $320.71 | Add to Cart |
| 33 | S-2130 | Shift Lever Hsg Assy | 1 | Replaces S-2053. HIGH TOWER | $334.77 | Add to Cart |
| 56 | K-2973 | Shift Lever Hsg Kit | 1 | Replaces 17166, 17167, 4303050, 4304910, K-1630, K-1941. HIGH TOWER | $136.74 | Add to Cart |
| 57 | X-1-500 | Nut | 1 | 5/16"-24 | — | Call for availability |
| 58 | X-3-500 | Lockwasher | 1 | 5/16" | $1.66 | Add to Cart |
| 60 | 10427 | Boot | 1 | $4.05 | Add to Cart | |
| 61 | K-1631 | Shift Lever Hsg | 1 | Replaces 14456, 17168, 4304327. LOW, USE W/14795 BOOT | $219.19 | Add to Cart |
| 62 | 6541 | Pin | 1 | 3/8" | $36.68 | Add to Cart |
| 63 | 4305294 | Gasket | 1 | Replaces 4303431. | $10.08 | Add to Cart |
| 64 | 17600 | Gear Shift Lever | 1 | STRAIGHT - LOW 21-1/2" | $327.38 | Add to Cart |
| 64 | 18482 | Gear Shift Lever | 1 | STRAIGHT - HIGH 35" | $369.68 | Add to Cart |
| 65 | 2538 | Retainer | 1 | $5.42 | Add to Cart | |
| 66 | 2536 | Spring | 1 | $5.59 | Add to Cart | |
| 68 | K-3376 | O-ring & Washer Kit | 1 | Replaces 4301211. | $6.24 | Add to Cart |
| 69 | 18299 | Pin | 1 | $2.49 | Add to Cart | |
| 70 | K-1476 | Shift Lever Hsg | 1 | Replaces 4530, 17163, 18298, 4304905, A-4437. LOW TOWER | $103.90 | Add to Cart |
| 71 | 11934 | Stud | 4 | Replaces 7467. | $43.71 | Add to Cart |
| 72 | X-1-600 | Nut | 4 | 3/8"-24-N.F.PLAIN | $1.36 | Add to Cart |
| 73 | X-3-600 | Lockwasher | 4 | 3/8" | $1.33 | Add to Cart |
| 74 | 14453 | Clamp | 1 | $4.89 | Add to Cart | |
| 75 | 14795 | Boot | 1 | $75.78 | Add to Cart | |
| 76 | 14454 | Clamp | 1 | — | No longer available — call for replacement | |
| 77 | X-1-604 | Nut | 4 | 3/8"-24 | — | Call for availability |
| 78 | 14461 | Pin | 1 | — | Call for availability | |
| 79 | 14236 | No Longer Available | 4 | — | Call for availability | |
| 80 | X-1-600 | Nut | 1 | 3/8"-24-N.F.PLAIN | $1.36 | Add to Cart |
| 81 | X-3-600 | Lockwasher | 1 | 3/8" | $1.33 | Add to Cart |
| 82 | 17560 | Lever Grip | 1 | 1/2"-13 | $8.86 | Add to Cart |

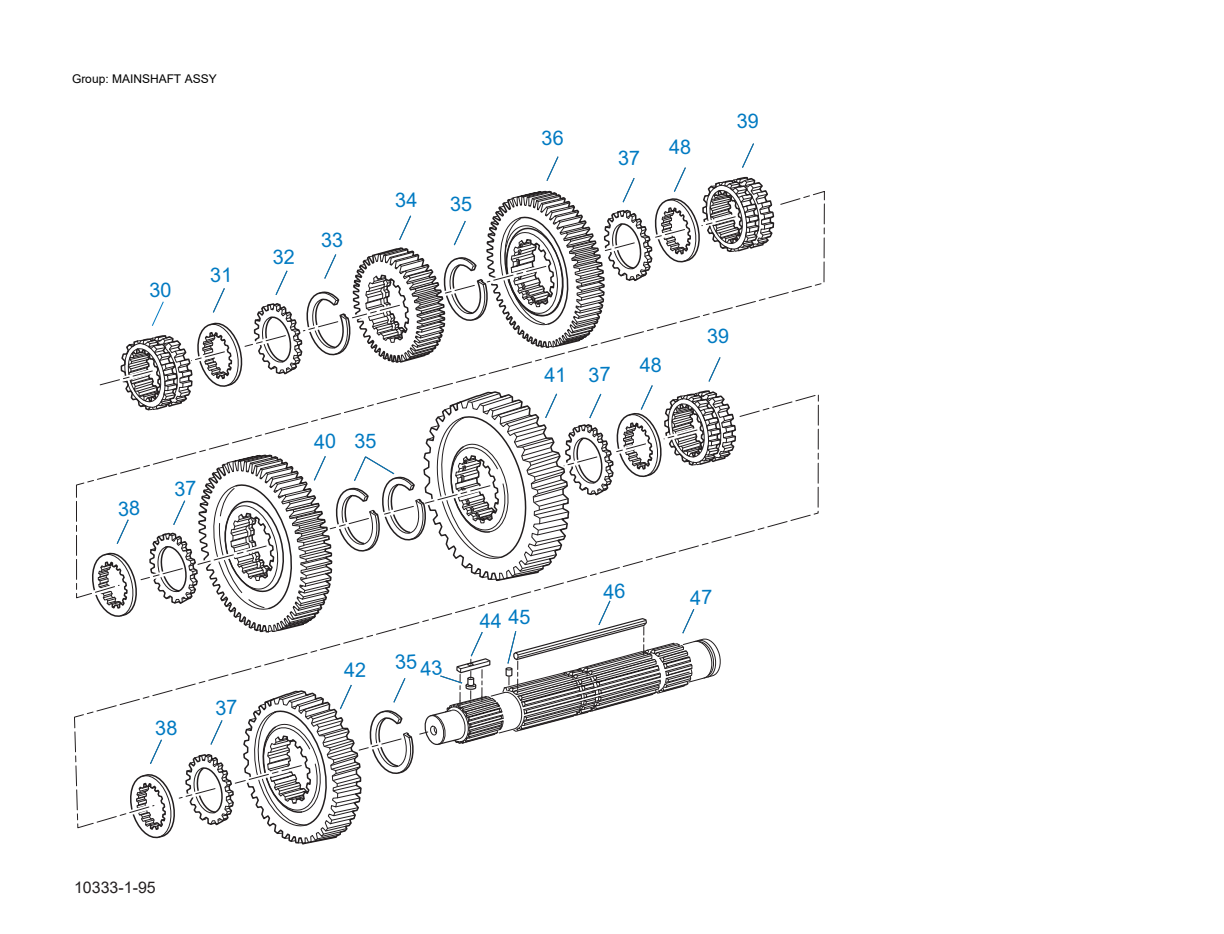

Mainshaft Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 30 | 14654 | Sliding Clutch | 1 | $63.38 | Add to Cart | |
| 31 | 14274 | Washer .248-.250 White | 1 | Replaces 18717. | $15.94 | Add to Cart |
| 31 | 14276 | Washer .258-.260 Orange | 1 | Replaces 18719. | $8.51 | Add to Cart |
| 31 | 14277 | Washer .263-.265 Purple | 1 | Replaces 18720. | $7.62 | Add to Cart |
| 31 | 14278 | Washer .268-.270 Yellow | 1 | Replaces 18721. | $7.51 | Add to Cart |
| 31 | 14279 | Washer .273-.275 Black | 1 | Replaces 18722. | $110.63 | Add to Cart |
| 31 | 4300512 | Washer .253-.255 Green | 1 | Replaces 1427518718. | $15.54 | Add to Cart |
| 32 | 14273 | Spacer | 1 | $362.01 | Add to Cart | |
| 33 | 14289 | Snap Ring | 1 | $2.37 | Add to Cart | |
| 34 | 19171 | No Longer Available | 1 | — | Call for availability | |
| 35 | 14750 | Snap Ring | 4 | $2.20 | Add to Cart | |
| 36 | 4300290 | 3RD Gear-mainshaft | 1 | Replaces 19612. | $202.37 | Add to Cart |
| 37 | 14749 | Spacer | 4 | $6.93 | Add to Cart | |
| 38 | 14711 | Washer .248-.250 White | 2 | Replaces 18701. | $10.25 | Add to Cart |
| 38 | 14712 | Washer .253-.255 Green | 2 | Replaces 18702. | $10.51 | Add to Cart |
| 38 | 14713 | Washer .258-.260 Orange | 2 | Replaces 18703. | $10.51 | Add to Cart |
| 38 | 14714 | Washer .263-.265 Purple | 2 | Replaces 18704. | $10.61 | Add to Cart |
| 38 | 14715 | Washer .268-.270 Yellow | 2 | Replaces 18705. | $10.61 | Add to Cart |
| 38 | 14716 | Washer .273-.275 Black | 2 | Replaces 18706. | $10.61 | Add to Cart |
| 38 | 4300382 | Washer .249-WHITE | 2 | OPTIONAL 4300382-4300387 OR 4300830 USE WITH 3-SIDED KEY | $12.09 | Add to Cart |
| 38 | 4300383 | Washer .254-GREEN | 2 | OPTIONAL 4300382-4300387 OR 4300830 USE WITH 3-SIDED KEY | $12.67 | Add to Cart |
| 38 | 4300384 | Washer .259-ORANGE | 2 | OPTIONAL 4300382-4300387 OR 4300830 USE WITH 3-SIDED KEY | $12.34 | Add to Cart |
| 38 | 4300385 | Washer .264-PURPLE | 2 | OPTIONAL 4300382-4300387 OR 4300830 USE WITH 3-SIDED KEY | $25.41 | Add to Cart |
| 38 | 4300386 | Washer .269-YELLOW | 2 | OPTIONAL 4300382-4300387 OR 4300830 USE WITH 3-SIDED KEY | — | No longer available — call for replacement |
| 38 | 4300387 | Washer .274-BLACK | 2 | OPTIONAL 4300382-4300387 OR 4300830 USE WITH 3-SIDED KEY | $28.78 | Add to Cart |
| 38 | 4300830 | Washer .244-BLUE | 2 | OPTIONAL 4300382-4300387 OR 4300830 USE WITH 3-SIDED KEY | $9.36 | Add to Cart |
| 39 | 14709 | Sliding Clutch | 2 | $92.80 | Add to Cart | |
| 40 | 4300292 | 2ND Gear-mainshaft | 1 | Replaces 19177. | — | No longer available — call for replacement |
| 41 | 4300294 | 1ST Gear-mainshaft | 1 | Replaces 19082. | $260.57 | Add to Cart |
| 42 | 14748 | No Longer Available | 1 | — | Call for availability | |
| 43 | 14832 | Pin | 1 | $6.50 | Add to Cart | |
| 44 | A-3456 | Key & Pin Assy | 1 | Replaces 14884. | $32.16 | Add to Cart |
| 45 | 62511 | Roll Pin | 1 | $1.54 | Add to Cart | |
| 46 | 4300974 | 3-SIDED Key | 1 | MUST USE MATCHING WASHERS | $15.64 | Add to Cart |
| 46 | K-2360 | Key & Washer Kit | 1 | Replaces 18365. CONTAINS 3-SIDED KEY | — | No longer available — call for replacement |
| 47 | S-1220 | Mainshaft Assy | 1 | Replaces 18362. | $383.89 | Add to Cart |
| 48 | 14711 | Washer .248-.250 White | 2 | Replaces 18701. | $10.25 | Add to Cart |
| 48 | 4300382 | Washer .249-WHITE | 2 | MUST BE USED WITH 3-SIDED KEY | $12.09 | Add to Cart |
Miscellaneous
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 19601 | Shift Diagram Label | 1 | T-MODELS | $28.59 | Add to Cart | |
| 19602 | No Longer Available | 1 | TO-MODELS | — | Call for availability | |
| 71203 | Silicone Lube | 1 | 8 OZ (236.59 CC)-FLEET SIZE | $46.48 | Add to Cart | |
| 71204 | Adhesive Sealant | 1 | 0.5 CC (SINGLE APPLICATION SIZE) | $10.64 | Add to Cart | |
| 71205 | Sealant | 1 | 2 CC (SINGLE APPLICATION SIZE) | $10.82 | Add to Cart | |
| 71206 | Silicone Lube | 1 | 4 CC (SINGLE APPLICATION SIZE) | $4.23 | Add to Cart |

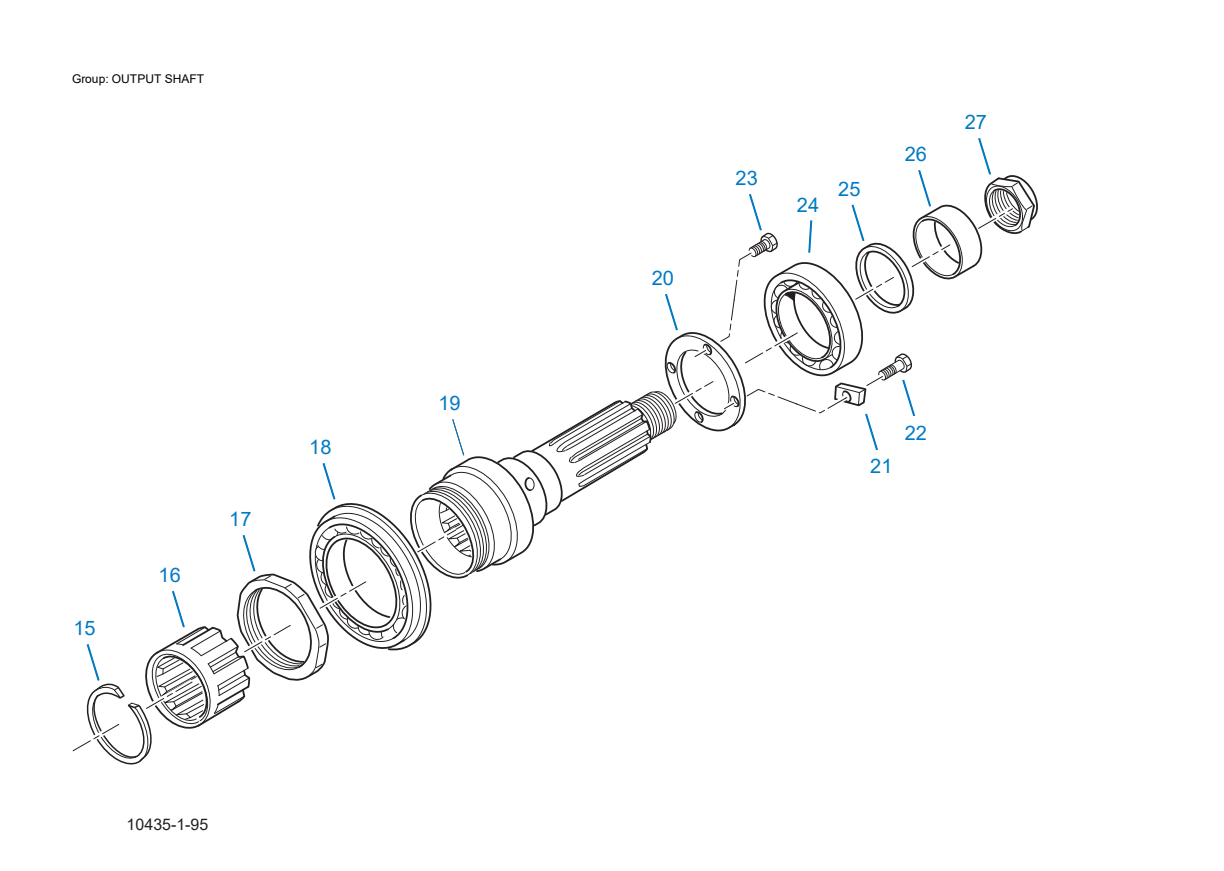

Output Shaft
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 15 | 16763 | Snap Ring | 1 | $2.01 | Add to Cart | |
| 16 | 14756 | No Longer Available | 1 | — | Call for availability | |
| 16 | 18364 | Coupling Output Shaft | 1 | $206.96 | Add to Cart | |
| 17 | 14754 | Nut | 1 | $130.07 | Add to Cart | |
| 18 | 5566507-BOX | Bearing | 1 | Replaces 5566504, 5566507. | $73.44 | Add to Cart |
| 19 | 18363 | Output Shaft | 1 | — | No longer available — call for replacement | |
| 20 | 14735 | Ring | 1 | — | Call for availability | |
| 21 | 14736 | Key | 2 | $15.81 | Add to Cart | |
| 22 | X-7-506 | Bolt | 2 | 5-1/16"-24X1" | $2.20 | Add to Cart |
| 23 | X-7-503 | Bolt | 2 | 5/16"-24X5/8" | $2.58 | Add to Cart |
| 24 | 81549 | Bearing | 1 | $80.60 | Add to Cart | |
| 25 | 5946 | Washer | 1 | $34.19 | Add to Cart | |
| 26 | 20783 | Speedometer Rotor | 1 | $150.96 | Add to Cart | |
| 26 | 6162 | Spacer | 1 | SPEEDO REPLACEMENT | $141.24 | Add to Cart |
| 27 | 12128 | Nut | 1 | $34.68 | Add to Cart |

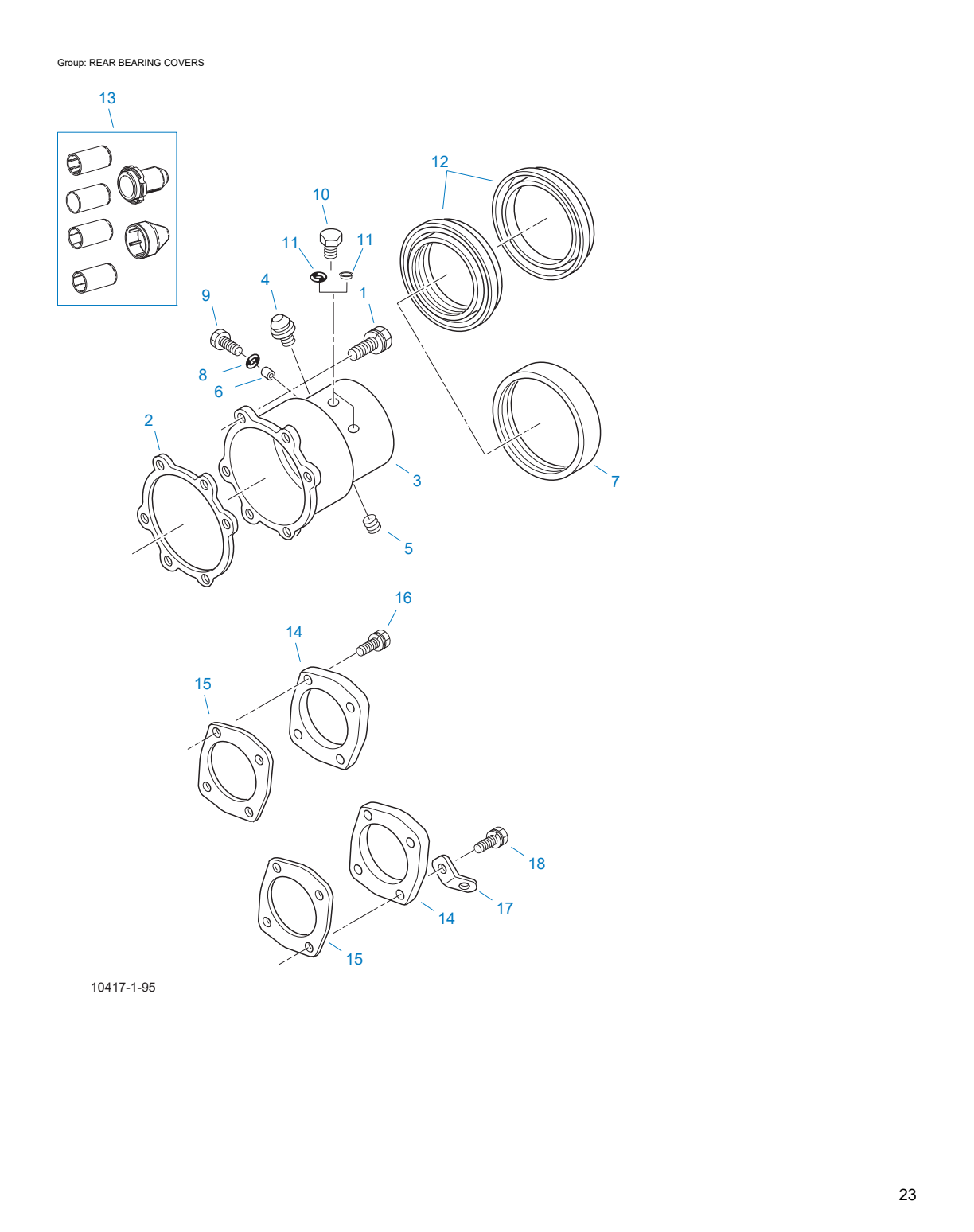

Rear Bearing Covers
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-8L-604 | Capscrew | 6 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 2 | 14724 | Gasket | 1 | $2.60 | Add to Cart | |
| 3 | S-2155 | Rear Brg Cover Assy | 1 | Replaces 14708, 20811, 21639, S-1540. | $703.16 | Add to Cart |
| 4 | 7935 | Breather | 1 | $4.12 | Add to Cart | |
| 5 | X-12-201 | Pipe Plug | 1 | 1/8" | $1.54 | Add to Cart |
| 6 | 7992 | Bushing | 1 | $5.82 | Add to Cart | |
| 7 | 20920 | Oil Seal | 1 | Replaces 15087. 3-1/2" I.D. | $37.27 | Add to Cart |
| 8 | 14142 | O-ring | 1 | $1.96 | Add to Cart | |
| 9 | 20226 | Plug-mechanical | 1 | Replaces 2237. | $4.15 | Add to Cart |
| 10 | 20224 | Plug-magnetic | 2 | $9.19 | Add to Cart | |
| 11 | 13679 | O-ring | 1 | USE W/OEM SUPPLIED ADJUSTABLE SPEEDOMETER SENSOR NOT TO BE USED WITH 4301954 SEAL | $2.60 | Add to Cart |
| 11 | 20225 | O-ring | 2 | USE W/20224 PLUG OR OEM SUPPLIED NON-ADJUSTABLE SPEEDOMETER SENSOR NOT TO BE USED WITH 4301954 SEAL | $2.06 | Add to Cart |
| 11 | 4301954 | Sensor Seal | 2 | O-RING NOT REQUIRED | $4.84 | Add to Cart |
| 12 | K-2262 | Oil Seal W/slinger | 1 | Replaces 19109, 20807, 20808. "FOR MECHANICAL COVER" | $26.86 | Add to Cart |
| 13 | K-3651 | Oil Seal Tool Kit | 1 | — | No longer available — call for replacement | |
| 14 | 14717 | No Longer Available | 2 | — | Call for availability | |
| 15 | 14718 | Gasket | 2 | — | Call for availability | |
| 16 | X-8L-604 | Capscrew | 8 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 17 | 20815 | Lifting Eye | 2 | Replaces 17105. | $2.88 | Add to Cart |
| 18 | X-8L-602 | Capscrew | 2 | 3/8"-16X1-1/2" USE W/20815 LIFTING EYES | $2.09 | Add to Cart |

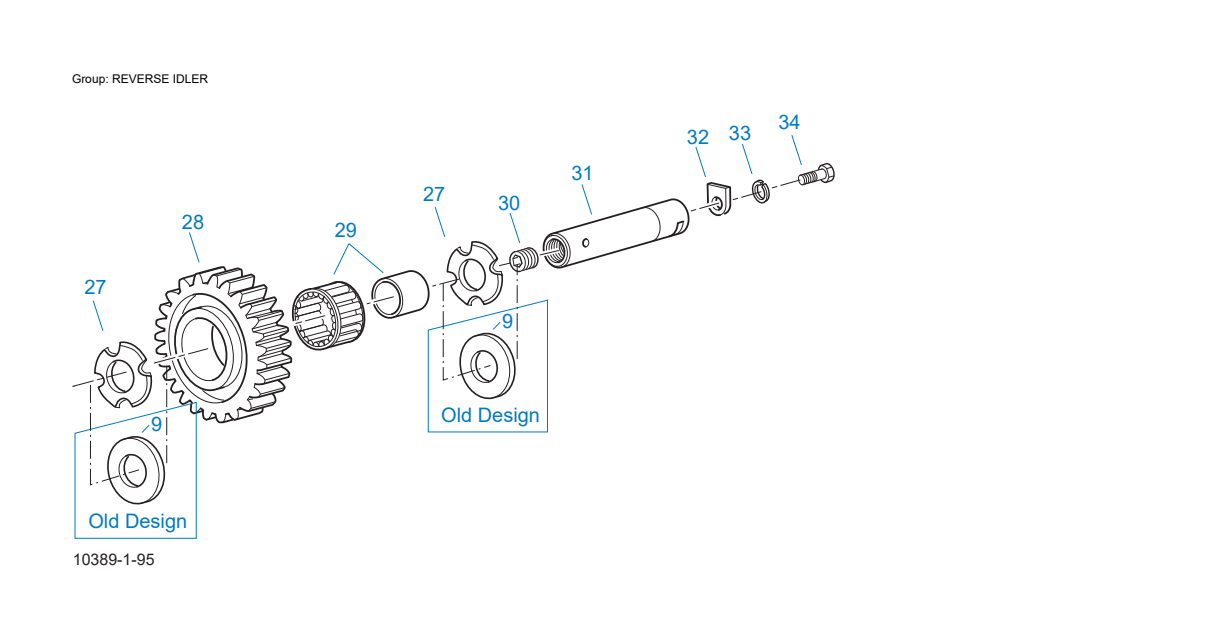

Reverse Idler
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 9 | 14282 | No Longer Available | 4 | — | Call for availability | |
| 27 | 4302982 | Washer | 4 | Replaces 14282. | $5.69 | Add to Cart |
| 28 | 14719 | No Longer Available | 2 | — | Call for availability | |
| 29 | 14287 | Bearing | 2 | Replaces 4305020. | $20.16 | Add to Cart |
| 30 | X-12-205 | Pipe Plug | 2 | 1/8" | — | Call for availability |
| 31 | 14707 | No Longer Available | 2 | — | Call for availability | |
| 32 | 8270 | Lock | 2 | $2.06 | Add to Cart | |
| 33 | X-3-503 | Lockwasher | 2 | 5/16" | — | Call for availability |
| 34 | X-8-500 | Capscrew | 2 | 5/16"-18X3/4" | $1.59 | Add to Cart |

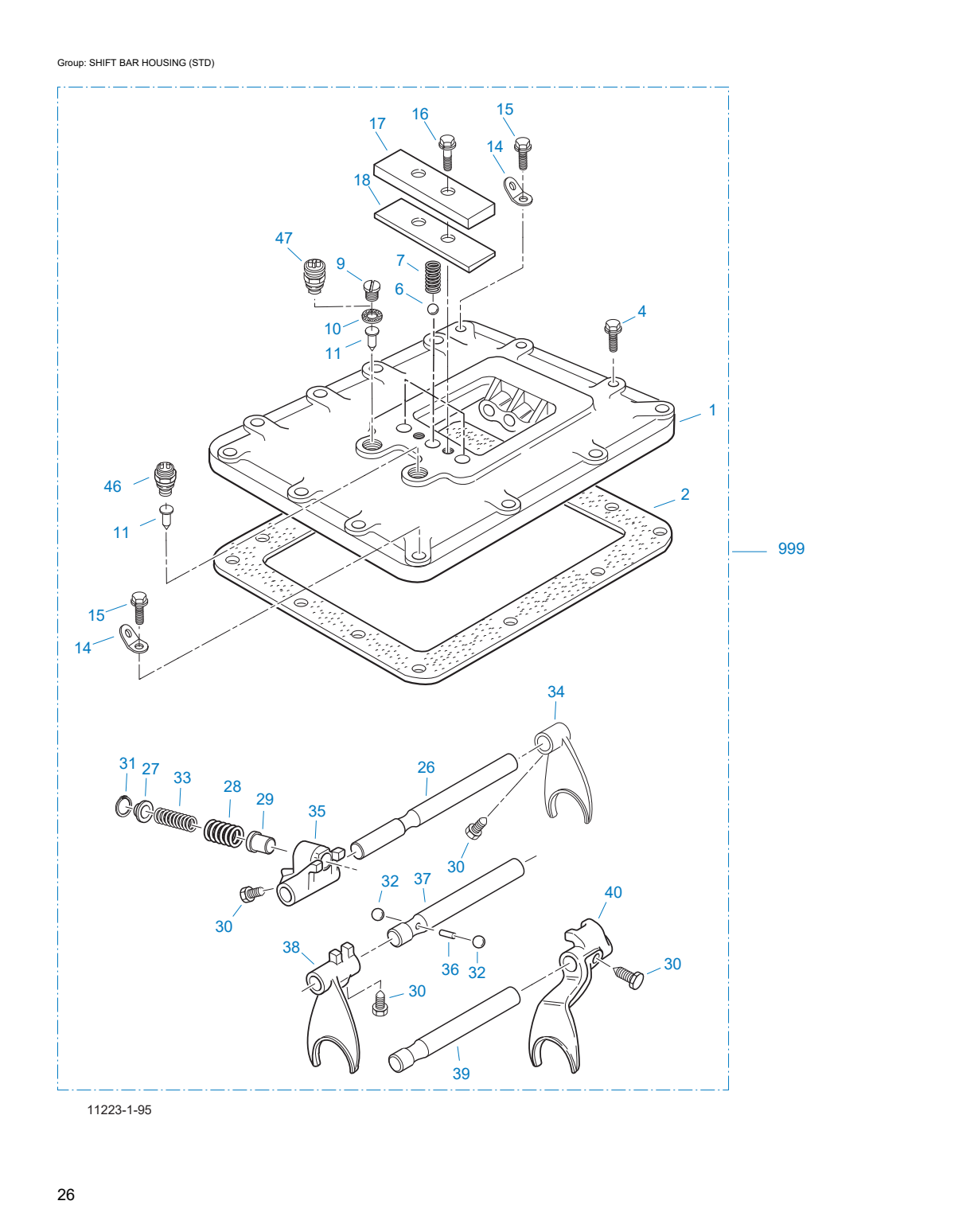

Shift Bar Housing (Std)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-1432 | No Longer Available | 1 | Replaces 19795. HOUSING ONLY | — | Call for availability |
| 2 | 15605 | Gasket | 1 | $8.33 | Add to Cart | |
| 4 | X-8L-604 | Capscrew | 13 | 3/8"-16X1-1/4 - OR USE 11 PCS OF X-8L-604 WITH 2 PCS OF X-8L-602 | $2.34 | Add to Cart |
| 6 | X-14-800 | Steel Ball | 3 | 1/2" | $1.78 | Add to Cart |
| 7 | 1064 | Spring | 3 | $5.33 | Add to Cart | |
| 9 | 4303656 | Plug | 1 | Replaces 15917. | $2.91 | Add to Cart |
| 10 | 15900 | Gasket | 1 | $2.24 | Add to Cart | |
| 11 | 15899 | Pin | 2 | $4.30 | Add to Cart | |
| 14 | 20815 | Lifting Eye | 2 | Replaces 17105. | $2.88 | Add to Cart |
| 15 | X-8L-602 | Capscrew | 2 | 3/8"-16X1-1/2" USE W/20815 LIFTING EYES | $2.09 | Add to Cart |
| 16 | X-8L-600 | Capscrew | 2 | 3/8"-16X1" | $1.76 | Add to Cart |
| 17 | 15132 | Spring Cover | 1 | $5.57 | Add to Cart | |
| 18 | 15133 | Gasket | 1 | $1.58 | Add to Cart | |
| 26 | 15909 | Yoke Bar | 1 | 1ST/REVERSE | — | Call for availability |
| 27 | 19792 | Retainer | 1 | $7.44 | Add to Cart | |
| 28 | 19791 | Spring | 1 | $3.52 | Add to Cart | |
| 29 | 19790 | Plunger | 1 | $29.54 | Add to Cart | |
| 30 | 3220 | Lockscrew | 4 | $4.28 | Add to Cart | |
| 31 | 19793 | Snap Ring | 1 | $1.89 | Add to Cart | |
| 32 | X-14-1200 | Steel Ball | 2 | 3/4" | $2.83 | Add to Cart |
| 33 | 19838 | Spring | 1 | $3.46 | Add to Cart | |
| 34 | 14824 | No Longer Available | 1 | 1ST/REVERSE | — | Call for availability |
| 35 | 19789 | No Longer Available | 1 | 1ST/REVERSE | — | Call for availability |
| 36 | 1634 | Interlock Pin | 1 | $3.13 | Add to Cart | |
| 37 | 14823 | No Longer Available | 1 | 2ND/3RD | — | Call for availability |
| 38 | 14822 | Shift Yoke | 1 | 2ND/3RD | $254.63 | Add to Cart |
| 39 | 14821 | Yoke Bar | 1 | 4TH OR OD/DIRECT | $187.69 | Add to Cart |
| 40 | 14820 | Shift Yoke | 1 | 4TH OR OD/DIRECT | $345.03 | Add to Cart |
| 46 | 22940 | Reverse Light Switch | 1 | Replaces 16830. SWITCH NORMALLY OPEN | $17.31 | Add to Cart |
| 47 | 22941 | Neutral Light Switch | 1 | Replaces 12639. SWITCH NORMALLY CLOSED | $42.29 | Add to Cart |
| 999 | S-2131 | No Longer Available | 1 | Replaces 19795. COMPLETE | — | Call for availability |
