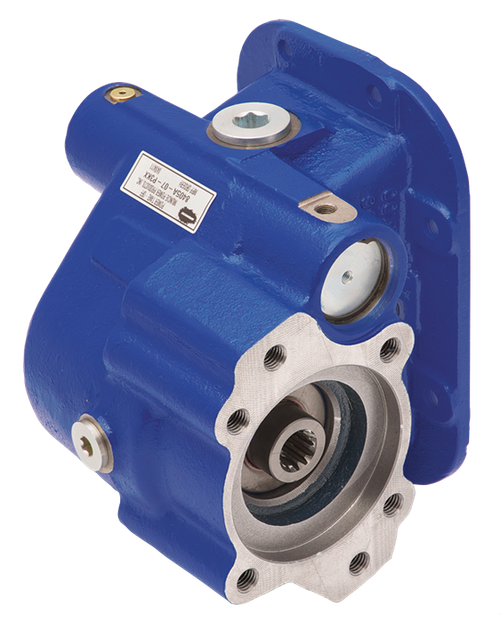

The Muncie 8405A-08-A3KX or 8405A08A3KX is an 8405 Series power take-off featuring a ductile iron housing and an integral 8-bolt mounting pad. The integral air shift engages and disengages the unit without a separate shift cylinder. It accommodates an SAE "B" or SAE "B-B" 2- or 4-bolt pump mounting flange with an optional 1-1/4" output shaft. Intermittent torque rating is 225 ft. lb., and the unit covers the same speed ratio range as the TG8S-U6807, TG8S-U6808, and TG8S-U6809 PTOs. A drain port and an inspection port for backlash adjustment are included. Call us to confirm proper fit for your application. Available from Pro Gear and Transmission.
Features
Ductile iron housing with integral 8-bolt mounting pad
Integral air shift for direct cab-controlled engagement
SAE "B" or SAE "B-B" 2- or 4-bolt pump mounting flange
Optional 1-1/4" output shaft
225 ft. lb. intermittent torque rating
Drain port and inspection port for backlash adjustment
Covers the same speed ratio range as TG8S-U6807, TG8S-U6808, and TG8S-U6809 PTOs
Tech Specs
- Series: 8405A
- Mounting: Integral 8-bolt pad
- Shift Type: Integral air shift
- Pump Flange: SAE "B" or SAE "B-B", 2- or 4-bolt
- Optional Output Shaft: 1-1/4"
- Intermittent Torque Rating: 225 ft. lb.
- Drain Port: Yes
- Inspection Port (backlash adjustment): Yes
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 07 | 44 | 230 | 161 | (33) | (312) | (218) |
| 08 | 44 | 230 | 161 | (33) | (312) | (218) |
| 09 | 39 | 205 | 144 | (29) | (278) |
(195) |
