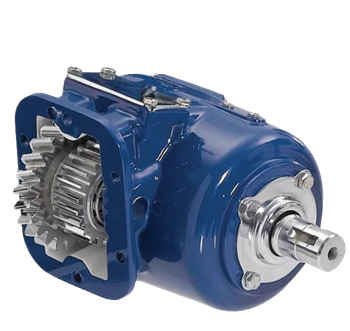

The Muncie CS8 Series Power Take-Off, part number CS8D-S6809-P3BX or CS8DS6809P3BX, is an 8-bolt clutch shift PTO designed to fit most popular automatic and manual transmissions, including the Allison 1000/2000 series. Direct mount pump options cover SAE "A", "B", and "BB" flanges as well as DIN 5462, with rotatable flanges that let you position the pump for maximum clearance. Three remote mount output shaft configurations - keyed and flange types - give additional flexibility for remote pump drives. Muncie's patented drag brake prevents shaft rotation when the unit is in the off position. An optional pulse generator is available to allow a System Protection Device to monitor PTO shaft speed. Call us to confirm proper fit for your application.
Features
CS8 Series PTO, part number CS8D-S6809-P3BX or CS8DS6809P3BX
8-bolt clutch shift engagement
Fits most popular automatic and manual transmissions, including Allison 1000/2000 series
SAE "A", "B", and "BB"; DIN 5462 direct mount pump options with rotatable flanges
Patented Muncie drag brake prevents output shaft rotation when PTO is off
Optional pulse generator for System Protection Device shaft speed monitoring
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 03 | 57 | 300 | 210 | (43) | (407) | (285) |
| 04 | 57 | 300 | 210 | (43) | (407) | (285) |
| 05 | 57 | 300 | 210 | (43) | (407) | (285) |
| 06 | 57 | 300 | 210 | (43) | (407) | (285) |
| 07 | 57 | 300 | 210 | (43) | (407) | (285) |
| 09 | 52 | 275 | 193 | (39) | (373) | (261) |
| 12 | 52 | 275 | 193 | (39) | (373) | (261) |
| 14 | 52 | 275 | 193 | (39) | (373) | (261) |
