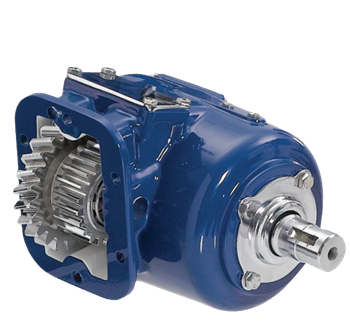

The Muncie CS8S-M6509-E3BX (also referenced as CS8SM6509E3BX) is a CS8 Series power take-off featuring an 8-bolt clutch shift design. It accepts 19 transmission input gear configurations, making it compatible with most popular automatic and manual transmissions including the Allison 1000/2000 series. Direct mount pump options include SAE "A", "B", and "BB" flanges plus DIN 5462, with rotatable flanges for pump positioning clearance. Three remote mount output shaft choices - keyed and flange types - provide flexibility for remote pump drive setups. Muncie's patented drag brake prevents output shaft rotation when the PTO is in the off position. An optional pulse generator supports System Protection Device shaft speed monitoring. Call us to confirm proper fit for your application.
Features
CS8 Series PTO with 8-bolt clutch shift configuration
19 transmission input gear options - fits most popular automatic and manual transmissions including Allison 1000/2000 series
SAE "A", "B", and "BB"; DIN 5462 direct mount pump flanges - rotatable for maximum pump clearance
Three remote mount output shaft options in keyed and flange types for remote pump drive applications
Patented Muncie drag brake prevents shaft rotation when PTO is in the OFF position
Optional pulse generator compatible with System Protection Device for shaft speed monitoring
Tech Specs
- Series: CS8
- Shift Type: 8-Bolt Clutch Shift
- Dimensions (H x W x L): 11.63 in. x 13.38 in. x 15.63 in.
- Direct Mount Pump Flanges: SAE "A", "B", "BB"; DIN 5462
- Remote Mount Output Shafts: Three options - keyed and flange types
- Transmission Input Gear Options: 19
- Drag Brake: Patented Muncie drag brake (shaft-lock in OFF mode)
- Pulse Generator: Optional (System Protection Device compatible)
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 03 | 57 | 300 | 210 | (43) | (407) | (285) |
| 04 | 57 | 300 | 210 | (43) | (407) | (285) |
| 05 | 57 | 300 | 210 | (43) | (407) | (285) |
| 06 | 57 | 300 | 210 | (43) | (407) | (285) |
| 07 | 57 | 300 | 210 | (43) | (407) | (285) |
| 09 | 52 | 275 | 193 | (39) | (373) | (261) |
| 12 | 52 | 275 | 193 | (39) | (373) | (261) |
| 14 | 52 | 275 | 193 | (39) | (373) | (261) |
