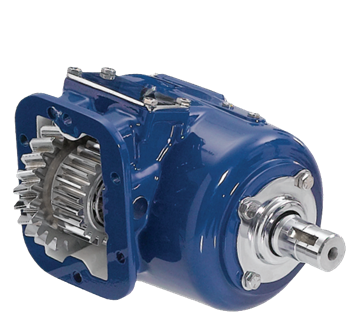

The Muncie CS8 Series Power Take-Off, part number CS8S-U6003-A3BX or CS8SU6003A3BX, is an 8-bolt clutch-shift PTO with direct-mount pump capability. It covers a broad range of transmissions, including the Allison 1000/2000 series and most popular manual transmissions, using 19 available input gear configurations. Direct-mount options span SAE "A", "B", and "BB" flanges plus DIN 5462, with rotatable flanges that let you position the pump for maximum clearance. Intermittent torque rating reaches 300 ft-lb (407 Nm) at the lower speed ratios, with continuous torque rated at 210 ft-lb (285 Nm). The patented Muncie drag brake keeps the output shaft stationary when the PTO is off. Call us to confirm proper fit for your application.
Features
8-bolt clutch-shift actuation
19 transmission input gear options: fits Allison 1000/2000 series and most popular manual transmissions
SAE "A", "B", and "BB" plus DIN 5462 direct-mount pump flanges
Rotatable direct-mount flanges for pump positioning and clearance
Patented Muncie drag brake prevents output shaft rotation when PTO is in OFF mode
Optional pulse generator compatible with System Protection Device for PTO shaft speed monitoring
Tech Specs
- Series: CS8
- Actuation: 8-Bolt Clutch Shift
- Direct-Mount Pump Flanges: SAE "A", "B", "BB"; DIN 5462
- Output Options: Three remote-mount output shafts (keyed and flange types)
- Transmission Input Gears: 19 options
- Intermittent Torque (Speed Ratios 03-07): 300 ft-lb (407 Nm)
- Continuous Torque (Speed Ratios 03-07): 210 ft-lb (285 Nm)
- Intermittent HP @ 1000 RPM (Speed Ratios 03-07): 57 HP (43 kW)
- Intermittent Torque (Speed Ratios 09, 12, 14): 275 ft-lb (373 Nm)
- Continuous Torque (Speed Ratios 09, 12, 14): 193 ft-lb (261 Nm)
- Intermittent HP @ 1000 RPM (Speed Ratios 09, 12, 14): 52 HP (39 kW)
- Drag Brake: Patented Muncie drag brake (prevents shaft rotation in OFF mode)
- Dimensions (H x W x L): 11.63 in. x 13.38 in. x 15.63 in.
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 03 | 57 | 300 | 210 | (43) | (407) | (285) |
| 04 | 57 | 300 | 210 | (43) | (407) | (285) |
| 05 | 57 | 300 | 210 | (43) | (407) | (285) |
| 06 | 57 | 300 | 210 | (43) | (407) | (285) |
| 07 | 57 | 300 | 210 | (43) | (407) | (285) |
| 09 | 52 | 275 | 193 | (39) | (373) | (261) |
| 12 | 52 | 275 | 193 | (39) | (373) | (261) |
| 14 | 52 | 275 | 193 | (39) | (373) | (261) |
